SANY Electric Diagram-Turntable
What is the SANY Electric Diagram-Turntable
- The SANY Electric Diagram-Turntable represents a sophisticated electrical control system specifically designed for precise rotational control and operational monitoring in heavy machinery. This comprehensive schematic incorporates a multi-functional Lamp, audible & visual alarm that provides immediate operational status alerts through both sound and light indicators. The system integrates the advanced SANY LCD Display Screen Assy which serves as the primary interface for real-time monitoring and system diagnostics.
- The electrical infrastructure is secured with high-grade Bolt and Washer components that ensure vibration-resistant mounting of all electrical elements. The detailed Layout of electric control cabinet demonstrates optimized organization of components for efficient maintenance and troubleshooting. A precision Voltagedetector continuously monitors electrical parameters to prevent system overloads and ensure stable operation.
- The system features Cluster 1 as a centralized connection point for multiple electrical circuits, enhancing system integration and reliability. A critical Sensor, temperature monitors thermal conditions within the turntable assembly, providing essential data for preventing overheating and ensuring optimal performance. The intelligent design of the SANY Electric Diagram-Turntable demonstrates exceptional integration of electrical components, featuring robust circuit protection and advanced monitoring capabilities.
- This comprehensive electrical architecture reflects SANY’s commitment to engineering excellence, providing reliable power distribution and precise control for turntable operations. The sophisticated circuitry and component organization within the SANY Electric Diagram-Turntable ensure operational safety and efficiency, contributing significantly to the overall performance and reliability of SANY machinery in demanding working conditions.
Parameters of SANY Electric Diagram-Turntable (1/2)
| Item No. | Part No. | Description | Qty. |
| 1 | 60004594 | Lamp, audible & visual alarm | 1 |
| 2 | A810299000940 | SANY LCD Display Screen Assy | 1 |
| 3 | A210111000079 | Bolt | 2 |
| 4 | A210401000016 | Washer | 2 |
| 5 | 12386447 | Layout of electric control cabinet | 1 |
| 6 | 60157340 | Voltagedetector | 1 |
| 7 | 11301919 | Cluster 1 | 1 |
| 8 | 60110246 | Sensor, temperature | 2 |

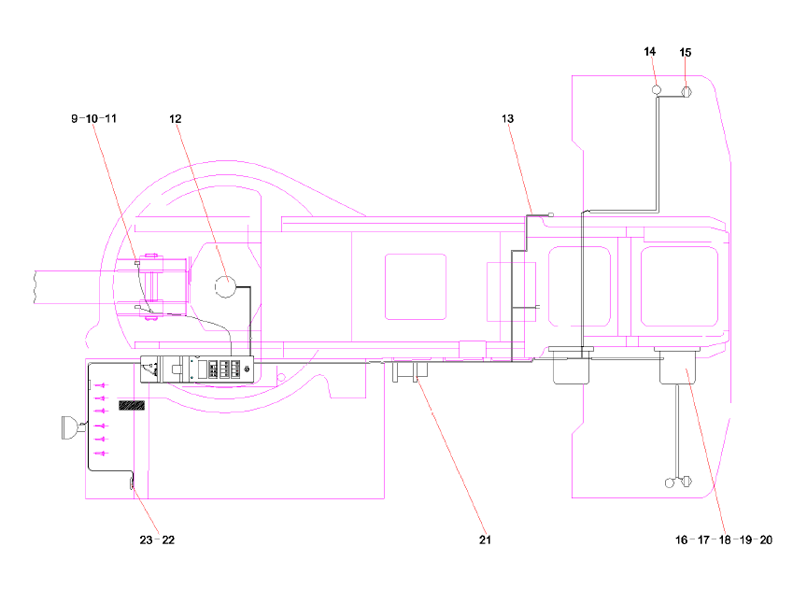

Parameters of SANY Electric Diagram-Turntable (2/2)
| Item No. | Part No. | Description | Qty. |
| 9 | B240600000244 | Sensor, pressure | 2 |
| 10 | A229900004053 | Connector, hose, right angle | 2 |
| 11 | A241900000428 | Cable | 12 |
| 12 | 11697397 | Conducting ring AS | 1 |
| 13 | 11310893 | Harness, solenoid valve | 1 |
| 14 | 10140655 | Lamp AS, outline, rear | 2 |
| 15 | A241100000656 | Lamp, alarm | 2 |
| 16 | A229900001996 | Safety device, rope, wire | 2 |
| 17 | B241200000657 | Socket, chip-type | 3 |
| 18 | A210204000146 | Screw | 8 |
| 19 | A210404000005 | Washer | 8 |
| 20 | A210307000012 | Nut | 8 |
| 21 | B241200000884 | Switch, proximity | 2 |
| 22 | A240500000075 | Horn, electric | 1 |
| 23 | A210770000072 | Terminal | 1 |
