OEM 160102130004A030 Flywheel – Genuine SANY Heavy-Duty Engine Rotational Stabilizer

The genuine SANY parts reference 160102130004A030 is the precision-engineered flywheel, a heavy rotating component mounted on the engine crankshaft within the SANY Flywheel Group. This assembly stores rotational kinetic energy to smooth out torque pulsations from the engine’s combustion cycles, ensuring consistent power delivery to the drivetrain and enabling smooth engine operation at low speeds. The 160102130004A030 flywheel is manufactured from high-strength nodular cast iron (GGG-60 equivalent), offering exceptional fatigue resistance and damping properties essential for heavy-duty diesel engines used in mining trucks and excavators.

As the central element of the SANY Flywheel Group, the flywheel 160102130004A030 integrates with several related components to form a complete rotating assembly. It receives the Deep Groove Ball Bearing (160102130004A005) that provides low-friction support, mounts the Flywheel Ring Gear (160102130004A031) which enables reliable starter motor engagement, and is fastened using specialized Bolt, Hexagon (61028391) and Bolt, Flywheel (61000210) components. Each flywheel is dynamically balanced to ISO 1940 Grade G6.3 standards, guaranteeing minimal vibration and prolonged bearing life.

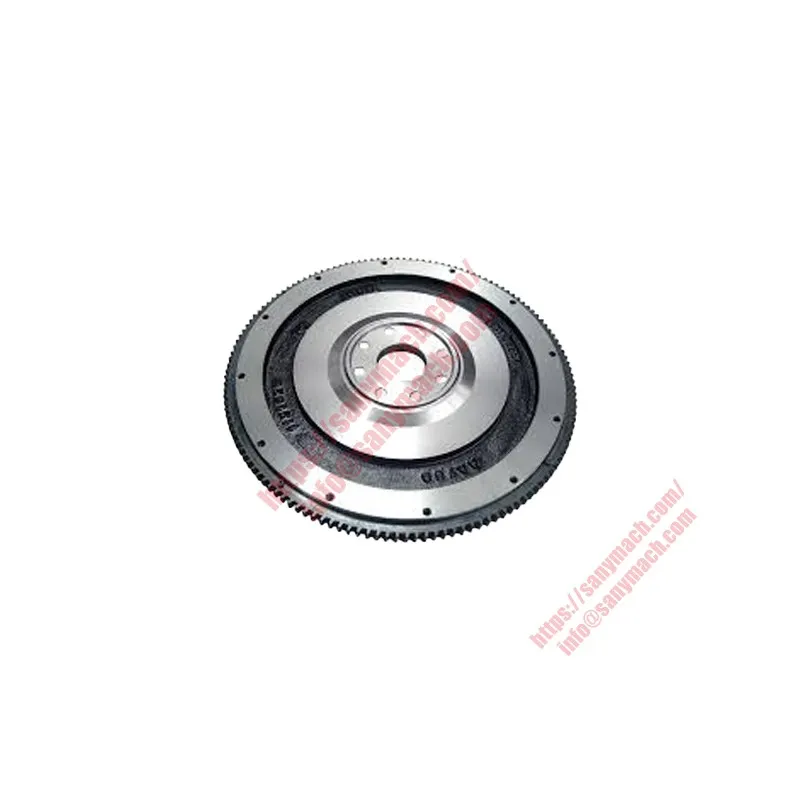

Flywheel

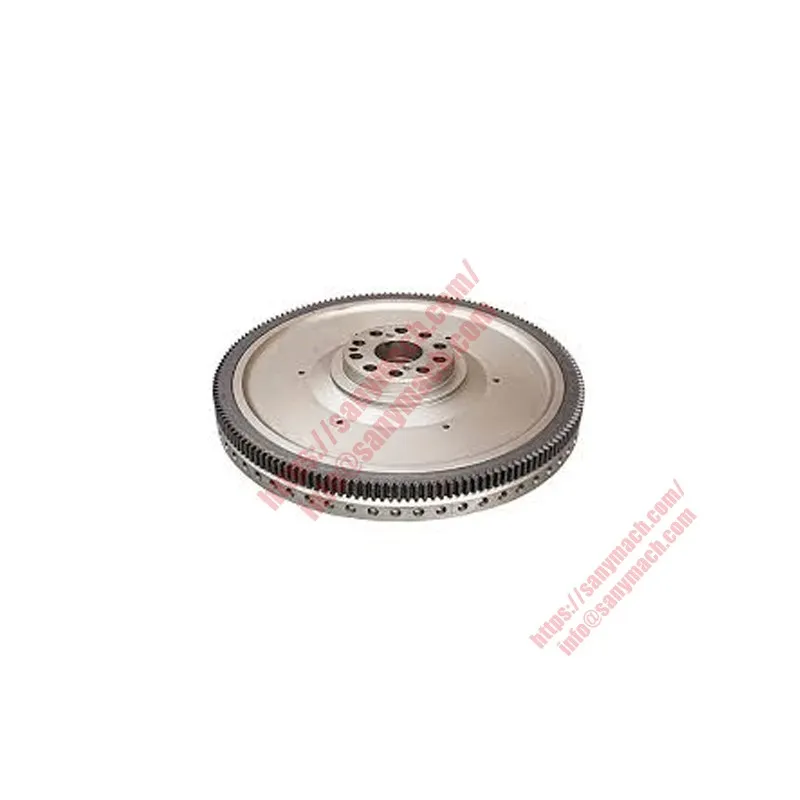

Маховик

Volante de Inercia

Metallurgical Construction of Flywheel 160102130004A030

The flywheel 160102130004A030 is cast from high-strength nodular cast iron (GGG-60 / EN-GJS-600-3 equivalent), a material specially chosen for its superior tensile strength (≥ 600 MPa) and elongation (> 3%) compared to conventional gray iron. The nodular graphite microstructure provides excellent damping capacity — absorbing mechanical vibrations from the diesel engine’s combustion pulses — while resisting crack propagation under cyclic torsional loads.

After casting, the flywheel undergoes a controlled normalizing heat treatment to homogenize the microstructure and relieve residual stresses induced during solidification. The friction face — where the clutch disc engages — is precision-ground to a surface finish of Ra ≤ 1.6 µm, ensuring consistent clutch engagement and preventing chatter. The crankshaft mounting bore is machined to an H7 tolerance, guaranteeing an accurate interference fit around the crankshaft pilot journal.

The flywheel incorporates a precision-machined groove that accepts the Flywheel Ring Gear (160102130004A031). The ring gear is induction-hardened to 48-52 HRC on its tooth surfaces to resist wear from repeated starter engagement cycles. The assembly is secured using a pressed interference fit, supplemented by six M10x1.0 hexagon bolts (61028391) and twelve lock washers (60326373) that prevent loosening due to torsional vibration.

All 160102130004A030 flywheels are dynamically balanced on high-speed balancing machines to ISO 1940 Grade G6.3 standards. This ensures that residual unbalance does not exceed 0.544 g·mm per plane, dramatically reducing vibration transmitted to the crankshaft and main bearings. The result is smoother engine operation, extended transmission life, and reduced driver fatigue in long-haul applications.

Machine Compatibility & Drivetrain Integration

The flywheel 160102130004A030 is a key component of the SANY Flywheel Group and is used in a wide range of SANY heavy equipment. This includes SRT series dump trucks (SRT45, SRT55, SRT95, SRT115), wheel loaders (SW405, SW435, SW465), crawler excavators (SY215, SY335, SY395, SY500), and motor graders (SMG200, SMG220). It is also installed on SANY concrete pump trucks and heavy forklifts equipped with D09, D12 and other SANY diesel engine series.

Within the SANY Flywheel Group, the flywheel works in precise harmony with the Flywheel Housing Group (160102130003A008), which serves as the critical structural interface between the engine and transmission systems. The housing provides precise alignment between the flywheel and the clutch assembly, ensuring concentricity and preventing premature input shaft bearing failure. The Deep Groove Ball Bearing (160102130004A005) installed in the rear of the crankshaft supports the transmission input shaft pilot, maintaining alignment under all operating conditions.

The flywheel 160102130004A030 is mounted to the crankshaft flange using nine Bolt, Flywheel (61000210) high-strength fasteners, which are torqued in a specific sequence to ensure even clamping force and prevent distortion. A single Pin (60127683) serves as a dowel, locking the angular orientation of the flywheel relative to the crankshaft to maintain perfect timing synchronization.

Technical Specifications – Flywheel 160102130004A030

Correct Installation of Flywheel 160102130004A030

When installing the flywheel 160102130004A030, begin by thoroughly cleaning the crankshaft flange and the flywheel mating surfaces. Inspect the dowel pin hole and insert a new Pin, Dowel (60127683) if the original is worn or damaged. Align the flywheel’s dowel hole with the pin and carefully guide the flywheel onto the crankshaft. Ensure that the Deep Groove Ball Bearing (160102130004A005) is correctly seated in the flywheel’s pilot bore before final installation.

Apply high-temperature thread locking compound (Loctite 243 or equivalent) to the nine Bolt, Flywheel (61000210) fasteners. Install the bolts in a crossing pattern (alternating sides) to maintain even seating. Torque the bolts in three steps: first 50 N·m, then 100 N·m, and finally 180 N·m + 90° additional angle turn. After torquing, install the remaining components: press-fit the Flywheel Ring Gear (160102130004A031) onto the outer diameter of the flywheel, ensuring it is fully seated against the shoulder.

Finally, inspect the exposed surfaces of the flywheel ring gear for any damage or missing teeth. Install the Ring, Retainer (60106746) and secure it using the twelve Hexagon Bolts (61028391) with Lock Washers (60326373). Torque these fasteners to 95 N·m, applying a star pattern to distribute clamping load evenly. After installation, rotate the crankshaft manually to verify that the ring gear does not contact the starter mounting or the flywheel housing. Apply a thin film of anti-corrosion oil to the friction face if the clutch assembly is not to be installed immediately.

Quality Assurance & Complete Traceability

Every flywheel 160102130004A030 is manufactured in an IATF 16949 certified foundry under SANY’s strict quality controls. The production process includes raw material spectrographic analysis, 100% ultrasonic testing of the casting for voids or inclusions, and dimensional verification using coordinate measuring machines (CMM). A sample from each production batch is sectioned for metallographic examination to confirm nodularity (> 80%) and carbide distribution.

The flywheel friction face is inspected for flatness and surface finish using a laser profilometer. Each unit is dynamic balanced on a high-precision Schenck balancing machine, with residual unbalance readings recorded and linked to the individual flywheel’s serial number. A laser-etched data matrix code on the flywheel body encodes the production date, heat number, and final inspection results, allowing full traceability throughout the component’s service life.

For bulk orders, SANY provides a Certificate of Conformance (CoC) confirming that the flywheel meets all OEM specifications for material, dimensional accuracy, hardness, and balance quality. Independent third-party audits ensure continuous compliance with ISO 9001:2015 and IATF 16949 standards. The flywheel is packaged in corrosion-inhibiting paper and sealed in a heavy-duty box to protect it from moisture and impact during transport.

Proven Field Durability of Genuine SANY Flywheel

Field data gathered from SANY dump trucks operating in Australian iron ore mines and South African quarries shows that genuine flywheels 160102130004A030 have an average service life exceeding 20,000 operating hours with no measurable friction face wear beyond 0.1 mm. In contrast, aftermarket flywheels often fail within 8,000-12,000 hours due to improper heat treatment, low nodularity, or cracking from thermal cycling.

The superior durability of the genuine SANY flywheel is attributed to the GGG-60 nodular iron base material, precise dynamic balancing, and the induction-hardened ring gear teeth that resist starter bendix wear. Fleet owners who have standardized on genuine SANY flywheels report a 50% reduction in clutch-related failures and elimination of starter ring gear tooth chipping problems.

To maximize service life, always resurface the friction face only when the wear exceeds specification (0.2 mm maximum). Replace the pilot bearing and ring gear simultaneously with the flywheel if any damage is evident. The sophisticated engineering of the SANY Flywheel Group ensures perfect balance and dimensional accuracy, contributing to reduced vibration and enhanced engine performance. Investing in genuine SANY flywheels ensures reliable power transmission, smoother drivetrain operation, and the lowest total cost of ownership for your heavy equipment fleet.
