SANY Layout Plan-Nameplate
What is the SANY Layout Plan-Nameplate
- The SANY Layout Plan-Nameplate system represents a comprehensive identification and instructional marking solution designed for optimal equipment operation and safety compliance. This integrated system features specialized identification plates including the Nameplate, schematic diagram, hoisting position that provides clear visual guidance for lifting operations, and The Note label of outrigger locking pinS that offers specific instructions for stabilization security. Operational guidance is enhanced through the Nameplate, operation instruction, outrigger and Nameplate, operation, left outrigger which deliver precise control information to equipment operators.
- The system includes important safety communications such as the Label, hotline, service for immediate technical support access and multiple Decal, alignment, turntable markers that ensure proper component positioning. Technical information is provided through the Nameplate, lubricating points, superstructure, truck crane and STC250S5 lifting operation name plate that deliver essential maintenance and operational data. Certification and compliance are addressed with the CE certificate nameplate and Decal, noise that meets regulatory requirements.
- Additional safety features include the Label, lifting point for proper load management and the general Nameplate, truck crane for equipment identification. All components are securely affixed using precision Rivet fasteners that ensure permanent placement and durability in demanding working environments. The intelligent design of the SANY Layout Plan-Nameplate system demonstrates exceptional organizational clarity and safety communication, reflecting SANY’s commitment to operational excellence and user safety. This comprehensive identification system contributes significantly to equipment usability, maintenance efficiency, and overall job site safety through clear, durable information presentation.
Parameters of SANY Layout Plan-Nameplate (1/3)
| Item No. | Part No. | Description | Qty. |
| 2 | 12691174 | Nameplate, schematic diagram, hoisting position | 1 |
| 3 | 12699650 | The Note lable of outrigger locking pinS | 2 |
| 4 | 12690496 | Nameplate, operation instruction, outrigger | 2 |
| 5 | 12690497 | Nameplate, operation, left outrigger | 1 |
| 6 | 12690863 | Label,hotline,service | 1 |
| 7 | 10441630 | Decal, alignment, turntable | 1 |
| 8 | 10441614 | Decal, alignment, turntable | 1 |
| 9 | 12693197 | Nameplate, lubricating points, superstructure, truck crane | 1 |
| 10 | 12691152 | STC250S5 lifting operation name plate | 1 |
| 11 | 12690071 | Nameplate, truck crane | 1 |
| 12 | A210510000007 | Rivet | 24 |
| 13 | 11704948 | CE certificate nameplate | 1 |
| 14 | 11704804 | Decal, noise | 1 |
| 15 | A820101990552 | Label, lifting point | 4 |

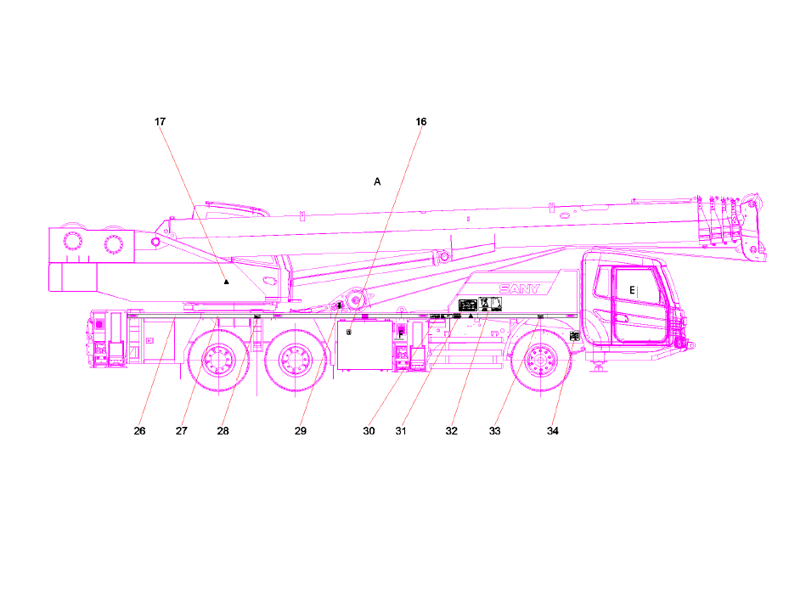

Parameters of SANY Layout Plan-Nameplate (2/3)
| Item No. | Part No. | Description | Qty. |
| 1 | 11707004 | Rear part nameplate | 1 |
| 2 | 12691174 | Nameplate, schematic diagram, hoisting position | 1 |
| 3 | 12699650 | The Note lable of outrigger locking pinS | 2 |
| 4 | 12690496 | Nameplate, operation instruction, outrigger | 2 |
| 5 | 12690497 | Nameplate, operation, left outrigger | 1 |
| 6 | 12690863 | Label,hotline,service | 1 |
| 16 | 12690786 | Nameplate, hydraulic oil tank | 1 |
| 17 | 11700773 | Decal, antiskid | 4 |
| 25 | 12691316 | Assisdent hook NameplateSTC250S5.9-8A | 1 |
| 26 | 60059685 | Reflection decal,body | 5 |
| 27 | 60059686 | Reflection decal,body | 5 |
| 28 | 12691209 | tyre pressure brandSYM5304J3E.9-3 说明 | 2 |
| 29 | 12690494 | Hook NameplateSTC500S6.10-5 | 1 |
| 30 | 12690504 | Nameplate, operation, right outrigger | 1 |
| 31 | 12691187 | STC250S5 crane chassis schematic diagram | 1 |
| 32 | 12690858 | caution plate of high pressure electrici | 2 |
| 33 | 12691206 | tyre pressure brandSYM5304J3E.9-2 说明 | 2 |
| 34 | 12691091 | chassis nameplateSYM5424J3E.9-1 说明 | 1 |

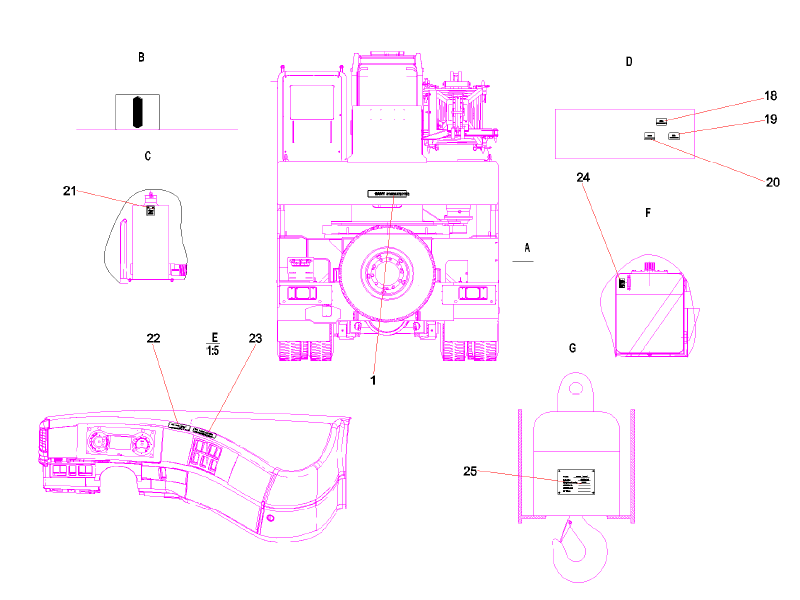

Parameters of SANY Layout Plan-Nameplate (3/3)
| Item No. | Part No. | Description | Qty. |
| 1 | 11707004 | Rear part nameplate | 1 |
| 18 | 12690758 | Decal, manometer | 1 |
| 19 | 12690774 | Decal, manometer | 1 |
| 20 | 12690772 | Decal, manometer | 1 |
| 21 | A820101050798 | Decal, warning, hot surface | 1 |
| 22 | 12690900 | warning plate of vehicle underwaySYM5424 | 1 |
| 23 | 12691051 | power take-off operation instruction nam | 1 |
| 24 | 12690867 | liquid level warning board ⅢSTC500S6.10 | 1 |
| 25 | 12691316 | Assisdent hook NameplateSTC250S5.9-8A | 1 |
