SANY Engine
What is the SANY Engine
- The SANY Engine represents the pinnacle of heavy-duty power generation, engineered for exceptional durability and performance in the most demanding industrial applications. This robust powerplant is meticulously secured within its housing using numerous high-strength Bolt fasteners combined with Washer and Nut assemblies, including specialized WASHER-HARD components that maintain clamping force under extreme vibration. The foundation consists of a reinforced Frame structure that provides critical support and alignment, with additional Frame elements ensuring perfect engine positioning. Advanced Damper systems are integrated at strategic points to absorb operational vibrations and minimize stress on connected components. Every Screw and Washer is precision-torqued to exact specifications, guaranteeing long-term reliability. The sophisticated design of the SANY Engine incorporates multiple Frame attachment points that distribute weight evenly and maintain structural integrity. Through its robust construction and precision engineering, the SANY Engine delivers unmatched power output, operational efficiency, and service life, establishing new standards for performance in heavy machinery applications across various industrial sectors.
Parameters of SANY Engine

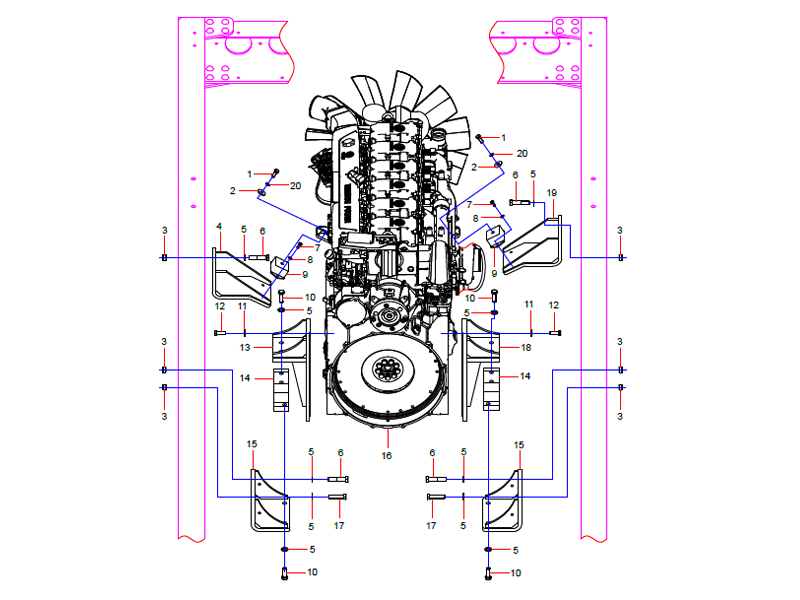

| No. | Part No. | Description | Qty |
| 1 | A210114000118 | Bolt | 2 |
| 2 | A210404000004 | Washer | 2 |
| 3 | A210314000005 | Nut | 16 |
| 4 | ODT004769554 | Frame | 1 |
| 5 | A210405000003 | Washer | 24 |
| 6 | A210113000025 | Bolt | 12 |
| 7 | A210204000220 | Screw | 4 |
| 8 | A210405000007 | Washer | 4 |
| 9 | 131602000003A | Damper | 2 |
| 10 | A210114000007 | Bolt | 8 |
| 11 | A210405000002 | Washer | 12 |
| 12 | A210114000051 | Bolt | 12 |
| 13 | 14352249 | frame | 1 |
| 14 | 131602000004A | Damper | 2 |
| 15 | 14352427 | Frame | 2 |
| 16 | 160102130004A | Engine | 1 |
| 17 | A210114000012 | Bolt | 4 |
| 18 | 14352445 | Frame | 1 |
| 19 | 14352413 | Frame | 1 |
| 20 | A210405000001 | WASHER-HARD | 2 |
| No. | Part No. | Description | Qty |
| 1 | 160102130004A036 | Engine Block Group | 1 |
| 2 | 160102130004A037 | Oil Seal Group | 1 |
| 3 | 160102130004A038 | Spray Nozzle Group | 1 |
| 4 | 160102130004A039 | Flywheel Housing Group | 1 |
| 5 | 160102130004A040 | Front End Cover Group | 1 |
| 6 | 160102130004A041 | Crankshaft Group | 1 |
| 7 | 160102130004A042 | Main Bearing Group | 1 |
| 8 | 160102130004A043 | Thrust Plate Group | 1 |
| 9 | 160102130004A044 | Flywheel Group | 1 |
| 10 | 160102130004A045 | Piston and Connecting Rod Group | 1 |
| 11 | 160102130004A046 | Cylinder Head Group | 1 |
| 12 | 160102130004A047 | Eye Ring Group | 1 |
| 13 | 160102130004A048 | Cylinder Head Cover Group | 1 |
| 14 | 160102130004A049 | Oil-gas Separator Group | 1 |
| 15 | 160102130004A050 | ValveTrainGroup | 1 |
| 16 | 160102130004A051 | GearDriveGroup | 1 |
| 17 | 160102130004A052 | PowerTake-offGroup | 1 |
| 18 | 160102130004A053 | CrankshaftPulleyGroup | 1 |
| 19 | 160102130004A054 | OilPanGroup | 1 |
| 20 | 160102130004A055 | OilDipstickGroup | 1 |
| 21 | 160102130004A056 | OilPumpGroup | 1 |
| 22 | 160102130004A057 | OilStrainerGroup | 1 |
| 23 | 160102130004A058 | OilCoolerGroup | 1 |
| 24 | 160102130004A059 | OilcoolercapGroup | 1 |
| 25 | 160102130004A060 | OilFilterGroup | 1 |
| 26 | 160102130004A061 | OilFillingTubeGroup | 1 |
| 27 | 160102130004A062 | WaterOutletPipeGroup | 1 |
| 28 | 160102130004A063 | WaterPumpGroup | 1 |
| 29 | 160102130004A064 | WaterPumpInletPipeJointGroup | 1 |
| 30 | 160102130004A065 | VentingPipeGroup | 1 |
| 31 | 160102130004A066 | ThermostatGroup | 1 |
| 32 | 160102130004A067 | FanBracketGroup | 1 |
| 33 | 160102130004A068 | FanandHubGroup | 1 |
| 34 | 160102130004A069 | FuelInjectionPumpGroup | 1 |
| 35 | 160102130004A070 | FuelInjectionPumpOilPipeGroup | 1 |
| 36 | 160102130004A071 | FuelInjectorGroup | 1 |
| 37 | 160102130004A072 | LowPressureFuelPipeGroup | 1 |
| 38 | 160102130004A073 | FuelFilterGroup | 1 |
| 39 | 160102130004A074 | HighPressureFuelPipeGroup | 1 |
| 40 | 160102130004A075 | CommonRailGroup | 1 |
| No. | Part No. | Description | Qty | Page number |
| 41 | 160102130004A076 | IntakeManifoldGroup | 1 | 8-142 |
| 42 | 160102130004A077 | TurbochargerGroup | 1 | 8-146 |
| 43 | 160102130004A078 | TurbochargerOilPipeGroup | 1 | 8-148 |
| 44 | 160102130004A079 | CompressorPipeGroup | 1 | 8-150 |
| 45 | 160102130004A080 | ExhaustManifoldGroup | 1 | 8-152 |
| 46 | 160102130004A081 | AirCompressorGroup | 1 | 8-154 |
| 47 | 160102130004A082 | HydraulicPumpGroup | 1 | 8-158 |
| 48 | 160102130004A083 | TensionerAndBeltGroup | 1 | 8-160 |
| 49 | 160102130004A084 | StarterMotorGroup | 1 | 8-162 |
| 50 | 160102130004A085 | EngineBracketGroup | 1 | 8-164 |
| 51 | 160102130004A086 | PartsBoxGroup | 1 | 8-166 |
| 52 | 160102130004A087 | ElectronicControlUnitGroup | 1 | 8-170 |
| 53 | 160102130004A088 | ElectronicControlSystemHarnessGroup | 1 | 8-172 |
| 54 | 160102130004A089 | AlternatorGroup | 1 | 8-174 |
| 55 | 160102130004A090 | AlternatorBracketGroup | 1 | 8-176 |
