61000765 Corehole Plug 16/10 – Precision Sealing for SANY Engine Blocks

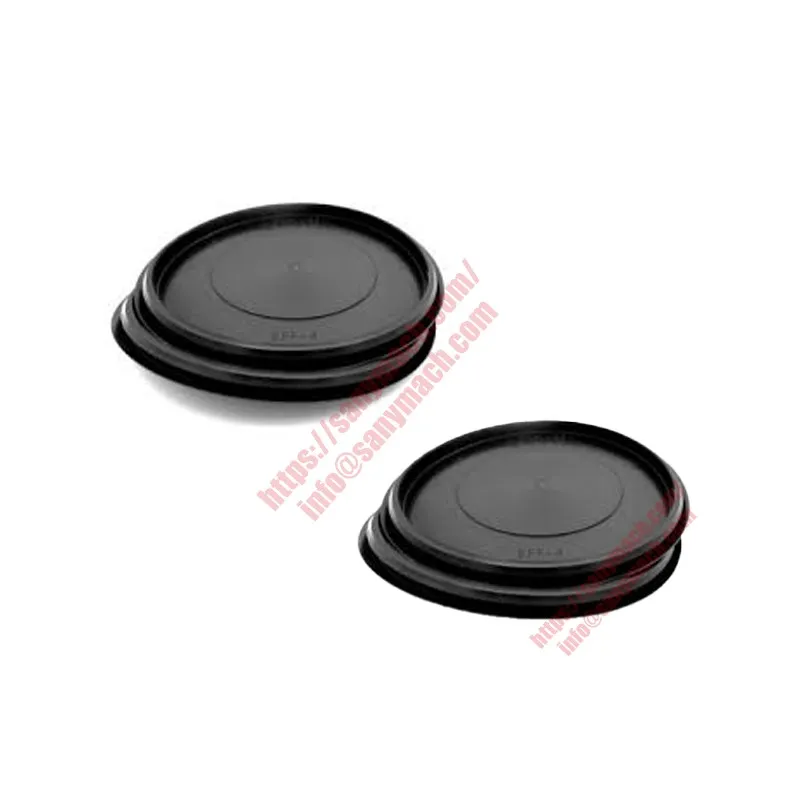

Secure engine block casting voids with genuine SANY components. The 61000765 Corehole Plug 16/10 is a precision‑engineered expansion plug designed to seal core holes left from the sand‑casting process in SANY heavy‑duty diesel engine blocks and cylinder heads. This cup‑shaped steel plug provides permanent sealing for water jackets, oil galleries, and production passages, preventing coolant and oil leakage while maintaining block integrity under high pressure. Trusted by service professionals and engine rebuilders worldwide, SANY parts deliver consistent fitment and sealing reliability. With part number 61000765, this Corehole Plug is an essential component during engine overhaul, protecting D12 and D09 powerplants from fluid loss and corrosion‑related failure.

The 61000765 Corehole Plug 16/10 is a precision‑formed metal expansion plug engineered to seal the sand casting core holes that are an inherent part of manufacturing engine blocks and cylinder heads. During the casting process, sand cores are placed inside the mold to create complex internal passages—such as water jackets, oil galleries, and coolant circuits—and after casting, these cores must be removed through dedicated openings in the block.

The 61000765 Corehole Plug permanently seals these production openings, preventing coolant or oil from leaking through the block walls and maintaining the integrity of the engine’s internal fluid passages. The plug features a cup‑shaped or dish‑shaped geometry with a slightly tapered outer diameter. When installed, the plug creates a press‑fit or interference fit within the machined core hole.

The elastic deformation of the steel provides a permanent, leak‑proof seal that expands radially against the bore. Unlike threaded plugs, the 61000765 Corehole Plug relies purely on interference to maintain sealing force, eliminating the risk of thread galling or sealant degradation. This design offers exceptional reliability in high‑vibration diesel engine environments.

The plug also provides a smooth, flush finished surface once installed—only a few millimeters below the block face—which allows adjacent components to mount without obstruction and gives the engine block a professionally rebuilt appearance. The 61000765 designation specifies a nominal diameter of 16 mm, with an active sealing length of approximately 10 mm.

The plug is manufactured from high‑quality steel (typically SAE 1008‑1010 low‑carbon steel plated for corrosion resistance) using precision stamping and forming processes. The resulting cup geometry incorporates a slight taper from the open end to the closed end, creating the interference needed for a robust mechanical seal when driven into a machined core hole slightly smaller than the plug’s outer diameter.

This interference fit generates sufficient radial compression to counter coolant pressure without the need for additional sealants, although the use of anaerobic thread‑locking compounds may be specified by SANY service procedures for enhanced sealing in certain applications. Listed in the SANY Crankcase Assembly parts catalog, the 61000765 Corehole Plug appears alongside other critical sealing and fastening components such as Corehole Plug 60272566 and Pulling Rivet 160102120008A009.

The 61000765 Corehole Plug belongs to a family of sealing components that are absolutely critical to the integrity of any water‑cooled internal combustion engine. During the manufacturing process, engine blocks are cast using sand cores to form the complex network of internal passages required for coolant circulation, oil delivery, and other fluid functions.

After the metal has solidified and cooled, the sand cores must be removed from the block, leaving behind a series of intentionally placed openings known as core holes. The 61000765 Corehole Plug is precisely engineered to seal these openings permanently, allowing coolant and oil to flow through their intended passages without leaking out of the block.

The SANY D12 and D09 engines rely on a high‑pressure common‑rail injection system operating at up to 1,800 bar, which places substantial thermal and mechanical demands on the cylinder block structure. Properly sealed core holes are essential for maintaining cooling system pressure, which in turn prevents localized boiling in the water jacket and ensures consistent cylinder head and cylinder liner temperatures.

A leaking corehole plug—whether due to corrosion, improper installation, or poor‑quality replacement—can cause coolant to seep from the block, leading to gradual fluid loss, overheating, and, in severe cases, cylinder liner cavitation or head gasket failure. The 61000765 Corehole Plug is manufactured to exacting SANY tolerances, guaranteeing proper interference and reliable sealing throughout the life of the engine.

Today, many heavy equipment rebuilders use the generic term “freeze plug” to refer to corehole plugs, but the 61000765 is not intended as a freeze protection device—its primary function remains sealing the casting openings. Nonetheless, the plug’s cup‑shaped construction and interference fit do provide some expansion capacity if ice forms in the water jacket under extreme cold conditions, potentially relieving pressure that might otherwise crack the block.

However, the 61000765 Corehole Plug should never be relied upon for freeze protection; proper coolant mixture and maintenance schedules are the correct means of preventing freeze damage. The plug’s crucial role lies in its ability to maintain fluid containment throughout the full range of engine operating conditions.

The 61000765 Corehole Plug 16/10 is specifically designed for use in the SANY D12 and D09 series diesel engines developed in partnership with DEUTZ. The SANY D12 engine features a displacement of 12.12 liters, six cylinders, and a power output up to 360 kW (490 HP) at 1,900–2,100 rpm. With a maximum torque of 2,150 Nm and an idle speed as low as 525 rpm, the D12 is engineered for superior low‑speed drivability and reduced component wear.

To withstand these extreme pressures and thermal loads, every corehole plug in the D12 block must meet stringent dimensional and material specifications. The 61000765 is certified for installation in D12 engine blocks that power SANY Kingway 435 trucks, SYZ series dump trucks, and various heavy‑duty on‑highway and off‑highway configurations.

The SANY D09 engine is a 9‑liter, six‑cylinder unit delivering up to 280 kW (380 HP) and a maximum torque of 1,550 N·m. Designed for high fuel efficiency and reliability, the D09 is widely used in SANY concrete mixer trucks, truck‑mounted pumps, urban dump trucks, and crane carriers.

As documented in the SANY Crankcase Assembly parts catalog, the 61000765 Corehole Plug is listed as a component used in D09 engine block core‑hole sealing applications, requiring exact fitment to prevent coolant and oil migration through the block. Failure to replace a leaking or corroded corehole plug during engine maintenance can lead to gradual coolant loss, which may eventually result in overheating and catastrophic engine failure.

Beyond the D12 and D09 engine families, the 61000765 Corehole Plug is also compatible with certain SANY engine blocks that share the same core‑hole specification, such as earlier‑generation DEUTZ‑based powerplants found in older SANY excavator, loader, and crane models. However, it is always critical to confirm the specific core‑hole location, diameter, and depth before installation by referencing the applicable SANY service manual or parts catalog entry.

When rebuilding a SANY D12 or D09 engine, it is prudent to replace all accessible corehole plugs as part of a comprehensive sealing system refresh. This includes not only the 61000765 but also associated corehole plugs, O‑rings, cylinder liner seals, and assembled sealing washers. Using a complete set of genuine SANY sealing components eliminates the risk of mismatched parts and ensures that the engine will deliver its full service life without coolant loss, oil contamination, or premature failure.

Correctly installing the 61000765 Corehole Plug is essential for achieving a reliable, leak‑free seal. Begin by removing any existing plug using a suitable tool such as a drift punch or corehole plug removal tool, being careful not to damage the surrounding block face or the machined bore.

Clean the bore thoroughly with a wire brush, followed by a solvent rinse, to remove all corrosion, old sealant residue, and debris. The machined surface should be clean, dry, and free of pitting that could interfere with proper plug seating. If the bore is badly corroded or oversized, the engine block may require machining to accept a larger oversize corehole plug; consult the SANY service manual for bore size specifications before proceeding.

Before installing a new 61000765 Corehole Plug, inspect it for any visible damage such as dents, scratches, or plating defects. If the plug has been dropped or mishandled, discard it and obtain a fresh component. Apply a thin, even bead of SANY‑approved anaerobic sealant (such as Loctite 648) around the outer diameter of the plug’s cup, as specified in the engine repair procedure.

This sealant fills microscopic surface irregularities and provides additional leak resistance, particularly in high‑vibration applications where mechanical interference alone might not be sufficient. Position the plug squarely over the bore with the closed (convex) end facing outward and the open end directed into the block.

Using a corehole plug driver of the correct diameter, drive the 61000765 plug into the bore with firm, centered blows from a hammer. The plug should seat flush with the block face or slightly recessed—typically 0.5 mm to 2 mm below the mating surface per SANY specifications—but not below the minimum depth that would defeat the mechanical lock.

Stop driving once the plug bottoms in the bore or reaches the specified depth; over‑driving can distort the cup geometry and reduce sealing effectiveness. After installation, allow the sealant to cure for the manufacturer’s recommended time before pressurizing the cooling system or returning the engine to service.

During routine engine service, inspect accessible corehole plugs for signs of leakage, such as dried coolant residue, rusty streaks, or active weeping around the plug perimeter. If leakage is detected, the engine block should be drained and the leaking plug replaced immediately to prevent coolant loss, cylinder liner erosion, or head gasket damage. For major engine overhauls, replace all corehole plugs as a set.

Counterfeit or generic corehole plugs often use thinner gauge steel, inferior plating, and imprecise forming that results in inconsistent diameters or cup shapes. These defects can prevent the plug from achieving the correct interference fit, leading to immediate or gradual leakage of coolant past the plug.

Generic plugs may also lack the specific taper geometry required for the spring‑lock effect that holds the plug in place under pressure. As the engine undergoes thermal cycles from cold starts to full operating temperature, a poorly fitting generic plug may work loose, eventually falling out of the block entirely, causing catastrophic coolant loss and potential engine seizure.

The OEM 61000765 Corehole Plug is manufactured under strict SANY quality assurance protocols, utilizing precision stamping and forming dies that replicate the exact geometry of the original part. Each production batch is subject to dimensional checks, plating quality verification, and sample torque‑retention testing to ensure consistent performance across thousands of units.

The low‑carbon steel alloy used in the genuine plug provides the ideal balance of ductility for installation and strength for long‑term retention. Aftermarket plugs made from excessively hard steel may crack during installation, while overly soft steel may not retain enough interference force after thermal cycling to remain leak‑free.

The traceability system for the 61000765 Corehole Plug allows SANY’s global dealer network to verify the origin and quality of each component throughout the supply chain. Each genuine SANY part is supported by comprehensive warranty coverage and technical documentation, providing fleet managers and equipment owners with the assurance that their maintenance investments are protected against premature failure.

Protect your investment in SANY heavy machinery by always specifying OEM‑grade sealing components that match the original equipment quality standards. The 61000765 Corehole Plug 16/10 ensures leak‑free operation, prevents costly fluid loss, reduces unplanned maintenance interruptions, and contributes to the overall reliability and resale value of your equipment.
