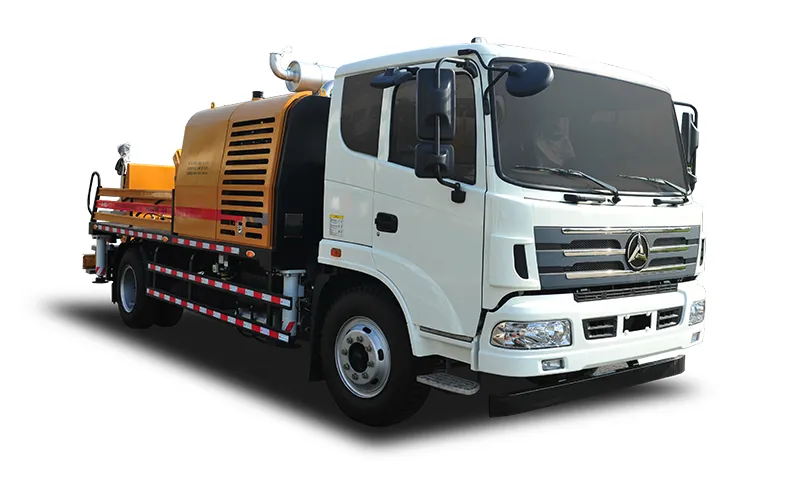

SY5143THBE-10023C-10S
Line Pump
Theo Concrete Output
100 / 50 m³/h
Theo Delivery Pressure
11 / 23 MPa
Upper Engine Power
200 kW
Features
- NAS 1638 class 7 hydraulic oil means clean oil.
- A built-in style oil pump is installed near the switch to ensure of stable signal.
- Intelligent control system with excellent trouble-free performance.
- Wear plate, cutting ring
- Piston
- Cylinder
- Equipped with auto lubricating grease pump.
- Exceptionally performing wear parts
- Concrete pump cylinder with a large diameter
- Self-regulating power technology
- SN reversing technology
- Brand new hopper
- Fast pumping speed
- Piston auto return technology
- High and low pressure auto-switching technology
- Intelligent fault diagnostic system
- Smart control panel
- Exclusive motion controller for pumping
Specification of SY5143THBE-10023C-10S
Chassis Specification
- Chassis Model: SANY SYM1161T1E
- Engine Rated Power: 136/2500 kW/rpm
- Max. Allowable Total Mass: 15600 kg
- Max. Speed: 85 km/h
Pumping System Specification
- Delivery Cylinder Bore: 230 mm
- Theo Concrete Output: 100 / 50 m³/h
- Theo Delivery Pressure: 11 / 23 MPa
- Upper Engine Power: 200 kW
Hot-selling Models
SY5143THBE-10023C-10S
Home Ptoducts Concrete Machinery Line Pump SY5143THBE-10023C-10S Line Pump Theo Concrete Output 100 / 50 m³/h Theo Delivery Pressure 11 / 23 MPa Upper Engine Power 200 kW Request a Quote Learn More Fe
Application Of Line Pump
A line pump, also known as a stationary concrete pump, is a fixed or semi-fixed equipment that transfers concrete via a pipeline system, valued for its high-pressure and long-distance transportation capabilities, widely used in construction requiring precise and continuous concrete delivery. It serves in high-rise building construction for vertical transportation to pour floor slabs, columns, and shear walls with stable pressure; in bridge and infrastructure projects to pump concrete to remote or elevated areas like piers and tunnel linings; in large-scale industrial projects for massive foundation and floor pouring; and in specialized projects like dams and airports, ensuring efficient concrete placement for long-distance, high-altitude, or high-volume needs due to its reliability in high-pressure transport and adaptability to complex pipelines.
