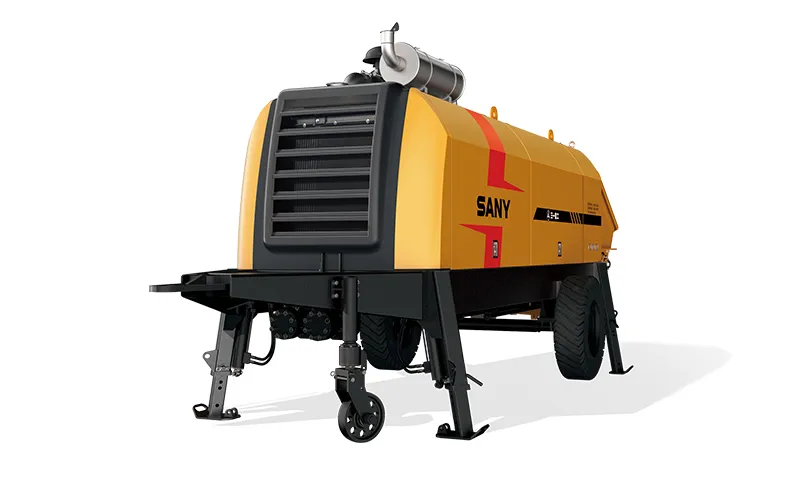

HBT5008C-6Y
Home Ptoducts Concrete Machinery Trailer Pump HBT5008C-6Y Trailer Pump Engine Rated Power 66 kW Max. Output Pressure 8 MPa Max. Output Quantity 55 m³/h Request a Quote Learn More Features Advanced Hyd
HBT6013C-5(Electric)
Trailer Pump
Engine Rated Power
90 kW
Max. Output Pressure
8/13 MPa
Max. Output Quantity
65/40 m³/h
Features
- Differential pressure controlled, bi-directional hydraulic system
- High flow, high-efficiency valve system
- Automatically retracted pistons
- Fault self-diagnosis technology
- Dedicated motion controller
- Emergency override available
- High-efficiency pump technology
- Large bore reversing cylinder
- High power mixing motor
- New-type hopper
- New generation energy-saving technology automatically adjusts engine power
output to match the load which results in fuel savings of up to 25%.
- G5 improved wearing part adopts Sino-Germany high-tech materials and
advanced technology to greatly improve the product performance.
Specification of HBT6013C-5
Main Specification
- Delivery Cylinder Bore*Stroke: Φ200×1400 mm
- Dimension (L*W*H): 6185×2150×2250 mm
- Gross Weight: 5790 kg
Technology Specification
- Engine Rated Power: 90 kW
- Generator/Engine: Electric
- Type: S-Valve
Hot-selling Models
HBT6013C-5(Electric)
Home Ptoducts Concrete Machinery Trailer Pump HBT6013C-5(Electric) Trailer Pump Engine Rated Power 90 kW Max. Output Pressure 8/13 MPa Max. Output Quantity 65/40 m³/h Request a Quote Learn More Featur
HBT9028CH-5S
Home Ptoducts Concrete Machinery Trailer Pump HBT9028CH-5S Trailer Pump Engine Rated Power 2×180 kW Max. Output Pressure 19/28 MPa Max. Output Quantity 95/70 m³/h Request a Quote Learn More Features A
HBT12020C-5S
Home Ptoducts Concrete Machinery Trailer Pump HBT12020C-5S Trailer Pump Engine Rated Power 300 kW Max. Output Pressure 11/21 MPa Max. Output Quantity 120/75 m³/h Request a Quote Learn More Features Ad
HBT8018C-5S
Home Ptoducts Concrete Machinery Trailer Pump HBT8018C-5S Trailer Pump Engine Rated Power 180 kW Max. Output Pressure 10/18 MPa Max. Output Quantity 85/50 m³/h Request a Quote Learn More Features Adva
HBT6013C-5S
Home Ptoducts Concrete Machinery Trailer Pump HBT6013C-5S Trailer Pump Engine Rated Power 114 kW Max. Output Pressure 8/13 MPa Max. Output Quantity 65/40 m³/h Request a Quote Learn More Features Advan
HBT9050CH-5S
Home Ptoducts Concrete Machinery Trailer Pump HBT9050CH-5S Trailer Pump Engine Rated Power 2×300 kW Max. Output Pressure 24/50 MPa Max. Output Quantity 90/50 m³/h Request a Quote Learn More Features A
HBT8018C-5(Electric)
Home Ptoducts Concrete Machinery Trailer Pump HBT8018C-5(Electric) Trailer Pump Engine Rated Power 160 kW Max. Output Pressure 10/18 MPa Max. Output Quantity 87/57 m³/h Request a Quote Learn More Feat
HBT6016C-5S
Home Ptoducts Concrete Machinery Trailer Pump HBT6016C-5S Trailer Pump Engine Rated Power 180 kW Max. Output Pressure 10/16 MPa Max. Output Quantity 70/45 m³/h Request a Quote Learn More Features Adva
Application Of Trailer Pump
A trailer pump, also known as a mobile concrete pump, is a versatile and efficient equipment mounted on a trailer for easy mobility, widely used in various construction projects. It facilitates concrete transportation in high-rise buildings, bridges, tunnels, road construction, water supply/drainage projects, factory buildings, warehouses, rural residences, agricultural facilities, as well as in emergency rescue, disaster relief, and special projects like dams and airports, ensuring efficient and precise concrete pouring for different structural needs. Its adaptability to diverse site conditions and ability to handle large-volume concrete delivery make it a critical tool for modern construction, significantly boosting productivity and reducing labor intensity across various engineering applications.
