Sany SYG5360THB Pumping Hydraulic System
The Sany SYG5360THB Pumping Hydraulic System is a critical component engineered for the Sany SYG5360THB concrete pump truck. As a trusted supplier of Sany Parts, we deliver high-quality assemblies that meet rigorous OEM specifications. This component plays a vital role in ensuring the pump truck operates at peak efficiency and reliability on demanding construction sites worldwide. The Sany SYG5360THB Pumping Hydraulic System is engineered to deliver exceptional performance in demanding applications.
What is the Sany SYG5360THB Pumping Hydraulic System?
The Sany SYG5360THB Pumping Hydraulic System is an essential assembly designed specifically for the Sany SYG5360THB concrete pump truck model. This core hydraulic component is precision-engineered to deliver consistent and reliable concrete pumping performance under the most demanding operational conditions. Sany has established itself as a global leader in heavy machinery, and the Sany SYG5360THB Pumping Hydraulic System reflects their commitment to pumping power and operational efficiency in every unit produced.
Manufactured using high-grade materials and advanced production techniques, the Sany SYG5360THB Pumping Hydraulic System ensures optimal pumping pressure and flow control and seamless integration with the pump truck’s overall hydraulic and delivery systems. Each unit undergoes rigorous quality control inspections before leaving the factory, guaranteeing that it meets the exact specifications required for heavy-duty construction applications where reliable concrete delivery is critical to project timelines and quality. The Sany SYG5360THB Pumping Hydraulic System is engineered to deliver exceptional performance in demanding applications.
The design of the Sany SYG5360THB Pumping Hydraulic System incorporates years of engineering expertise and field feedback from operators worldwide. It is built to withstand the stresses of continuous operation, including high pumping pressures, frequent stroke cycles, and exposure to harsh environmental conditions commonly encountered on construction sites. The main hydraulic pump, control valves, accumulators, and delivery cylinders are all optimized for maximum pumping efficiency and minimal pulsation. The Sany SYG5360THB Pumping Hydraulic System is engineered to deliver exceptional performance in demanding applications.
Installation of the Sany SYG5360THB Pumping Hydraulic System is straightforward for qualified hydraulic technicians, and it is fully compatible with the Sany SYG5360THB platform. Regular inspection and maintenance of this pumping assembly will help extend the service life of the entire pump truck system, preventing pumping failures and reducing operational costs over the long term. The Sany SYG5360THB Pumping Hydraulic System is engineered to deliver exceptional performance in demanding applications.

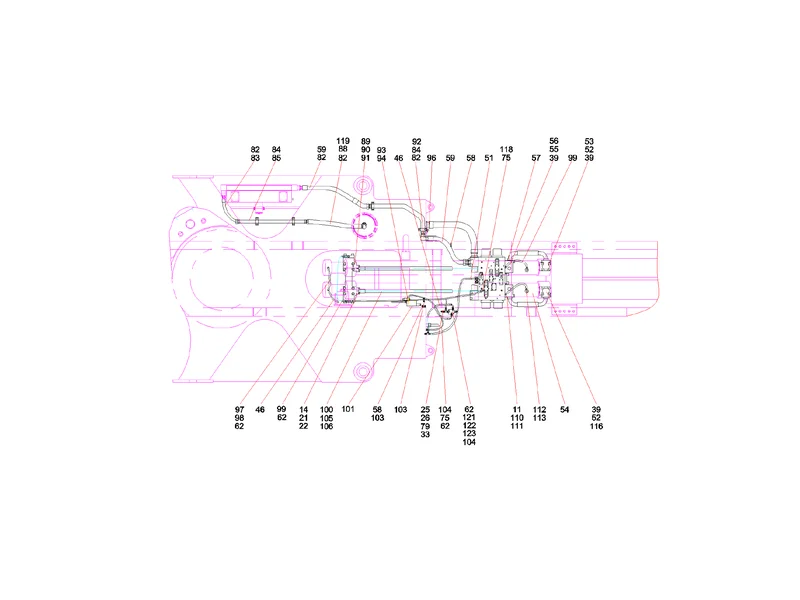

Product Parameters of Sany SYG5360THB Pumping Hydraulic System
| Index | PartsCode | PartsName |
|---|---|---|
| 1 | 12827522 | Main Suction Oil Pipe |
| 2 | A210609000275 | O-Ring 118 X 5.3GB3452.1 |
| 3 | A210204000203 | Screw M16 X 40GB70.1 10.9 Grade |
| 4 | A210401000004 | Washer 16 |
| 5 | 10746630 | 4 89 X 400 Suction Oil Rubber Hose |
| 6 | A229900001659 | 7 |
| 7 | 12827514 | Main Pump Oil Inlet Steel Pipe |
| 9 | A210608000319 | O-Ring 100 X 5.3GB3452.1 |
| 10 | 10932914 | 4 89 X 220 Suction Oil Rubber Hose |
| 11 | A820205001923 | Plug Screw |
| 12 | 12849414 | Oil Pump Flange |
| 13 | A210204000232 | Screw M16 X 45GB70.1 10.9 Grade |
| 14 | B230101000348 | 0 |
| 15 | B210780000052 | Pipe Fitting |
| 16 | B210780001225 | Pipe Fitting |
| 17 | B210780000838 | Pipe Fitting |
| 18 | B230103000410 | Rubber Hose |
| 19 | 60017833 | Rubber Hose |
| 20 | 13270420 | Rubber Hose) |
| 21 | B210780000005 | Split Flange |
| 22 | 21005036 | Screw M16 X 50GB70.1 10.9 Grade |
| 23 | A820205001372 | Connector Body |
| 24 | 13270416 | Rubber Hose |
| 25 | B210780000015 | Pipe Fitting |
| 26 | 60185722 | Strainer Fitting |
| 27 | A220401000753 | |
| 28 | B210780000012 | Pipe Fitting |
| 29 | 60101298 | Rubber Hose |
| 30 | A229900002434 | Straight Connector Fitting |
| 31 | 11036715 | Valve Pipe |
| 32 | 60056959 | |
| 33 | B210780001749 | Pressure Measuring Fitting |
| 34 | A210204000138 | Screw M6 X 55G870.1 |
| 35 | B230103000478 | Rubber Hose |
| 36 | B230103000472 | Rubber Hose |
| 37 | 13053606 | Main Valve Oil Inlet Steel Pipe |
| 38 | 60118458 | Screw M22 X 150(GB70.1) 10.9 Grade |
| 39 | A210609000387 | O-Ring 69×3.55GB3452.1 Fluororubber |
| 40 | B230103000468 | Rubber Hose |
| 41 | B210780000683 | Pipe Fitting |
| 42 | B210780000016 | Pipe Fitting |
| 43 | A210204000312 | Screw M16 X 55GB70.1 10.9 Grade |
| 44 | 12922969 | Rubber Hose |
| 45 | 12922946 | Rubber Hose |
| 47 | 11706283 | Oil Inlet Cover Plate |
| 48 | A210609000203 | O-Ring 60 X 3.55GB3452.1 Fluororubber |
| 50 | B210780000232 | Pipe Fitting |
| 60 | 12631931 | Main Valve Group |
| 61 | A210204000158 | Screw M16 X 30G870.1 |
| 62 | B210780000036 | Pipe Fitting |
| 63 | A210204000464 | Screw M12 X 90GB70.1 10.9 Grade |
| 64 | 12877210 | Main Valve Return Oil Flange |
| 65 | A210401000002 | Washer 12GB893 |
| 66 | 13084549 | Rubber Hose |
| 67 | A210204000206 | Screw M12 X 35GB70.1 10.9 Grade |
| 68 | 60024155 | Split Flange |
| 69 | A210204000338 | Screw M12 X 40GB70.1 10.9 Grade |
| 70 | 12757687 | Control Valve Oil Pipe |
| 71 | 60014673 | Pipe Clamp Body |
| 72 | 21030636 | Rubber Hose |
| 73 | A210204000141 | Screw M6 X 70(G870.1) |
| 74 | 13301600 | Cylinder |
| 75 | B210780000636 | Pipe Fitting |
| 76 | B230103000084 | Rubber Hose |
| 77 | B230103003857 | Rubber Hose |
| 78 | 12827518 | Main Pump Oil Inlet Steel Pipe |
| 80 | A210204000337 | Screw M12 X 30GB70.1 10.9 Grade |
| 81 | A210204000455 | Screw M12 X 110GB70.1 10.9 Grade |
| 94 | B210780001404 | Pipe Fitting |
| 95 | B210780000024 | Right Angle Combined Fitting |
| 108 | 60228754 | Pressure Gauge |
| 109 | 60029802 | Pressure Measuring Pipe |
| 111 | 24002739 | O-Ring 45 X 3.55GB3452.1 |
| 117 | A210111000053 | Bolt M16 X 40GB5783 10.9 Grade |
| 118 | 21030629 | Rubber Hose |
| 120 | 60211078 | Rubber Hose |
| 124 | 10680148 | Fitting |
| 125 | 10680151 | Fitting |
| 11 | A820205001923 | Plug Screw |
| 14 | B230101000348 | O-Ring |
| 21 | B210780000005 | Split Flange |
| 22 | 21005036 | Screw M16 X 50GB70.1 10.9 Grade |
| 25 | B210780000015 | Pipe Fitting |
| 26 | 60185722 | Strainer Fitting |
| 33 | B210780001749 | Fitting |
| 39 | A210609000387 | O-Ring 69×3.55GB3452.1 Fluororubber |
| 46 | B230103000477 | Rubber Hose |
| 51 | B230103000443 | Rubber Hose |
| 52 | A210204000216 | Screw M20 X 50GB70.1 10.9 Grade |
| 53 | 13315059 | Right Cylinder Flange |
| 54 | 13169433 | Guard Assembly |
| 55 | 60208336 | Screw M20 X 85 GB70.112.9 Grade |
| 56 | 11703601 | Right Flange |
| 57 | A210204000469 | Screw M16 X 60GB70.1 10.9 Grade |
| 58 | 60014674 | Pipe Clamp Body |
| 59 | B230103005121 | Rubber Hose |
| 62 | B210780000036 | Pipe Fitting |
| 75 | B210780000636 | Pipe Fitting |
| 79 | B230103000122 | Rubber Hose |
| 82 | 21050783 | Pipe Fitting |
| 83 | B230103005752 | Rubber Hose |
| 84 | 60023941 | Pipe Clamp Body |
| 85 | 12757804 | Return Oil Steel Pipe Assembly |
| 88 | B230103000425 | Rubber Hose |
| 89 | 24002742 | O-Ring 82.5 X 3.55GB3452.1 Fluororubber |
| 90 | A210204000250 | Screw M20 X 160G870.1 |
| 91 | 11737448 | Cylinder |
| 92 | 12861759 | Steel Pipe Assembly |
| 93 | 21008727 | Straight Connector Fitting |
| 94 | B210780001404 | Pipe Fitting |
| 96 | 60196689 | Check Valve |
| 97 | B210780000631 | Pipe Fitting |
| 98 | A832313030000 | Rubber Hose |
| 99 | B230103000474 | Rubber Hose |
| 100 | 60215789 | Rubber Hose |
| 101 | 11300142 | Cylinder Control Valve |
| 103 | 60014675 | Pipe Clamp Body |
| 104 | B230103004202 | Rubber Hose |
| 105 | 13267524 | Protective Sleeve |
| 106 | A229900002966 | Hose |
| 110 | 11703604 | Left Flange |
| 111 | 24002739 | O-Ring 45 X 3.55GB3452.1 |
| 112 | A820205000005 | U Pipe Fitting |
| 113 | B220400000101 | Check Valve |
| 116 | 13315050 | Left Cylinder Flange |
| 118 | 21030629 | Rubber Hose |
| 119 | B210780000055 | Pipe Fitting |
| 121 | B210780001748 | Pressure Measuring Fitting |
| 122 | 60122597 | Reducing Valve |
| 123 | A210111000093 | Bolt M8 X 40G85783 |
Why Choose Our Sany SYG5360THB Pumping Hydraulic System?
We source our Sany SYG5360THB Pumping Hydraulic System directly from trusted manufacturing partners who adhere to the highest quality standards in the hydraulic systems industry. Every pumping assembly is verified for authenticity and performance before it reaches our customers, ensuring you receive a product that performs exactly as expected under the most demanding concrete pumping conditions. The Sany SYG5360THB Pumping Hydraulic System is engineered to deliver exceptional performance in demanding applications.
Our competitive pricing structure allows you to access genuine quality pumping hydraulic components without exceeding your maintenance budget. We maintain sufficient inventory levels of the Sany SYG5360THB Pumping Hydraulic System to ensure rapid order fulfillment, minimizing equipment downtime when you need replacement pumping hydraulic assemblies urgently. The Sany SYG5360THB Pumping Hydraulic System is engineered to deliver exceptional performance in demanding applications.
With years of experience in the heavy machinery parts sector, our technical team can provide expert guidance on pumping hydraulic system selection, compatibility verification, and installation recommendations. We understand the critical role that reliable concrete pumping plays in construction project success, and we are committed to supporting your operations with reliable parts and responsive service. This component is designed and manufactured to meet the highest industry standards, ensuring long-term durability and consistent performance under demanding operating conditions. Every unit undergoes rigorous quality control testing before delivery.
Customer satisfaction is at the core of our business philosophy. We stand behind every Sany SYG5360THB Pumping Hydraulic System we sell and work diligently to resolve any issues that may arise. Our global logistics network ensures timely delivery to your location, wherever your operations are based, helping you maintain the pumping power and reliability of your concrete pump trucks. This component is designed and manufactured to meet the highest industry standards, ensuring long-term durability and consistent performance under demanding operating conditions. Every unit undergoes rigorous quality control testing before delivery.
What are the Routine Maintenance Considerations for the Sany SYG5360THB Pumping Hydraulic System?
Conduct visual inspections of the Sany SYG5360THB Pumping Hydraulic System at regular intervals as specified in the equipment maintenance manual. Look for signs of hydraulic oil leaks around the main pump, delivery cylinders, and control valves, check for external damage to hydraulic hoses and fittings, and inspect all hydraulic connections for tightness and proper torque specifications. This component is designed and manufactured to meet the highest industry standards, ensuring long-term durability and consistent performance under demanding operating conditions. Every unit undergoes rigorous quality control testing before delivery.
Keep the Sany SYG5360THB Pumping Hydraulic System and its surrounding area clean and free from concrete residue, dirt, and debris buildup. Accumulated material around the delivery cylinders and hydraulic components can cause premature seal wear and interfere with the proper functioning of the pumping mechanism. Clean the area thoroughly after each use to prevent concrete buildup on critical components. This component is designed and manufactured to meet the highest industry standards, ensuring long-term durability and consistent performance under demanding operating conditions. Every unit undergoes rigorous quality control testing before delivery.
Monitor the hydraulic oil quality, temperature, and condition as these directly affect the Sany SYG5360THB Pumping Hydraulic System performance. Contaminated or overheated hydraulic oil can cause reduced pumping pressure, erratic cylinder movement, and accelerated wear of the main hydraulic pump and delivery cylinders. Follow the recommended oil change intervals and maintain proper oil cooling system operation. This component is designed and manufactured to meet the highest industry standards, ensuring long-term durability and consistent performance under demanding operating conditions. Every unit undergoes rigorous quality control testing before delivery.
Replace any worn or damaged hydraulic pumps, delivery cylinders, seals, accumulators, and control valves of the Sany SYG5360THB Pumping Hydraulic System promptly using genuine Sany replacement parts. Delaying necessary repairs can lead to pumping pressure loss, concrete delivery interruptions, and cascading failures in connected systems, resulting in more extensive damage and higher repair costs for the entire pump truck. This component is designed and manufactured to meet the highest industry standards, ensuring long-term durability and consistent performance under demanding operating conditions. Every unit undergoes rigorous quality control testing before delivery.
