Sany SY365CC Excavator Boom Cylinder
The Sany Parts Sany SY365CC Excavator Boom Cylinder is a high-performance hydraulic component engineered for the Sany SY365CC heavy-duty excavator. This genuine OEM boom cylinder delivers exceptional lifting power and durability in demanding construction environments.
Built with precision engineering, the Sany SY365CC Excavator Boom Cylinder ensures smooth boom operation and reliable load control. Its robust construction withstands extreme pressure and heavy workloads, making it ideal for mining, quarrying, and large-scale earthmoving projects across diverse terrain.
This heavy-duty cylinder features advanced sealing technology that prevents hydraulic fluid leakage under high pressure. It extends the service life of the cylinder and reduces maintenance costs. Each component meets strict Sany factory standards for quality assurance and performance.
Engineered for maximum efficiency, this boom cylinder optimizes the excavator hydraulic system performance. The Sany SY365CC Excavator Boom Cylinder provides consistent power output across various operating conditions, enhancing overall machine productivity on every job site.
Manufactured from high-grade alloy steel, this OEM component offers superior resistance to wear and corrosion. Its hardened chrome-plated piston rod ensures long-term reliability even in the harshest operating environments with extreme temperatures and abrasive materials.
Each unit undergoes rigorous testing before delivery, including pressure testing and dimensional inspection. The Sany SY365CC Excavator Boom Cylinder is verified to guarantee perfect fitment and operational safety. Genuine Sany parts ensure compatibility and consistent performance.
Designed as a direct replacement part, this cylinder matches original equipment specifications exactly. Installation is straightforward and efficient, minimizing equipment downtime during scheduled maintenance operations and maximizing fleet availability.
Choosing the Sany SY365CC Excavator Boom Cylinder means investing in reliability and peace of mind. Backed by Sany engineering expertise and decades of manufacturing experience, this cylinder delivers the performance your excavator demands day after day.
The hydraulic system of the SY365CC excavator depends heavily on a properly functioning boom cylinder. Without it, the machine cannot perform essential digging, lifting, and material handling tasks efficiently on the job site.
Operators trust this OEM cylinder for its consistent stroke accuracy and responsive control. The double-acting design provides equal power in both directions, allowing precise positioning of the boom during delicate operations.
When replacing a worn boom cylinder, selecting the correct OEM part is critical for machine safety. An incorrect or substandard replacement can lead to hydraulic failure and potential equipment damage.
This hydraulic cylinder undergoes strict quality control at every manufacturing stage. From raw material inspection to final assembly, each step follows Sany certified processes to ensure the highest standards.
Fleet managers appreciate the straightforward installation process of this boom cylinder. The direct bolt-on design eliminates the need for modifications, saving valuable time during replacement and repair operations.
Every component in this cylinder assembly is traceable to its production batch. This traceability supports warranty claims and provides confidence in the authenticity of each replacement part ordered.
Proper hydraulic system maintenance extends the working life of the boom cylinder significantly. Clean oil, correct pressure settings, and timely filter changes keep the entire excavator hydraulic circuit running smoothly.
Sany SY365CC Excavator Boom Cylinder — Genuine OEM Hydraulic Cylinder Assembly
What Is the Sany SY365CC Excavator Boom Cylinder?
The Sany SY365CC Excavator Boom Cylinder is the primary hydraulic actuator responsible for raising and lowering the excavator boom. It converts hydraulic pressure into mechanical force, enabling precise control of boom movements during heavy lifting operations.
This double-acting hydraulic cylinder operates in both extension and retraction directions. It generates powerful lifting force to handle heavy loads with efficiency and precision, ensuring the excavator boom responds accurately to operator commands.
Inside this cylinder, a high-strength piston rod transmits force from the hydraulic fluid to the boom structure. The rod is precision-ground and chrome-plated for maximum durability, wear resistance, and protection against corrosion.
The cylinder barrel houses the piston assembly and contains multiple sealing elements. These seals prevent internal and external leakage, maintaining optimal hydraulic pressure within the Sany SY365CC Excavator Boom Cylinder during extended operation cycles.
Buffer mechanisms integrated into this hydraulic cylinder absorb shock at stroke ends. This cushioning effect protects the cylinder and connected components from impact damage during rapid boom movements and sudden stops.
Guide rings within the cylinder ensure smooth piston movement and prevent metal-to-metal contact. The Sany SY365CC Excavator Boom Cylinder uses high-quality guide rings that contribute to extended service life and reduced maintenance requirements.
Dust seals and wiper rings protect the hydraulic system from external contaminants. These components prevent dirt, debris, and moisture from entering the cylinder and causing internal damage to critical sealing surfaces.
The cylinder head and end cap secure all internal components in place. The Sany SY365CC Excavator Boom Cylinder design ensures proper alignment and structural integrity under heavy load conditions and continuous operation.
Regular maintenance of this hydraulic cylinder includes seal inspection and rod surface checks. Proper care extends cylinder life and maintains peak performance throughout its service life in demanding applications.
This OEM cylinder is compatible exclusively with the Sany SY365CC excavator model. Using genuine components ensures correct fit and reliable operation at all times under full working conditions.
The hydraulic circuit design delivers pressurized oil to the cylinder through dedicated ports. This closed-loop system ensures consistent force generation and smooth motion control during every operating cycle.
Piston seals within the assembly create a tight barrier between the rod side and cap side chambers. This separation maintains differential pressure, which is essential for generating the required lifting force.
Wear bands positioned along the piston circumference distribute lateral loads evenly. This prevents scoring of the cylinder bore and extends the operational life of the entire hydraulic assembly.
The rod gland assembly retains the piston rod and houses the primary sealing system. It incorporates multiple seal stages that work together to prevent fluid escape and contaminant ingress.
Mounting pins at both ends of the cylinder connect it to the boom and the machine frame. These hardened steel pins allow rotational movement while supporting the full load transferred through the hydraulic assembly.
Hydraulic port fittings on the cylinder body connect to the main pressure lines of the excavator. Proper sealing at these connection points is critical to prevent fluid loss and maintain system efficiency.
During cylinder retraction, oil flows into the rod-end chamber while the cap-end chamber discharges fluid back to the reservoir. This controlled flow ensures smooth and predictable boom lowering motion.

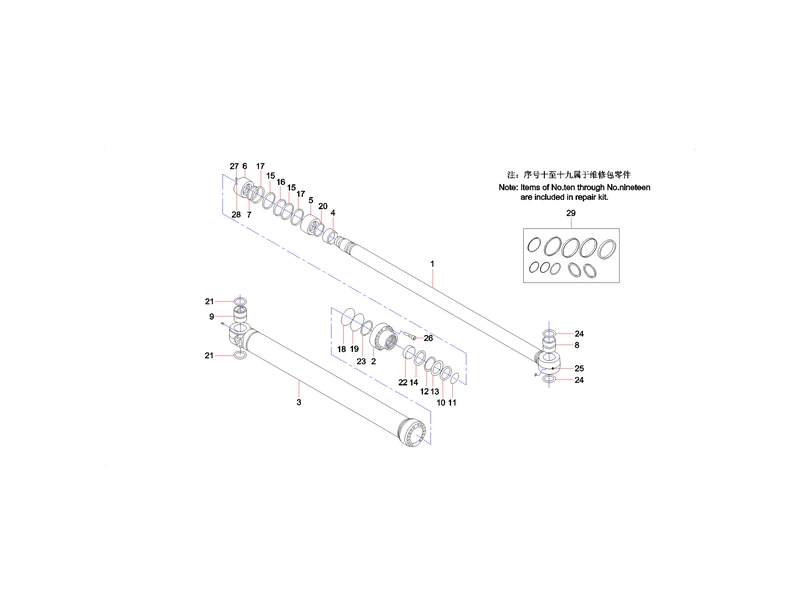

Sany SY365CC Excavator Boom Cylinder Product Parameters
| Index | Parts Number | Parts Name |
|---|---|---|
| 1 | 60199972 | Rod, piston |
| 2 | 60199971 | Block, cylinder |
| 3 | 60199970 | Piston |
| 4 | 60199969 | Head, cylinder |
| 5 | 60199968 | Plunger, buffer |
| 6 | 60065214 | Nut |
| 7 | 60065217 | Gasket |
| 8 | 60065213 | Ring, seal |
| 9 | 60199967 | Ring, dust |
| 10 | 60199966 | Sleeve, sliding |
| 11 | 60199965 | Ring, retaining |
| 12 | 60199964 | O-ring |
| 13 | 60199963 | Ring, buffer |
| 14 | 60199962 | Ring, buffer |
| 15 | 60174498 | Ring, guide |
| 16 | 60188049 | Ring, seal |
| 17 | 60065218 | Ring, contaminant |
| 18 | 60199961 | Ring, seal |
| 19 | 60199960 | Gasket |
| 20 | 60199326 | Ring, buffer |
| 21 | 60044361 | Ring, dust |
| 22 | 60154009 | Sleeve, sliding |
| 23 | 60153990 | Ring, retaining |
| 24 | 60044360 | Ring, dust |
| 25 | 60169622 | Cup, oil |
| 26 | 60022043 | Screw |
| 27 | 60174438 | Screw, socket head |
| 28 | 21010039 | Steel Ball |
| 29 | 60140866 | Repair kit, cylinder, boom |
Why Choose the Sany SY365CC Excavator Boom Cylinder?
Genuine OEM Quality
The Sany SY365CC Excavator Boom Cylinder is manufactured to exact OEM specifications, ensuring perfect fit and reliable performance in the field.
Fast Global Shipping
We ship this genuine Sany cylinder worldwide with reliable logistics, ensuring timely delivery to your job site or workshop location.
Competitive Pricing
Get the Sany SY365CC Excavator Boom Cylinder at factory-direct prices with no middleman markup and transparent quotations for every order.
Expert Support
Our technical team provides professional guidance for installation and maintenance of this OEM hydraulic cylinder.
Sany SY365CC Excavator Boom Cylinder Maintenance Tips
Rod Inspection: Inspect the rod surface of the Sany SY365CC Excavator Boom Cylinder regularly for scratches or pitting. Damaged chrome plating can cause seal failure and hydraulic oil leakage.
Connection Check: Check all hydraulic connections and fittings on this cylinder for tightness. Loose connections lead to pressure loss, reduced performance, and potential system contamination.
Seal Replacement: Replace worn seals promptly in the Sany SY365CC Excavator Boom Cylinder. Delayed seal replacement can damage the piston rod and cylinder barrel, increasing repair costs significantly.
Oil Cleanliness: Monitor hydraulic oil cleanliness to protect the Sany SY365CC Excavator Boom Cylinder from contamination. Contaminated oil accelerates wear on internal components and shortens overall service life.
Genuine Parts: Use only genuine Sany replacement parts when servicing the Sany SY365CC Excavator Boom Cylinder. Aftermarket parts may not meet OEM specifications and can compromise performance.
Proper Storage: Store the Sany SY365CC Excavator Boom Cylinder in a clean, dry environment when not in use. Retract the rod fully and apply protective coating to prevent corrosion.
Lubrication Points: Grease all pivot pins and bushing contact areas regularly. Proper lubrication reduces friction and prevents premature wear on mounting points and articulation joints.
Pressure Testing: Perform periodic pressure tests to verify the cylinder maintains rated working pressure. Any pressure drop indicates internal leakage that requires immediate seal inspection.
Operating Temperature: Monitor the operating temperature of the hydraulic system. Excessive heat degrades seals and reduces oil viscosity, compromising the cylinder performance and long-term durability.
