SANY Steering System
What is the SANY Steering System
- This document details the first quadrant (SANY Steering System), focusing on the foundational hydraulic circuit routing and its secure mounting architecture. This sub-assembly is critical for ensuring leak-free fluid transfer and structural integrity under high pressure. A key sealing element, the O-Ring, is precision-installed within a Flange Split connection, which is secured by a Screw to prevent leaks at critical junctions. The entire network is anchored to the vehicle’s framework via the robust Main plate, which serves as the primary load-bearing surface.
- Hydraulic fluid is directed through a series of Steel tube assembly lines, shaped and routed for optimal flow. These tubes are supported and isolated using various clamping solutions. A Fixed seat provides a solid mounting point, while a Clamp and specifically a U-CLAMP are fastened with a Screw to a Pipe clamp seat, firmly gripping the Steel tube assembly to dampen vibration and prevent fatigue. Directional changes in the fluid path are managed by specialized connectors, including a Fitting, Tee for flow division and a Fitting, Elbow for 90-degree turns.
- Secure fastening is paramount, achieved through a combination of a Bolt, multiple Washer types (for load distribution and locking), and a Nut. A second Fixed seat is employed to stabilize another section of the tubing. For flexible hose segments, a Hose clip seat is used in conjunction with another U-CLAMP to ensure a firm, reliable connection, completing this segment of the highly reliable SANY Steering System.
Parameters of SANY Steering System (1/4)
| No. | Part No. | Description | Qty |
| 1 | B230101002071 | O-Ring | 2 |
| 2 | B210780000644 | Flange Split | 8 |
| 3 | A210204000215 | Screw | 12 |
| 4 | ODT004711810 | Main plate | 1 |
| 5 | 14498874 | Steel tube assembly | 1 |
| 6 | A210204000354 | Screw | 12 |
| 7 | 14505831 | Fixed seat | 1 |
| 8 | 14353805 | Steel tube assembly | 1 |
| 9 | 14353814 | Steel tube assembly | 1 |
| 10 | B210780001007 | Fitting, Tee | 3 |
| 11 | A311150805016 | Bolt | 6 |
| 12 | A210404000005 | Washer | 2 |
| 13 | A210405000007 | Washer | 8 |
| 14 | A210307000055 | Nut | 8 |
| 15 | A210401000017 | Washer | 8 |
| 16 | 14425162 | Fixed seat | 1 |
| 17 | 10698669 | Clamp | 4 |
| 18 | 60008272 | U-CLAMP | 5 |
| 19 | 24000431 | Screw | 2 |
| 20 | 14354079 | Pipe clamp seat | 1 |
| 21 | 14353793 | Steel tube assembly | 1 |
| 22 | B210780001310 | Fitting, Elbow | 7 |
| 23 | 14354078 | Pipe clamp seat | 1 |
| 42 | 14499618 | Hose clip seat | 1 |
| 55 | 60008274 | U-CLAMP | 3 |
| 73 | ODT004709360 | Hose clip seat | 1 |

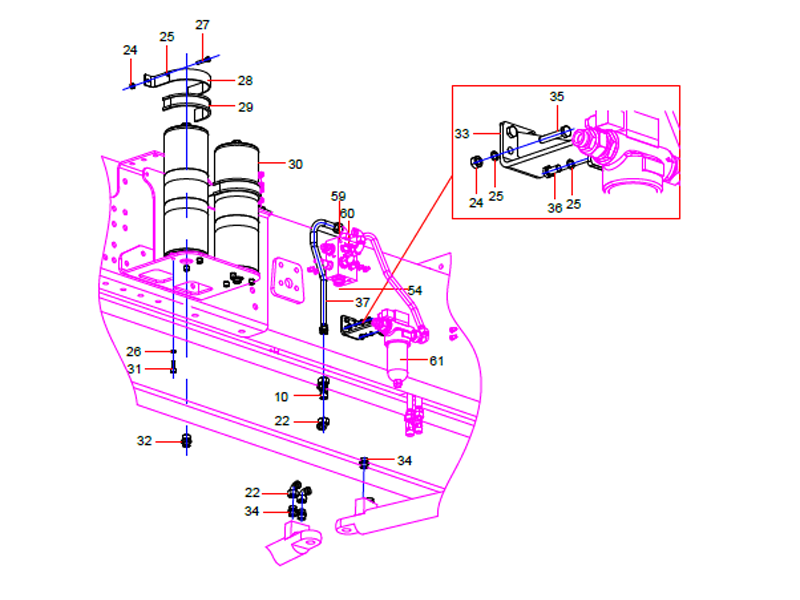

Parameters of SANY Steering System (2/4)
| No. | Part No. | Description | Qty |
| 10 | B210780001007 | Fitting, Tee | 3 |
| 22 | B210780001310 | Fitting, Elbow | 7 |
| 24 | A210307000017 | Nut | 11 |
| 25 | A210405000011 | WASHER-HARD | 17 |
| 26 | A210401000002 | Washer | 6 |
| 27 | A210111000024 | Bolt | 4 |
| 28 | 12877468 | Energy Storage Thimble | 2 |
| 29 | 12877280 | Rubber Pad | 2 |
| 30 | 60308391 | Piston Type Accumulator | 2 |
| 31 | A210204000337 | Screw | 6 |
| 32 | B210780000184 | Stud Ends | 2 |
| 33 | 14354028 | Fixed seat | 1 |
| 34 | B210780000131 | Fitting, Adapter | 4 |
| 35 | A210111000029 | Bolt | 5 |
| 36 | A210111000012 | Bolt | 2 |
| 37 | 14353827 | Steel tube assembly | 1 |
| 54 | 14434714 | Steel tube assembly | 1 |
| 59 | A210204000477 | Bolt | 2 |
| 60 | 14354089 | Steering valve assembly | 1 |
| 61 | 14353940 | Filter pipe connector installation | 1 |

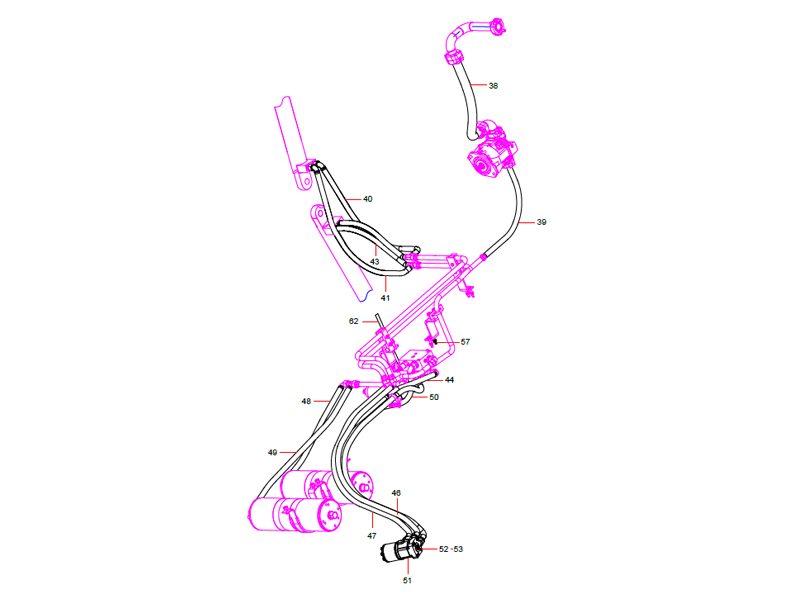

Parameters of SANY Steering System (3/4)
| No. | Part No. | Description | Qty |
| 38 | 151009060023A | Rubber Hose | 1 |
| 39 | 151006160053A | Rubber Hose | 1 |
| 40 | B230103000398 | Rubber Hose | 1 |
| 41 | 60290238 | Rubber hose | 1 |
| 43 | 151006160047A | Rubber hose | 2 |
| 44 | B230103000381 | Hose | 2 |
| 46 | B230103000376 | Rubber Hose | 1 |
| 47 | 60323608 | Rubber hose | 1 |
| 48 | B230103000394 | Hose Assembly | 1 |
| 49 | B230103003978 | Hose Rubber | 1 |
| 50 | B230103000388 | Hose assembly | 1 |
| 51 | 14354090 | Steering Gear Assembly | 1 |
| 52 | A210111000026 | Bolt | 4 |
| 53 | A210401000001 | Washer | 21 |
| 57 | 21005186 | Bolt | 4 |
| 62 | 21027072 | Rubber Hose | 1 |

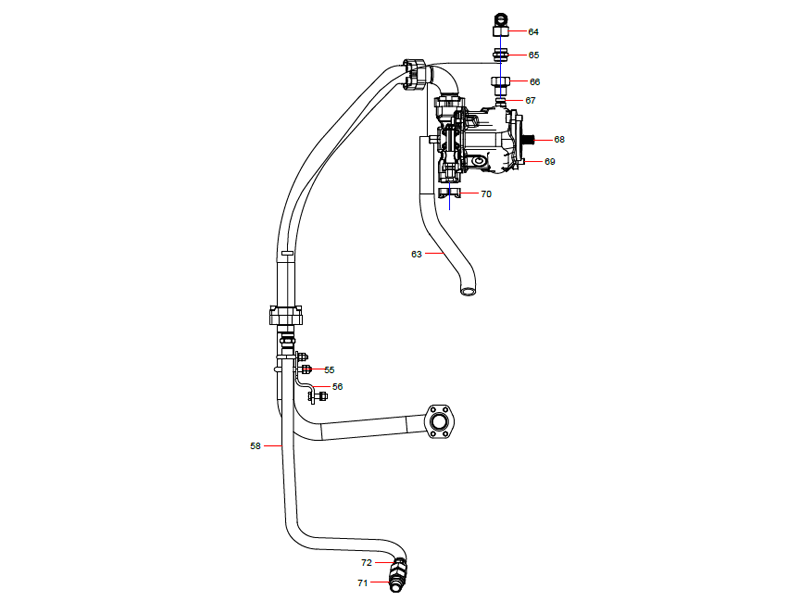

Parameters of SANY Steering System (4/4)
| No. | Part No. | Description | Qty |
| 55 | 60008274 | U-CLAMP | 3 |
| 56 | 14499660 | Hose clip seat 2 | 1 |
| 58 | ODT004711809 | steel tube assembly | 1 |
| 63 | B230103005259 | Hose Assembly | 1 |
| 64 | B210780000028 | Fitting, Elbow | 1 |
| 65 | 24001352 | Fitting, Adapter | 1 |
| 66 | B210780000336 | Pipe connector | 1 |
| 67 | B210780000713 | Fitting, Adapter | 1 |
| 68 | 150101020007A | Plunger Pump | 1 |
| 69 | A210204000032 | Screw | 2 |
| 70 | B210780000696 | Flange Split | 2 |
| 71 | B210780000421 | Fitting, Adapter | 1 |
| 72 | B210780000936 | Fitting, adapter | 1 |
