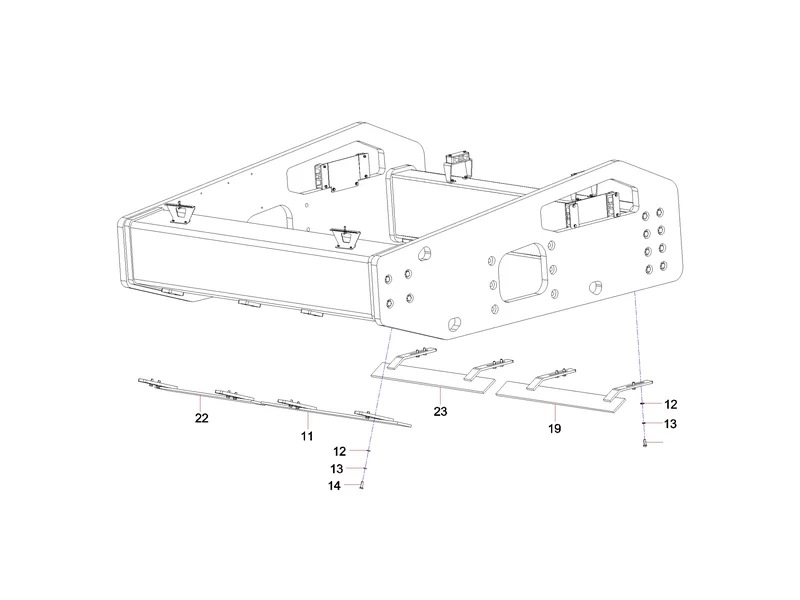

Sany SSR120 Roller Front Frame GP

What is the Sany SSR120 Roller Front Frame GP?

The Sany SSR120 Roller Front Frame GP serves as the primary structural backbone of the SSR120 single drum roller, connecting the vibrating drum assembly to the rear chassis. This component is engineered from high-tensile steel plates that are precisely cut, formed, and welded using advanced robotic welding systems to ensure consistent joint strength and dimensional accuracy.

The front frame must withstand tremendous dynamic loads including vibration forces, impact shocks, and torsional stresses that occur during compaction operations on varied terrain types such as gravel, asphalt, and soil substrates. Every Sany SSR120 Roller Front Frame GP undergoes a multi-stage quality verification process including magnetic particle inspection of all welded joints, dimensional gauging against CAD specifications, and surface treatment quality checks to prevent corrosion and extend service life in harsh outdoor environments.

The design of the Sany SSR120 Roller Front Frame GP incorporates reinforced mounting points for the drum bearing housings, articulation joint, and steering cylinders. These critical connection areas feature additional stiffening ribs and gusset plates that distribute stress concentrations evenly across the frame structure. The frame geometry has been optimized through finite element analysis to minimize weight while maximizing rigidity and fatigue resistance. This engineering approach ensures that the front frame can endure millions of loading cycles without developing cracks or deformation. The mounting surfaces are machined to tight tolerances after welding to guarantee proper alignment of all attached components including the drum assembly, hydraulic cylinders, and articulation pivot bearings.

The Sany SSR120 Roller Front Frame GP also integrates mounting provisions for hydraulic hose routing, electrical harness clips, and protective covers. The frame features strategically placed access holes and service openings that allow technicians to perform routine inspections and maintenance tasks without requiring complete disassembly of the machine. The paint system applied to the front frame includes a zinc-rich epoxy primer followed by a durable polyurethane topcoat that provides excellent resistance to UV degradation, chemical exposure, and mechanical abrasion. This protective coating system is essential for maintaining the structural integrity of the frame when operating in environments with high humidity, salt exposure, or aggressive soil conditions.

The Sany SSR120 Roller Front Frame GP is manufactured in Sany’s ISO 9001 certified production facilities using state-of-the-art fabrication equipment including CNC laser cutters, multi-axis machining centers, and automated welding cells. Each frame is assigned a unique serial number that enables full traceability throughout the manufacturing process and aftermarket support lifecycle. The component is subjected to a final assembly trial fitment on a dedicated checking fixture that simulates the actual machine interface points, ensuring that every frame will install correctly on the customer’s SSR120 roller without any modification or shimming required. This comprehensive quality assurance program delivers consistent reliability and performance for end users worldwide.

Product Parameters of Sany SSR120 Roller Front Frame GP

Why Choose Our Sany SSR120 Roller Front Frame GP?

Choosing our Sany SSR120 Roller Front Frame GP means investing in a component that delivers exceptional durability and reliability backed by Sany’s global engineering expertise. Our front frames are manufactured using premium-grade structural steel that meets or exceeds industry standards for yield strength and impact toughness. Each Sany SSR120 Roller Front Frame GP is produced on automated production lines that ensure consistent quality from unit to unit, eliminating the variability that can occur with manual fabrication methods. The robotic welding systems employed in our manufacturing process create welds with superior penetration and uniformity compared to manual welding, resulting in joint strengths that reliably exceed design requirements even under the most demanding compaction duty cycles.

We provide comprehensive technical support and documentation for every Sany SSR120 Roller Front Frame GP we supply. Our customers receive detailed installation guides, torque specifications, and inspection checklists that facilitate proper installation and commissioning. The front frame is packaged in custom-engineered shipping crates that protect the component during transit and storage, with all machined surfaces coated in rust-preventive compound and sealed with protective covers. We maintain a substantial inventory of Sany SSR120 Roller Front Frame GP units in our regional distribution centers, enabling rapid order fulfillment and minimizing equipment downtime for our customers who depend on their SSR120 rollers for critical project deadlines.

Our Sany SSR120 Roller Front Frame GP is backed by a comprehensive warranty program that reflects our confidence in product quality. The warranty covers manufacturing defects in materials and workmanship, providing peace of mind for equipment owners and fleet managers. We also offer extended warranty options and service agreements that include periodic inspections and preventive maintenance recommendations. Our global network of authorized service centers is equipped with specialized tools and trained technicians who can perform frame inspections, alignment checks, and any necessary repairs using genuine Sany replacement components. This aftermarket support infrastructure ensures that your Sany SSR120 Roller Front Frame GP continues to perform reliably throughout its entire service life.

The cost-effectiveness of our Sany SSR120 Roller Front Frame GP is evident when considering total lifecycle costs rather than just the initial purchase price. Our OEM-quality front frames typically outlast aftermarket alternatives by a significant margin due to superior material selection, precision manufacturing, and protective coating systems. The reduced frequency of replacement and lower maintenance requirements translate

into tangible savings in parts expenditure and labor costs over the equipment’s operating life. Additionally, using genuine Sany Parts maintains the SSR120 roller’s resale value and ensures compliance with warranty requirements for other machine components. Fleet operators who standardize on our Sany SSR120 Roller Front Frame GP benefit from simplified inventory management and consistent performance across their equipment fleet.

What are the Routine Maintenance Considerations for the Sany SSR120 Roller Front Frame GP?

Regular visual inspection of the Sany SSR120 Roller Front Frame GP is the most fundamental maintenance practice that operators should perform daily before starting work. The inspection should focus on identifying any visible cracks, deformation, or corrosion on the frame structure, particularly at welded joints and high-stress areas such as the drum bearing housing mounts and articulation connection points.

Any accumulation of dirt, debris, or chemical residues should be cleaned from the frame surface promptly to prevent accelerated corrosion and to allow clear visibility of the underlying metal condition. Operators should pay special attention to the condition of the protective paint coating, as any chips or scratches that expose bare metal can become initiation points for rust formation that may compromise the long-term structural integrity of the Sany SSR120 Roller Front Frame GP.

Fastener integrity is a critical maintenance concern for the Sany SSR120 Roller Front Frame GP. All mounting bolts connecting the front frame to the drum assembly, articulation joint, steering cylinders, and hydraulic component brackets should be checked periodically using a calibrated torque wrench to verify that they meet the specified torque values.

Bolts that have loosened due to vibration must be re-torqued immediately, and any fasteners showing signs of thread damage, corrosion, or stretching should be replaced with genuine Sany hardware of the correct grade and size. The use of thread-locking compounds on critical fasteners may be recommended depending on the specific application and operating conditions. Maintaining proper bolt torque throughout the Sany SSR120 Roller Front Frame GP is essential for preventing joint movement that can lead to fretting wear, fatigue cracking, and eventual component failure.

The articulation joint area of the Sany SSR120 Roller Front Frame GP requires particular attention during routine maintenance procedures. The pivot pin bushings and bearing surfaces should be lubricated at the intervals specified in the equipment maintenance manual using the recommended grade of grease. Insufficient lubrication can cause accelerated wear of the bushing materials and potentially damage the frame’s articulation mounting bores.

When greasing the articulation joint, technicians should observe that fresh grease is being expelled from the bushing seals, indicating proper distribution throughout the bearing surfaces. Any signs of excessive play or unusual movement at the articulation connection should be investigated immediately, as this could indicate worn bushings or damage to the Sany SSR120 Roller Front Frame GP mounting structure that requires professional repair or replacement.

Scheduled non-destructive testing of the Sany SSR120 Roller Front Frame GP should be incorporated into the equipment’s preventive maintenance program, particularly for machines operating in severe duty applications or accumulating high operating hours. Magnetic particle inspection or dye penetrant testing of critical welded joints can detect surface-breaking cracks at an early stage before they propagate to a size that threatens structural integrity.

Ultrasonic thickness measurement of frame plates in areas subject to abrasive wear can identify material loss that may require attention. The steering stop blocks and frame alignment should be checked during major service intervals to ensure that the front frame geometry remains within specification. Any repairs to the Sany SSR120 Roller Front Frame GP such as crack welding or plate replacement should only be performed by qualified personnel using approved repair procedures and materials to maintain the original design strength and fatigue performance of the component.
