Sany Platform & Bracket Assy
Sany Parts engineering delivers comprehensive walkway and structural mounting solutions for heavy-duty construction equipment. The Sany Platform & Bracket Assy is a fully integrated multi-level platform and bracket system designed for Sany excavators, wheel loaders, crawler cranes, and mining trucks. This complete Sany Platform & Bracket Assy includes specialized front, central, and rear platforms; hydraulic tank and fuel tank cover plates; rubber plates and pressure plates; front and rear fender assemblies; step assemblies; outrigger covers and connectors; multiple fasteners (bolts, screws, washers, nuts); and essential components like door locks, sealing strips, connecting rods, and a tool case bracket.
Every component of the Sany Platform & Bracket Assy is engineered to provide safe operator access, protect critical hydraulic and fuel systems, and maintain structural integrity across the vehicle body. Upgrading to the genuine Sany Platform & Bracket Assy enhances your equipment’s serviceability, operator safety, and component protection.
What is the Sany Platform & Bracket Assy?

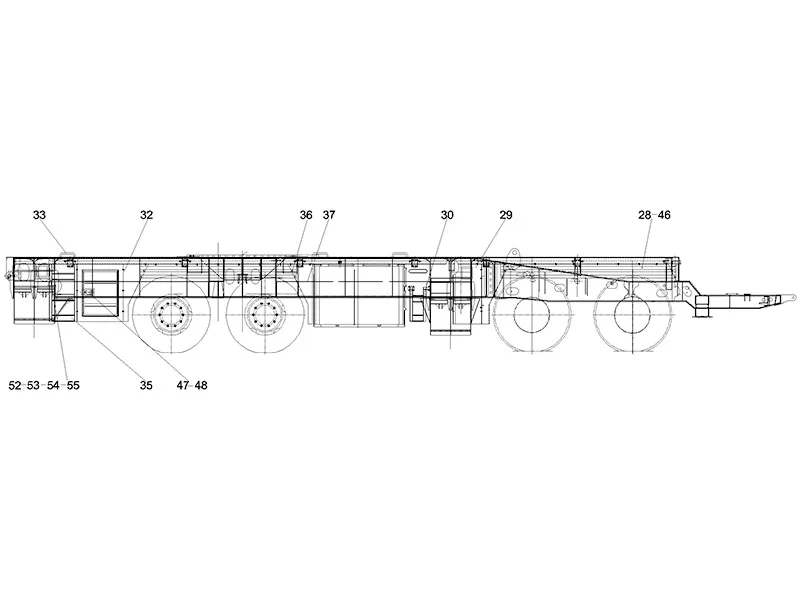

The Sany Platform & Bracket Assy is a factory-engineered multi-component structural system that provides safe operator access, component mounting, and equipment protection for Sany heavy machinery. This robust assembly includes precisely contoured front platforms (right: 10668682 and 10864869; left: 10671012), central right platform (10669520), rear right platform (10669843), and rear left platform (10670853).
The design follows modular principles based on transport units and efficient assembly. These platforms create a continuous perimeter walkway around the machine’s upper structure, allowing service personnel to safely access engine compartments, hydraulic systems, and fuel tanks during routine maintenance and repair operations.
The component protection system of the Sany Platform & Bracket Assy includes a hydraulic oil tank cover plate (10669419) and a fuel tank cover plate (10670863) that seal and protect these critical fluid reservoirs from impact damage, debris accumulation, and unauthorized access. The outrigger front right cover plate (10864870), outrigger rear right cover (10864871), and outrigger rear left cover (10864872) provide protective housing for the stabilizer mechanism components during transport.
The front left fender (10574175), left fender assembly (10569366), middle left fender (10575050), front right fender (10575929), middle right fender (10576158), and rear fender (10575536) work together as a continuous wheel protection system that shields the chassis from debris thrown upward by the tires. The Sany Platform & Bracket Assy is typically installed directly above and around each wheel set and component enclosure area, providing 360-degree protection coverage.
The operator access system of the Sany Platform & Bracket Assy includes front left and rear left step assemblies (10575004 and 10173873), a right step assembly (10173872), and a rear right step assembly (10173889). These steps feature anti-slip surfaces designed to maintain secure footing even in wet or muddy conditions, significantly reducing the risk of slips and falls during elevated access.
The aluminum handle (A290000002357) provides a secure handhold for final ascent to the platform level. The door lock (A222200000042) secures access panels against unauthorized entry. The rubber seal strip (11104916) ensures watertight closure of access doors, preventing moisture ingress to sensitive compartments. The connecting rod (10131490) links the step assemblies to the main platform structure for synchronized movement during maintenance access. The tool case bracket (11214503) provides a designated mounting location for a portable toolbox, keeping essential service tools readily accessible to maintenance personnel.
The repair kit assembly (10173923) includes replacement hardware and seals for field repairs of the platform system when damage occurs. Through these well-designed components, the Sany Platform & Bracket Assy creates a safe, accessible working environment for service personnel at height. It also protects critical undercarriage and outrigger components from debris thrown up by the wheels during operation, reducing the risk of hydraulic hose puncture and mechanical damage.

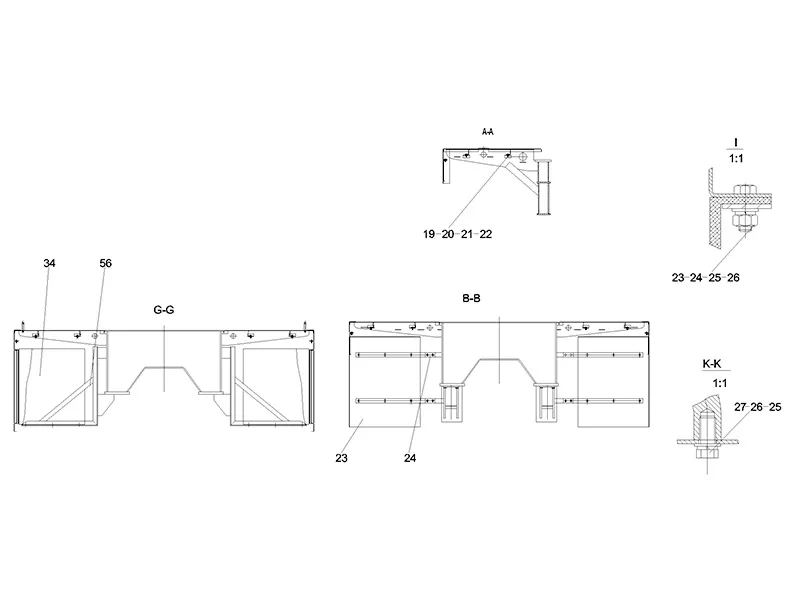

The fastening system of the Sany Platform & Bracket Assy includes a comprehensive suite of high-strength fasteners engineered for vibration resistance. Multiple bolt types secure the assembly: A210111000094, A210111000090, A210111000018, and additional bolts. Various screw types include A210210000007, A210202000042, and A210210000017 (M6 x 20 GBB18). Several washer types distribute clamping loads: A210405000006, A210401000016, A210401000017, A210405000007, A210401000001, A210405000011. Nuts A210307000016 and A210307000012 lock connections against loosening under continuous vibration. All fasteners in the Sany Platform & Bracket Assy meet or exceed property class 10.9 specifications, with specialized thread-locking features that resist loosening under high-frequency vibration generated during transport over rough terrain.
Every element of this assembly demonstrates Sany engineering for reliability and durability in demanding working conditions. The integration of these 56 components creates a comprehensive walkway, access, and protection solution that enhances both operator safety and component longevity. The superior construction quality reflects Sany’s commitment to excellence in heavy equipment structural systems. All components are traceable through the genuine Sany parts network spanning over 120 countries, backed by a comprehensive 24‑month warranty.
The modular design of the Sany Platform & Bracket Assy allows independent replacement of individual components such as a damaged step assembly or a corroded cover plate, reducing downtime and repair costs for fleet operators and service centers. By consolidating all necessary mounting hardware, walking surfaces, and protective covers into a single assembly, the Sany Platform & Bracket Assy significantly reduces installation complexity compared to sourcing each component separately from multiple suppliers.
Product Parameters of Sany Platform & Bracket Assy
Why Choose Our Sany Platform & Bracket Assy?
This dual‑layer elastomer-and-metal protective system extends the service life of the platforms and brackets by preventing direct rock impacts from chipping or deforming the steel structure. The integrated aluminum handle and lockable access door provide secure access control, preventing unauthorized entry to sensitive compartments.
All 56 Part Numbers are available individually through Sany dedicated parts distribution centers, with expedited shipping available for critical components. The PartsCode table enables precise reordering of any component. Volume purchasers may qualify for consignment stock programs and fleet pricing. Choosing the genuine unit ensures equipment reliability and full manufacturer warranty protection.
What are the Routine Maintenance Considerations for the Sany Platform & Bracket Assy?
Daily Visual Inspection of Platforms and Steps: Before each shift, perform a complete visual inspection of the Sany Platform & Bracket Assy. Check all front, central, and rear platforms for cracks, bent edges, missing hardware, and any accumulation of debris that could conceal damage.
Inspect step assemblies for loose mounting brackets or worn anti-slip surfaces. Examine the rubber plates (10173426, 10173774, 10173786) for separation from the metal backing plates; replace any rubber plate that shows cracking around mounting bolt holes.
Cover Plate and Fender Condition Check: Inspect the hydraulic tank cover plate (10669419) and fuel tank cover plate (10670863) for dents that could reduce clearance. Check all outrigger covers (10864870, 10864871, 10864872, 10575915, 11179206) for damage. Examine fender assemblies left (10569366), middle left (10575050), middle right (10576158), and rear (10575536) for cracking. Document any visible damage before further operation.
Fastener Torque Verification Every 250 Hours: Using a calibrated torque wrench, verify the torque of all fasteners on the Sany Platform & Bracket Assy. Tighten bolts (A210111000094, A210111000090, A210111000018) and screws (M6 x 20) to Sany specifications appropriate for their thread size (typically 25‑35 Nm for M6, 45‑60 Nm for M8).
Any loose fastener must be re‑tightened, and any washer (A210405000006, A210401000016, A210401000017, A210405000007, A210401000001, A210405000011) showing deformation must be replaced. Proper torque prevents the entire assembly from becoming loose or misaligned.
Door Lock, Seal, and Connecting Rod Inspection: Every 500 hours, inspect the door lock (A222200000042) for proper latch engagement, and check the rubber seal strip (11104916) for cracking or compression set. If the seal shows permanent indentation or is no longer springing back, replace it to maintain watertight closure. Verify that the connecting rod (10131490) linkage moves freely without binding. Check the tool case bracket (11214503) for secure attachment.
Annual Full Disassembly and Comprehensive Inspection: Every 2,000 operating hours, schedule a comprehensive structural integrity inspection of the Sany Platform & Bracket Assy. Remove all platform sections, step assemblies, cover plates, and fenders. Clean each component thoroughly to remove accumulated mud and debris. Following this annual inspection schedule extends the service life of the assembly beyond 15,000 operating hours while ensuring safe access and reliable component protection.
