SANY Insrument Panel Gp(Narrow Crane)
What is the SANY Insrument Panel Gp(Narrow Crane)
- The SANY Insrument Panel Gp(Narrow Crane) (1/3) represents a critical third of the complete dashboard assembly, meticulously engineered to integrate core functionality, structural support, and aesthetic appeal within the operator’s cabin. This sub-assembly is a complex module that brings together numerous components. Its primary structure is formed by the Insrument panel GP, left and the Insrument panel GP, right, upper, which create the foundational wings of the dashboard.
- The front-facing aesthetic is defined by decorative elements such as the Upper decorating strip, mask, instrument, the Decorative strip GP, left, and the Decorative strip GP, middle. Functional control is centralized on the Large panel GP, center, which hosts various Panel, switch units, including the specific Panel GP, switch, lower, left, instrument and Panel GP, switch, lower, right, instrument. The integrated ventilation system is routed through several Air pipe components, including those for defrosting, right, feet blowing, right, and air outlet, right.
- Additional critical parts include the Bracket, hand brake with its Cover, handle, hand brake, the Panel GP, ash tray, and the Cover GP, louder-speaker. The entire SANY Insrument Panel Gp(Narrow Crane) (1/3) is securely mounted to the cab structure using various Bracket, U-type fixtures and is fastened in place with multiple Screw, self-tap screws, each installation point often reinforced with a Washer to ensure a rattle-free and durable fit. This segment works in concert with the other modules to form the fully operational instrument panel.
Parameters of SANY Insrument Panel Gp(Narrow Crane) (1/3)

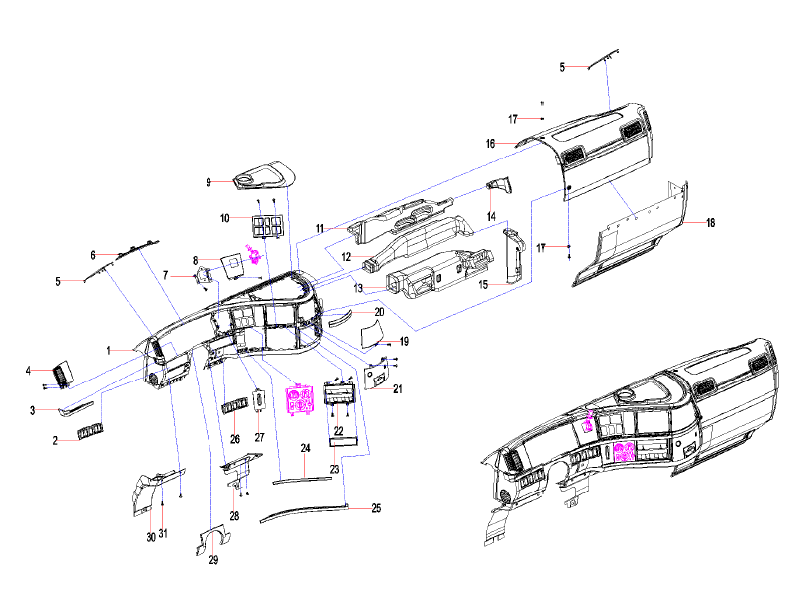

| Item No. | Part No. | Description | Qty. |
| 1 | 11213713 | Insrument panel GP, left | 1 |
| 2 | 11213716 | Panel GP, switch, lower, left, instrument | 1 |
| 3 | 11213720 | Decorative strip GP, left | 1 |
| 4 | 11213724 | Panel GP, switch, vent, left | 1 |
| 5 | 11213719 | Cover GP, louder-speaker | 2 |
| 6 | 11205755 | Upper decorating strip, mask, instrument | 1 |
| 7 | 11222104 | Bracket, hand brake | 1 |
| 8 | 11205606 | Cover, handle, hand brake | 1 |
| 9 | 11213725 | Large panel GP, center | 1 |
| 10 | 11246924 | Panel, switch | 1 |
| 11 | 11209266 | Air pipe, defrosting, right | 1 |
| 12 | 11209222 | Air pipe, feet blowing, right | 1 |
| 13 | 11209226 | Air pipe, air outlet, right | 1 |
| 14 | 11208636 | Air pipe, air outlet, right | 1 |
| 15 | 11208621 | Air pipe, right | 1 |
| 16 | 11209220 | Insrument panel GP, right, upper | 1 |
| 17 | 11208485 | Blank cap | 2 |
| 18 | 11209267 | Guard board, lower, right, insrument panel | 1 |
| 19 | 11213726 | Panel GP, middle decoration | 1 |
| 20 | 11213723 | Decorative strip GP, middle decoration panel | 1 |
| 21 | 11213715 | Panel GP, ash tray | 1 |
| 22 | 11208388 | Panel, radio | 1 |

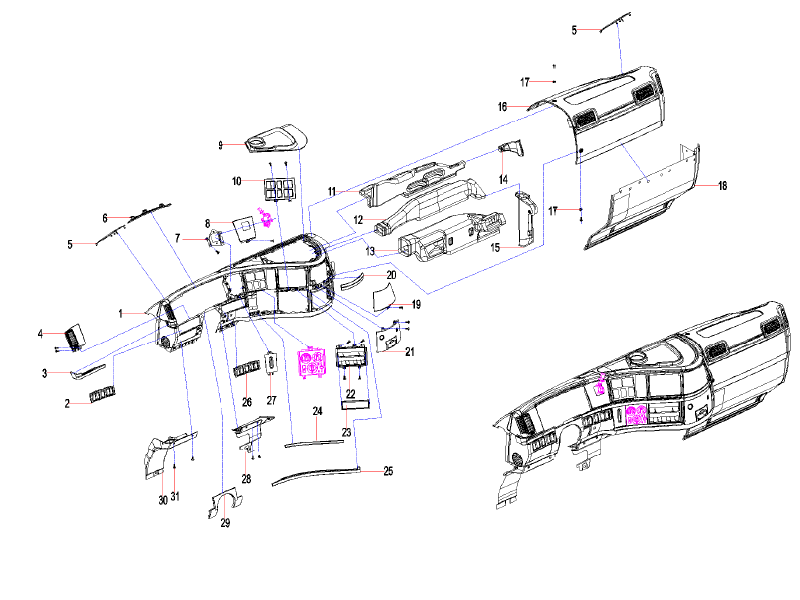

Parameters of SANY Insrument Panel Gp(Narrow Crane) (2/3)
| Item No. | Part No. | Description | Qty. |
| 23 | 11318849 | Cove, radio | 1 |
| 24 | 11213714 | Decorative strip GP, lower, middle | 1 |
| 25 | 11213721 | Decorative strip GP, middle | 1 |
| 26 | 11213717 | Panel GP, switch, lower, right, instrument | 1 |
| 27 | 11208375 | Cover, hand brake | 1 |
| 28 | 11208371 | Side panel, lower, right, cab | 1 |
| 29 | 11213722 | Upper mask GP, cab | 1 |
| 30 | 11208349 | Side panel, lower, left, cab | 1 |
| 31 | 11326706 | Screw, self-tap | 36 |

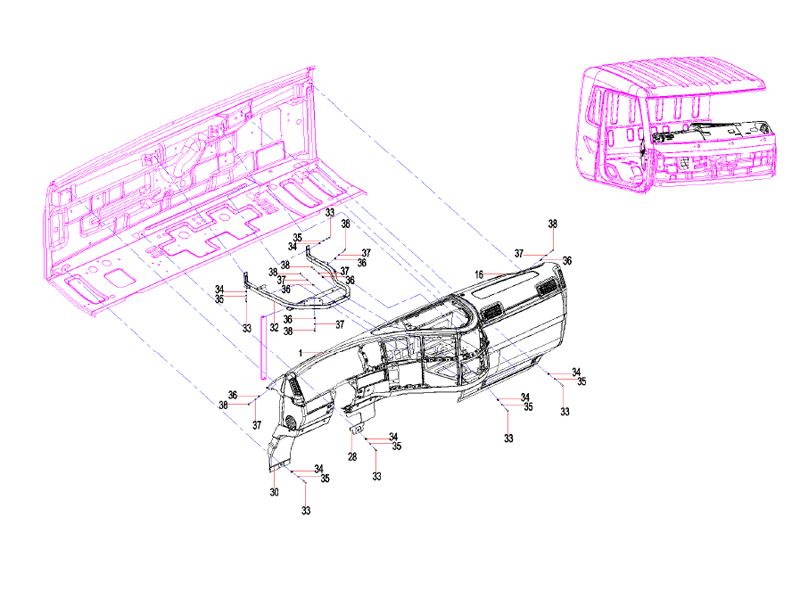

Parameters of SANY Insrument Panel Gp(Narrow Crane) (3/3)
| Item No. | Part No. | Description | Qty. |
| 1 | 11213713 | Insrument panel GP, left | 1 |
| 16 | 11209220 | Insrument panel GP, right, upper | 1 |
| 28 | 11208371 | Side panel, lower, right, cab | 1 |
| 30 | 11208349 | Side panel, lower, left, cab | 1 |
| 32 | 11205288 | Bracket, U-type | 1 |
| 33 | A210211000015 | Screw | 8 |
| 34 | A210405000007 | Washer | 8 |
| 35 | A210401000017 | Washer | 8 |
| 36 | A210405000009 | Washer | 6 |
| 37 | A210401000016 | Washer | 6 |
| 38 | A210405000008 | Washer | 6 |
