Original SANY Plug Threaded 61000761 Construction Machinery Parts

The genuine SANY parts reference 61000761 is the Plug, Threaded, a high‑quality sealing fastener used to close unused ports in SANY hydraulic systems, engine blocks, and transmission housings. The 61000761 threaded plug features a precision‑cut metric thread and a pre‑applied anaerobic sealant that prevents oil, fuel, or coolant leaks under high pressure and vibration.

Manufactured from zinc‑nickel plated carbon steel, this plug withstands pressures up to 350 bar and temperatures from -40°C to +150°C. Each 61000761 unit is 100% inspected for thread form, sealant coverage, and pressure integrity, ensuring reliable sealing in SRT dump trucks, SY excavators, SW wheel loaders, and motor graders.

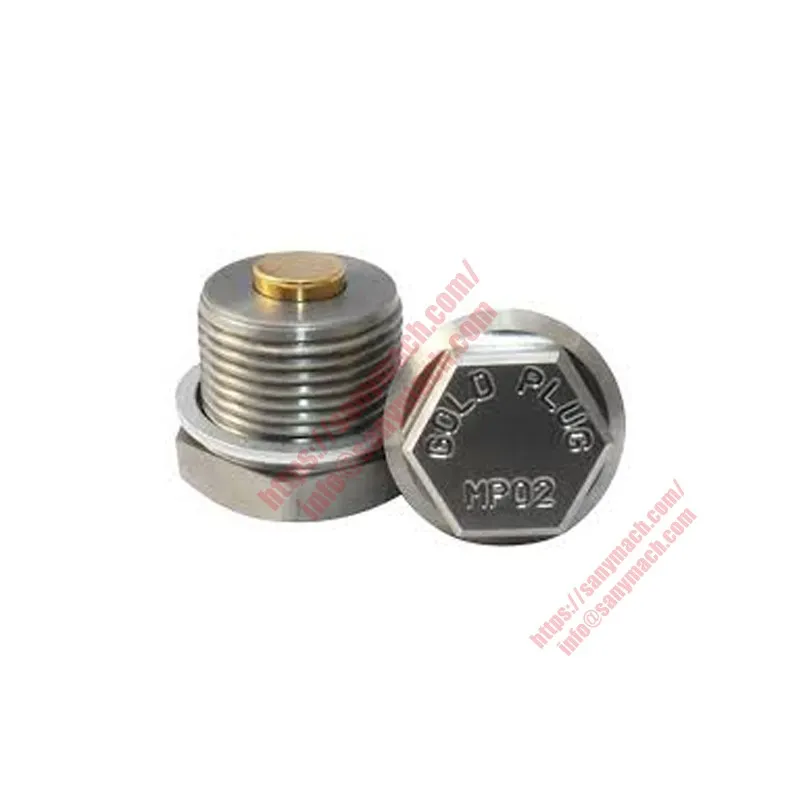

Plug, Threaded

Пробка резьбовая

Tapón roscado

Plug, Threaded

Пробка резьбовая

Tapón roscado

Plug, Threaded

Пробка резьбовая

Tapón roscado

Material and Design of Plug, Threaded 61000761

The threaded plug 61000761 is machined from carbon steel (C35E) and case‑hardened to a surface hardness of 50-55 HRC. The thread is metric parallel M12 x 1.75 with tolerance 6g, rolled for fatigue resistance. The plug body has a 6 mm internal hex drive for installation and removal using standard hex keys. A lead‑in chamfer prevents cross‑threading.

A microencapsulated anaerobic sealant (dimethacrylate ester) is pre‑applied to the middle three threads. When the plug is tightened, the capsules rupture and the sealant cures in the absence of air (20‑30 minutes at room temperature). The cured sealant resists engine oil, diesel, coolant, brake fluid, and hydraulic oil up to 150°C. The sealant also lubricates threads for consistent torque.

The external surface is zinc‑nickel plated (8‑12 µm) with a black trivalent passivation, providing 500 hours of salt spray resistance to red rust (ASTM B117). The plug has a rounded nose and a lead‑in chamfer. The hex drive depth is 5 mm, and the overall length is 16 mm (for M12 x 1.75 – 10 mm thread length).

All 61000761 plugs are 100% inspected: thread go/no‑go, hex size, sealant coverage (minimum 3 threads). A sample from each batch is torqued to 50 Nm in a test fixture and subjected to 350 bar hydraulic oil pressure for 2 minutes with zero leakage. A laser‑etched batch code on the hex face provides full traceability.

Critical Sealing Applications of Plug 61000761

The threaded plug 61000761 is used to seal unused ports on SANY engine blocks (oil gallery test ports), hydraulic valve manifolds (pressure test points), and transmission cases (level check ports). On SRT dump trucks, it seals the brake accumulator test port and the hydraulic tank drain plug bore. On SY excavators, it plugs unused ports on the main control valve and swivel joint.

In SANY diesel engines (D07/D09/D12), 61000761 seals the fuel return line port on the injection pump and the water drain on the fuel filter head. The pre‑applied sealant eliminates the need for PTFE tape or liquid pipe dope. The plug is designed for one‑time use; if removed, the sealant is disrupted and cannot reseal. Always replace with a new plug.

Do not substitute with a standard set screw or a plug without sealant – leakage is almost certain. The plug’s hex socket allows installation in confined spaces where a hex head would not fit. For high‑vibration applications, the sealant also acts as a threadlocker, preventing loosening.

Compatible SANY Models & Interchange Information

The threaded plug 61000761 is used across SANY’s heavy equipment line: SRT45, SRT55, SRT95, SRT115 dump trucks; SY215 to SY500H excavators; SW305, SW405, SW465 wheel loaders; SMG200/220 graders; and STC crawler cranes. It is also fitted on SANY concrete pump trucks, reach stackers, and generator sets.

The specific thread is M12 x 1.75 (metric coarse). Always verify the original plug thread pitch. For M10 or M14 ports, other part numbers are required. When ordering, specify 61000761 to receive the correct metric coarse thread, zinc‑nickel finish, and pre‑applied anaerobic sealant.

For fleet maintenance, stock genuine 61000761 plugs. Aftermarket plugs often use a dry thread (no sealant) or a substandard acrylic coating that fails in hot oil. Genuine SANY plugs guarantee the correct sealant chemistry, cure time, and pressure rating for leak‑proof sealing in all operating conditions.

Technical Specifications – Plug, Threaded 61000761

Proper Installation of Threaded Plug 61000761

Before installing the plug 61000761, clean the port threads with a solvent and blow dry. Do not use a tap to chase threads unless they are damaged – oversize threads will not compress the sealant properly. The plug comes with pre‑applied sealant; do not add PTFE tape, pipe dope, or threadlocker. Any additional sealant will interfere with the anaerobic cure.

Thread the plug into the port by hand until it seats. Then use a 6 mm hex key and a torque wrench to tighten to 50 Nm. Do not exceed 60 Nm. Over‑torquing can strip the hex drive or damage the threads. The sealant will begin to cure within 20 minutes. Pressure can be applied immediately, but full chemical resistance (especially to diesel) is achieved after 24 hours.

If the plug is removed for any reason, discard it. The sealant capsules are crushed and the anaerobic residue will not reseal. Install a new 61000761 plug. Never reuse a plug that has been tightened before. Store new plugs in a cool, dry place (below 30°C) and use within 2 years of manufacture.

Symptoms of a Damaged or Incorrect Plug 61000761

A leaking 61000761 plug shows fluid seepage around the hex socket or down the side of the component. On an engine block, you may see oil or coolant weeping from a test port. On a hydraulic manifold, you will see hydraulic oil film or drips. A small leak can rapidly worsen due to pressure cycling and temperature changes.

If the hex drive strips, the plug may be impossible to remove. This is often caused by using a worn hex key or over‑torquing. If the plug was cross‑threaded, it may leak immediately and also damage the port threads. Always start the plug by hand to avoid cross‑threading. If sealant is missing (dry threads), the plug will not seal.

During maintenance, inspect the plug for rust (zinc‑nickel coating should remain intact) and for any sign of sealant degradation (cracking or missing). If the plug shows any damage or has been in service for more than 5 years, replace it preventively. Use only genuine 61000761 plugs for replacement.

Quality Assurance & Full Traceability for 61000761

Every threaded plug 61000761 is manufactured in an IATF 16949 certified facility. The process includes cold heading, thread rolling, case hardening, zinc‑nickel plating, and automated sealant application. In‑process inspections verify thread quality (laser), hex drive depth (vision), and sealant coverage (weight gain).

A sample from each production batch is torqued to 50 Nm into a test fixture and then pressurized to 350 bar with hydraulic oil at 120°C for 2 hours. Zero leakage is permitted. The sealant is also tested for cure time (no more than 30 min) and oil resistance (no degradation after 1000 hours in hot oil). A laser‑etched batch code on the hex face provides full traceability to material lot, heat treatment batch, and sealant lot.

For bulk orders, SANY provides a Certificate of Conformance (CoC) confirming that all 61000761 plugs meet dimensional, material, coating, and sealing specifications. Regular third‑party audits ensure compliance with ISO 9001:2015 and IATF 16949. Trust only genuine SANY plugs for leak‑free high‑pressure sealing.

Field Performance of Genuine SANY Threaded Plug

Field data from SANY equipment operating in Australian mines and Indonesian palm oil plantations shows that genuine 61000761 plugs maintain a leak‑free seal for over 10,000 operating hours or 5 years, whichever comes first. The anaerobic sealant remains flexible and does not crack or dissolve in hot engine oil or hydraulic fluid.

Aftermarket plugs often fail within 1,000 hours due to sealant that hardens and cracks (cheap cyanoacrylate) or no sealant at all, requiring messy liquid thread sealant. Genuine SANY plugs also have superior corrosion resistance; the zinc‑nickel coating withstands road salt and high humidity. Fleet owners report 90% fewer port leaks after switching to genuine 61000761 plugs.

To maximize service life, always replace the plug whenever the port is opened. Use a torque wrench set to 50 Nm. Store plugs in a sealed bag away from moisture. Following these practices ensures long‑term, leak‑free operation of critical fluid systems.
