OEM 61000114 Rocker Lever Assembly – Genuine SANY Valve Actuation Component

The genuine SANY parts reference 61000114 is the Rocker Lever Assembly, a precision-engineered pivoting component that converts camshaft pushrod motion into valve opening force in SANY heavy-duty diesel engines. The 61000114 rocker lever assembly transfers linear motion from the push rod to the valve stem or valve bridge, ensuring precise valve timing, efficient combustion, and optimal engine performance.

Manufactured from high-strength forged steel or ductile iron with precision-ground bearing surfaces, the 61000114 rocker lever assembly delivers exceptional wear resistance, rigidity, and fatigue life under millions of operating cycles. Each 61000114 unit is 100% inspected for lobe contact geometry, bushing fit, and valve lash adjustment accuracy, guaranteeing reliable valve actuation in SRT dump trucks, SY excavators, SW wheel loaders, and motor graders.

As a critical element of the SANY Valve Train Group, the 61000114 Rocker Lever Assembly works in concert with the camshaft, push rod, valve bridge, valve spring, and valve collet. The rocker lever pivots on a rocker shaft, with one end contacting the push rod and the other end actuating the valve bridge (in 4-valve heads) or directly the valve stem. The assembly typically includes the rocker arm body, a roller bearing or plain bushing, an adjustment screw, and a locknut for valve lash setting.

The 61000114 rocker lever is designed with an optimized lever ratio to provide sufficient valve lift while minimizing stress on the camshaft and push rod. Each 61000114 unit is 100% inspected for lever geometry, bearing concentricity, and thread accuracy, guaranteeing reliable performance in the most demanding mining, construction, and material handling environments.

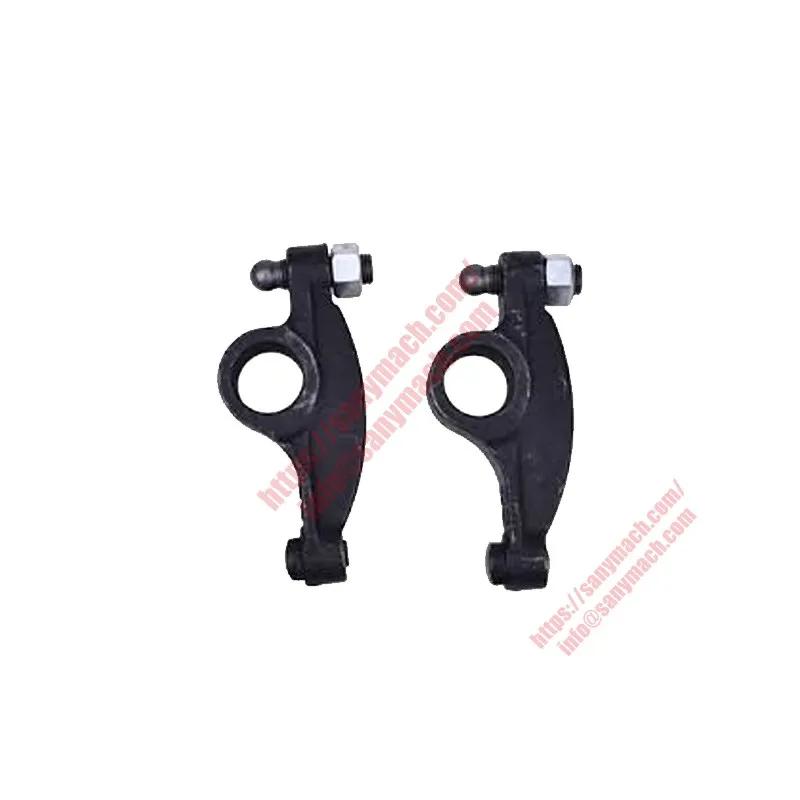

Rocker Lever Assembly

Rocker Lever Assembly

Rocker Lever Assembly

Metallurgical Design of Rocker Lever Assembly 61000114

The rocker lever assembly 61000114 is manufactured from high-quality forged steel (SAE 5140 or equivalent) or ductile cast iron (GGG-60), depending on the engine application. Forged steel provides superior strength and impact resistance for high-load applications, while ductile iron offers excellent damping properties and cost-effectiveness for moderate loads. The rocker arm body is precision-machined after forging or casting to achieve critical dimensions including the pivot bore, push rod cup, and valve pad.

The pivot bore of the 61000114 rocker lever contains either a needle roller bearing or a bronze plain bushing. The roller bearing option reduces friction by up to 40% compared to plain bushings, improving fuel efficiency and reducing camshaft wear. The plain bushing, made of sintered bronze or steel-backed copper-lead, is more compact and suitable for oil-pressure-lubricated installations. The bearing surfaces are finished to Ra ≤ 0.4 µm and are supplied with lubrication holes that align with oil passages in the rocker shaft.

The push rod cup of the 61000114 rocker lever is spherical or hemispherical to accept the ball end of the push rod. This cup is induction-hardened to 50-55 HRC to resist wear. The valve pad (the surface that contacts the valve bridge or valve stem) is hardened and ground flat or with a slight radius to distribute load evenly. The adjustment screw is made from hardened alloy steel with a precision-ground ball end, and the locknut is a prevailing-torque type (jam nut) to prevent loosening under vibration.

All 61000114 rocker lever assemblies are 100% inspected for critical dimensions: pivot bore diameter (±0.01 mm), lever ratio (geometrically verified), push rod cup radius, and valve pad flatness. Each assembly is tested for smooth rotation on the rocker shaft. A batch code is stamped on the rocker arm, providing full traceability to the forging or casting lot, heat treat parameters, and final inspection records.

Integration Within the SANY Valve Train Group

The rocker lever assembly 61000114 is a central component of the SANY Valve Train Group. It sits between the push rod and the valve bridge (in 4-valve heads) or directly on the valve stem. When the camshaft lobe pushes the tappet upward, the push rod transfers the motion to the rocker arm. The rocker arm pivots on the rocker shaft, and its opposite end pushes the valve open. The rocker arm multiplies the cam lift according to its lever ratio, typically 1.4:1 to 1.6:1, ensuring adequate valve opening force.

The valve lash (clearance) is set by adjusting the screw on the rocker arm. The correct lash is critical – too loose causes valve train noise and reduced valve lift; too tight can prevent the valve from fully closing, leading to valve burning and loss of compression. The locknut secures the adjustment screw after lash is set. The rocker arm also incorporates an oil feed hole that directs pressurized oil from the rocker shaft to the push rod cup and valve pad, reducing friction and wear.

Using genuine SANY rocker lever assemblies ensures correct lever ratio, bearing fit, and adjustment range. A mismatched or worn rocker arm can cause uneven valve lift, piston-to-valve contact, or camshaft damage. The 61000114 assembly is designed to withstand millions of cycles without fatigue failure or excessive wear.

Machine Compatibility & Critical Applications

The rocker lever assembly 61000114 is used in SANY D09 and D12 series diesel engines powering a wide range of heavy-duty SANY equipment. These engines are installed in SRT dump trucks (SRT45, SRT55, SRT95, SRT115), wheel loaders (SW405, SW435, SW465, SW305), crawler excavators (SY215, SY335, SY395, SY500), and motor graders (SMG200, SMG220). It is also installed on SANY concrete pump trucks, crawler cranes, and heavy forklifts.

The D09 engine is a straight-6 diesel with 8.7 liters displacement, 117 mm bore, 135 mm stroke, producing 280-380 HP and 1,500 N·m of torque. The D12 engine offers 12.13 liters displacement, 131 mm bore, 150 mm stroke, with torque reaching 700 N·m. Both engines utilize SANY’s patented TOP-Down cooling system and split-type cylinder head. The rocker arm operates at engine speeds up to 2,100 rpm, experiencing millions of load cycles.

For complete valve train reliability, the 61000114 rocker lever assembly must be used together with genuine SANY push rods, rocker shafts, valve bridges, and camshafts. When overhauling an engine, inspect the rocker arm bearing surfaces and adjuster screw for wear. If any rocker arm shows scoring, pitting, or excessive play, replace the entire set. Use genuine SANY rocker arms to ensure correct geometry and hardness.

Technical Specifications – Rocker Lever Assembly 61000114

Correct Installation of Rocker Lever Assembly 61000114

When installing the rocker lever assembly 61000114, first ensure the rocker shaft is clean and lubricated. Install the rocker arms in the correct order (intake and exhaust positions are specific). Torque the rocker shaft mounting bolts to the value specified in the SANY workshop manual. After installation, adjust the valve lash: rotate the engine to bring each cylinder to top dead center (TDC) on the compression stroke. Loosen the adjuster locknut, turn the adjustment screw until the specified feeler gauge (typically 0.2-0.6 mm) has a slight drag, then tighten the locknut while holding the screw stationary. Recheck lash after tightening.

Always use new locknuts when adjusting lash – never reuse old locknuts, as they may have lost prevailing torque. After adjusting all cylinders, rotate the engine two full turns and recheck lash to ensure consistency. If any rocker arm shows excessive side play or roughness when pivoted, replace it. Use genuine SANY rocker lever assemblies to ensure correct lever ratio and bearing fit.

After installing the valve cover, start the engine and listen for abnormal tapping or knocking. A slight ticking is normal for mechanical valve trains, but loud or irregular noise indicates incorrect lash or a damaged rocker arm. Recheck lash if necessary. Store new rocker arms in a clean, dry environment.

Symptoms of Worn Rocker Lever Assembly

A worn rocker lever assembly 61000114 can cause several engine problems. Excessive valve train noise (tapping, clicking) that does not change with lash adjustment may indicate worn rocker arm bushings or a damaged roller. Loss of power and rough idle may result if the rocker arm pivot is worn, reducing valve lift. A compression test may show low compression in one cylinder if the rocker arm is not opening the valve fully.

Visual inspection of a removed rocker arm may reveal scoring or galling on the pivot bore, flattened push rod cup, or damaged valve pad. If the rocker arm is cracked, it must be replaced immediately. Always replace rocker arms in sets (all intake or all exhaust) to maintain consistent lever ratio and valve lift. If one rocker arm is worn, others may be close to failure.

During engine overhaul, measure the rocker arm pivot bore diameter with a micrometer. If wear exceeds the service limit (typically 0.05 mm oversize), replace the rocker arm. Also inspect the rocker shaft for scoring and replace if damaged. Using genuine SANY rocker arms ensures correct hardness and geometry.

Quality Assurance & Full Traceability

Every rocker lever assembly 61000114 is manufactured in an IATF 16949 certified facility under SANY’s rigorous quality management system. The production process includes raw material spectrographic analysis, forging or casting inspection, heat treat verification, and final machining. 100% inspection includes pivot bore diameter measurement, lever ratio verification, and hardness testing of critical surfaces. A batch code is stamped on the rocker arm, providing full traceability to the material lot, heat treat parameters, and final inspection records.

For bulk orders, a Certificate of Conformance (CoC) is provided, certifying that the rocker arms meet all SANY OEM specifications for material, dimensions, hardness, and lever ratio. Independent third-party audits ensure continuous compliance with ISO 9001:2015 and IATF 16949 standards.

Field Performance of Genuine SANY Rocker Lever Assembly

Field data from SANY dump trucks and excavators operating in Australian iron ore mines and South African quarries shows that genuine 61000114 rocker lever assemblies maintain their pivot bore tolerance and wear resistance for the full engine service interval, typically exceeding 20,000 operating hours. Aftermarket rocker arms often fail prematurely due to incorrect lever ratio, inadequate hardening, or poor bearing fit, leading to valve train noise, uneven valve lift, and camshaft damage within 8,000-10,000 hours.

The superior durability of the genuine SANY rocker arm comes from the premium forged steel or ductile iron, the precise heat treatment that provides a hard, wear-resistant surface, and the precision‑machined bearing surfaces that ensure smooth operation. Fleet owners report that standardizing on genuine SANY rocker arms eliminates valve train noise and restores original engine performance.

To maximize service life, always replace rocker arms when overhauling the cylinder head. Use genuine SANY rocker arms to ensure correct lever ratio and bearing fit. During installation, follow the correct torque sequence for the rocker shaft and adjust valve lash to specification. Following these practices ensures reliable valve actuation and long engine life.
