Original SANY Spring Return 61000090 Construction Machinery Parts

The genuine SANY parts reference 61000090 is the Spring, Return, a precision‑wound compression spring used to reset control valves and spools to their neutral position in SANY hydraulic systems. The 61000090 return spring provides a precise linear force, ensuring that pilot‑operated valves close promptly when pilot pressure is removed.

Manufactured from high‑carbon spring steel (SAE 1074) with a corrosion‑resistant zinc‑phosphate coating, this spring delivers consistent spring rate and fatigue life. Each 61000090 unit is 100% tested for free length, spring rate, and solid height, guaranteeing reliable valve centering in SRT dump trucks, SY excavators, SW wheel loaders, and motor graders.

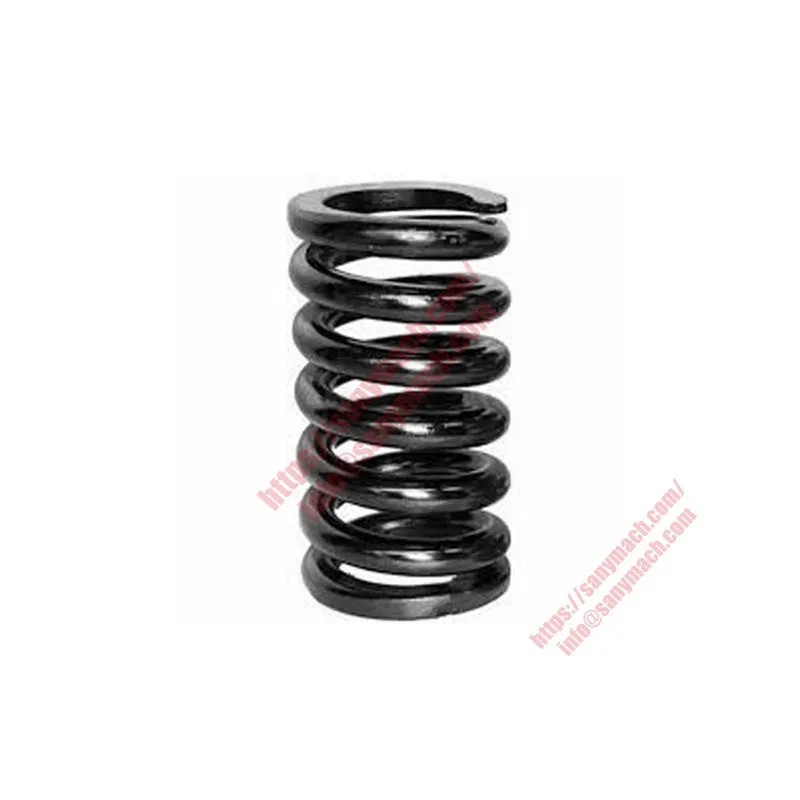

Spring, Return

Пружина возвратная

Resorte de retorno

Spring, Return

Пружина возвратная

Resorte de retorno

Spring, Return

Пружина возвратная

Resorte de retorno

Material and Design of Spring, Return 61000090

The return spring 61000090 is wound from music wire (SAE 1074 high‑carbon steel, ASTM A228). The wire diameter is 2.5 mm ±0.02 mm, with an outer coil diameter of 20 mm and a free length of 60 mm. The spring has 10 active coils with closed and ground ends to ensure flat seating in the valve bore. The spring rate is 50 N/mm ±5%, and the solid height (coils touching) is 25 mm, allowing a maximum working stroke of 35 mm.

After winding, the spring is stress‑relieved at 260°C for 30 minutes to eliminate residual stresses and prevent relaxation. It is then shot‑peened to improve fatigue life (minimum 1 million cycles at full stroke). The spring is preset (compressed to solid height 3 times) to stabilize its length and rate. The surface receives a zinc‑phosphate conversion coating (8‑12 µm) followed by an oil dip, providing 96 hours of salt spray resistance (ASTM B117).

The spring is designed to fit inside a valve cavity with a 21 mm bore. At installed height (50 mm), the spring produces a preload of 500 N, which holds the valve spool in the neutral position. When pilot pressure acts on the spool, the spring compresses further; the force at full stroke (15 mm additional compression) is 1250 N. The spring is tested for solid height stress (within safe limits for music wire).

All 61000090 springs are 100% tested for free length (±0.5 mm) and spring rate (using a compression tester). A sample from each batch is fatigue‑tested to 1 million cycles at 80% of maximum stroke; no fracture or permanent set exceeding 1% of free length is allowed. A batch code is printed on the packaging for traceability.

Function of Spring 61000090 in Hydraulic Control Valves

The return spring 61000090 is installed in the pilot section of main control valves, typically behind the spool or behind the pilot piston. When the operator releases the joystick, pilot pressure drops to tank. The spring then expands, pushing the spool back to its central (neutral) position, stopping oil flow to the actuator. This centering action is critical for machine safety and precise control.

In SANY excavators, 61000090 springs are used on boom, arm, bucket, and swing spools. On SRT dump trucks, they return the hoist and steering spools. A weak or broken spring will cause the spool to not fully return to neutral, resulting in unwanted actuator creep, drifting, or inability to build full system pressure. The spring must be replaced at the first sign of reduced centering force.

The spring also acts as a mechanical backup: if pilot pressure fails, the spring returns the spool to neutral, stopping machine movement. For this reason, genuine SANY springs with precise rate and fatigue life are essential for safe operation. Aftermarket springs may have inconsistent rates, causing sticky or slow spool return.

Compatible SANY Models & Applications

The return spring 61000090 is used on SANY SY215, SY335, SY395, SY500H excavators in the main control valve and swing brake valve. It is also fitted on SRT45, SRT55, SRT95, SRT115 dump trucks in the steering control unit and hoist valve, as well as on SW305, SW405, SW465 wheel loaders in the pilot manifold. Additionally, it appears on SMG200/220 graders and STC crawler cranes.

The spring fits valves with a 20‑21 mm bore and 50‑55 mm installed height. Always verify the original spring dimensions before ordering. For main control valve rebuild kits, this spring is often included. When replacing a spool or pilot piston, always replace the return spring with a new 61000090. Springs lose free length over time (relaxation), affecting centering precision.

For fleet maintenance, stock genuine 61000090 springs. Aftermarket springs may use lower‑grade wire (e.g., hard drawn instead of music wire), leading to premature sagging or fracture. Genuine SANY springs guarantee correct free length, spring rate, and fatigue life for reliable valve centering.

Technical Specifications – Spring, Return 61000090

Proper Installation of Return Spring 61000090

Before installing the spring 61000090, inspect the spring cavity in the valve body for debris, rust, or wear. Clean with solvent and blow dry. Lightly lubricate the spring with clean hydraulic oil. Place the spring over the spool or into the pilot piston bore, ensuring it seats flat against the spring seat. Do not compress the spring more than necessary during assembly.

If the spring is part of a pilot valve, ensure the snap ring or retainer is fully seated. Torque the pilot cap to the specification in the manual (typically 30 Nm for M10 bolts). After assembly, manually shift the spool using a pushrod (or with pilot pressure) and verify that the spool returns to neutral quickly when released. There should be no sticking or hesitation.

Always replace the spring whenever the valve is disassembled for overhaul. Never reuse a spring that has been in service for more than 8,000 hours or shows signs of corrosion, pitting, or reduced free length (measure: if free length < 59 mm, discard). Store new springs in a clean, dry environment away from ozone. Use genuine 61000090 springs for guaranteed centering force.

Symptoms of a Failed Return Spring 61000090

A failed 61000090 spring will cause the valve spool to not fully return to neutral. Symptoms include actuator creep (e.g., the bucket slowly curls when the joystick is released), delayed response when shifting from one direction to the other, or the machine continuing to move after the joystick is centered. On a dump truck hoist, the bed may slowly lower when the lever is released.

If the spring is broken (cracked coil), you may hear a rattling noise inside the valve. The spool may stick in a shifted position, causing uncontrolled movement. Hydraulic oil temperature may rise due to constant pressure across a partially open spool. A broken spring requires immediate replacement; continued operation can damage the spool and bore.

During maintenance, remove the spring and measure its free length. If it has shortened by more than 2 mm from nominal 60 mm, replace it. Also check for corrosion pitting – zinc‑phosphate coating should be intact; red rust indicates water contamination and weakens the spring. Always replace all springs in a valve bank as a set to maintain balanced centering forces.

Quality Assurance & Full Traceability for 61000090

Every return spring 61000090 is manufactured in an IATF 16949 certified facility. The wire is tested for tensile strength (min 1800 MPa) and chemistry. After winding, stress relieving, shot peening, and presetting, each spring is 100% tested for free length and spring rate using an automated compression tester. Coating thickness is verified by XRF.

A sample from each batch (500 pieces) is subjected to fatigue testing: 1 million cycles at 80% of maximum stroke (28 mm). After the test, the spring must retain at least 98% of its original free length and exhibit no cracks. Salt spray testing (96 hours) confirms coating integrity. A batch number on the package provides traceability to wire lot, heat treat parameters, and test records.

For bulk orders, SANY provides a Certificate of Conformance (CoC) certifying that all 61000090 springs meet dimensional, rate, and fatigue specifications. Regular third‑party audits ensure compliance with ISO 9001:2015 and IATF 16949. Use only genuine SANY springs for guaranteed valve centering performance.

Field Performance of Genuine SANY Return Spring

Field data from SANY excavators operating in Australian mines and Brazilian construction sites shows that genuine 61000090 springs maintain their free length and spring rate for over 10,000 operating hours. The music wire resists relaxation and fatigue, and the zinc‑phosphate coating prevents corrosion even in humid environments (e.g., Indonesia).

Aftermarket springs often use lower‑grade hard‑drawn wire, which sags (loses free length) after 2,000‑3,000 hours, leading to sluggish spool return and operator complaints. Genuine SANY springs also undergo shot peening, which aftermarket springs rarely do, resulting in superior fatigue life. Fleet owners report 80% fewer valve‑related drifts after switching to genuine 61000090 springs.

To maximize service life, replace the spring every 8,000 hours or during any valve overhaul. Keep springs in sealed bags until use. Avoid over‑compressing the spring during installation. Following these practices ensures precise valve centering and safe machine operation.
