OEM 60352123 Seal Ring – Genuine SANY High-Pressure Sealing Component

The genuine SANY parts reference 60352123 is the Ring, Seal, a precision-engineered elastomeric sealing component used in high-pressure fuel systems of SANY heavy-duty diesel engines. This sealing ring is installed in critical fuel system interfaces to prevent high-pressure fuel leakage, combustion gas blow-by, and contamination of the engine oil. The 60352123 seal ring is manufactured from high-performance FKM (fluorocarbon rubber) with excellent resistance to diesel fuel, high temperatures, and chemical degradation, delivering reliable sealing integrity under injection pressures exceeding 2,000 bar and operating temperatures up to 150°C.

As an essential component of the SANY Fuel Injector Group (160102130004A019), the 60352123 Ring, Seal is supplied in a quantity of 6 units per engine assembly, working in concert with the Fuel Injector (160102130004A019), Clamp, Fuel Injector (60352132), Adapter, Tube, Injector Fuel Supply (60352073), and Washer, Ball (60352152) [7†L10-L18]. The 60352123 seal ring is installed in the injector bore or on the injector body to create a high-integrity seal between the injector and the cylinder head, preventing combustion gas from entering the fuel system and preventing fuel from leaking into the crankcase.

Each 60352123 unit is 100% inspected for material hardness, dimensional accuracy, and surface finish, guaranteeing reliable sealing performance in SRT dump trucks, SY excavators, SW wheel loaders, and motor graders operating in the most demanding mining, construction, and material handling environments.

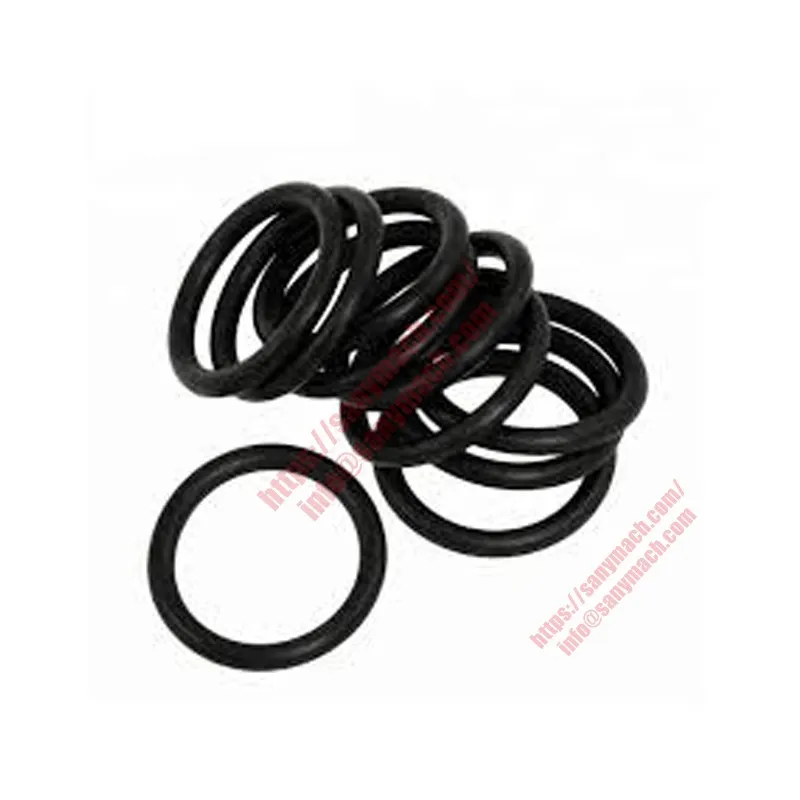

Ring, Seal

Уплотнительное кольцо

Anillo de Sellado

Material and Design of Seal Ring 60352123

The seal ring 60352123 is manufactured from high-grade FKM (fluorocarbon rubber), an advanced elastomer specifically formulated for extreme diesel engine fuel system environments. FKM provides outstanding resistance to diesel fuel, high temperatures (continuous service up to 150°C, peak up to 200°C), and chemical attack from combustion byproducts. The material also resists swelling or degradation when exposed to diesel fuel containing biodiesel blends or aggressive additive packages, ensuring long-term sealing integrity over extended service intervals.

The 60352123 seal ring is precision-molded to exacting dimensional tolerances, with the cross-sectional diameter and inner diameter controlled to within ±0.05 mm. The surface finish is smooth and free of flash, parting lines, or other imperfections that could compromise the seal under high pressure. The round cross-section provides uniform sealing force around the entire circumference of the groove, creating a reliable barrier against high-pressure fuel and combustion gases. The Shore A hardness of the FKM material is typically 75-85, providing the optimal balance between flexibility for installation and rigidity for sealing under extreme pressure.

The primary function of the 60352123 seal ring is to seal the interface between the fuel injector and the injector bore in the cylinder head, or between components of the high-pressure fuel supply system. When the injector is clamped into position, the seal ring is compressed in its groove, creating a gas-tight and fuel-tight seal that prevents high-pressure fuel from leaking out of the injector and also prevents combustion gases from entering the fuel system. This dual sealing function is critical for maintaining proper injection pressure, preventing fuel dilution of the engine oil, and avoiding engine performance issues.

All 60352123 seal rings are 100% inspected for material hardness using a Shore A durometer, tensile strength using a universal testing machine, and dimensional accuracy using automated vision systems. A sample from each production batch is subjected to accelerated aging tests, compression set measurement, and fluid immersion testing to verify that the FKM compound meets SANY’s stringent specifications. A batch code is printed on the packaging, providing full traceability to the original compound mix date, molding parameters, and quality inspection records.

Integration Within the SANY Fuel Injector Group

The seal ring 60352123 is an integral component of the SANY Fuel Injector Group (160102130004A019), which is designed to ensure precise fuel delivery and reliable engine performance [7†L2-L7]. The Fuel Injector Group includes the Fuel Injector (160102130004A019) — 6 units per engine, the Clamp, Fuel Injector (60352132) — 6 units, the Adapter, Tube, Injector Fuel Supply (60352073) — 6 units, and the Washer, Ball (60352152) — 6 units [7†L10-L18]. Additionally, the group incorporates the Bushing, Injector (60352131) — 6 units per engine, the O-ring (160102130004A097) — 6 units, and the seal ring 60352123 — 6 units [7†L19-L22].

The Clamp, Fuel Injector (60352132) applies a controlled downward force to the injector, seating the injector firmly into the injector bushing and compressing the seal ring into its sealing groove. The clamp is secured using high-strength hexagon bolts (60352115) that are torqued to a specific value to achieve the correct clamp load [7†L7-L11]. The Washer, Ball (60352152) provides a spherical seating surface that ensures even distribution of the clamping force, preventing distortion of the injector body or damage to the seal ring [7†L16-L18].

The sophisticated engineering of the SANY Fuel Injector Group, combined with the precise sealing provided by the 60352123 seal ring, ensures that fuel is delivered at the correct pressure and timing to achieve complete combustion. The seal ring’s ability to withstand high fuel pressures and aggressive chemicals means that it maintains its sealing integrity even when exposed to diesel fuel, combustion gases, and engine oil over extended service intervals. This reliability directly contributes to lower emissions, better fuel economy, and reduced maintenance costs for SANY equipment owners [7†L2-L6].

Technical Specifications – Ring, Seal 60352123

Proper Installation of Seal Ring 60352123

When installing the seal ring 60352123, absolute cleanliness and careful handling are essential to avoid damaging the seal. Before installation, inspect the seal ring for any visible defects such as nicks, cuts, flash, or deformation. Do not use any seal ring that shows signs of damage. Clean the seal groove and the mating surfaces thoroughly using a lint-free cloth and degreasing solvent, removing all debris or old sealant residue.

Apply a thin film of clean diesel fuel or specialized O-ring lubricant to the seal ring to facilitate installation and prevent pinching. Carefully stretch the seal ring over the injector body and roll it into the groove, ensuring that it is not twisted — the ring should lie flat and evenly in the groove. Do not use sharp tools to manipulate the seal ring, as any nick can create a leak path.

After the seal ring is seated, install the injector into the cylinder head bore using a suitable installation tool and a press. Apply even, straight pressure to avoid damaging the seal ring or cocking the injector in the bore. The injector should be seated fully against the bottom of the bore. Secure the injector using the Clamp, Fuel Injector (60352132) and torque the fasteners to the SANY workshop manual specification — typically 20-25 N·m for the injector clamp bolts [7†L10-L14].

Always replace the seal ring 60352123 whenever the fuel injector is removed for service, regardless of the ring’s apparent condition. The FKM material can harden and lose elasticity due to thermal aging, and the ring may take a permanent compression set that prevents it from sealing properly upon reassembly. Do not reuse seal rings. Store new rings in their original sealed packaging, away from direct sunlight, ozone sources (electric motors), and high temperatures.

Symptoms of a Failed Injector Seal Ring

A failed seal ring 60352123 can produce several characteristic symptoms. Combustion gas blow-by past the injector is the most common indicator — a chuffing or ticking sound may be audible near the injector location, especially under load. This gas escape can also cause carbon buildup around the injector base, making injector removal difficult. Visible black soot deposits on the cylinder head around the injector are a telltale sign of seal ring failure.

Fuel dilution of the engine oil is another serious consequence of seal ring failure. If the seal ring loses its integrity, high-pressure fuel can leak past the injector and into the crankcase, thinning the engine oil and reducing its lubricating properties. Symptoms include a fuel smell in the oil, a drop in oil pressure, and accelerated wear of bearings and cylinder components. In severe cases, the engine oil level may rise due to fuel accumulation.

Hard starting, rough idle, or loss of power may also indicate that the seal ring has failed, allowing combustion gases to escape and reducing cylinder compression. A compression test may show low pressure in one cylinder. If the seal ring is suspected of failure, the injector should be removed and the ring inspected for hardening, cracking, or deformation. Always replace the seal ring with a new genuine 60352123 whenever the injector is serviced.

Quality Assurance & Full Traceability

Every seal ring 60352123 is manufactured in an IATF 16949 certified facility under SANY’s rigorous quality management system. The production process includes raw material compound verification using a moving die rheometer, in-process dimensional inspection using automated vision systems, and 100% visual inspection for surface defects. A sample from each production batch is subjected to accelerated aging tests, tensile strength verification, elongation testing, hardness confirmation (Shore A), and compression set measurement.

The seal rings are also tested for fluid compatibility by immersion in diesel fuel, engine oil, and coolant at elevated temperatures to verify that the FKM material resists swelling, hardening, or degradation. Dimensional accuracy is verified using precision optical comparators and laser micrometers, with cross-sectional diameter and inner diameter controlled to tight tolerances (±0.05 mm).

Each 60352123 seal ring is supplied in protective packaging that prevents contamination and moisture absorption. The packaging is labeled with the SANY logo, part number, quantity, and a batch code that links to the original compound mix record, molding parameters, and final inspection data. For bulk orders, a Certificate of Conformance (CoC) is provided, certifying that the rings meet all SANY OEM specifications for material composition, dimensional accuracy, hardness, and compression set.

Field Performance of Genuine SANY Seal Ring

Field data from SANY dump trucks and excavators operating in Australian iron ore mines and South African quarries shows that genuine 60352123 seal rings maintain sealing integrity for the full engine service interval, typically exceeding 20,000 operating hours. Aftermarket seal rings often fail prematurely due to inferior elastomer compounds (such as NBR rather than high-grade FKM), incorrect dimensional tolerances, or poor compression set resistance, leading to fuel leaks and combustion blow-by within 5,000-8,000 hours.

The superior durability of the genuine SANY seal ring comes from the premium FKM compound, the precisely controlled molding process that ensures consistent cross-sectional geometry, and the rigorous quality testing that verifies material properties. Fleet owners report that standardizing on genuine SANY seal rings reduces injector-related failures by up to 60% and eliminates the risk of fuel dilution of the engine oil [7†L2-L6].

To maximize service life, always replace the seal ring whenever the injector is removed for service. Even if the ring appears undamaged, thermal aging may have hardened the material, reducing its ability to conform to the groove and seal effectively. Use genuine SANY seal rings to ensure proper material composition and dimensional accuracy. After replacement, follow the engine manufacturer’s recommended procedure for bleeding the fuel system and checking for leaks before returning the engine to service. The reliable sealing provided by the 60352123 seal ring ensures long-term engine performance, reduced emissions, and lower total cost of ownership.
