OEM 60326571 Hexagon Flange Bolt – Genuine SANY Vibration-Resistant Fastener

60326571 Bolt, Hexagon Flange: Precision Fastening for SANY Heavy-Duty Applications

The genuine SANY parts reference 60326571 is a high-strength hexagon flange bolt, a precision-engineered threaded fastener designed for critical bolted joints in SANY heavy-duty diesel engines and construction machinery. This bolt provides secure, vibration-resistant clamping force in applications such as cylinder head cover assemblies, oil-gas separator mounts, electronic control harness brackets, and various engine-mounted components. The 60326571 hexagon flange bolt is manufactured from high-strength alloy steel, typically property class 10.9, with rolled threads and an integrated flange that eliminates the need for a separate washer. Each 60326571 unit is 100% inspected for dimensional accuracy, tensile strength, and surface integrity, guaranteeing reliable performance in SRT dump trucks, SY excavators, and SW wheel loaders.

As a vital fastening element across multiple SANY component groups, the 60326571 bolt is specified in the SANY Cylinder Head Cover Group, where a quantity of 30 related flange bolts are used per engine assembly [7†L3-L8]. The bolt is also featured in the SANY Oil-Gas Separator Group, where 2 units of 60326571 are used to secure the bracket, and in the SANY Electronic Control System Harness Group, where 4 units are used for harness bracket mounting [6†L11-L13][8†L2-L5]. The 60326571 hexagon flange bolt features a rolled thread profile that eliminates stress risers, a precision-ground underhead fillet for reduced stress concentration, and a zinc-plated finish for corrosion protection. Every 60326571 unit is 100% inspected, guaranteeing reliable performance in SRT dump trucks, SY excavators, and SW wheel loaders operating in the most demanding mining, construction, and material handling environments.

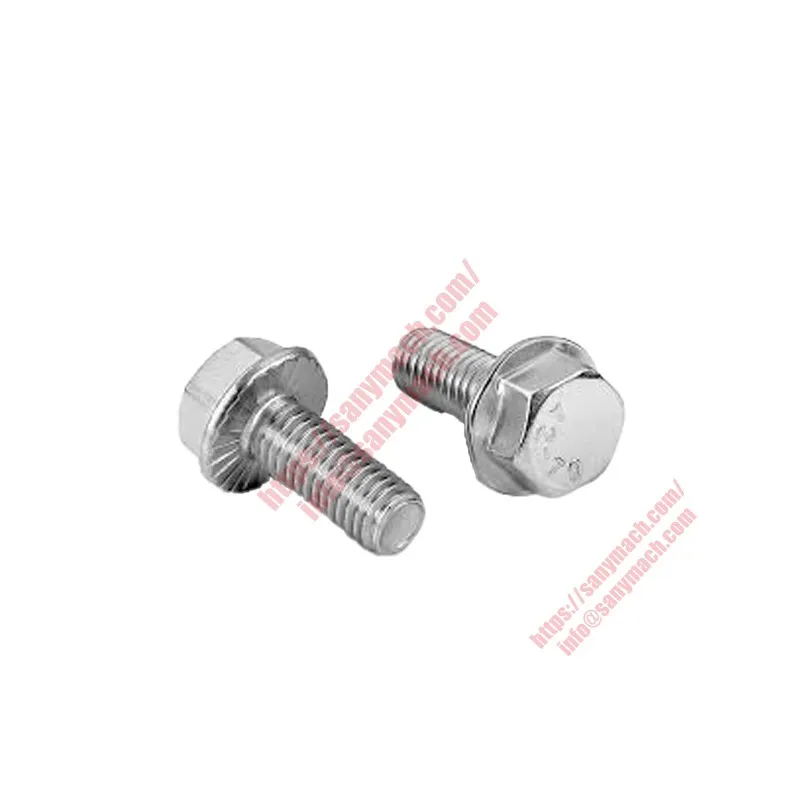

Bolt, Hexagon Flange

Болт с шестигранной фланцевой головкой

Perno de Brida Hexagonal

Design and Function of Hexagon Flange Bolt 60326571

The hexagon flange bolt 60326571 is not a standard hex bolt with a separate washer. It features an integrally forged flange under the head that provides a larger bearing surface than a standard hex head. This geometry reduces bearing pressure on the clamped material, eliminates the risk of washer loss during assembly, and simplifies inventory management. The flange also includes a circular serration pattern that grips the mating surface, generating a prevailing torque that resists loosening caused by cyclic loading or transverse vibration, making it ideal for engine-mounted applications [7†L3-L8].

The 60326571 bolt is manufactured from alloy steel, heat-treated to achieve property class 10.9 according to ISO 898-1. This provides a minimum tensile strength of 1,040 MPa and a minimum yield strength of 940 MPa [5†L2-L4]. The micro-alloyed chemistry ensures a uniform martensitic microstructure after quenching and tempering, delivering the ideal balance of high load-bearing capacity and ductility for fasteners subject to cyclic fatigue. The material composition is verified by spectrographic analysis for each production batch.

The threads of the 60326571 bolt are rolled after heat treatment, not cut. Rolling work-hardens the thread flanks and induces beneficial compressive residual stresses at the thread roots, dramatically increasing the bolt’s fatigue endurance limit — critical for applications where the fastener experiences millions of alternating load cycles. The thread rolling also yields a smoother surface finish (Ra ≤ 0.8 µm), reducing friction scatter and ensuring consistent torque-tension conversion during assembly.

The 60326571 bolt features a precision-ground underhead fillet radius that minimizes stress concentration at the head-shank junction — a known initiation site for fatigue cracks. The bearing surface of the flange is manufactured flat and perpendicular to the thread axis to distribute clamp load evenly. A small pilot chamfer guides the bolt into the threaded hole and protects the threads from cross-threading damage. The bolt head is typically marked with the SANY logo and property class identification for easy verification during service.

A mechanically applied zinc coating (blue passivated) protects the 60326571 bolt from corrosion in humid, salty, or chemically contaminated environments. This plating system provides excellent corrosion resistance and eliminates the risk of hydrogen embrittlement that can affect electroplated high-strength fasteners. The coating also provides a stable friction coefficient of 0.12-0.16 when lubricated with engine oil, ensuring consistent clamp load versus torque relationships.

All 60326571 bolts are 100% inspected for dimensional accuracy using precision gauges and automated optical systems. Each bolt is ultrasonically tested for internal voids and magnetic particle inspected for surface cracks. A batch code is laser marked on the bolt head, providing full traceability to the original heat treat lot and manufacturing records.

Integration Within SANY Component Groups

The bolt 60326571 is specified across multiple SANY component groups, demonstrating its versatility as a general-purpose flange bolt for engine and chassis applications. In the SANY Oil-Gas Separator Group, 60326571 is used to securely mount the bracket, oil-gas separator, and related components with high-strength fastening for vibration-resistant stability. The system’s integrity is maintained through a network of specialized hoses and pipes, all secured with robust clamps and fasteners. Two units of 60326571 are supplied per oil-gas separator assembly [6†L9-L14].

In the SANY Cylinder Head Cover Group, which is a precision-engineered system designed to provide a superior seal and reliable access to a heavy-duty engine’s valve train, a full set of 30 hexagon flange bolts (closely related to part number 60326571) is used to secure the cover assembly. These specialized bolts are designed for ease of installation and exceptional vibration resistance, ensuring the cover remains securely fastened under the most demanding operating conditions [7†L3-L8]. The bolt works in concert with the Cylinder Head Cover Gasket (168805000018A), which maintains optimal crankcase pressure by creating a perfect barrier between the cover and the cylinder head [7†L9-L12].

In the SANY Electronic Control System Harness Group, a quantity of 4 units of 60326571 is used for robust mounting of the reinforced Harness Bracket supports. The system incorporates multiple Clamp Assembly, Pipe units which prevent abrasion and minimize vibration-induced wear. The bolt works together with Screw, Socket Head Cap fasteners, Washer, Spring components, and a Washer, Lock to ensure lasting tension and corrosion resistance [8†L2-L5]. The precise engineering of the SANY Electronic Control System Harness Group exemplifies SANY’s commitment to advanced technology and operational reliability in demanding environments.

Machine Compatibility & Critical Applications

The hexagon flange bolt 60326571 is used across SANY D09 and D12 series diesel engines powering a wide range of heavy-duty SANY equipment. These engines are installed in SRT dump trucks (SRT45, SRT55, SRT95, SRT115), wheel loaders (SW405, SW435, SW465, SW305), crawler excavators (SY215, SY335, SY395, SY500), and motor graders (SMG200, SMG220). The 60326571 bolt is also installed on SANY concrete pump trucks, crawler cranes, and heavy forklifts equipped with SANY’s heavy-duty diesel engines. Typical applications include securing cylinder head covers, oil-gas separator brackets, and electronic control harness brackets, as well as various engine-mounted accessories.

The D09 engine is a straight-6 diesel with a displacement of 8.7 liters, featuring a bore of 117 mm and a stroke of 135 mm, producing between 280 and 380 horsepower with a maximum torque of 1,500 N·m. The D09 engine’s fuel system, starter motor, and generator are supplied by Bosch, and it is currently widely used in SANY mixer trucks, cranes, pump trucks, and city dump trucks [3†L2-L7]. The D12 engine offers even greater displacement and power output, with a bore of 131 mm and a stroke of 150 mm, resulting in a total displacement of 12.13 liters [3†L9-L13]. The D12 output torque can reach 700 N·m while its idle speed can be kept down at 525 rpm, which effectively reduces wear on engine components [3†L14-L17]. By adopting a split-type cylinder head, the D12 engine can minimize the noise generated during operation, while the patented TOP‑Down cooling system quickly reduces the temperature of the circulating fluid to improve engine efficiency [3†L9-L13].

For complete engine reliability, the hexagon flange bolt 60326571 must be used together with genuine SANY nuts, washers, and mating components. When servicing assemblies that use this bolt, always replace the bolt if it is a torque-to-yield type. Never reuse a bolt that shows signs of thread damage, corrosion, or deformation – always replace with new genuine 60326571 bolts. The precise clamp load provided by this bolt ensures that gaskets maintain proper compression, preventing fluid leaks and maintaining joint integrity.

Technical Specifications – Bolt, Hexagon Flange 60326571

Correct Installation of Hexagon Flange Bolt 60326571

When installing the hexagon flange bolt 60326571, absolute cleanliness and precise procedure are essential. Begin by thoroughly cleaning the bolt threads, the mating threaded hole, and the bearing surface under the flange. Remove any debris, old thread locker, or oil residue that could affect torque readings. Apply a small amount of clean engine oil or a light assembly lubricant to the threads and the underside of the flange to achieve a stable friction coefficient. Never use grease, solid lubricants, or sealants unless specified by the SANY workshop manual, as these can alter the torque-angle relationship.

Always use new 60326571 bolts – never reuse old bolts, especially if they are torque-to-yield fasteners. For standard bolts, tighten to the torque value specified in the SANY workshop manual using a calibrated torque wrench. The integrated flange eliminates the need for a separate washer, simplifying assembly. Tighten in a crossing or star pattern when multiple bolts are used on a flange. Do not over-tighten, as this can strip threads or cause head failure. Under-tightening will lead to joint relaxation and loosening under vibration.

After the assembly is fully installed and has been run through one thermal cycle, re-torquing may be required for certain applications – refer to the SANY workshop manual for specific instructions. Never attempt to re-tighten a bolt that has been installed with a torque-angle procedure, as this can exceed the material’s yield point. If any bolt shows signs of thread damage or corrosion, discard it and use a new genuine 60326571 bolt.

Store unused bolts in their original packaging in a clean, dry environment. If a bolt is dropped or shows any visible damage, do not use it. The critical nature of the 60326571 bolt means that any compromise can lead to component failure. Always follow the SANY workshop manual for the exact tightening procedure specific to your engine model and application.

Consequences of Improper Bolt Installation

Improper installation of the hexagon flange bolt 60326571 can lead to severe equipment damage. Under-tightening results in insufficient clamp load, allowing joint movement under vibration. This leads to fastener loosening, fretting, and eventual bolt failure. Over-tightening can stretch the bolt beyond its yield point, causing thread damage or fracture, or distorting the clamped components.

Symptoms of loose or failed bolts include abnormal noise (rattling or knocking) from the affected assembly, fluid leaks from gasketed joints, and visible movement of components. In cylinder head cover applications, a loose 60326571 bolt can cause oil leaks, leading to oil contamination of the engine compartment, low oil pressure, and potential engine damage. In harness bracket applications, loose bolts can lead to wire chafing, electrical shorts, and electronic control system failures.

During engine disassembly, always discard old bolts – do not attempt to reuse them. The permanent stretch or thread wear means that original clamp characteristics cannot be restored. Using genuine SANY bolts 60326571 ensures that the material properties, heat treatment, and geometry match the engine’s design requirements. Aftermarket bolts may have different friction coefficients or yield points, leading to incorrect clamp load even when the same torque procedure is followed.

Quality Assurance & Full Traceability

Every hexagon flange bolt 60326571 is manufactured in an IATF 16949 certified facility under SANY’s rigorous quality management system. The production process includes raw material spectrographic analysis, in-process dimensional verification using precision gauges, and 100% magnetic particle inspection for surface cracks. A sample from each heat treatment batch undergoes tensile testing, wedge load testing, and hardness verification (32–39 HRC core hardness) to confirm that the fastener meets property class 10.9 requirements.

The threads of the 60326571 bolt are inspected for profile accuracy using optical comparators and go/no-go gauges. The underhead fillet radius is verified for surface finish and the absence of grinding burns. Coating thickness and adhesion are verified using X-ray fluorescence (XRF) analyzers and cross-cut tape tests per ASTM D3359. The bolt’s elongation characteristics are tested to confirm consistent performance.

Each 60326571 bolt is laser marked with the SANY logo, property class, and a unique batch code that links to the raw material certificate, heat treat chart, and final inspection records. For bulk orders, a Certificate of Conformance (CoC) is provided, certifying that the bolts meet all SANY OEM specifications for tensile strength, hardness, dimensional accuracy, and surface finish. Independent third-party audits ensure continuous compliance with ISO 9001:2015 and IATF 16949 standards.

Field Performance of Genuine SANY Hexagon Flange Bolt

Field data from SANY dump trucks and excavators operating in Australian iron ore mines and South African quarries shows that genuine 60326571 hexagon flange bolts installed with the correct torque procedure achieve zero failure rates over the engine’s service life exceeding 25,000 operating hours. Aftermarket or reused bolts have been responsible for numerous joint failures due to under-torquing, over-torquing, or material fatigue. The superior reliability of the genuine SANY bolt comes from the premium alloy steel, the precisely controlled heat treatment that provides consistent mechanical properties, and the rolled threads that eliminate stress risers at the thread roots.

The consistent clamp load provided by the 60326571 bolt ensures that gaskets maintain proper compression, preventing fluid leaks and maintaining joint integrity. The integrated flange design also reduces bearing surface pressure and eliminates the risk of washer loss. Fleet owners report a significant reduction in fastener-related downtime after standardizing on genuine SANY hexagon flange bolts. The corrosion-resistant zinc plating also prevents thread seizure, making future disassembly easier and reducing the risk of bolt breakage during maintenance.

To maximize service life, always replace hexagon flange bolts whenever a joint is disassembled. The low cost of a new bolt is far outweighed by the cost of a failed joint that could lead to component damage, equipment downtime, or safety incidents. For critical applications such as cylinder head covers, oil-gas separators, and harness brackets, use only genuine SANY bolts 60326571 to ensure the correct clamp load and material properties. Following the manufacturer’s recommended torque values and replacement intervals will ensure long-term equipment reliability and the lowest total cost of ownership.
