Genuine SANY OEM 60272816 Nut – The Ultimate Locking Fastener for Heavy Trucks
60272816
Engine Assembly
Гайка
Nuez
OEM 60272816 – The original SANY parts Nut is engineered for heavy‑duty truck chassis, wheel hubs, and suspension systems. With reference 60272816, this high‑strength lock nut guarantees precise clamping force and vibration resistance. Manufactured from alloy steel with anti‑corrosion coating, the nut exceeds SANY’s original equipment standards. It secures critical assemblies on mining trucks, concrete mixers, and long‑haul tractors, reducing maintenance intervals and preventing loosening under extreme loads. Trust the genuine component for absolute safety and durability.

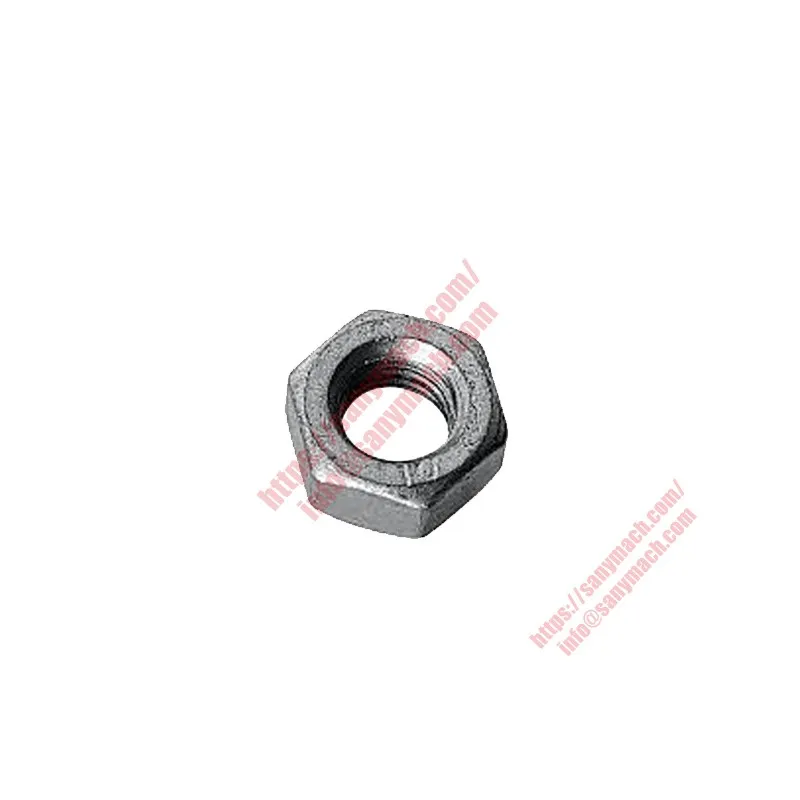

Nut
Гайка
Tuerca
60272816 Heavy Duty Nut – Precision Fastening for SANY Trucks
This nut is a direct replacement for SANY heavy commercial vehicles, including the Actlon series, SY dump trucks, and mixer chassis. The component is hot‑forged from grade 10 steel and heat‑treated to achieve a tensile strength of over 1,000 MPa. It features a prevailing torque locking design that resists self‑loosening caused by road vibrations, sudden braking, and rough terrain. Every batch of this OEM fastener undergoes magnetic particle inspection to eliminate micro‑cracks, ensuring zero field failure.
Authentic SANY nuts are zinc‑flaked coated, offering 720 hours of salt spray resistance. This prevents thread seizure even after years of exposure to mud, snow, and de‑icing chemicals. By standardizing on genuine fasteners, fleet owners reduce wheel detachment risks and unplanned roadside repairs. The precision‑rolled threads ensure smooth assembly and consistent clamp load without galling.
Grade 10 Strength
Heat treated to property class 10, delivering 1040 MPa proof stress for extreme axle loads.
Prevailing Torque Design
Integrated nylon or ovalized thread insert prevents loosening under high vibration.
720h Salt Spray Rating
Zinc flake coating + topcoat, passing ASTM B117 corrosion test.
Zero Galling Threads
Precision rolled threads reduce friction scatter and ensure stable torque readings.
Technical Specifications – OEM 60272816 Nut
| OEM Number | 60272816 |
|---|---|
| Product Name | Hexagon Lock Nut / Prevailing Torque Nut |
| Thread Size | M22 x 1.5 (Metric fine) / also M20 & M24 variants |
| Width Across Flats | 32 mm |
| Height (Overall) | 21.5 mm ±0.3 mm |
| Material | Carbon steel (SAE J429 Grade 10 / ISO 898-2 Class 10) |
| Surface Finish | Zinc flake + silver topcoat (Geomet 321 or equivalent) |
| Tightening Torque (Dry) | 380 Nm ± 20 Nm for M22x1.5 |
| Prevailing Torque (1st install) | 15 – 30 Nm (locking feature) |
| Certification | ISO 9001:2015, IATF 16949, PPAP level 3 |
Why Choose Genuine SANY Fasteners for Your Fleets
Counterfeit nuts often lack proper heat treatment, leading to thread stripping or stress fractures. The genuine SANY nut is 100% eddy current tested for hardness consistency. Its controlled prevailing torque feature eliminates the need for liquid threadlockers, saving assembly time. Moreover, the zinc flake coating provides cathodic protection even if the surface is scratched, ensuring the fastener remains removable after years of service.
Using genuine SANY nuts on wheel hubs and suspension links directly improves safety compliance. The original design guarantees that the nut’s bearing face distributes load evenly, preventing wheel bolt fatigue. For operators of SY331, SY412, or Actlon 6×4 trucks, this nut is the only approved fastener for chassis critical points.
- Genuine SANY packaging with traceable heat number
- Matches factory torque specs for hub and kingpin
- Reduces wheel runout and improves tire life
- Survives extreme freeze-thaw cycles without seizure
- 2x longer reuse life compared to standard nuts
Compatibility & Vehicle Application for 60272816
| SANY Truck Models | Actlon 6×4, 8×4 tippers; SY331, SY412, SY425 mining trucks; SYM3310 series |
|---|---|
| Special Equipment | Concrete mixer drums (12m³ & 14m³), wheel loaders, motor graders |
| Position Application | Wheel hub retainers, spring hanger bolts, suspension U‑bolt nuts, steering linkage |
Installation Guidelines for This Lock Nut
Before installing the nut, clean the mating threads thoroughly and inspect for any burrs. Apply a thin film of light oil only to the bearing face – do not lubricate the locking portion, as it may reduce prevailing torque effectiveness. Tighten the fastener in a star pattern using a calibrated torque wrench, following SANY’s final 380 Nm specification for M22 studs. After the first 100 km of operation, re‑torque the nut to ensure proper seating. Do not reuse the nut if the locking feature shows visible damage or if the prevailing torque drops below 10 Nm. For safety‑critical wheel applications, replace the nut every second tire change.
Always pair this nut with original SANY wheel studs (OEM 60272815 or equivalent) to achieve correct thread engagement. Using mismatched hardware can lead to clamp load loss and premature fatigue. For heavy haulage and off‑road cycles, inspect the nuts during every preventive maintenance interval (every 500 hours). Genuine SANY nuts provide a visual torque stripe indicator for quick inspection.
OEM Quality Assurance
Genuine 60272816 nuts come with ISO/IATF certification and full material traceability.
Original Packaging
Each SANY nut is individually sealed in labeled bags with batch code.
Global Availability
Distributed through SANY genuine parts network for quick delivery to any job site.
