OEM 60141426 Valve Stem Seal – Genuine SANY Precision Oil Control Component

The genuine SANY parts reference 60141426 is the Valve Stem Seal, a critical precision sealing component that controls engine oil consumption and maintains proper lubrication in the valve train of SANY heavy-duty diesel engines. This oil seal is installed over each valve guide, preventing excess oil from entering the combustion chamber while ensuring that valve stems remain adequately lubricated. The 60141426 valve stem seal is manufactured from high-performance fluorocarbon rubber (FKM) bonded to a metal outer casing, with an integrated self‑tightening garter spring that maintains consistent radial sealing force even under extreme temperature and pressure fluctuations.

As a vital element of the SANY Cylinder Head Group, 12 units of the 60141426 Seal, Valve Stem are supplied per cylinder head subassembly, working in concert with the Cylinder Head Subassembly (160102130004A094) and Cylinder Head Gasket (160102130004A095). The 60141426 valve stem seal plays a fundamental role in controlling oil consumption, minimizing exhaust emissions, and maintaining combustion chamber integrity over extended service intervals. Each 60141426 unit is 100% inspected for sealing lip geometry, spring tension, and material composition, guaranteeing reliable performance in SRT dump trucks, SY excavators, and SW wheel loaders operating in the most demanding mining and construction environments.

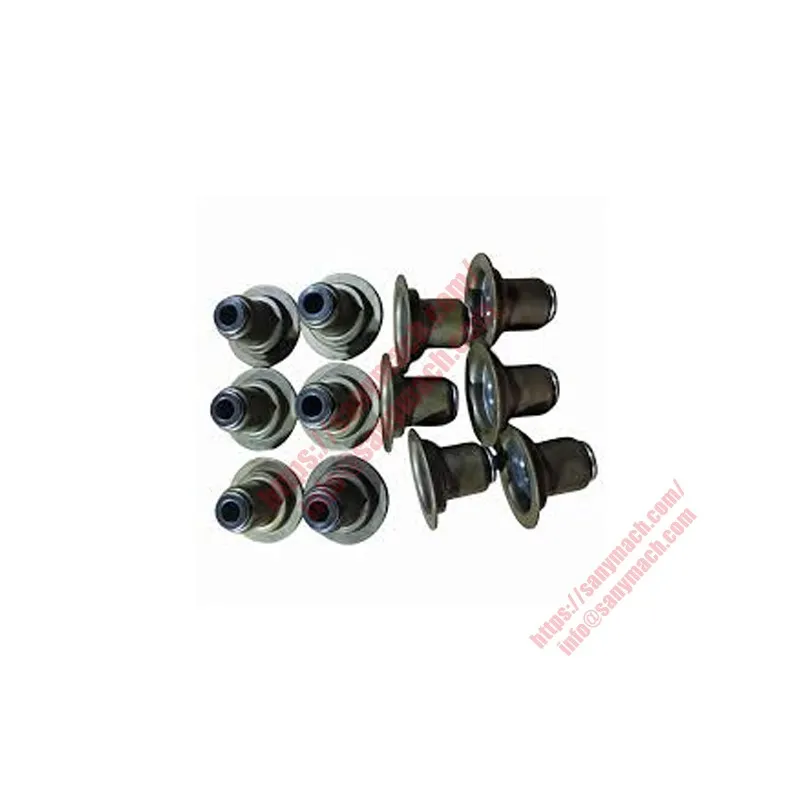

Seal, Valve Stem

Маслосъемный колпачок клапана

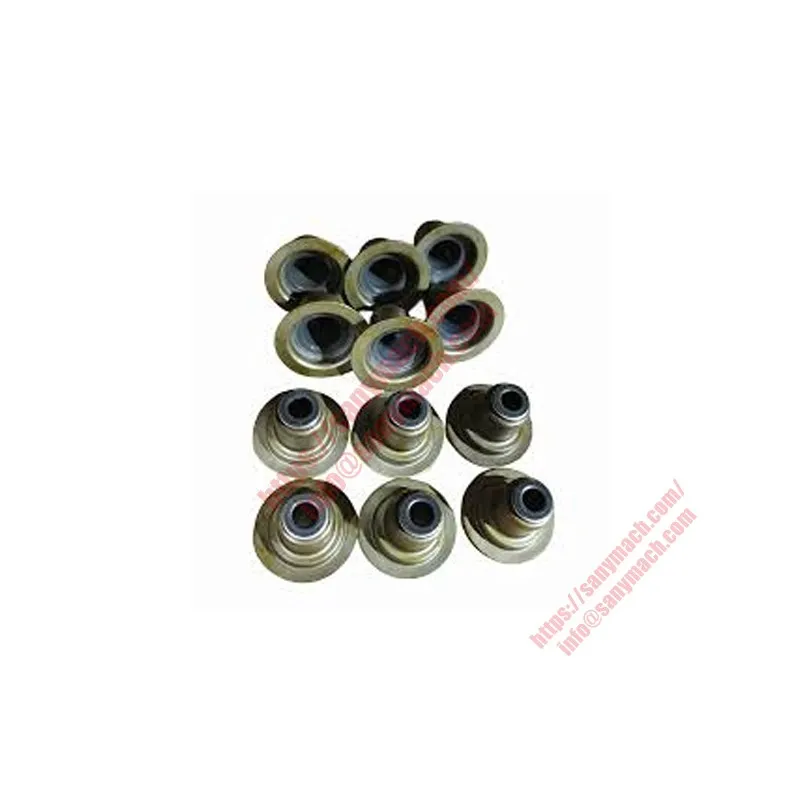

Retén de Vástago de Válvula

Material and Design of Valve Stem Seal 60141426

The valve stem seal 60141426 is manufactured from high-grade FKM (fluorocarbon rubber), an advanced elastomer specifically chosen for its outstanding resistance to heat, oil, and chemical attack. FKM provides exceptional thermal stability and can operate continuously at cylinder head temperatures up to 200°C, with peak excursions reaching 250°C, without hardening or losing sealing effectiveness. The FKM composition also resists swelling or degradation when exposed to modern diesel engine oils containing aggressive additive packages, ensuring long-term sealing integrity over extended service intervals.

The 60141426 valve stem seal features a composite construction consisting of an outer metal casing, an FKM sealing lip, and an integrated garter spring. The metal casing provides structural support and ensures press‑fit retention on the valve guide outer diameter. The sealing lip is precision‑molded to an exact geometry that controls the thin oil film allowed to pass down the valve stem—enough to lubricate the guide but not so much that excess oil enters the combustion chamber. This calibrated oil metering reduces blue smoke emissions, prevents carbon buildup on valve faces, and protects the catalytic aftertreatment system from oil‑related poisoning.

The self‑tightening garter spring installed on the sealing lip of the 60141426 seal maintains consistent radial pressure against the valve stem throughout the service life of the seal. As the FKM material may relax slightly over time due to thermal cycling, the spring compensates for any loss of lip tension, ensuring that the sealing force remains within the specified range. This spring‑loaded design also accommodates normal valve stem wear and minor misalignment between the valve stem and guide, maintaining effective sealing even after hundreds of thousands of operating cycles. The outer diameter of the seal is precisely sized to provide a secure interference fit on the valve guide, preventing the seal from lifting or rotating during high-speed engine operation.

All 60141426 valve stem seals are 100% inspected for lip geometry, spring tension, outer diameter conformance, and material hardness. Each seal is visually and dimensionally verified using automated optical inspection systems to ensure that the sealing lip is free of flash, nicks, or other defects that could cause oil leakage. The garter spring tension is measured on a calibrated tension tester to confirm that the radial force applied to the valve stem is within the narrow window required for proper oil control—sufficient to meter oil flow while not creating excessive friction that could increase valve train wear. A batch code is printed on the seal packaging, providing full traceability to the original compound mixing date, molding parameters, and quality inspection records.

Machine Compatibility & Cylinder Head Integration

The valve stem seal 60141426 is a core component of the SANY Cylinder Head Group and is used in SANY D09 and D12 series diesel engines powering SRT dump trucks (SRT45, SRT55, SRT95, SRT115), wheel loaders (SW405, SW435, SW465, SW305), crawler excavators (SY215, SY335, SY395, SY500), and motor graders (SMG200, SMG220). The 60141426 seal is also installed on SANY concrete pump trucks, crawler cranes, and heavy forklifts equipped with SANY’s heavy-duty diesel engines. Within the Cylinder Head Group, 12 units of the 60141426 seal are installed per cylinder head assembly—two per cylinder (one intake and one exhaust) for a 6‑cylinder inline engine configuration.

The 60141426 valve stem seal works in concert with the Cylinder Head Subassembly (160102130004A094), which incorporates hardened Intake Valve Seat and Exhaust Valve Seat inserts, precision‑aligned Valve Guide components, and a push rod bush for rocker arm actuation. The Cylinder Head Gasket (160102130004A095) provides the final combustion seal between the cylinder head and block, while the 60141426 seal ensures that lubricating oil does not enter the combustion chamber via the valve guides. This combination of sealing components works synergistically to maintain cylinder compression, control emissions, and protect the engine from oil‑related deposits.

The 60141426 seal is designed for use with standard SANY valve guides and valve stems. The outer diameter of the seal corresponds to the outer diameter of the valve guide, with the seal pressing securely onto the guide boss. The inner sealing lip diameter is matched to the valve stem diameter, with a precise interference fit that meters oil flow rather than completely blocking it. For engines with reconditioned valve guides or replacement valves, always verify that the guide outer diameter and valve stem diameter remain within the specified service limits before installing new 60141426 seals. Oversized or undersized components can compromise seal retention or alter the oil‑metering characteristics, leading to either excessive oil consumption or insufficient valve stem lubrication.

Technical Specifications – Valve Stem Seal 60141426

Proper Installation of Valve Stem Seal 60141426

When installing the valve stem seal 60141426, absolute cleanliness and proper technique are essential for sealing performance. Before installation, thoroughly clean the valve guide boss to remove any carbon, old seal residue, or debris. Apply a small amount of clean engine oil to the inner diameter of the seal to facilitate installation and prevent initial dry running. Never use grease, assembly lube, or solvents—these can damage the FKM material or alter the oil‑metering characteristics of the sealing lip.

Position the 60141426 seal squarely over the valve guide boss, with the garter spring facing upward toward the valve spring seat (the spring must be visible on the upper side of the seal). Using an appropriate‑sized installation socket or a dedicated valve stem seal installer tool, apply firm, even pressure to push the seal down onto the guide until it seats fully against the guide boss shoulder. The seal should be pressed straight onto the guide—do not rock or tilt the seal during installation, as this can deform the sealing lip or damage the garter spring. Never strike the seal directly with a hammer; use a smooth, controlled press‑fit action to avoid shock loading.

After installing all 60141426 seals, inspect each one to ensure it is fully seated with no gaps between the seal and the guide boss. The seal should not wobble or rotate on the guide. If a seal does not seat correctly, remove it (which will damage the seal) and install a new seal—never reuse a seal once it has been installed and removed. After the valve train is fully assembled and before starting the engine, rotate the engine by hand for at least two full revolutions to ensure that no valves contact pistons and that the seals are not displaced. After the first engine start and initial warm‑up, check for any evidence of oil leaking past the seals, which would indicate improper installation or seal damage.

Always replace all 12 60141426 seals whenever the cylinder head is removed for service, regardless of their apparent condition. The FKM material may appear flexible but can have lost elasticity due to thermal aging, and the garter spring tension may have relaxed. Mixing old seals with new seals on the same engine can result in uneven oil consumption across cylinders. Store new seals in their original sealed packaging until ready for use, away from direct sunlight, ozone sources (electric motors), and high temperatures. Seals that have been stored for extended periods (over two years) should be visually inspected for any signs of hardening or cracking before installation.

Symptoms of Worn or Failed Valve Stem Seals

Worn or damaged valve stem seals, including the 60141426, produce several characteristic symptoms that equipment operators and technicians should recognize. Blue exhaust smoke that appears after the engine has been idling for an extended period is the most common indicator of valve stem seal failure. When the engine idles, high manifold vacuum draws oil past worn seals and into the combustion chamber, where it burns and produces blue smoke upon acceleration. This symptom is often most noticeable after the engine has been sitting at idle for a minute or more, followed by a cloud of blue smoke when the throttle is opened.

Excessive oil consumption without visible external leaks may also indicate worn seals. The 60141426 seal meters a precise amount of oil to lubricate the valve stem. As the seal ages or the FKM material hardens, the sealing lip may lose conformity, allowing excessive oil to bypass the seal and enter the combustion chamber. Carbon buildup on valve stems, valve faces, and spark plugs (in gasoline engines) or on piston crowns and exhaust valves (in diesel engines) can also result from failed seals, leading to reduced performance, increased emissions, and hot spots that may cause pre‑ignition or valve burning.

If the valve stem seal 60141426 becomes dislodged or the garter spring breaks, the engine may exhibit a sudden and dramatic increase in oil consumption accompanied by persistent blue smoke at all operating conditions. In severe cases, oil may accumulate in the exhaust system and be expelled as thick smoke, or the catalytic converter may become contaminated and lose efficiency. When inspecting valve stem seals, look for signs of hardened, cracked, or missing lip material, a broken or missing garter spring, or seal displacement on the valve guide. If any of these conditions are present, replace the entire set of 12 seals with new genuine 60141426 units.

Quality Assurance & Full Traceability

Every valve stem seal 60141426 is manufactured in an IATF 16949 certified facility under SANY’s rigorous quality management system. The production process includes raw material compound verification using a moving die rheometer, in‑process dimensional verification using automated vision systems, and 100% visual inspection of the sealing lip, spring seating, and outer casing. A sample from each production batch is subjected to accelerated aging tests, tensile strength verification, elongation testing, and hardness confirmation (Shore A) to ensure the FKM material meets SANY’s stringent specifications.

The garter spring tension is measured on a calibrated spring tester to confirm that the radial sealing force falls within the specified range—enough to meter oil flow without causing excessive valve stem friction. Leakage testing is performed on a sample of seals using a precision leak test fixture that simulates operating conditions, verifying that the seal maintains the required oil‑metering characteristics across the entire temperature range. The outer diameter and lip geometry are inspected using optical comparators and laser micrometers to confirm conformance to the engineering drawing.

Each 60141426 seal is supplied in protective packaging (sealed plastic bag or blister pack) that prevents contamination and moisture absorption. The packaging is labeled with the SANY logo, part number, quantity (12 per engine set), and a batch code that links to the original compound mix record, molding parameters, and final inspection data. For bulk orders, a Certificate of Conformance (CoC) is provided, certifying that the seals meet all SANY OEM specifications for material composition, dimensional accuracy, hardness, and spring tension. Independent third‑party audits ensure continuous compliance with ISO 9001:2015 and IATF 16949 standards.

Field Performance of Genuine SANY Valve Stem Seal

Field data collected from SANY dump trucks and excavators operating in Australian iron ore mines and South African quarries shows that genuine 60141426 valve stem seals maintain effective oil control and sealing integrity for the full engine service interval, typically exceeding 20,000 operating hours. Aftermarket seals often fail prematurely due to inferior elastomer compounds (such as NBR or ACM rather than high‑grade FKM), incorrect spring tension, or poor dimensional accuracy, leading to oil consumption, blue smoke, and catalytic converter contamination within 5,000‑8,000 hours.

The superior durability of the genuine 60141426 seal comes from the premium FKM compound, the precision‑molded lip geometry, and the accurately tensioned garter spring that maintains consistent radial force throughout the seal’s service life. Fleet owners report that standardizing on genuine SANY valve stem seals reduces oil consumption by up to 50% compared to aftermarket alternatives and virtually eliminates blue‑smoke complaints during emissions inspections. The consistent oil‑metering characteristics of the 60141426 seal also help maintain proper catalytic converter function, protecting emissions compliance and avoiding costly replacement of exhaust aftertreatment components.

To maximize service life, always replace all 12 valve stem seals when the cylinder head is removed for gasket replacement, valve grinding, or any other maintenance that exposes the valve train. The low cost of a seal set is far outweighed by the cost of labor to replace individual failed seals later. Use genuine SANY installation tools to avoid seal damage during fitting. After installation, follow the engine manufacturer’s recommended oil change intervals and use the correct viscosity grade of engine oil (typically 15W‑40 for SANY diesel engines). The sophisticated engineering of the SANY Cylinder Head Group, combined with the precision sealing of the 60141426 valve stem seal, ensures long‑term engine reliability, reduced emissions, and lower operating costs in the most demanding applications.
