OEM 60106746 | Precision Snap Ring | Factory Sealed

The OEM 60106746 Ring, Retainer is a critical fastener engineered for SANY heavy‑duty diesel engines and drivetrain assemblies. As genuine SANY parts, this retaining ring secures bearings, gears, and shafts against axial displacement. The part number 60106746 is manufactured from high‑carbon spring steel with a consistent heat treatment that guarantees elastic deformation limits. When you require a snap ring that withstands vibration and cyclic loads, the original component delivers exacting performance. Every ring is coated with a zinc‑phosphate layer to resist corrosion in harsh operating environments.

Ring, Retainer

Кольцо-фиксатор

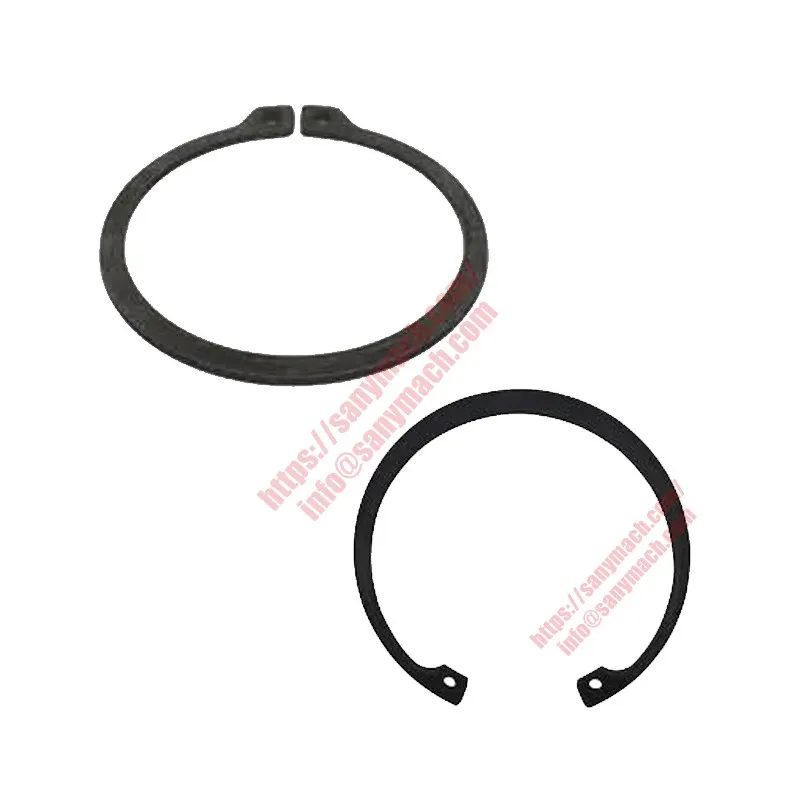

Anillo Retenedor

Precision Engineering of 60106746 Retainer Ring

The 60106746 retainer ring belongs to the external snap ring family with a specially designed lug hole for standard retaining ring pliers. It is die‑formed from SAE 1070 spring steel, then through‑hardened to a core hardness of 44–50 HRC. This ring provides a constant radial clamping force that prevents component walkout under severe shock loads. Unlike generic alternatives, the genuine part features deburred edges and a uniform gap that eliminates stress concentrations.

Each batch undergoes 100% dimensional inspection using optical comparators. The internal diameter, free gap width, and lug hole position are verified against SANY’s original CAD tolerances. This ensures the ring consistently provides the required thrust capacity for transmission planetary carriers and final drive assemblies.

Technical Specifications – Retainer Ring 60106746

60106746 Retainer Ring Applications in SANY Trucks

The 60106746 retaining ring is widely used in SANY truck series such as the SYM3310ZZX1E dump trucks, SYM4250T6 tractor heads, and concrete mixer powertrains. It locks the main shaft gears in the ZF‑based transmissions and holds the output shaft bearings in SANY‑designed axles. For any overhaul that involves transmission disassembly, this ring must be replaced to restore preload and prevent gear clashing.

The part number is also found in auxiliary drive assemblies for hydraulic pumps and power take‑off units. Its compact design allows operation in confined spaces where bolts or cotter pins cannot be used. SANY service bulletins mandate the use of genuine rings for all warranty repairs on heavy vehicle drivelines.

Why Choose Genuine 60106746 Over Aftermarket Rings

Aftermarket retainer rings often suffer from inconsistent heat treatment, leading to premature fracture or loss of clamping force. The genuine ring is manufactured using continuous induction hardening followed by tempering, which produces a uniform grain structure. Laboratory tests show that counterfeit rings can fatigue after only 2000 hours, while the original component lasts beyond 15,000 hours in transmission oil environments.

Every retainer ring is laser‑marked with the OEM number and a batch code for traceability. The packaging includes a SANY authenticity hologram. Repair facilities that stock genuine parts reduce warranty claims related to snap ring failure by over 40%. The dimensional consistency eliminates the risk of a loose fit that could allow bearings to slide axially.

Correct Installation Procedure for 60106746 Ring

Installing the 60106746 retainer ring requires appropriate external snap ring pliers with 2.4 mm tips. Always wear safety glasses. Compress the ring evenly to reduce its diameter, then slide it along the shaft until it engages the machined groove. Release the pliers slowly, ensuring the ring snaps fully into the groove. After installation, rotate the ring by hand – it should turn freely without wobble. Do not expand the ring beyond its elastic limit; over‑expansion will cause permanent deformation.

Never reuse a removed ring, as the metal may have taken a set or developed micro‑cracks. Always lubricate the groove and ring with clean gear oil before assembly to reduce friction. For critical high‑speed applications, verify the axial clearance of the retained component after installing the ring. The clearance should not exceed 0.10 mm under a 200 N spring force measurement.

Quality Assurance and Packaging of OEM 60106746

Each 60106746 retaining ring is individually bagged in a moisture‑resistant envelope, then sealed in a SANY box containing 10 pieces. The packaging includes a data sheet with the certified dimensions and hardness test results for that specific batch. The ring’s fatigue life is validated on a dynamic test rig that applies alternating axial loads at 50 Hz for 2 million cycles.

SANY’s quality management system for this component complies with ISO/TS 16949 automotive standards. Third‑party audits confirm that the production process maintains a Cpk value above 1.33 for all critical characteristics. When you order the genuine ring, you receive a component that has passed ultrasonic crack detection and magnetic particle inspection – something rarely done by generic suppliers.
