SANY OEM 169900000084A Shaft, Idler Gear – Precision Timing Backbone for Heavy Duty Engines
169900000084A
Shaft, Idler Gear
Вал, промежуточная шестерня
Eje, piñón
OEM 169900000084A – The genuine SANY parts Shaft, Idler Gear is a precision‑engineered power transmission component that forms the structural backbone of the SANY Gear Drive Group. With reference 169900000084A, this robust shaft provides smooth rotational support and precise alignment for the idler gear set, ensuring perfect timing synchronization between the crankshaft and camshaft.
Manufactured from high‑strength alloy steel through advanced forging and precision machining, the 169900000084A idler gear shaft withstands high torque loads, repetitive stress cycles, and variable operational speeds. It is a direct OEM replacement for Actlon tippers, SY mining trucks, concrete mixers, and all SANY equipment powered by D09, D12, D13, WP12, and WP13 engines. Trust the authentic 169900000084A component to maintain critical timing accuracy and prevent catastrophic gear train failures.

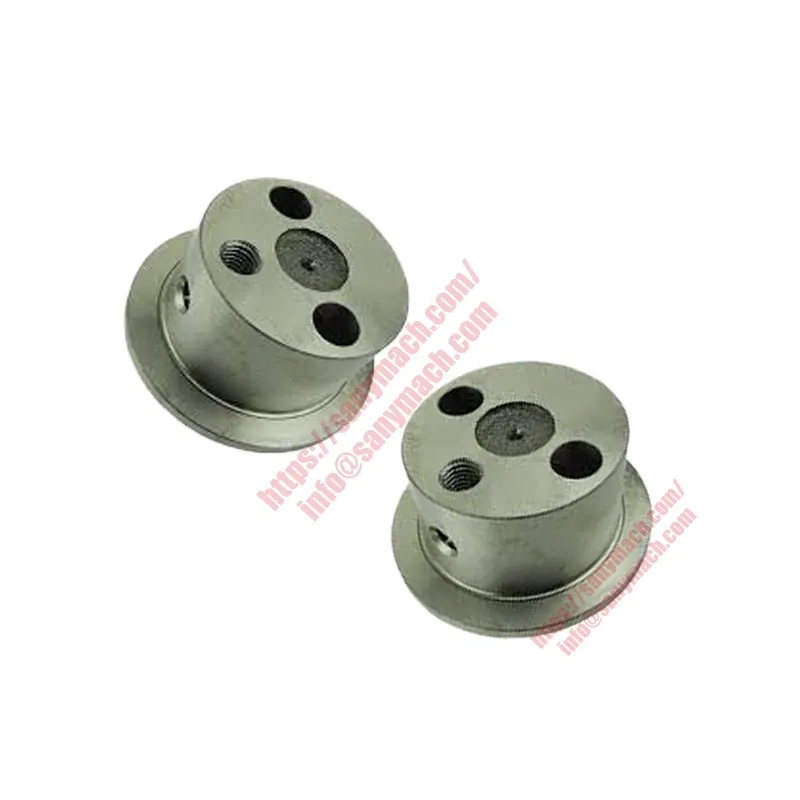

Shaft, Idler Gear
Вал промежуточной шестерни
Eje del Engranaje Locomotor
169900000084A Shaft, Idler Gear – The Precision Foundation of SANY Engine Timing Systems
The idler gear shaft with OEM number 169900000084A is a critical power transmission component within the SANY Gear Drive Group for D09, D12, D13, WP12, and WP13 diesel engines.
As documented in the SANY Gear Drive Group catalog, this shaft works in concert with the Camshaft Timing Gear (61000140) and the Idler Gear Assembly (160102130003A039) to maintain perfect timing synchronization between the crankshaft and camshaft.
The gear drive system, with the 169900000084A shaft at its core, ensures optimal engine performance, reliability, and efficiency under the most demanding operating conditions.
Shaft, Idler Gear provides smooth rotational support and precise alignment for the idler gear assembly, which consists of a big idler gear (160102130003A042) and a small idler gear (160102130003A043) working together.
This shaft is manufactured from high‑strength alloy steel through advanced forging and precision machining processes to withstand high torque loads, repetitive stress cycles, and variable operational speeds.
Each 169900000084A shaft undergoes rigorous heat treatment to achieve a core hardness of 32–38 HRC with surface‑hardened journals (55–60 HRC).
The outer diameter is precision ground to tight tolerances to ensure an interference fit with the gear bushings and proper alignment within the bearing housing.
The shaft also interfaces with thrust block components (169900000083A) that maintain proper axial positioning and prevent unintended gear movement under operational loads.
The engineering excellence of this shaft is evident in its robust construction and precise manufacturing tolerances, ensuring exceptional durability and extended service life.
Every genuine SANY shaft is 100% inspected for dimensional accuracy, concentricity, and surface finish using automated optical and eddy‑current systems.
In critical timing applications, using a sub‑standard or worn idler shaft can cause gear misalignment, abnormal tooth wear, and ultimately catastrophic engine failure due to timing loss.
High‑Strength Alloy
Forged alloy steel with induction‑hardened journals (55–60 HRC) for exceptional wear resistance under high torque loads.
Precision Ground
Outer diameter ground to tight tolerances for perfect interference fit with gear bushings and bearing housing.
Fatigue Rated
Engineered to withstand millions of load cycles at full engine speed without deformation or cracking.
Corrosion Protected
Zinc flake coating provides 720h salt spray resistance for reliable performance in harsh environments.
Technical Specifications – OEM 169900000084A Shaft, Idler Gear
| OEM Number | 169900000084A |
|---|---|
| Product Name | Shaft, Idler Gear (Idler Gear Shaft / Intermediate Shaft) |
| Material | High‑strength alloy steel (SAE 4140 / 42CrMo4 or equivalent) |
| Heat Treatment | Induction hardened journals (55–60 HRC) with tough core (32–38 HRC) |
| Nominal Outer Diameter (Journal) | 45.000 mm ±0.005 mm (application dependent) |
| Overall Length | 105.0 mm ±0.15 mm (standard configuration) |
| Number of Journal Lands | 2 (front and rear support positions) |
| Surface Finish | Ra ≤ 0.2 µm (ground and polished) |
| Coating | Zinc flake (Geomet 321 equivalent), silver finish |
| Corrosion Resistance | ≥ 720 hours salt spray (ASTM B117) |
| Compatible Engines | SANY D09, D12, D13, WP12, WP13 series |
Why Genuine SANY 169900000084A Idler Gear Shaft Is Superior to Aftermarket Alternatives
Aftermarket idler gear shafts are often manufactured from lower‑grade carbon steel without proper heat treatment, resulting in rapid journal wear and shaft deflection under load.
Worn journals cause idler gear misalignment, leading to abnormal tooth contact patterns, increased gear train noise, and eventual gear tooth breakage.
The genuine 169900000084A shaft is manufactured from premium chromium‑molybdenum alloy steel and induction‑hardened to achieve uniform, wear‑resistant journals that maintain precise gear alignment for the life of the engine.
Aftermarket shafts often have poor dimensional accuracy, causing excessive bearing clearance that results in radial gear movement and timing fluctuation.
Genuine SANY idler shafts are precision ground to tight tolerances of ±0.005 mm, ensuring consistent bearing clearance and optimal gear mesh.
Another common failure of aftermarket shafts is inadequate corrosion protection, leading to rust formation that contaminates the engine oil and damages other timing components.
The genuine 169900000084A shaft features a zinc flake coating providing 720 hours of salt spray resistance – ten times better than standard black oxide or oil finish.
For critical gear train applications, using the correct genuine idler shaft is essential for maintaining camshaft to crankshaft timing accuracy and preventing catastrophic engine failure due to valve‑to‑piston contact.
- Premium alloy steel with induction‑hardened journals (55–60 HRC) – verified per SANY spec.
- Precision ground outer diameter within ±0.005 mm ensures correct bearing clearance.
- Zinc flake coating – 720h salt spray resistance, Cr(VI)-free.
- Maintains proper gear mesh – prevents backlash fluctuations and timing drift.
- Supplied in SANY original packaging with heat lot traceability and certification.
- Direct OEM fit for Actlon trucks, SY excavators, concrete mixers, wheel loaders, and motor graders.
Compatibility – SANY Engines & Equipment Using 169900000084A Shaft, Idler Gear
The 169900000084A idler gear shaft is compatible with SANY D09 (8.8L), D12 (12L), D13 (12.9L), WP12G460E50, and WP13G500E30 diesel engine series.
It is used in Actlon 6×4/8×4 tippers, SY331, SY412, SY425 mining dump trucks, SYM3310 series, concrete mixer trucks, wheel loaders, motor graders, and STC truck cranes.
Within the SANY Gear Drive Group, this shaft works alongside the Idler Gear Assembly (160102130003A039), Camshaft Timing Gear (61000140), Thrust Block (169900000083A), and six high‑strength hexagon bolts (169900000082A and 61000140).
The Baffle component (169900000085A) manages oil flow and lubrication to the idler gear shaft and associated bearings, ensuring all moving parts receive adequate cooling.
This precision gear drive system is essential for maintaining crankshaft to camshaft timing accuracy, which directly affects engine power, fuel efficiency, and emissions compliance.
SANY D12 engines produce up to 360 kW (490 hp) with maximum torque of 2,200 Nm, generating substantial gear train loads that demand the strength of the genuine 169900000084A shaft.
Installation Guide for Idler Gear Shaft 169900000084A
Idler gear shaft replacement should be performed by qualified technicians following the SANY engine service manual for the specific engine platform.
Before removal, ensure the engine is cool and the timing marks between the crankshaft and camshaft are documented for reference during reassembly.
Remove the front timing gear cover, then disconnect the idler gear assembly from the shaft by removing the retaining bolts and thrust block.
Carefully withdraw the old 169900000084A shaft from the bearing housing, taking care not to damage the housing bores or any adjacent components.
Inspect the bearing housing bores for wear, scoring, or ovality. If damage is present, replace the housing or install oversized bushings as specified by SANY.
Lubricate the new idler gear shaft journals and bushings with clean engine oil before installation. Use genuine SANY lubricants as specified in the maintenance manual.
Install the new 169900000084A shaft into the bearing housing, ensuring that the oil feed holes align with the housing passages for proper lubrication.
Reinstall the idler gear set (both big and small gears), thrust block, and secure with new genuine hexagon bolts torqued to SANY specification (typically 45 Nm ± 5 Nm).
Verify gear backlash using a dial indicator; allowable range is 0.10–0.25 mm. Adjust thrust block position to achieve proper axial clearance (0.08–0.15 mm).
After reassembly, rotate the engine manually two full revolutions to confirm that timing marks align and that no abnormal resistance or interference exists.
Always replace the idler gear shaft whenever the idler gear set is replaced, and vice versa, to avoid mismatched wear patterns.
Never reuse an old idler shaft after removal – journal wear may have occurred that would compromise gear alignment and timing accuracy.
Use only genuine SANY thrust blocks (169900000083A) and hexagon bolts (169900000082A) when replacing the idler gear shaft assembly.
SANY Original Quality
Every 169900000084A idler gear shaft meets SANY’s material, hardness, and precision standards.
Traceable Packaging
Each shaft labeled with OEM 169900000084A, heat lot number, and production date code.
Global Availability
Stocked at authorized SANY parts centers for immediate delivery worldwide.
