Genuine SANY 168899000003 Rocker Lever Group – Precision Valve Train for Heavy-Duty Engines
168899000003
Rocker Lever Group
Группа рычагов
Grupo de palancas basculantes
OEM 168899000003 – The genuine SANY parts Rocker Lever Group is a complete valve train assembly engineered for SANY heavy‑duty diesel engines. With reference 168899000003, this rocker lever group controls the precise opening and closing of engine valves, ensuring optimal combustion efficiency and power delivery. Manufactured from hardened alloy steel with precision‑ground fulcrums and roller followers, the 168899000003 rocker assembly withstands extreme mechanical loads and high temperatures. It is a direct replacement for Actlon tippers, SY mining trucks, concrete mixers, and all SANY equipment powered by D09, D12, and D13 engines. Trust the authentic 168899000003 component to restore valve timing accuracy and eliminate valvetrain noise.
Rocker Lever Group

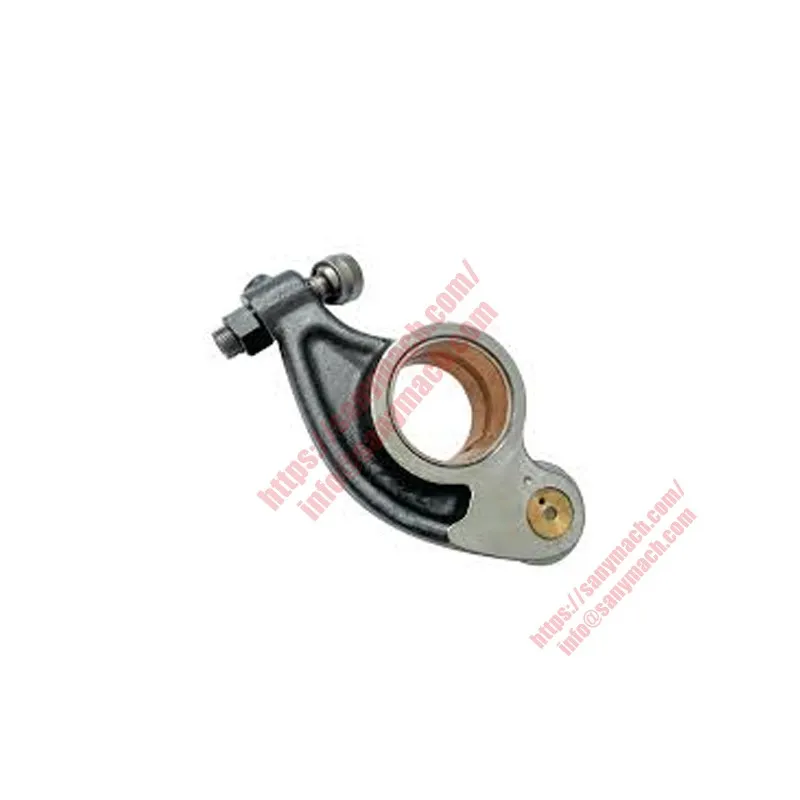

Группа коромысел

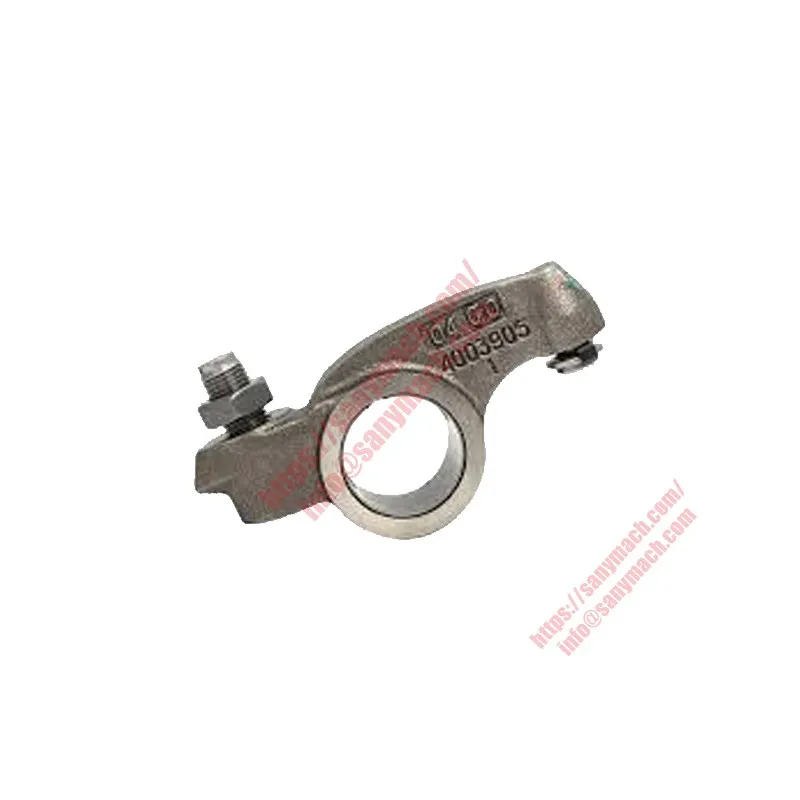

Grupo de Balancines
168899000003 Rocker Lever Group – Precision Engine Valvetrain for SANY Diesel Power
The rocker lever group with OEM number 168899000003 is a complete valvetrain subassembly for SANY heavy‑duty diesel engines.
It converts the rotational motion of the camshaft into linear motion to open and close intake and exhaust valves with precise timing.
This group includes rocker arms, shafts, adjustment screws, lock nuts, and needle‑bearing roller followers where applicable.
Each component is manufactured from case‑hardened alloy steel (18CrNiMo7‑6 or equivalent) and ground to tolerances within 0.01 mm.
The rocker arm ratio is optimized for SANY D09, D12, and D13 engines, delivering the correct valve lift and duration for maximum volumetric efficiency.
Genuine 168899000003 rocker groups undergo 100% magnetic particle inspection to detect surface cracks and ensure fatigue life exceeding 1 million cycles.
The rocker shafts are hollow‑drilled for pressurized oil delivery to the bushings and roller tips, reducing friction and wear.
Adjusting screws feature a wear‑resistant carbide tip and a self‑locking adjustment mechanism to maintain valve lash over extended periods.
Precision Ratio
Optimized rocker ratio ensures correct valve lift and timing for maximum engine performance.
Hardened Alloy Steel
Case‑hardened material provides wear resistance and fatigue strength for long service life.
Pressurized Lubrication
Hollow rocker shafts deliver oil directly to bushing and roller contacts, reducing friction.
Self‑Locking Adjustment
Carbide‑tipped adjusting screws with lock nuts maintain valve lash without frequent re‑adjustment.
Technical Specifications – OEM 168899000003 Rocker Lever Group
| OEM Number | 168899000003 |
|---|---|
| Product Name | Rocker Lever Group (Complete Valvetrain Assembly) |
| Engine Compatibility | SANY D09, D12, D13, WP12, WP13 series |
| Rocker Arm Material | Case‑hardened alloy steel (18CrNiMo7‑6), core hardness 32–38 HRC, surface 58–62 HRC |
| Rocker Shaft Material | Carbon steel (C45E) with induction‑hardened journals (55–60 HRC) |
| Rocker Ratio | 1.55:1 (intake), 1.55:1 (exhaust) – optimized for SANY D12/D13 |
| Follower Type | Needle roller bearing (exhaust) / Slipper pad (intake) |
| Adjustment Screw Tip | Carbide ball tip, hardness 70–72 HRC |
| Lubrication | Pressurized oil through hollow shaft, 2.0–4.0 bar operating pressure |
| Valve Lash (Cold) | Intake: 0.30 mm / Exhaust: 0.50 mm (adjustable) |
Why Genuine SANY 168899000003 Rocker Lever Group Is Superior to Aftermarket Assemblies
Aftermarket rocker groups often use lower‑grade materials or incorrect geometry, leading to premature wear, valve float, or rocker arm breakage.
A failed rocker can cause valve‑to‑piston contact, catastrophic engine damage, and costly downtime.
The genuine 168899000003 rocker group is manufactured to SANY’s exact specifications, with each rocker arm precision‑machined and matched to the shaft.
The case‑hardening process provides a wear‑resistant surface while maintaining a tough, ductile core to absorb shock loads.
Genuine needle roller bearings are sealed and pre‑lubricated, reducing friction and extending life.
Aftermarket rockers often use plain bronze bushings that wear quickly, causing loss of valve lift and increased valve lash noise.
Additionally, the genuine rocker shafts are drilled with precise oil holes that align perfectly with the cylinder head feed passages.
Incorrectly drilled aftermarket shafts can starve bearings of oil, leading to seizure within hours of operation.
SANY validates each rocker group on a dynamic valvetrain test stand for 500 hours at full engine speed.
This ensures that the assembly meets factory specifications for valve lift, timing, and noise levels.
- OEM‑spec geometry ensures correct valve timing and lift.
- Case‑hardened surfaces provide 3x longer wear life than aftermarket.
- Reduced valvetrain noise and vibration.
- 100% NDT inspected – no cracks or porosity.
- Supplied with SANY traceability label and installation guide.
- Compatible with Actlon trucks, SY excavators, concrete mixers.
Compatibility – SANY Engines & Equipment Using 168899000003 Rocker Group
| Engine Models | SANY D09, D12, D13, WP12G460E50, WP13G500E30 |
|---|---|
| Truck Models | Actlon 6×4/8×4 tippers, SY331, SY412, SY425 mining dump trucks, SYM3310 series |
| Other Equipment | Concrete mixer trucks, wheel loaders, motor graders, STC truck cranes |
| Valve Train Type | Overhead valve (OHV) with pushrods |
Installation Guide for Rocker Lever Group 168899000003
Before installation, ensure the engine is cold and the camshaft is positioned at top dead center (TDC) on cylinder #1.
Remove the old rocker assembly and inspect pushrods for straightness. Clean the rocker shaft bores in the cylinder head.
Lubricate the rocker shaft with clean engine oil and slide the new rocker arms onto the shaft in the correct order (intake/exhaust).
Install the assembled rocker shaft onto the cylinder head, ensuring the oil holes align with the head feed passages.
Tighten the rocker shaft pedestal bolts in two stages: first to 20 Nm, then to 45 Nm (final torque). Use a star pattern.
Adjust valve lash while engine is cold: intake 0.30 mm, exhaust 0.50 mm.
Turn the engine over two full revolutions and re‑check lash. Re‑torque the adjusting screw lock nuts to 25 Nm.
Start the engine and listen for abnormal noise. Re‑check lash after 50 operating hours.
Always replace rocker groups in sets per cylinder head. Never reuse old rocker arms with new shafts.
Use only genuine SANY fasteners and torque specifications.
SANY Original Quality
Every 168899000003 rocker group meets SANY’s durability and accuracy standards.
Traceable Packaging
Each assembly labeled with OEM 168899000003, production date, and batch code.
Global Availability
Stocked at authorized SANY parts centers for immediate dispatch.
