OEM 160102130004A098 Cylinder Head – Genuine SANY Engine Top-End Component

The genuine SANY parts reference 160102130004A098 is the Cylinder Head, a precision-cast component that seals the combustion chamber and houses the valve train, fuel injectors, and cooling passages in SANY heavy-duty diesel engines. This cylinder head is the structural top end of the engine, directly exposed to peak combustion pressures exceeding 200 bar and temperatures up to 600°C. The 160102130004A098 cylinder head is manufactured from high-strength specially alloyed cast iron with a split-type design for D09 and D12 engines, delivering exceptional thermal fatigue resistance, dimensional stability, and durability under continuous heavy loads.

As the core of the SANY Cylinder Head Subassembly (160102130004A094), the 160102130004A098 cylinder head integrates hardened valve seat inserts, precision valve guides, injector bushings, and multiple expansion plugs [5†L23-L27]. Six units of this cylinder head are required per complete 6-cylinder engine, working in concert with the Cylinder Head Gasket (160102130004A095), Main Bolts (160102130003A026), Secondary Bolts (160102130003A027), and valve stem seals (60141426, 61000113). Each 160102130004A098 unit is 100% pressure-tested and dimensionally verified, guaranteeing reliable sealing and valve train alignment in SRT dump trucks, SY excavators, SW wheel loaders, and motor graders operating in the most demanding mining, construction, and material handling environments.

Cylinder Head

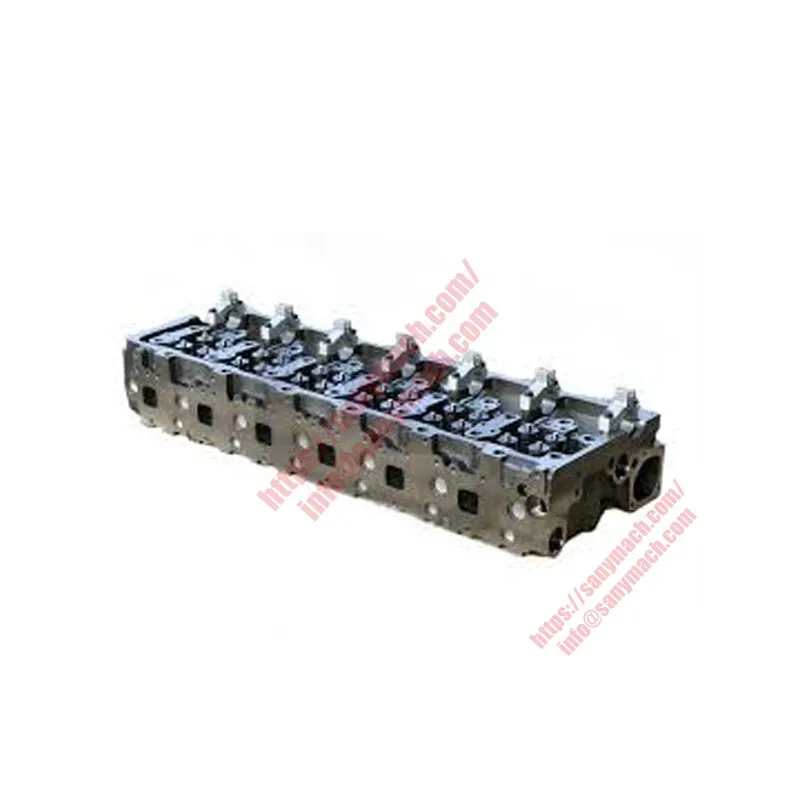

Головка блока цилиндров

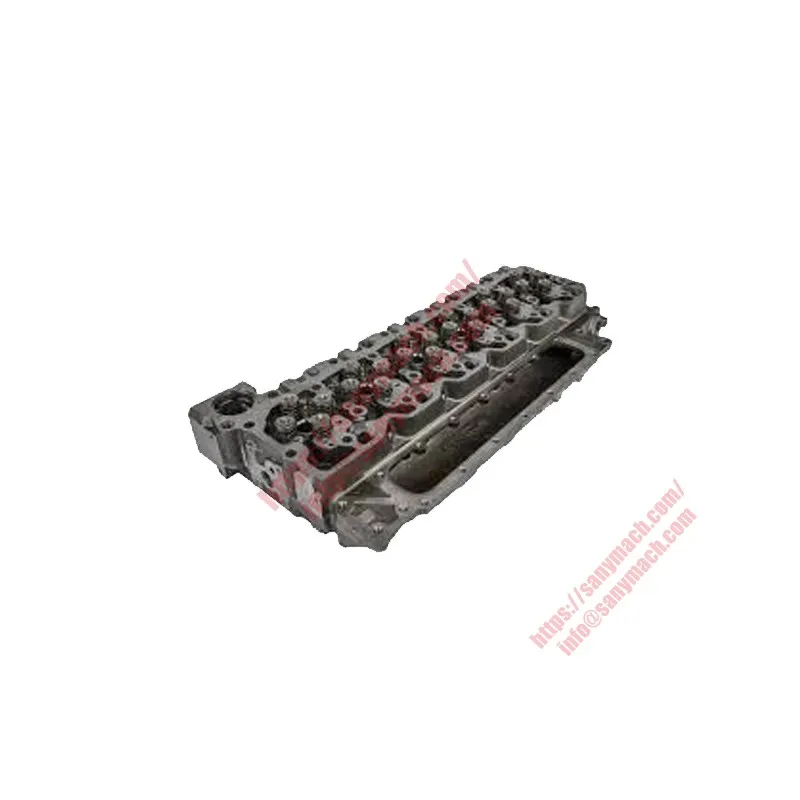

Culata

Metallurgical Design of Cylinder Head 160102130004A098

The cylinder head 160102130004A098 is cast from a specially alloyed gray cast iron that is optimized for heavy-duty diesel engine applications. The alloy composition includes precisely controlled percentages of carbon, silicon, manganese, chromium, and molybdenum, which enhance high-temperature strength and thermal fatigue resistance. This metallurgical composition provides excellent damping capacity to absorb combustion-induced vibrations while maintaining dimensional stability under the extreme thermal cycling encountered in continuous heavy-duty operation. The split-type cylinder head design, adopted for D12 engines, significantly minimizes noise generated by the engine while enabling efficient cooling through SANY’s patented TOP‑Down cooling system, which rapidly reduces the temperature of the circulating fluid to improve engine efficiency.

The 160102130004A098 cylinder head incorporates replaceable hardened valve seat inserts for both intake and exhaust valves. The Intake Valve Seat (160102130004A012) and Exhaust Valve Seat (160102130004A099) are manufactured from advanced sintered high-speed tool steel alloys containing finely dispersed tungsten carbide particles in a tempered martensitic matrix. These materials provide exceptional wear resistance, high-temperature hardness, and resistance to valve recession even after hundreds of thousands of valve events. The valve seats are precision-machined to exacting tolerances and pressed into the cylinder head casting, creating a permanent interference fit that withstands the thermal expansion differential between the cast iron head and the steel insert.

The 160102130004A098 cylinder head includes precision-aligned Valve Guide components (168899003946A) that ensure perfect valve stem alignment for consistent valve seating and optimal oil control. Four valve guides are installed per cylinder head, machined from wear-resistant powder metal or bronze alloy material to provide a low-friction bearing surface for the valve stems. The valve guide inner diameter is finished to a controlled surface roughness (Ra ≤ 0.8 µm) and is honed to exacting roundness and straightness tolerances, ensuring that the valve operates without binding or excessive clearance throughout the engine’s service life. The cylinder head also incorporates the Bushing, Injector (60352131) and its associated O-ring (160102130004A097), which seal the fuel injector and prevent combustion gas blow-by [6†L19-L22].

Integration Within the SANY Cylinder Head Subassembly

The cylinder head 160102130004A098 is the foundational component of the SANY Cylinder Head Subassembly (160102130004A094), which also includes the valve seat inserts, valve guides, injector bushing, expansion plugs, and a push rod bush. According to the SANY Cylinder Head Subassembly catalog, six of these cylinder heads are required per complete 6-cylinder engine, with each head forming the top-end sealing structure for one cylinder [5†L19-L23]. The subassembly is designed for ultimate durability and performance in heavy-duty machinery, with the cylinder head casting providing precise mounting locations for all valve train and fuel system components.

The 160102130004A098 cylinder head is secured to the engine block using high-tensile Cylinder Head Main Bolts (160102130003A026) and Secondary Bolts of Cylinder Head (160102130003A027), in quantities of 24 and 14 per cylinder head, respectively. These fasteners are complemented by precision-made Nut components (60272816) to ensure a rigid, leak-proof seal under extreme pressure and thermal cycles [6†L20-L22]. The cylinder head gasket (160102130004A095) provides the final combustion seal between the cylinder head and block, preventing leakage of combustion gases, engine oil, and coolant. This sealing system is further enhanced by Valve Stem Seals (60141426 and 61000113), which control oil consumption and minimize emissions.

For assembly and servicing purposes, the cylinder head 160102130004A098 is handled using Clamp, Lifting (61000731) components, with two units supplied per cylinder head. Additionally, general Clamp elements (160102130004A096) are used to secure hoses and lines around the cylinder head area. The sophisticated engineering of the SANY Cylinder Head Subassembly ensures perfect sealing integrity, contributing to reduced engine noise, improved fuel efficiency, and extended service intervals in the most demanding applications [5†L23-L27].

Machine Compatibility & Critical Applications

The cylinder head 160102130004A098 is used in SANY D09 and D12 series diesel engines powering a wide range of heavy-duty SANY equipment. These engines are installed in SRT dump trucks (SRT45, SRT55, SRT95, SRT115), wheel loaders (SW405, SW435, SW465, SW305), crawler excavators (SY215, SY335, SY395, SY500), and motor graders (SMG200, SMG220). The D09 engine is a straight-6 diesel with 8.7 liters displacement, 117 mm bore, and 135 mm stroke, producing 280–380 horsepower and 1,500 N·m of torque. The D12 engine offers 12.13 liters displacement, 131 mm bore, and 150 mm stroke, with output torque reaching 700 N·m and idle speeds as low as 525 rpm [4†L4-L7].

Both engine families utilize a split-type cylinder head design that significantly minimizes engine noise while enabling efficient cooling through SANY’s patented TOP‑Down cooling system. This system rapidly reduces the temperature of the circulating fluid, improving engine efficiency and reducing thermal stress on the cylinder head. The advanced fuel systems, starter motors, and generators for both engine families are sourced from Bosch, ensuring that the complete powertrain meets global quality standards. The D09 and D12 engines are currently widely used in SANY mixer trucks, cranes, pump trucks, and city dump trucks [4†L4-L7].

The 160102130004A098 cylinder head is also installed on SANY concrete pump trucks, crawler cranes, and heavy forklifts equipped with SANY’s heavy-duty diesel engines. For complete engine reliability, the cylinder head must be used together with genuine SANY Cylinder Head Gaskets, Main Bolts, Secondary Bolts, Valve Seats, Valve Guides, and Injector Bushings [5†L19-L27][6†L19-L22]. When overhauling an engine, the cylinder head deck surface should be inspected for flatness (maximum allowable out-of-flat: 0.05 mm) and the valve seat inserts checked for recession or damage before reinstallation.

Technical Specifications – Cylinder Head 160102130004A098

Proper Installation of Cylinder Head 160102130004A098

When installing the cylinder head 160102130004A098, strict adherence to the SANY workshop manual procedure is essential. Begin by thoroughly cleaning the cylinder block deck surface and the cylinder head sealing surface, removing any old gasket residue, carbon deposits, or oil using a non-abrasive scraper and degreasing solvent. The surface finish must be within specification (Ra ≤ 1.5–3.2 µm) to ensure proper gasket sealing — excessively smooth or rough surfaces can compromise gasket performance. Verify that the alignment sleeves are present and undamaged in the cylinder block bores to ensure precise positioning of the cylinder head.

Position the new Cylinder Head Gasket (160102130004A095) on the cylinder block with the identification stamp facing upward. The gasket must be oriented correctly, with coolant and oil passages aligning perfectly with those in the block and head. Carefully lower the 160102130004A098 cylinder head onto the gasket, using the alignment sleeves to guide it into position. Apply thread lubricant to the Cylinder Head Main Bolts (160102130003A026) and Secondary Bolts (160102130003A027). The tightening sequence must be followed precisely — typically starting from the center bolts and working outward in a spiral pattern.

The tightening procedure for the 160102130004A098 cylinder head requires a multi-stage approach. First stage: pre-tighten all bolts to 40 N·m following the specified sequence. Second stage: rotate each bolt an additional 90° (1/4 turn) in the same sequence, using an angle gauge for precision. Third stage: rotate each bolt a further 90° (1/4 turn) following the same sequence. After completing the tightening procedure, repeat the final angle stage to verify that all bolts have been fully tightened — any bolt that moved less than the specified angle must be replaced and the procedure repeated. Never reuse cylinder head bolts when replacing the cylinder head 160102130004A098. These torque-to-yield fasteners permanently stretch during installation and lose their clamping ability if reused.

After the cylinder head is installed and the engine is reassembled, perform a coolant system pressure test and a cylinder compression test to verify sealing integrity. Compression pressures should be within the specified range (typically 24.0 kg/cm² for healthy diesel engines) with no more than 3.0 kg/cm² difference between cylinders. If any cylinder shows low compression, check for proper valve seating and gasket sealing before returning the engine to service. The precise installation of the 160102130004A098 cylinder head ensures long-term engine reliability and optimal performance.

Common Symptoms of Cylinder Head Failure

Cylinder head failure, involving the 160102130004A098, can manifest through several characteristic symptoms that equipment operators and maintenance technicians should recognize. White exhaust smoke with a sweet smell (indicative of coolant burning) often results from a cracked cylinder head or failed head gasket allowing coolant to enter the combustion chamber. Loss of compression pressure below allowable limits (typically below 21.0 kg/cm² for heavy-duty diesel engines) with a difference exceeding 3.0 kg/cm² between cylinders may indicate a cracked cylinder head, failed head gasket, or warped sealing surface. Coolant contamination of engine oil, appearing as a milky emulsion on the dipstick or oil fill cap, is another clear indicator of a compromised cylinder head sealing surface.

Engine overheating that cannot be attributed to cooling system component failure — such as a stuck thermostat, failed water pump, or clogged radiator — may be caused by combustion gases entering the cooling system through a cracked cylinder head or failed gasket. A coolant system pressure test that fails to hold pressure, or combustion gas bubbles visible in the coolant overflow reservoir when the engine is running, confirms cylinder head sealing failure. Visible external oil or coolant leaks from the cylinder head-to-block junction, or from expansion plug locations on the cylinder head, also indicate gasket or component failure.

If the engine exhibits multiple symptoms of cylinder head failure, an immediate overhaul is recommended. The cylinder head deck surface must be inspected for warpage using a precision straightedge and feeler gauge — the maximum allowable out-of-flat is typically 0.05 mm across the length of the head. Valve guide wear and valve seat recession should also be measured against service limits. Depending on the extent of damage, the cylinder head may be resurfaced within allowable limits, or replaced entirely with a new genuine 160102130004A098 cylinder head. Installing a new genuine cylinder head together with a new Cylinder Head Gasket and all associated bolts ensures proper compression sealing, restores engine performance, and prevents catastrophic combustion chamber leaks.

Quality Assurance & Full Traceability

Every cylinder head 160102130004A098 is manufactured in an IATF 16949 certified facility under SANY’s rigorous quality management system. The production process includes raw material spectrographic analysis to verify alloy composition, in-process dimensional verification using coordinate measuring machines (CMM), and 100% porosity testing of the casting. A sample from each casting batch is sectioned for metallographic examination to verify graphite flake distribution, matrix microstructure, and the absence of chill or other defects that could compromise thermal fatigue resistance.

The combustion deck surface of the 160102130004A098 cylinder head is inspected for flatness using precision straightedges and electronic height gauges, with flatness held to within 0.05 mm across the entire length. The valve seat insert bores and valve guide bores are verified for position, diameter, and concentricity using CMM inspection, with records maintained for each cylinder head. The injector bushing bore is measured for diameter and surface finish, and the coolant and oil passages are checked for cleanliness and freedom from obstructions.

Each 160102130004A098 cylinder head is pressure-tested before shipment to verify the integrity of water jacket and oil passages. The casting is pressurized to 3 bar (or as specified by SANY engineering standards) while submerged in a water tank or using a helium leak detector — any bubbles or detected leaks cause immediate rejection. The cylinder head is then cleaned, coated with anti-rust oil, and packaged in a protective sealed bag. A batch code is cast or stamped on the cylinder head, providing full traceability to the original melt date, casting lot, machining line, and final inspection records.

Field Performance of Genuine SANY Cylinder Head

Field data collected from SANY dump trucks and excavators operating in Australian iron ore mines and South African quarries shows that genuine 160102130004A098 cylinder heads achieve an average service life exceeding 25,000 operating hours without thermal cracking or valve seat recession beyond service limits. Aftermarket cylinder heads often fail prematurely due to inferior cast iron quality, improper heat treatment, or porosity defects that were not detected by quality inspection, leading to head cracking, gasket failure, or coolant leaks within 8,000-12,000 hours.

The superior durability of the genuine SANY cylinder head comes from the specially alloyed cast iron formulation, the optimized split-type design that reduces thermal stress, and the advanced TOP‑Down cooling system that rapidly reduces circulating fluid temperature. Fleet owners who have standardized on genuine SANY cylinder heads report a 60% reduction in cooling system-related failures and elimination of head gasket issues that would otherwise require costly emergency repairs. The replaceable valve seat inserts allow the cylinder head to be reconditioned and returned to service, extending the usable life of the component and reducing total cost of ownership.

To maximize service life, always use a new genuine Cylinder Head Gasket (160102130004A095) and new cylinder head bolts whenever the cylinder head is removed. Follow the SANY workshop manual tightening sequence and torque-angle specification exactly — deviations can lead to uneven clamp load, gasket failure, or head warpage. The deck surface should be checked for flatness during any service operation; if warpage exceeds 0.05 mm, the head should be resurfaced (within allowable limits) or replaced. Genuine SANY cylinder heads deliver the metallurgical integrity, dimensional accuracy, and reliability required for the most demanding industrial applications [5†L6-L10][6†L19-L22].
