OEM 160102130004A097 O-ring – Genuine SANY Injector Sealing Component

The genuine SANY parts reference 160102130004A097 is the O-ring, a precision-engineered elastomeric sealing component designed for the injector bushing in SANY heavy-duty diesel engines. This O-ring provides the critical seal between the injector bushing (60352131) and the cylinder head, preventing combustion gas blow-by, oil leakage, and fuel contamination of the engine coolant system. The 160102130004A097 O-ring is manufactured from high-performance FKM (fluorocarbon rubber) with exceptional heat resistance, chemical compatibility, and compression set resistance, ensuring reliable sealing performance under peak cylinder pressures exceeding 200 bar and operating temperatures up to 200°C.

As an essential component of the SANY Cylinder Head Subassembly (160102130004A094), one unit of the 160102130004A097 O-ring is installed on each injector bushing, with six bushings per complete D09 or D12 engine [6†L19-L27]. The O-ring works in concert with the Bushing, Injector (60352131), the Fuel Injector (160102130004A019), and the Clamp, Fuel Injector (60352132) to maintain a gas-tight, liquid-tight seal around the injector tip [7†L10-L18]. Each 160102130004A097 O-ring is 100% inspected for material hardness, tensile strength, and dimensional accuracy, guaranteeing reliable sealing integrity in SRT dump trucks, SY excavators, SW wheel loaders, and motor graders operating in the most demanding mining, construction, and material handling environments.

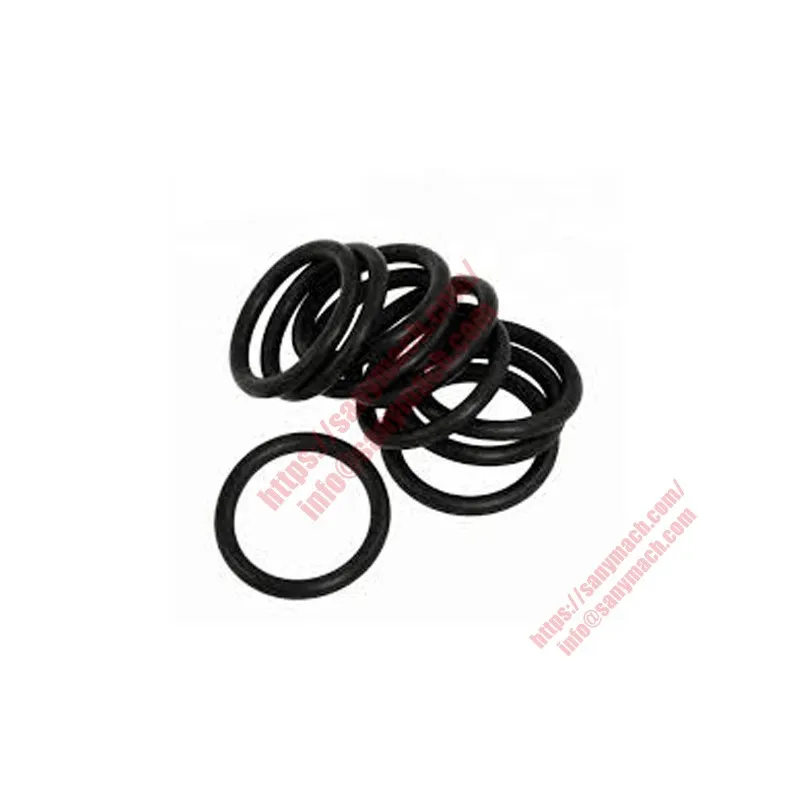

O-ring

Уплотнительное кольцо

Junta tórica

Material and Design of O-ring 160102130004A097

The O-ring 160102130004A097 is manufactured from high-grade FKM (fluorocarbon rubber), an advanced elastomer specifically formulated for extreme diesel engine environments. FKM provides outstanding resistance to high temperatures, diesel fuel, engine oil, and combustion byproducts, maintaining its elastic properties even after thousands of thermal cycles [12†L4-L6]. The material’s excellent compression set resistance ensures that the O-ring continues to exert sealing pressure against the injector bushing and cylinder head bore, even after prolonged exposure to high temperatures and pressure differentials [9†L20-L22].

The 160102130004A097 O-ring is precision-molded to exacting dimensional tolerances, with the cross-sectional diameter and inner diameter controlled to within ±0.05 mm. The surface finish is smooth and free of flash, parting lines, or other imperfections that could compromise the seal. The O-ring’s round cross-section provides a uniform sealing force around the entire circumference of the injector bushing groove, creating a reliable barrier against combustion gases, fuel, and oil. The Shore A hardness of the FKM material is typically 70-75, providing the optimal balance between flexibility for installation and rigidity for sealing under pressure.

The primary function of the 160102130004A097 O-ring is to seal the interface between the injector bushing (60352131) and the cylinder head bore. When the injector bushing is pressed into the cylinder head, the O-ring is compressed in its groove, creating a gas-tight and liquid-tight seal that prevents high-pressure combustion gases from escaping past the injector and also prevents engine oil from entering the combustion chamber [6†L19-L22]. The O-ring also acts as a barrier against coolant leakage if the cylinder head water jacket is breached. This triple-sealing function is critical for maintaining engine efficiency, controlling emissions, and preventing oil dilution by fuel.

All 160102130004A097 O-rings are 100% inspected for material hardness using a Shore A durometer, tensile strength using a universal testing machine, and dimensional accuracy using automated vision systems. A sample from each production batch is subjected to accelerated aging tests, compression set measurement, and fluid immersion testing to verify that the FKM compound meets SANY’s stringent specifications. A batch code is printed on the packaging, providing full traceability to the original compound mix date, molding parameters, and quality inspection records.

Integration Within the SANY Cylinder Head Subassembly

The O-ring 160102130004A097 is a critical sealing component within the SANY Cylinder Head Subassembly (160102130004A094), which forms the structural foundation for the engine’s top end [6†L2-L6]. The Cylinder Head Subassembly incorporates numerous specialized parts, including the injector bushing (60352131), valve seats, valve guides, and expansion plugs. The O-ring is installed in a groove machined into the outer diameter of the injector bushing, and when the bushing is pressed into the cylinder head bore, the O-ring is compressed to create a tight seal [12†L4-L6].

The SANY Cylinder Head Subassembly is designed for ultimate durability and performance in heavy-duty machinery. The injector bushing, with its O-ring, is pressed into a precisely machined bore in the cylinder head. The bushing’s outer diameter has a slight interference fit with the bore, while the O-ring fills any microscopic gaps between the bushing and the bore, ensuring that no combustion gases, oil, or coolant can bypass the injector. This sealing system is essential for maintaining the integrity of the combustion chamber, protecting the engine from fuel dilution of the oil, and preventing the loss of compression that would reduce engine power and fuel efficiency [6†L18-L22].

Within the SANY Fuel Injector Group (160102130004A019), the O-ring 160102130004A097 works together with the Fuel Injector (160102130004A019), the Clamp, Fuel Injector (60352132), and the Bushing, Injector (60352131) to ensure a secure, leak-proof installation. The Clamp applies downward force to seat the injector firmly into the bushing, and the O-ring provides the final seal against high-pressure combustion gases and fuel leaks. This multi-component sealing system is engineered to withstand the extreme conditions of modern common rail diesel engines, with injection pressures exceeding 2,000 bar [7†L10-L18].

Integration Within the SANY Fuel Injector Group

The O-ring 160102130004A097 is an integral part of the SANY Fuel Injector Group (160102130004A019), which is designed to ensure precise fuel delivery and reliable engine performance [7†L2-L7]. The Fuel Injector Group includes the Fuel Injector (160102130004A019) — 6 units per engine, the Clamp, Fuel Injector (60352132) — 6 units, the Adapter, Tube, Injector Fuel Supply (60352073) — 6 units, and the Washer, Ball (60352152) — 6 units [7†L10-L18]. Additionally, the group incorporates the Bushing, Injector (60352131), of which 6 units are installed per engine, and the O-ring 160102130004A097 — 6 units, one per injector bushing [7†L19-L22].

The Clamp, Fuel Injector (60352132) is a precision component that applies a controlled downward force to the injector, seating it firmly against the injector bushing and compressing the O-ring into its sealing groove. The clamp is secured using high-strength hexagon bolts (60352115) that are torqued to a specific value to achieve the correct clamp load [7†L7-L11]. The Washer, Ball (60352152) provides a spherical seating surface that ensures even distribution of the clamping force, preventing distortion of the injector body or damage to the O-ring [7†L16-L18].

The sophisticated engineering of the SANY Fuel Injector Group, combined with the precise sealing provided by the 160102130004A097 O-ring, ensures that fuel is delivered at the correct pressure and timing to achieve complete combustion. The O-ring’s ability to withstand high temperatures and aggressive chemicals means that it maintains its sealing integrity even when exposed to diesel fuel, combustion gases, and engine oil over extended service intervals. This reliability directly contributes to lower emissions, better fuel economy, and reduced maintenance costs for SANY equipment owners [7†L2-L6].

Technical Specifications – O-ring 160102130004A097

Proper Installation of O-ring 160102130004A097

When installing the O-ring 160102130004A097, absolute cleanliness and careful handling are essential to avoid damaging the seal. Before installation, inspect the O-ring for any visible defects such as nicks, cuts, flash, or deformation. Do not use any O-ring that shows signs of damage. Clean the injector bushing groove and the cylinder head bore thoroughly using a lint-free cloth and degreasing solvent, removing all old sealant residue, carbon deposits, or debris [9†L20-L22].

Apply a thin film of clean engine oil or a specialized O-ring lubricant (such as silicone grease) to the O-ring and to the bushing groove. This lubrication helps the O-ring slide into place without twisting or pinching and aids in seating during bushing installation. Carefully stretch the O-ring over the injector bushing and roll it into the groove, ensuring that it is not twisted — the O-ring should lie flat and evenly in the groove. Do not use sharp tools to manipulate the O-ring, as any nick can create a leak path.

After the O-ring is seated, press the injector bushing into the cylinder head bore using a suitable installation tool and a press. Apply even, straight pressure to avoid damaging the O-ring or cocking the bushing in the bore. The bushing should be pressed until it is flush with or slightly recessed below the cylinder head deck surface, as specified in the SANY workshop manual. Never hammer the bushing into place, as shock loading can cut or displace the O-ring [12†L4-L6].

Always replace the O-ring 160102130004A097 whenever the injector bushing is removed or whenever the fuel injector is serviced, regardless of the O-ring’s apparent condition. The FKM material can harden and lose elasticity due to thermal aging, and the O-ring may take a permanent compression set that prevents it from sealing properly upon reassembly. Do not reuse O-rings. Store new O-rings in their original sealed packaging, away from direct sunlight, ozone sources (electric motors), and high temperatures [9†L20-L22].

Symptoms of a Failed Injector O-ring

A failed O-ring 160102130004A097 can produce several characteristic symptoms that equipment operators and technicians should recognize. Combustion gas blow-by past the injector is the most common indicator — a chuffing or ticking sound may be audible near the injector location, especially under load. This gas escape can also cause carbon buildup around the injector base, making injector removal difficult. Visible black soot deposits on the cylinder head around the injector are a telltale sign of O-ring failure.

Fuel dilution of the engine oil is another serious consequence of O-ring failure. If the O-ring loses its seal, high-pressure fuel can leak past the injector and into the crankcase, thinning the engine oil and reducing its lubricating properties. Symptoms include a fuel smell in the oil, a drop in oil pressure, and accelerated wear of bearings and cylinder components. In severe cases, the engine oil level may rise due to fuel accumulation [12†L4-L6].

Excessive exhaust smoke, rough idle, or loss of power may also indicate that the O-ring has failed, allowing combustion gases to escape and reducing cylinder compression. A compression test may show low pressure in one cylinder. If the O-ring is suspected of failure, the injector should be removed and the O-ring inspected for hardening, cracking, or deformation. Always replace the O-ring with a new genuine 160102130004A097 whenever the injector is serviced.

Quality Assurance & Full Traceability

Every O-ring 160102130004A097 is manufactured in an IATF 16949 certified facility under SANY’s rigorous quality management system. The production process includes raw material compound verification using a moving die rheometer, in-process dimensional inspection using automated vision systems, and 100% visual inspection for surface defects. A sample from each production batch is subjected to accelerated aging tests, tensile strength verification, elongation testing, hardness confirmation (Shore A), and compression set measurement.

The O-rings are also tested for fluid compatibility by immersion in diesel fuel, engine oil, and coolant at elevated temperatures to verify that the FKM material resists swelling, hardening, or degradation. Dimensional accuracy is verified using precision optical comparators and laser micrometers, with cross-sectional diameter and inner diameter controlled to tight tolerances (±0.05 mm).

Each 160102130004A097 O-ring is supplied in protective packaging that prevents contamination and moisture absorption. The packaging is labeled with the SANY logo, part number, quantity, and a batch code that links to the original compound mix record, molding parameters, and final inspection data. For bulk orders, a Certificate of Conformance (CoC) is provided, certifying that the O-rings meet all SANY OEM specifications for material composition, dimensional accuracy, hardness, and compression set. Independent third-party audits ensure continuous compliance with ISO 9001:2015 and IATF 16949 standards.

Field Performance of Genuine SANY Injector O-ring

Field data from SANY dump trucks and excavators operating in Australian iron ore mines and South African quarries shows that genuine 160102130004A097 O-rings maintain sealing integrity for the full engine service interval, typically exceeding 20,000 operating hours. Aftermarket O-rings often fail prematurely due to inferior elastomer compounds (such as NBR rather than high-grade FKM), incorrect dimensional tolerances, or poor compression set resistance, leading to combustion gas blow-by and fuel dilution within 5,000-8,000 hours.

The superior durability of the genuine SANY O-ring comes from the premium FKM compound, the precisely controlled molding process that ensures consistent cross-sectional geometry, and the rigorous quality testing that verifies material properties. Fleet owners report that standardizing on genuine SANY O-rings reduces injector-related failures by up to 60% and eliminates the risk of fuel dilution of the engine oil [7†L2-L6].

To maximize service life, always replace the O-ring whenever the injector is removed for service. Even if the O-ring appears undamaged, thermal aging may have hardened the material, reducing its ability to conform to the groove and seal effectively. Use genuine SANY O-rings to ensure proper material composition and dimensional accuracy. After replacement, follow the engine manufacturer’s recommended procedure for bleeding the fuel system and checking for leaks before returning the engine to service. The reliable sealing provided by the 160102130004A097 O-ring ensures long-term engine performance, reduced emissions, and lower total cost of ownership.
