OEM 160102130004A094 Cylinder Head Subassembly – Genuine SANY Engine Core Component

The genuine SANY parts reference 160102130004A094 is the Cylinder Head Subassembly, a precision-engineered core component that seals the combustion chamber and provides the structural foundation for the entire valve train and fuel injection system in SANY heavy-duty diesel engines. This subassembly plays the critical role of containing the explosive forces of combustion, transferring heat to the cooling system, and housing all components that regulate airflow, fuel injection, and exhaust gas evacuation. The 160102130004A094 cylinder head is manufactured from high-strength specially alloyed cast iron with a split-type design, delivering exceptional thermal fatigue resistance and structural integrity under peak cylinder pressures exceeding 200 bar and combustion temperatures up to 600°C.

As the structural heart of the SANY Cylinder Head Group, the 160102130004A094 Subassembly is listed in a quantity of 6 units per engine assembly, working in concert with the Cylinder Head Gasket (160102130004A095), Valve Stem Seals (60141426 and 61000113), Cylinder Head Main Bolts (160102130003A026), Secondary Bolts of Cylinder Head (160102130003A027), and precision-made Nut components (60272816). The 160102130004A094 cylinder head is securely fastened to the engine block using 24 main bolts and 14 secondary bolts in a carefully engineered sequence, ensuring a rigid, leak-proof seal under extreme pressure and thermal cycles. Each 160102130004A094 unit is 100% pressure-tested for combustion integrity and dimensional accuracy, guaranteeing reliable performance in SRT dump trucks, SY excavators, and SW wheel loaders operating in the most demanding mining and construction environments.

Cylinder Head Subassembly

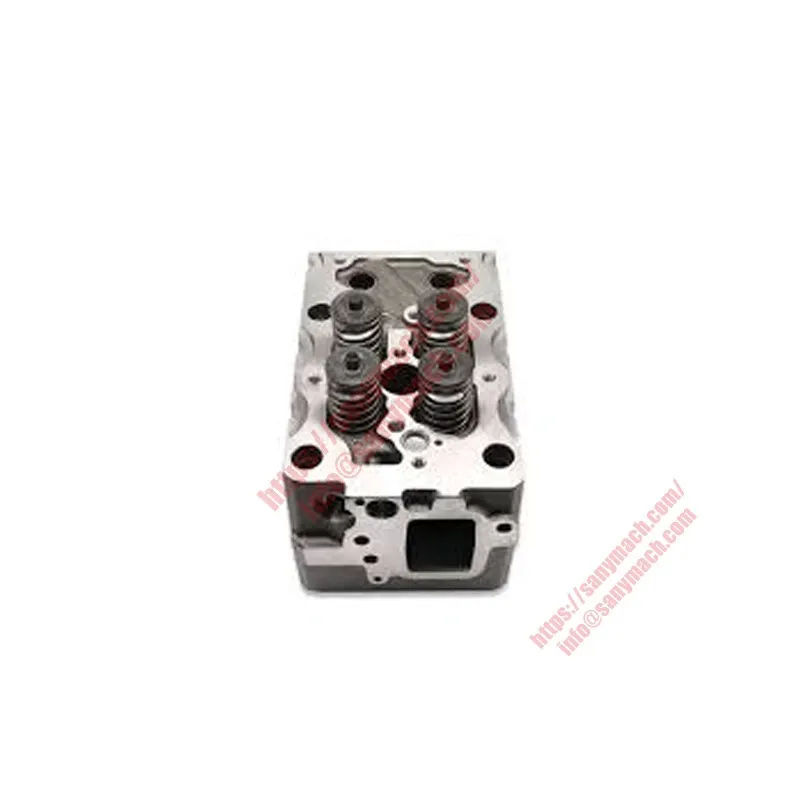

Головка блока цилиндров в сборе

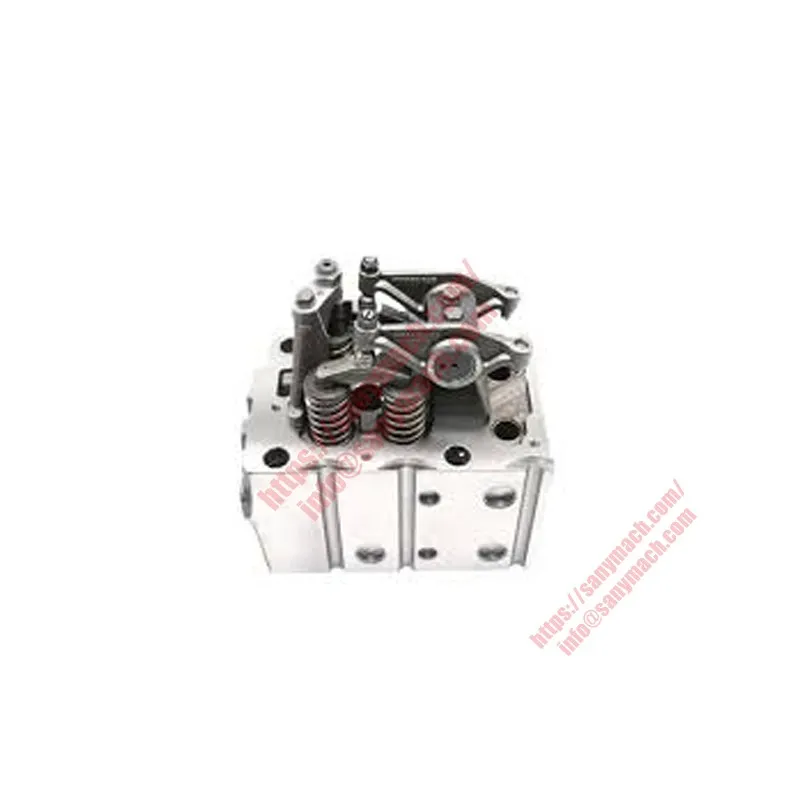

Subconjunto de Culata

Metallurgical Design of Cylinder Head Subassembly 160102130004A094

The cylinder head 160102130004A094 is cast from a specially alloyed cast iron material optimized for heavy-duty diesel engine applications. The gray cast iron alloy composition includes precisely controlled percentages of carbon, silicon, manganese, and alloying elements such as chromium and molybdenum that enhance high-temperature strength and thermal fatigue resistance. This metallurgical composition provides excellent damping capacity to absorb combustion-induced vibrations while maintaining dimensional stability under the extreme thermal cycling encountered in continuous heavy-duty operation. The split-type cylinder head design further minimizes noise generated by the engine, contributing to reduced operator fatigue and improved working environment conditions.

The 160102130004A094 cylinder head incorporates replaceable hardened valve seat inserts for both intake and exhaust valves. The Intake Valve Seat (160102130004A012) and Exhaust Valve Seat (160102130004A099) are manufactured from advanced sintered high-speed tool steel alloys containing finely dispersed tungsten carbide particles residing in a tempered martensitic matrix. These materials provide exceptional wear resistance, high-temperature hardness, and resistance to valve recession even after hundreds of thousands of valve events. The valve seats are precision-machined to exacting tolerances and pressed into the cylinder head casting, creating a permanent interference fit that withstands the thermal expansion differential between the cast iron head and the steel insert.

The 160102130004A094 subassembly includes precision-aligned Valve Guide components (168899003946A) that ensure perfect valve stem alignment for consistent valve seating and optimal oil control. Four valve guides are installed per cylinder head, machined from wear-resistant powder metal or bronze alloy material to provide a low-friction bearing surface for the valve stems. The valve guide inner diameter is finished to a controlled surface roughness (Ra ≤ 0.4 µm) and is honed to exacting roundness and straightness tolerances, ensuring that the valve operates without binding or excessive clearance throughout the engine’s service life.

The 160102130004A094 subassembly also incorporates multiple Plug, Expansion components (60352172, 60352173, and 61000101) that seal core holes used in the casting manufacturing process. A key feature of the SANY Cylinder Head Subassembly is the strategic use of these expansion plug components, which are essential for sealing core holes while accommodating thermal expansion differences between the cast iron head and the plug materials. The assembly also includes a Push Rod Bush (160102130004A013) for accurate rocker arm actuation, precision-aligned components that ensure consistent timing between the camshaft and the valve train, directly impacting engine performance and emissions compliance.

Patented TOP-Down Cooling Technology for D12 Engines

For the D12 engine platform, the cylinder head 160102130004A094 is designed to work with SANY’s patented TOP‑Down cooling system. This advanced cooling technology rapidly reduces the temperature of the circulating coolant, improving overall engine efficiency and significantly reducing thermal stress on the cylinder head. The D12 cylinder head uses a split-type design to minimize engine noise, and the TOP‑Down cooling system ensures the coolant is directed to the hottest areas of the combustion chamber first, preventing localized hot spots that could lead to head cracking or gasket failure.

The split-type cylinder head design adopted for D12 engines significantly minimizes the noise generated by the engine while enhancing serviceability. By separating the cylinder head into multiple castings for a six-cylinder inline engine, the split design reduces the thermal expansion stresses that typically concentrate in longer one-piece heads. This engineering approach improves the long-term reliability of the 160102130004A094 subassembly under extreme operating conditions, particularly in mining and heavy construction applications where engines operate continuously at high load factors.

Technical Specifications – Cylinder Head Subassembly 160102130004A094

Integration within SANY Cylinder Head Group

The cylinder head subassembly 160102130004A094 is the central component of the comprehensive SANY Cylinder Head Group, a precision-engineered assembly consisting of several key components that work synergistically to ensure optimal engine function and reliability. The Cylinder Head Group includes the Clamp, Lifting (61000731) components for safe handling and positioning during service, the Cylinder Head Gasket (160102130004A095) for a high-quality seal, Valve Stem Seal components (60141426 and 61000113) for precise oil control, and Secondary Blots of Cylinder Head (160102130003A027) complemented by Clamp (160102130004A096) elements.

The robust fastening system includes high-tensile Cylinder Head Main Bolts (160102130003A026) and the Secondary Bolts of Cylinder Head (160102130003A027) in quantities of 24 and 14 per assembly, respectively. These fasteners work together with precision-made Nut components (60272816) to maintain a rigid, leak-proof seal between the cylinder head and engine block under extreme pressure and thermal cycles. This sealing is further enhanced by the high-quality Cylinder Head Gasket, which prevents leakage of combustion gases and engine fluids, ensuring that the integrity of the combustion chamber is maintained over extended service intervals.

The SANY Cylinder Head Group demonstrates SANY’s commitment to engineering excellence in heavy machinery power systems, providing critical combustion sealing and valve train stability that extends engine service life and maintains performance integrity in industrial applications. The split-type cylinder head design adopted for D12 engines significantly minimizes noise while enabling efficient cooling through the patented TOP‑Down cooling system. The comprehensive design of the SANY Cylinder Head Group ensures perfect sealing integrity, contributing to reduced engine noise, improved fuel efficiency, and extended service intervals in the most demanding applications.

Common Symptoms of Cylinder Head Failure

Cylinder head failure can manifest through several characteristic symptoms that equipment operators and maintenance technicians should recognize. White exhaust smoke with a sweet smell (indicative of coolant burning) often results from a cracked cylinder head or failed head gasket allowing coolant to enter the combustion chamber. Loss of compression pressure below allowable limits (typically below 21.0 kg/cm² for heavy-duty diesel engines) with a difference exceeding 3.0 kg/cm² between cylinders may indicate a cracked cylinder head, failed head gasket, or warped sealing surface. Coolant contamination of engine oil, appearing as a milky emulsion on the dipstick or oil fill cap, is another clear indicator of coolant leaking past a compromised cylinder head sealing surface.

Engine overheating that cannot be attributed to cooling system component failure — such as a stuck thermostat, failed water pump, or clogged radiator — may be caused by combustion gases entering the cooling system through a cracked cylinder head or failed gasket. A coolant system pressure test that fails to hold pressure, or combustion gas bubbles visible in the coolant overflow reservoir when the engine is running, confirms cylinder head sealing failure. Visible external oil or coolant leaks from the cylinder head-to-block junction, or from expansion plug locations on the cylinder head, also indicate gasket or component failure.

If the engine exhibits multiple symptoms of cylinder head failure, an immediate overhaul is recommended. The cylinder head deck surface must be inspected for warpage using a precision straightedge and feeler gauge — the maximum allowable out-of-flat is typically 0.05 mm across the length of the head. Valve guide wear and valve seat recession should also be measured against service limits. Depending on the extent of damage, the cylinder head may be resurfaced within allowable limits, or replaced entirely with a new genuine 160102130004A094 subassembly. Installing a new genuine cylinder head together with a new Cylinder Head Gasket and all associated bolts ensures proper compression sealing, restores engine performance, and prevents catastrophic combustion chamber leaks.

Proper Installation of Cylinder Head Subassembly 160102130004A094

When installing the cylinder head subassembly 160102130004A094, strict adherence to the SANY workshop manual procedure is essential. Begin by thoroughly cleaning the cylinder block deck surface and the cylinder head sealing surface, removing any old gasket residue, carbon deposits, or oil using a non-abrasive scraper and degreasing solvent. The surface finish must be within specification (Ra ≤ 1.5–3.2 µm) to ensure proper gasket sealing — excessively smooth or rough surfaces can compromise gasket performance. Verify that the alignment sleeves are present and undamaged in the cylinder block bores to ensure precise positioning of the cylinder head.

Position the new Cylinder Head Gasket (160102130004A095) on the cylinder block with the identification stamp facing upward. The gasket must be oriented correctly, with coolant and oil passages aligning perfectly with those in the block and head. Carefully lower the 160102130004A094 cylinder head subassembly onto the gasket, using the alignment sleeves to guide it into position. Apply thread lubricant to the Cylinder Head Main Bolts (160102130003A026) and Secondary Bolts (160102130003A027). The tightening sequence must be followed precisely — typically starting from the center bolts and working outward in a spiral pattern.

The tightening procedure for the 160102130004A094 cylinder head requires a multi-stage approach. First stage: pre-tighten all bolts to 40 N·m following the specified sequence. Second stage: rotate each bolt an additional 180 degrees (1/2 turn) in the same sequence, using an angle gauge for precision. If the manufacturer specifies a different torque-angle specification for specific D09/D12 engine variants, always refer to the SANY workshop manual for the exact procedure. After completing the tightening procedure, repeat the final angle stage to verify that all bolts have been fully tightened — any bolt that moved less than the specified angle must be replaced and the procedure repeated.

Never reuse cylinder head bolts when replacing the 160102130004A094 subassembly. These torque-to-yield fasteners permanently stretch during installation and lose their clamping ability if reused. Always replace with new genuine SANY bolts. After the cylinder head is installed and the engine is reassembled, perform a coolant system pressure test and a cylinder compression test to verify sealing integrity. Compression pressures should be within the specified range (typically 24.0 kg/cm² for healthy diesel engines) with no more than 3.0 kg/cm² difference between cylinders. If any cylinder shows low compression, check for proper valve seating and gasket sealing before returning the engine to service.

Quality Assurance & Full Traceability

Every cylinder head subassembly 160102130004A094 is manufactured in an IATF 16949 certified facility under SANY’s rigorous quality management system. The production process includes raw material spectrographic analysis to verify alloy composition, in-process dimensional verification using coordinate measuring machines (CMM), and 100% porosity testing of the casting. A sample from each casting batch is sectioned for metallographic examination to verify graphite flake distribution, matrix microstructure, and the absence of chill or other defects that could compromise thermal fatigue resistance.

The combustion deck surface is inspected for flatness using precision straightedges and electronic height gauges, with flatness held to within 0.05 mm across the entire length. The valve seat insert geometry is verified using air gauges and optical inspection systems, ensuring the correct seat angle, concentricity, and seat width for optimal valve sealing. The valve guide bores are measured for roundness, diameter, and surface finish using precision air gauges, with records maintained for each cylinder head.

Each 160102130004A094 cylinder head is pressure-tested before shipment to verify the integrity of water jacket and oil passages. The casting is pressurized to 3 bar (or as specified by SANY engineering standards) while submerged in a water tank or using a helium leak detector — any bubbles or detected leaks cause immediate rejection. The cylinder head is then cleaned, coated with anti-rust oil, and packaged in a protective sealed bag. A batch code is stamped on the casting, providing full traceability to the original melt date, casting lot, machining line, and final inspection records.

Field Performance of Genuine SANY Cylinder Head

Field data collected from SANY dump trucks and excavators operating in Australian iron ore mines and South African quarries shows that genuine 160102130004A094 cylinder heads achieve an average service life exceeding 25,000 operating hours without thermal cracking or valve seat recession beyond service limits. Aftermarket cylinder heads often fail prematurely due to inferior cast iron quality, improper heat treatment, or porosity defects that were not detected by quality inspection, leading to head cracking, gasket failure, or coolant leaks within 8,000-12,000 hours.

The superior durability of the genuine SANY cylinder head comes from the specially alloyed cast iron formulation, the optimized split-type design that reduces thermal stress, and the advanced TOP‑Down cooling system that rapidly reduces circulating fluid temperature. Fleet owners who have standardized on genuine SANY cylinder heads report a 60% reduction in cooling system-related failures and elimination of head gasket issues that would otherwise require costly emergency repairs. The replaceable valve seat inserts allow the cylinder head to be reconditioned and returned to service, extending the usable life of the component and reducing total cost of ownership.

To maximize service life, always use a new genuine Cylinder Head Gasket (160102130004A095) and new cylinder head bolts whenever the cylinder head is removed. Follow the SANY workshop manual tightening sequence and torque-angle specification exactly — deviations can lead to uneven clamp load, gasket failure, or head warpage. The deck surface should be checked for flatness during any service operation; if warpage exceeds 0.05 mm, the head should be resurfaced (within allowable limits) or replaced. Genuine SANY cylinder heads deliver the metallurgical integrity, dimensional accuracy, and reliability required for the most demanding industrial applications.
