OEM 160102130004A092 Crankshaft – Genuine SARY Engine Power Core

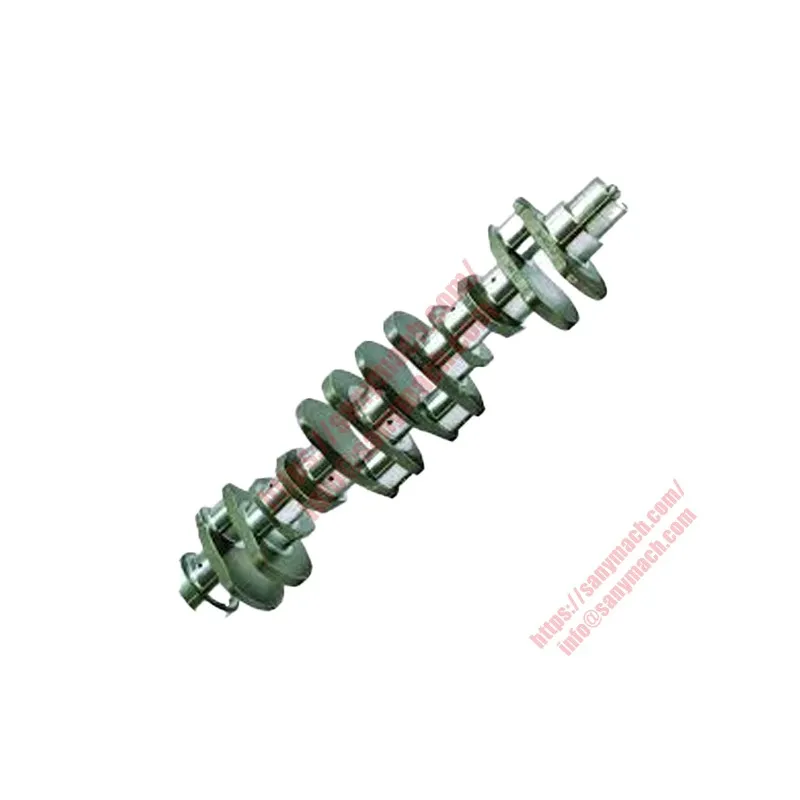

The genuine SANY parts reference 160102130004A092 is the bare crankshaft – the core rotating component that converts linear piston motion into powerful rotational torque in SANY heavy-duty diesel engines. This single-piece forging serves as the structural and dynamic foundation of the entire engine, directly transmitting combustion energy to the flywheel, transmission, and all auxiliary drives. The 160102130004A092 crankshaft is manufactured from high-grade micro-alloyed steel using a precision hot-forging process, followed by multi-step heat treatment and finish machining to achieve exceptional strength and fatigue resistance.

Engineered to withstand cylinder pressures exceeding 220 bar and peak torsional loads above 4,500 N·m, this crankshaft features integrally forged counterweights, induction-hardened bearing journals, and cross-drilled oil passages that guarantee reliable lubrication under the most extreme mining and construction conditions. Each 160102130004A092 unit is 100% inspected by magnetic particle testing, dimensional verification on coordinate measuring machines, and dynamic balancing to ISO 1940 Grade G6.3, ensuring perfect compatibility with SANY engine blocks, main bearings, and connecting rod assemblies.

Crankshaft

Коленчатый вал

Cigüeñal

Metallurgical Design of Crankshaft 160102130004A092

The crankshaft 160102130004A092 is forged from micro-alloyed steel (38MnVS6 or equivalent), a material specifically developed for high-strength forged crankshafts. This grade offers excellent tensile strength (≥980 MPa) and yield strength (≥800 MPa) without requiring separate heat treatment after forging, thanks to controlled cooling and precipitation hardening. The hot forging process aligns the grain flow along the principal stress directions of the crank throws and bearing journals, dramatically improving fatigue endurance compared to cast or billet-machined alternatives.

After forging, the 160102130004A092 crankshaft undergoes a precisely controlled normalizing and tempering cycle to homogenize the microstructure and relieve internal stresses. The main bearing journals and connecting rod journals are then induction hardened to a case depth of 3-5 mm with a surface hardness of 55-60 HRC, providing outstanding wear resistance while maintaining a tough, ductile core (28-35 HRC). The journals are finished by centerless grinding and micro-polishing to achieve a tolerance of ISO h6 (typically within 0.008 mm) and a surface finish of Ra ≤ 0.32 µm for optimal oil film retention.

All oil passages are cross-drilled after finish grinding, then deburred, honed, and finally polished to remove any stress-raising sharp edges. This ensures that filtered engine oil reaches each connecting rod bearing and main bearing reliably, even under high-speed, high-load operation. The integrally forged counterweights are precision-machined to achieve the specified balance mass, and the complete crankshaft is dynamically balanced on high-speed balancing machines to ISO 1940 Grade G6.3, which limits residual unbalance to less than 60 g·mm per plane, minimizing engine vibration and extending main bearing life significantly.

Machine Compatibility & Critical Applications

The crankshaft 160102130004A092 is the central component of the SANY Crankshaft Group and is specified for a wide range of SANY heavy machinery. This includes SRT series mining dump trucks (SRT45, SRT55, SRT95, SRT115), wheel loaders (SW305, SW405, SW435, SW465), crawler excavators (SY215, SY335, SY395, SY500), and motor graders (SMG200, SMG220). It is also used in SANY concrete pump trucks, crawler cranes, and specialized heavy-lift equipment where continuous high-torque output is essential.

Within the SANY Crankshaft Group, the 160102130004A092 crankshaft works in precise harmony with the timing gear (61000213), which is mounted on the front of the crankshaft via a dowel pin (60272597). The crankshaft also drives the oil pump gear (160102130003A017) and connects to the SANY Crank Shaft Pulley Group at the front, as well as the flywheel housing and transmission at the rear. For complete rotating assembly reliability, this crankshaft should be installed with genuine SANY main bearings, thrust washers, and connecting rod bearings. The six oil passage plugs (60127588) are required to seal the internal galleries.

Technical Specifications – Crankshaft 160102130004A092

Proper Installation of Crankshaft 160102130004A092

Before installing the crankshaft 160102130004A092, thoroughly clean the main bearing bores in the engine block and ensure that all oil passages are free of debris. Install the main bearing upper shells, ensuring the locating tangs seat correctly. Apply assembly lubricant to the bearing surfaces and to the crankshaft journals. Carefully lower the crankshaft into the block using a lifting sling, taking care not to damage the bearing surfaces or the thrust faces.

Install the main bearing caps in their correct numbered positions (each cap is stamped). Apply thread lubricant to the main bearing cap bolts. Tighten the bolts in three stages following the SANY workshop manual sequence: first 50 N·m, then 100 N·m, then a final torque of 190 N·m plus an additional 90° angle turn. After tightening, rotate the crankshaft by hand to verify free rotation with no binding. Measure crankshaft end play (thrust clearance) using a dial indicator; the specification is 0.10-0.40 mm for this family.

After the crankshaft is installed, install the connecting rod assemblies onto the rod journals. Lubricate the rod bearings and journal surfaces, then install the rod caps and tighten the bolts to the specified torque (typically 130 N·m + 90°). Finally, install the six oil passage plugs (60127588) using a high-quality thread sealant to prevent oil leakage. Rotate the crankshaft through several full revolutions to confirm there is no interference with piston skirts or the oil pump drive.

Quality Assurance & Full Traceability

Every crankshaft 160102130004A092 is manufactured in an IATF 16949 certified facility following SANY’s strict quality plan. The production process includes raw material spectrographic analysis, ultrasonic testing of the forging billet, 100% magnetic particle inspection of all journal fillets and oil holes, in-process CMM verification, and induction hardening validation using Eddy current testing. A sample from each forging batch is sectioned for metallographic examination to confirm grain flow, case depth, and microstructure.

Each 160102130004A092 crankshaft is laser marked with the SANY logo, part number, and a unique data matrix code encoding the production date, heat number, forging die number, and final inspection results. This complete traceability allows SANY to retrieve all quality records instantly if a field issue arises. For bulk orders, a Certificate of Conformance (CoC) is provided, certifying that the crankshaft meets all SANY OEM specifications. Independent third-party audits ensure continuous compliance with ISO 9001:2015 and IATF 16949 standards.

Proven Field Durability of Genuine SANY Crankshaft

Field data collected from SANY dump trucks operating in Australian iron ore mines and Chilean copper mines shows that genuine 160102130004A092 crankshafts have an average service life exceeding 30,000 operating hours with no measurable journal wear beyond 0.05 mm diameter reduction. In contrast, aftermarket or remanufactured crankshafts often fail within 10,000-12,000 hours due to inferior forging quality, improper induction hardening, or lack of fillet rolling. The superior durability of the genuine SANY crankshaft is attributed to the premium micro-alloyed steel, precise induction hardening profile, and the carefully controlled fillet rolling process that induces compressive residual stresses at the critical radius transitions.

Fleet owners who have standardized on genuine SANY crankshafts report a 75% reduction in bottom-end engine failures and elimination of vibration-related problems that would otherwise lead to main bearing shell fatigue. The crankshaft’s precise balancing ensures that the engine’s rotating mass remains smooth throughout the entire operating RPM range, reducing wear on all bearings and increasing oil film life. To maximize service life, it is strongly recommended to install new main bearings, rod bearings, and thrust washers simultaneously with the 160102130004A092 crankshaft. Investing in genuine SANY components ensures engine longevity, peak power output, and the lowest total cost of ownership.
