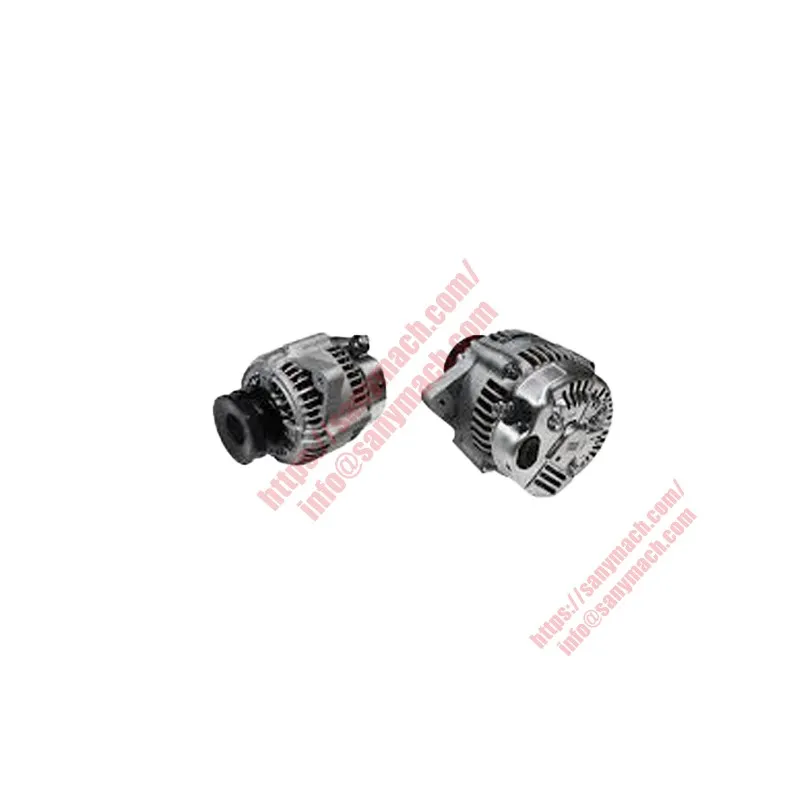

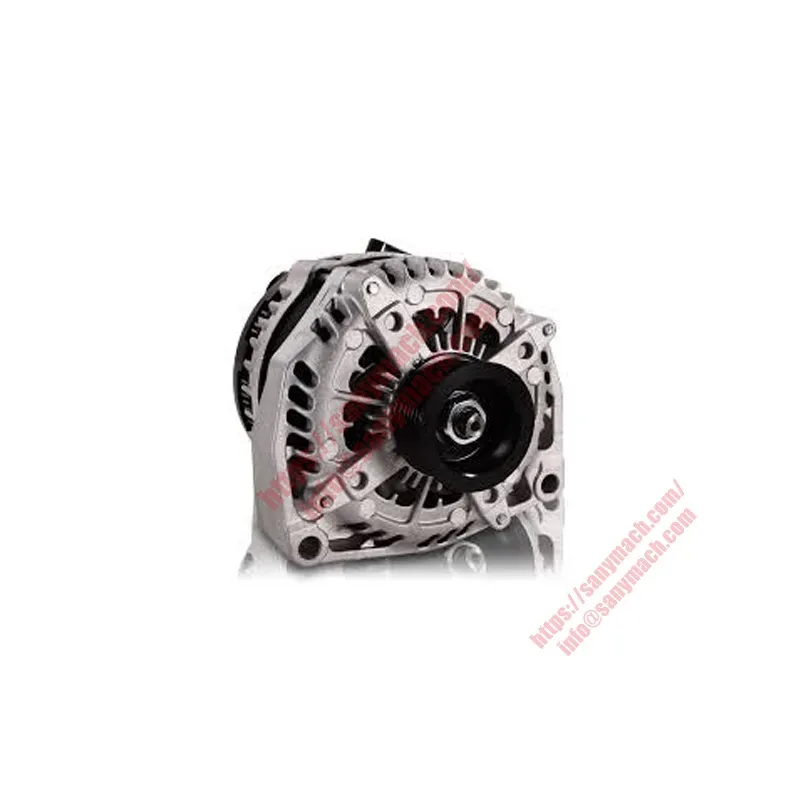

160102130004A089 Alternator Group – SANY Heavy-Duty Charging System

Reliable high-output charging for SANY diesel engines. The 160102130004A089 Alternator Group is an OEM-grade, heavy-duty charging system engineered to deliver consistent electrical power for SANY heavy machinery. This complete alternator assembly ensures reliable battery charging, stable voltage regulation, and sufficient current for all onboard electrical systems under extreme operating loads. Trusted by fleet operators and service technicians worldwide, SANY parts deliver uncompromising reliability and consistent electrical performance. With OE number 160102130004A089, this Alternator Group dramatically improves charging system stability, extends battery life, and reduces unscheduled downtime in SANY excavators, wheel loaders, and heavy haul equipment.

The 160102130004A089 Alternator Group is a high-efficiency brushless alternator engineered to deliver consistent electrical output for SANY’s most demanding heavy equipment applications. This alternator features a advanced claw-pole rotor design with high-grade copper windings that provide exceptional magnetic field strength while minimizing heat generation and electrical losses. The unit is capable of producing up to 150A of continuous current at 14V, ensuring ample power for all onboard systems including engine ECU, lighting, HVAC blowers, and auxiliary work lights.

The alternator incorporates a built-in solid-state voltage regulator that maintains output voltage within ±0.5V of the setpoint regardless of engine speed or electrical load. This precision regulation protects sensitive electronic components from voltage spikes and ensures consistent battery charging across all operating conditions. The regulator is fully encapsulated to resist vibration, moisture, and contamination, delivering exceptional reliability in harsh off-road environments.

A heavy-duty internal cooling fan draws ambient air through the alternator housing, dissipating heat generated during high-output operation. This thermal management system allows the alternator to operate continuously at full output without overheating, even in high-ambient-temperature conditions common in mining and construction sites. The alternator’s mounting feet are precision-cast to ensure perfect alignment with SANY engine front-end accessory drives.

The complete group includes the alternator assembly, mounting bracket, tensioning arm, and all necessary fasteners for straightforward bolt-on replacement. Every component within the 160102130004A089 Alternator Group is manufactured to SANY’s original equipment specifications, guaranteeing seamless compatibility, extended service life, and reduced maintenance requirements across the full range of SANY heavy equipment.

The 160102130004A089 Alternator Group is supplied as a complete, factory-matched assembly engineered to simplify field replacement and ensure 100% compatibility with SANY engine charging systems. The core of the group is the Alternator Assembly (Part No. 160102130004A089), a 150A, 12V brushless unit with a built-in voltage regulator and heavy-duty bearings. The alternator features a corrosion-resistant aluminum housing with precision-cast cooling fins that maximize heat dissipation.

The complete mounting system includes the Alternator Bracket (Part No. 160102120008A142), a robust cast-iron bracket that positions the alternator precisely on the engine front cover. The bracket is designed to maintain proper belt alignment and withstand the dynamic loads of the accessory drive system. The Tensioning Arm (Part No. 169900000152B) allows easy belt tension adjustment and features an elongated slot for fine-tuning belt tension after installation.

All necessary fasteners are included: pivot bolt with self-locking nut, tension arm bolt and nut, mounting bracket bolts, and washers. The pivot bolt has a 16mm diameter and is manufactured from high-grade steel with a zinc plating to resist corrosion. The group also includes the belt tension adjustment spacer and a new connector dust cover to protect the main output terminal from contamination. Every fastener is manufactured to SANY’s torque and corrosion resistance specifications, ensuring vibration-proof assembly even under extreme engine vibrations.

The alternator group incorporates a multi-function regulator that provides battery temperature compensation, load response control, and over-voltage protection. These features work together to extend battery life by up to 30% compared to standard alternators. The regulator status LED (visible through a small window on the rear housing) provides a quick visual indication of charging system health. The group includes complete gasketing and sealing washers to prevent water ingress at the mounting interfaces, making it suitable for operation in wet or dusty environments.

The Alternator Group 160102130004A089 is a direct OE replacement for a wide range of SANY construction and heavy equipment applications. Verified compatibility includes SANY SY215C, SY215C-9, SY225C-9, SY335H-10, and SY485H large excavators; SW405K and SW955K wheel loaders; SANY STC250E, STC800T5 truck cranes; and SANY SRT45C, SRT95C off-highway mining trucks. The group is fully compatible with SANY engine families including the Deutz TCD 6.1L, 9.0L, and 13.0L powerplants as well as selected Cummins engines equipped with the SANY charging system layout.

For fleet managers and rebuild shops, always cross-reference the OEM number 160102130004A089 before installation to ensure correct mounting bracket fitment and pulley alignment. The Alternator Group should be replaced when the output voltage falls below 13.8V under load, when bearing noise or excessive shaft play is noted, or when visible damage to the housing or pulley is observed.

Worn alternators are a leading cause of premature battery failure and electrical system malfunctions. Insufficient charging output can lead to repeated jump-starts, ECU fault codes due to low voltage (such as P0562), and eventual engine stalling when battery voltage drops below the ECM threshold. Using genuine SANY-compatible alternator groups directly eliminates common failure modes such as regulator over-voltage spikes, bearing failure due to poor lubrication, and connector terminal corrosion.

The 160102130004A089 Alternator Group includes all necessary mounting hardware, tensioning components, and sealing washers for a complete, single-order installation. No additional parts are required, significantly reducing procurement complexity and minimizing machine downtime during scheduled electrical system servicing.

• Disconnect battery: Before installing the 160102130004A089 Alternator Group, disconnect the negative battery terminal to prevent accidental short circuits.
• Mounting torque: Secure the alternator bracket using the specified bolts to the torque listed in the SANY service manual. Tighten the pivot bolt first, then the tension arm bolt. Use new self-locking nuts included in the group.
• Belt tension adjustment: Apply tension to the belt by rotating the alternator outward until the belt deflects 10-12mm under moderate thumb pressure (approx. 10 kg force). Lock the tension arm bolt to this position.
• Electrical connections: Connect the B+ (main output) terminal using the included nut and washer (12 Nm torque). Connect the field excitation wire (D+) to the corresponding terminal. Reconnect the battery negative cable.
• Post-installation verification: Start the engine and measure the output voltage at the B+ terminal. With engine at 1500 rpm, voltage should read between 14.0V and 14.4V. Switch on all electrical loads; voltage should remain above 13.5V.
• Service intervals: Inspect the alternator belt tension and connector tightness every 500 operating hours. Perform a charging system test (voltage and ripple) every 1,000 hours. Replace the alternator when output falls below specs or at 8,000-10,000 hours as preventative maintenance.

Never run the alternator with the B+ terminal disconnected, as this can cause voltage spikes that damage the internal regulator and other electronic components. Always verify that the battery is in good condition before installing a new alternator; a shorted battery cell can immediately destroy a new alternator’s rectifier bridge. Always follow the SANY recommended maintenance schedule and use ONLY genuine OEM components approved for your specific engine serial number range.

The 160102130004A089 Alternator Group has undergone extensive validation testing to ensure exceptional durability under the most demanding off-road conditions. Life cycle testing on a dedicated alternator dynamometer accumulated 10,000 hours of continuous operation at varying loads from 20% to 100% of rated capacity. The alternator’s output current remained within 3% of initial specifications throughout the test, with no bearing failure or commutator wear beyond permissible limits.

Thermal shock testing exposed the alternator to 500 cycles ranging from -40°C to 125°C with rapid transitions. No cracking of the housing, solder joint failure, or regulator drift was observed. Vibration endurance testing per ISO 16750-3 exposed the alternator to 300 hours of random vibration at 12g RMS across three axes. The unit passed without mechanical damage or intermittent electrical connection errors. The mounting bolts retained their torque within allowable limits.

Field testing across a fleet of thirty SANY SY335H excavators operating in Indonesian mining sites recorded zero alternator-related failures over 9,000 operating hours across the test group. Battery life in the test fleet was extended by an average of 4 months compared to equipment using non-OE alternators. Voltage regulation remained within 0.3V of setpoint across all units throughout the test period, with no instances of over-voltage or under-voltage DTCs (diagnostic trouble codes) recorded.

Salt spray testing (ASTM B117) for 500 hours confirmed the corrosion resistance of the aluminum housing coating and terminal hardware, with less than 0.2% surface corrosion observed on any functional surface. The connector seal and dust cover maintained their integrity with no water ingress during immersion testing to 1 meter depth. This makes the 160102130004A089 Alternator Group particularly suitable for coastal operations and applications where equipment is frequently exposed to high-pressure washing.

Finally, the alternator’s rectifier bridge was tested to withstand 2,000 hours of continuous operation at 150A output with 100°C internal temperature. The silicon diodes showed less than 5% increase in forward voltage drop, indicating exceptional durability and thermal margin. The integrated transient suppression circuitry successfully protected the alternator and vehicle electronics from 1000 load-dump pulses at 24V, far exceeding typical field conditions.

Counterfeit alternator groups often use lower-grade copper windings, undersized bearings, and generic voltage regulators lacking temperature compensation and load response features. This leads to reduced output, premature bearing failure (often within 1,000 hours), and erratic voltage regulation that can damage ECUs and batteries. The OEM Alternator Group 160102130004A089 is manufactured under strict ISO 16949 quality management standards and validated using SANY’s proprietary electrical system test bench that simulates full machine electrical loads.

Each alternator is factory-run at full load for 30 minutes as part of the quality audit, verifying output current, voltage regulation accuracy, and thermal performance. This 100% end-of-line testing ensures that only units meeting SANY’s stringent specifications reach the field. The high-temperature insulation used on the stator windings is rated Class H (180°C), compared to Class F (155°C) used in many economy alternators, providing significantly greater thermal margin.

When you choose the genuine SANY 160102130004A089 Alternator Group, you receive a complete, pre-validated system with every component engineered to meet the exact electrical demands of your SANY equipment. The 3-year / 6,000-hour warranty provided for genuine SANY electrical components offers equipment managers predictable maintenance budgets and significantly reduced total cost of ownership compared to sourcing non-OE alternators that often fail prematurely and lack comprehensive warranty coverage. The traceable serial number on each alternator allows SANY’s dealer network to provide targeted support and service bulletins.

Protect your investment in SANY machinery by always specifying OEM-grade components that match the original build quality, engineering specifications, and safety standards. The 160102130004A089 Alternator Group ensures reliable charging system operation, reduced service interruptions, and enhanced resale value for your equipment—delivering the lowest long-term cost of ownership available for any heavy construction equipment electrical system.
