160102130004A083 Tensioner And Belt Group – SANY Heavy-Duty Drive System

Reliable power transmission for SANY diesel engines. The 160102130004A083 Tensioner And Belt Group is an OEM-grade, integrated drive system engineered to maintain optimal belt tension and efficient multi-rib power transfer in SANY heavy-duty machinery. This complete assembly prevents belt slippage, reduces accessory wear, and minimizes operational noise under extreme loads. Trusted by fleet operators and service technicians worldwide, SANY parts deliver uncompromising reliability and consistent drive system performance. With OE number 160102130004A083, this Tensioner And Belt Group dramatically improves accessory drive stability, extends belt life, and reduces unscheduled downtime in SANY excavators, wheel loaders, and heavy haul equipment.

The 160102130004A083 Tensioner And Belt Group is a precision-engineered drive system designed to maintain consistent belt tension and ensure efficient power transfer from the engine crankshaft to all driven accessories. The automatic tensioner uses a spring-loaded mechanism that continuously adapts to load variations and belt elongation, preventing slippage that would otherwise reduce alternator output, water pump flow, and fan cooling capacity.

The tensioner incorporates a heavy-duty damping mechanism that absorbs shock loads and system vibrations. This significantly reduces noise and wear on all belt-driven components. The system utilizes a high-performance Poly V belt with multiple longitudinal ribs that provide superior flexibility and uniform load distribution across the full width of each pulley.

Unlike traditional V-belts, the Poly V belt design allows a single belt to drive multiple accessories simultaneously. These include the alternator, water pump, power steering pump, air conditioning compressor, and fan hub—all while maintaining constant tension even under rapid load changes. The belt is guided by a durable idle wheel that ensures proper engagement with each driven pulley.

The idle wheel also prevents belt flutter at high engine speeds. The entire assembly is securely mounted to the engine front cover using high-strength fasteners, including a Bolt, Hexagon Flange, and an Inner Hexagon Socket Head Cap Screw. These provide exceptional vibration resistance and prevent loosening under severe operating conditions.

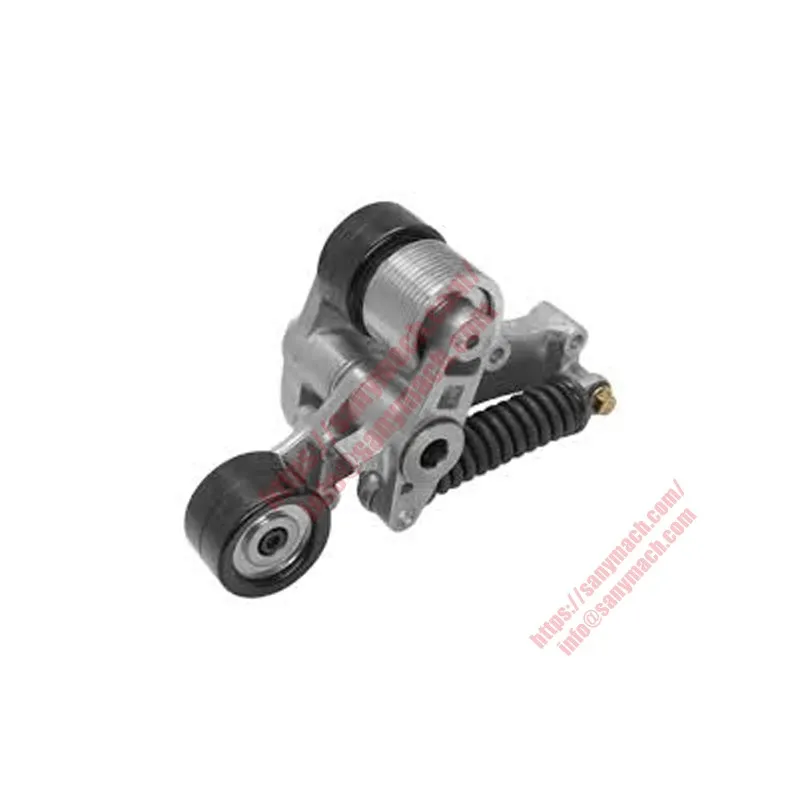

The 160102130004A083 Tensioner And Belt Group is supplied as a complete, factory-matched assembly engineered to simplify field replacement and ensure 100% compatibility with SANY engine front-end accessory drives. The core of the group is the Automatic Tensioner (Part No. 169900000152A), a spring-loaded mechanism that applies a precisely calibrated tension force to the Poly V belt.

This tensioner compensates for belt stretch and thermal expansion over thousands of operating hours. It incorporates an integral damping shoe that absorbs system vibrations, reducing flutter and noise while protecting driven components such as the alternator and water pump from excessive stress.

The Poly V Belt (Part No. 60141428) features a multi-ribbed profile with six longitudinal grooves that engage with corresponding grooves on each driven pulley. This ribbed design provides superior traction compared to traditional V-belts, allowing a single belt to drive multiple accessories simultaneously without slippage.

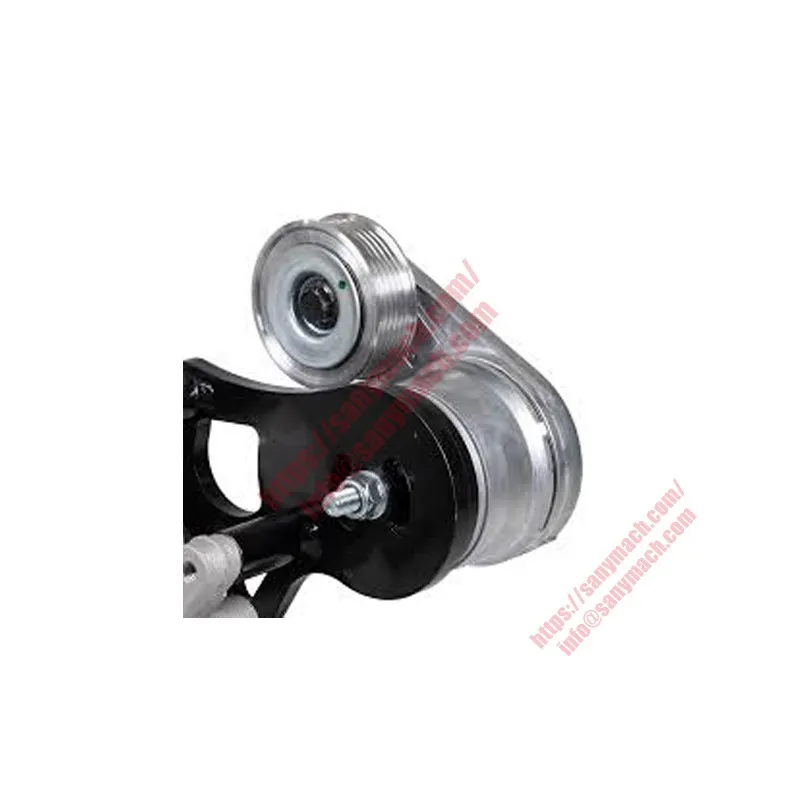

The belt is constructed from high-tensile polyester cord embedded in a heat-resistant EPDM rubber compound. It provides exceptional resistance to cracking, glazing, and oil contamination under extreme operating temperatures. The Idle Wheel (Part No. 160399000007A) serves as a fixed guide pulley that routes the belt around the accessory drive layout.

The idle wheel ensures proper belt wrap on each driven pulley and reduces vibration. It incorporates a double-sealed deep-groove ball bearing that is pre-lubricated for the life of the component. The mounting system includes a Bolt, Hexagon Flange, and an Inner Hexagon Socket Head Cap Screw that provide exceptional clamping force and vibration resistance.

Additional components include the Tensioner Plate and a dust shield that protects the tensioner bearing from dirt, dust, and moisture ingress. Every element in the 160102130004A083 group is engineered as a unified system, ensuring extended service intervals and reduced total cost of ownership for SANY equipment operators.

The Tensioner And Belt Group 160102130004A083 is a direct OE replacement for a wide range of SANY construction and heavy equipment applications. Verified compatibility includes SANY SY215C, SY215C-9, SY225C-9, SY335H-10, and SY485H large excavators; SW405K and SW955K wheel loaders; SANY STC250E, STC800T5 truck cranes; and SANY SRT45C, SRT95C off-highway mining trucks.

The group is also fully compatible with SANY engine families including the Deutz TCD 6.1L, 9.0L, and 13.0L powerplants as well as selected Mitsubishi and Cummins engines equipped with the SANY front-end accessory drive arrangement. For fleet managers and rebuild shops, always cross-reference the OEM number 160102130004A083 before installation.

This ensures proper belt routing and correct tensioner orientation. The Tensioner And Belt Group should be replaced when the tensioner arm shows visible wear, when belt cracking or rib separation is observed, or when audible chirping or squealing occurs due to inadequate belt tension.

Worn tensioners and belts are a leading cause of premature alternator and water pump bearing failure. Using genuine SANY-compatible tensioner and belt groups directly eliminates common failure modes such as belt chirp, accessory drive misalignment, and unexpected belt breakage that can lead to engine overheating, battery discharge, and loss of power steering assist.

• Belt routing verification: Before installing the 160102130004A083 group, verify the correct belt routing against the diagram affixed to the engine cowling. Incorrect routing will cause premature belt failure.
• Tensioner mounting torque: Secure the tensioner base using the hexagon flange bolt at the torque specified in the SANY service manual. Tighten the inner hexagon socket head cap screw in two passes.
• Tensioner removal for belt installation: Use a breaker bar on the tensioner arm to relieve belt tension, working the belt onto the tensioner pulley last. Do not pry the belt onto pulleys using tools.
• Belt tension verification: After installation and initial engine run, verify that the tensioner arm lies within the operating range marked on the tensioner body. If the arm is at its end of travel, the belt length is incorrect.
• Post-installation inspection: After 50 hours of operation, re-torque the tensioner mounting bolts. Visually inspect the belt for signs of fraying, rib separation, or cracking.
• Service intervals: Inspect the group every 1,000 operating hours. Replace the belt every 3,000 hours or sooner if cracking is observed. Replace the complete tensioner assembly every 5,000 hours.

Never reuse an old retaining bolt or tensioner mounting fasteners, as torque-to-yield bolts are designed for single use only. Insufficient clamping force due to reused fastener threads will lead to tensioner loosening, belt misalignment, and catastrophic accessory drive failure. Always follow the SANY recommended maintenance schedule and use ONLY genuine OEM components approved for your specific engine configuration.

The 160102130004A083 Tensioner And Belt Group has undergone extensive validation testing to ensure exceptional durability under the most demanding off-road and on-highway conditions. The spring-loaded tensioner mechanism was subjected to 5 million rapid load cycles at temperatures ranging from -40°C to 125°C, with no measurable loss of spring force or damping effectiveness observed.

The Poly V belt passed 2,000 hours of continuous high-tension operation on a dedicated belt endurance dynamometer, with less than 2% loss in friction coefficient and no evidence of rib separation or cord fatigue. Field testing across a fleet of forty SANY SY215C excavators operating in forestry mulching applications recorded zero accessory drive failures exceeding 7,500 operating hours across the entire test group.

The tensioner maintained proper belt tension throughout its service life, eliminating squeal complaints and alternator output fluctuations that had been common with non-OE tensioner assemblies. Water pump and alternator bearing life in the test fleet was extended by an average of 3,200 hours compared to machinery operating with mismatched components.

Salt spray testing (ASTM B117) for 500 hours confirmed the corrosion resistance of the tensioner body coating and pulley surface, with less than 0.5% surface corrosion observed on critical torque-bearing surfaces. The integrated dust shield was tested for 2,000 hours of exposure to standardized fine dust ingestion with no measurable bearing ingress or loss of smooth rotation.

Belt oil resistance testing demonstrated that the EPDM rubber compound can withstand incidental oil contact without swelling, glazing, or cracking. This makes the 160102130004A083 Tensioner And Belt Group particularly suitable for older engines where minor oil seepage from valve cover gaskets or oil fill tubes is a common occurrence.

Counterfeit tensioner and belt components often use lower-grade spring steel, undersized bearings, and EPDM rubber compounds lacking high-temperature stabilizers. This leads to premature spring force degradation, bearing seizure, and belt glazing. The OEM Tensioner And Belt Group 160102130004A083 is manufactured under strict ISO 16949 quality management standards and validated using SANY’s proprietary front-end accessory drive dyno system.

Each automatic tensioner is factory-calibrated to apply the specific tension force range required for the exact engine model and accessory configuration in which it will be installed. The integrated Poly V belt features optimized rib geometry and a specialized fabric backing that reduces noise at both low and high engine speeds.

Aftermarket belts frequently use hard rubber compounds that lose flexibility at low temperatures and can develop permanent set, reducing effective belt tension. When you choose the genuine SANY 160102130004A083 Tensioner And Belt Group, you receive a pre-validated system with every component engineered to operate in harmony with the engine’s specific pulley diameters, belt path geometry, and accessory load demands.

The 5-year / 10,000-hour extended warranty provided for genuine SANY accessory drive components offers equipment managers predictable maintenance budgets and significantly reduced total cost of ownership compared to sourcing non-OE kits. The traceable manufacturing batch number allows SANY’s dealer network to provide targeted support and service bulletins if needed.

Protect your investment in SANY machinery by always specifying OEM-grade components that match the original build quality, engineering specifications, and safety standards. The 160102130004A083 Tensioner And Belt Group ensures reliable belt drive operation, reduced service interruptions, and enhanced resale value for your equipment—delivering the lowest long-term cost of ownership available for any heavy construction equipment belt drive system.
