Original SANY 160102130004A066 Thermostat Group – Precision Engine Temperature Regulation for D12/D09 Series

Thermostat Group

Группа термостата

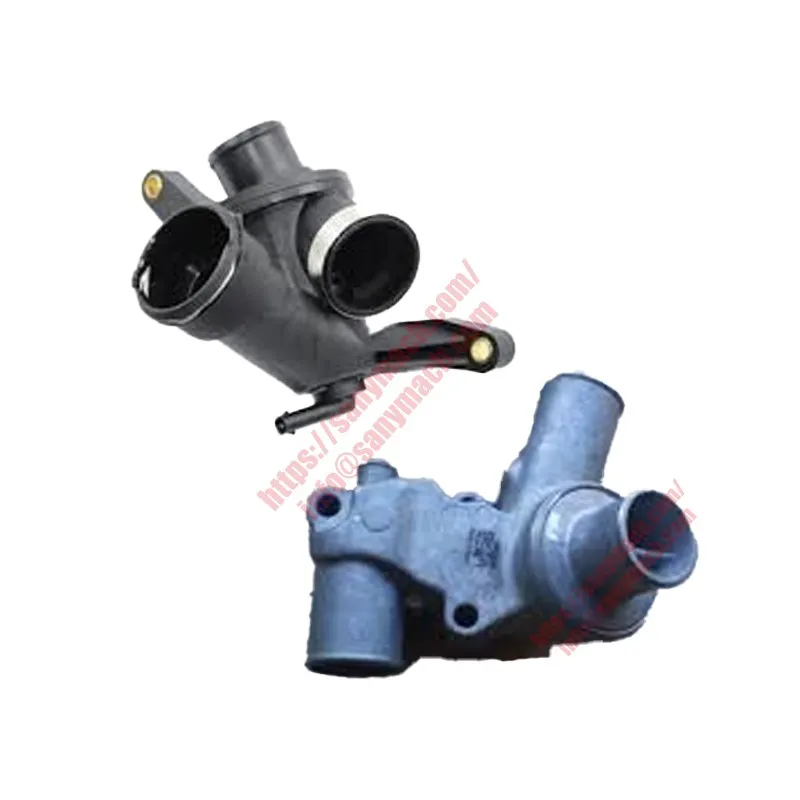

Grupo del Termostato

The 160102130004A066 Thermostat Group is a comprehensive cooling system assembly designed for SANY’s heavy‑duty diesel engines. It manages coolant flow between the engine block and radiator, maintaining stable operating temperatures across a wide range of load conditions. Without a properly functioning thermostat, engine temperatures can fluctuate rapidly, leading to reduced fuel efficiency, increased emissions, and accelerated component wear [5†L4-L8].

At the heart of this assembly are two precision Thermostat components (Part No. 160202000001A) that function as intelligent control units [5†L26-L27]. These thermostats monitor coolant temperature and regulate circulation accordingly, ensuring the engine reaches operating temperature quickly and maintains it consistently. When the engine is cold, the thermostats remain closed, directing coolant through a bypass circuit to accelerate warm‑up. Once the coolant reaches the threshold temperature, the thermostats gradually open, allowing coolant to flow through the radiator for heat dissipation [5†L8-L11].

The 160102130004A066 thermostat group incorporates specialized Ring, Seal components (Part No. 61000717, quantity: 2) that ensure perfect fluid containment and prevent leaks at connection points [5†L11-L13]. These sealing elements work in conjunction with the thermostats to maintain system pressure integrity. The integration of these components within the thermostat group demonstrates advanced engineering that balances responsive thermal control with reliable sealing performance [5†L13-L15]. High‑quality sealing materials resist degradation from coolant additives and thermal cycling, ensuring leak‑free operation for thousands of hours.

The design excellence of the 160102130004A066 Thermostat Group is evident in its durable construction and precise operational characteristics. Each component undergoes rigorous testing to ensure consistent performance under extreme temperature fluctuations and pressure conditions [5†L16-L19]. The thermostats’ wax core elements are calibrated to open at the correct temperature and provide a controlled opening rate that prevents coolant temperature oscillation, a common issue with lower‑quality thermostats that can cause rapid “cycling” between open and closed states.

The innovative configuration of the Thermostat Group reflects sophisticated thermal management technology. It works in harmony with SANY’s patented TOP‑Down cooling system, which quickly reduces the temperature of circulating fluid to improve engine efficiency [2†L40-L42]. This intelligent thermal regulation enhances overall system efficiency while reducing mechanical stress and maintenance requirements [5†L19-L25]. The D12 engine can start in 2 seconds at altitudes up to 3,000 meters with temperatures as low as -20°C without power loss, demonstrating the effectiveness of this integrated cooling system [7†L22-L24].

This comprehensive Thermostat Group assembly represents a critical solution for maintaining optimal operating temperatures in SANY heavy‑duty machinery [5†L22-L25]. For the D12 engine, which delivers 360 kW (490 hp) of power at speeds from 1,900 to 2,100 rpm and a maximum torque of 2,150 Nm, precise thermal management is essential to sustain peak performance [3†L6-L8]. The engine’s low idle speed of 525 rpm reduces component wear, and a properly functioning thermostat is vital for achieving this operational efficiency [7†L11-L14]. The D12 engine has been widely used in SANY truck mixers, dump trucks and truck‑mounted pumps [7†L29-L30].

The 160102130004A066 Thermostat Group is manufactured to exacting tolerances using materials resistant to corrosion, high temperatures, and coolant degradation. The thermostats typically begin opening at approximately 82‑84°C (180‑183°F) and are fully open by 95‑100°C (203‑212°F) [10†L30-L31]. This calibrated temperature range allows the engine to maintain efficient combustion while providing adequate cooling margin under full load. The bypass circuit ensures coolant continues to circulate through the engine block during warm‑up, preventing localized hot spots.

Why the 160102130004A066 Thermostat Group Delivers Superior Temperature Control

Technical Specifications – Thermostat Group 160102130004A066

Installation of the 160102130004A066 Thermostat Group requires draining the cooling system and removing the thermostat housing. Clean both the housing and engine block mating surfaces thoroughly. Position the two new Ring, Seal components (61000717) correctly, ensuring they sit flush in their grooves without twisting [5†L11-L13]. Install the two thermostats (160202000001A) in their correct orientation – the wax element side should face the engine block (hot coolant inlet) [5†L26-L28].

Torque the thermostat housing bolts to 10 N·m according to SANY specification. Reinstall the coolant hoses and refill the cooling system with SANY‑approved ethylene glycol‑based coolant. Bleed air from the system using the designated bleed valves. Start the engine and allow it to warm up while observing the coolant temperature gauge. The thermostat should begin opening once the coolant reaches approximately 82‑84°C, causing the upper radiator hose to become warm [10†L30-L31].

A common mistake is installing the thermostats backwards – the spring‑loaded side must face the radiator side of the system. Another frequent error is overtightening the housing bolts, which can deform the housing and cause the thermostat to bind, leading to erratic opening behaviour. If the engine takes too long to warm up, or if the coolant temperature fluctuates rapidly, suspect a thermostat stuck in the open position. If the engine consistently overheats under load, suspect a thermostat stuck closed, restricting coolant flow.

For D12 engines used in concrete pumping or mining applications, SANY recommends inspecting the thermostat housing for leaks at every 1,000‑hour service interval. The wax element in thermostats degrades over time, typically requiring replacement every 3‑5 years or whenever the cooling system is opened for other repairs. Replacing the 160102130004A066 thermostats at the time of major engine overhaul (approx. 8,000‑10,000 hours) is a cost‑effective preventive measure that avoids unexpected downtime and protects the engine from temperature‑related damage.

Applications of Thermostat Group 160102130004A066

To verify authenticity, inspect the 160102130004A066 packaging and the thermostats themselves for the SANY logo and stamped part numbers. Genuine SANY thermostats have laser‑etched temperature ratings and batch traceability codes. Aftermarket thermostats often omit these markings, have improperly calibrated wax elements, or use inferior sealing materials that degrade rapidly in high‑temperature coolant. Always source from authorised SANY parts distributors to ensure component traceability and warranty coverage.

When ordering the Thermostat Group, provide your engine serial number (ESN) to confirm compatibility. The 160102130004A066 is the standard thermostat group for D12 and D09 engines fitted in SANY excavators, cranes, trucks, and pumping equipment. Some D06 engines may require different thermostat ratings; always consult the SANY parts catalog to confirm which thermostat group matches your machine’s specifications. The group includes two thermostats and two sealing rings – no additional hardware should be required for a proper installation.
