OEM 160102130004A053 – Precision Power Transmission & Vibration Damping for Heavy-Duty Diesel Engines
160102130004A053
Crankshaft Pulley Group

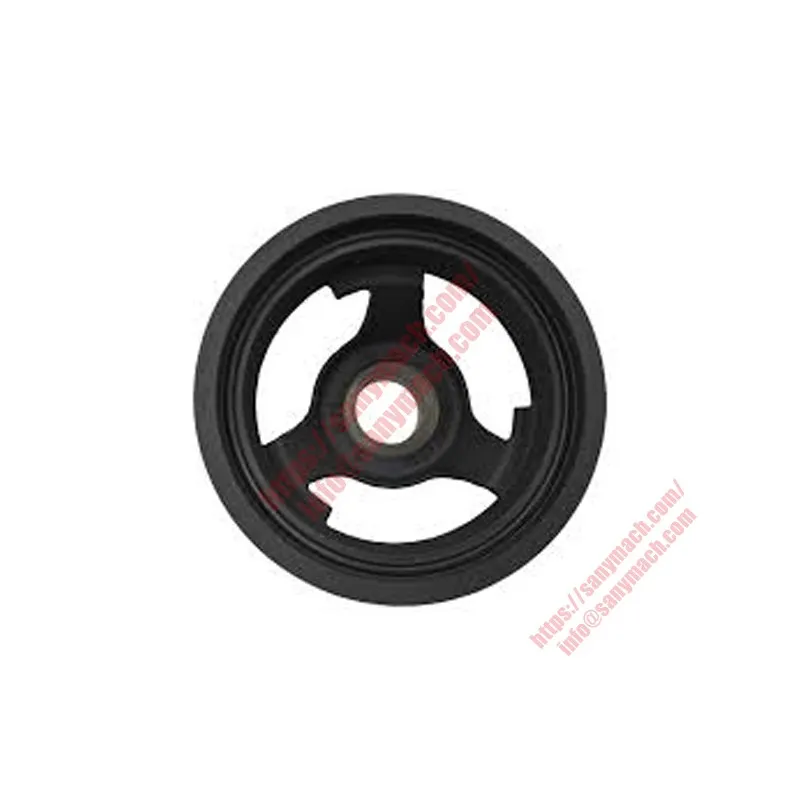

Группа шкива коленчатого вала

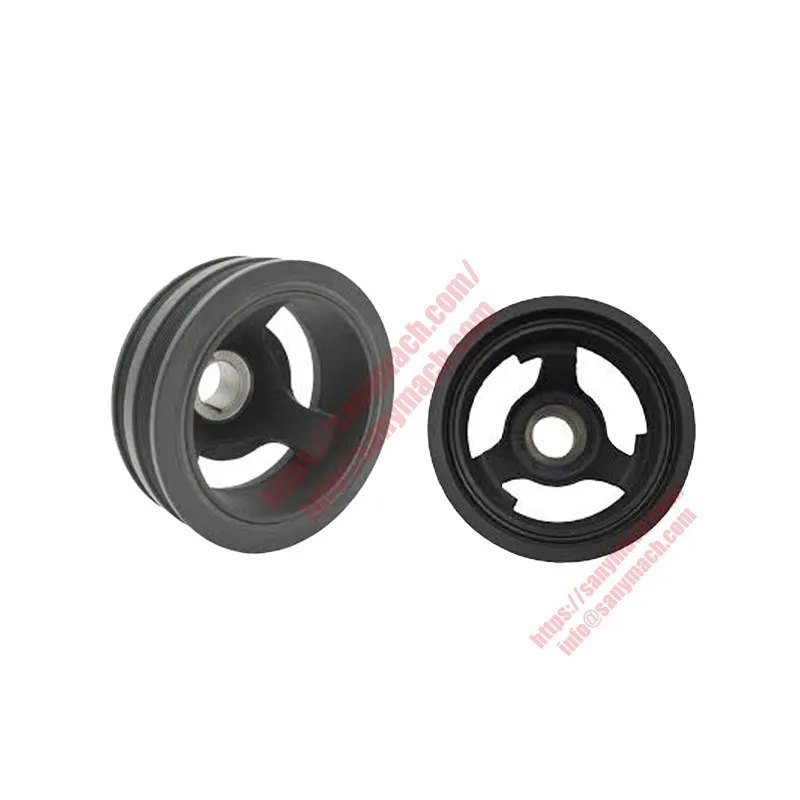

Grupo de Polea del Cigüeñal
160102130004A053 is the genuine OEM Crankshaft Pulley Group manufactured by SANY parts, engineered as a critical component of the engine’s rotating assembly for heavy-duty trucks, dump trucks, wheel loaders, and excavators.
This precision-engineered assembly transmits rotational power from the crankshaft to drive belts powering auxiliary systems—alternator, air conditioning compressor, power steering pump, and cooling fan—while simultaneously managing destructive torsional vibrations that would otherwise cause premature component failure and crankshaft fatigue.
By integrating advanced vibration damping technology with robust power transmission capabilities, the 160102130004A053 Crankshaft Pulley Group delivers exceptional engine reliability across the most demanding operational environments.
Crankshaft Pulley Group
Группа шкива коленчатого вала
Grupo de Polea del Cigüeñal
160102130004A053 Crankshaft Pulley Group – Precision Power Transmission & Torsional Vibration Control
The 160102130004A053 Crankshaft Pulley Group is not a generic replacement component; it is a precision-engineered assembly that integrates power transmission with advanced torsional vibration damping capabilities.
Central to this assembly is the robust Crankshaft Pulley, which transmits rotational energy via drive belts to power all engine-driven auxiliary systems—including the alternator, air conditioning compressor, power steering pump, and cooling fan.
Integrated within the pulley is the sophisticated Torsional Vibration Damper, a specialized component that absorbs and mitigates destructive vibrational harmonics generated by the engine’s combustion cycles.
Without proper damping, these torsional vibrations travel through the crankshaft, causing progressive fatigue damage to the crankshaft itself, main bearings, and all belt-driven auxiliary components.
The Torsional Vibration Damper within the 160102130004A053 assembly utilizes advanced rubber or viscous damping technology to convert harmful vibrational energy into harmless heat, dramatically reducing peak torsional stresses.
The complete Crankshaft Pulley Group is securely fastened to the crankshaft using high-strength Bolt, Hexagon Flange and Hexagon Flange Bolt fasteners.
These specially engineered bolts provide exceptional clamping force and vibration resistance, maintaining perfect alignment and secure attachment even under extreme operational conditions characterized by high-speed rotation and cyclic loading.
The flange design of these fasteners ensures distributed load bearing and prevents loosening over time—a critical factor given the continuous dynamic forces acting on the pulley assembly throughout the engine’s service life.
Each complete Crankshaft Pulley Group is precision-balanced as an assembly to ensure smooth operation, minimize additional vibration, and maximize the service life of both the crankshaft and the belt-driven accessories.
Advanced Vibration Control
The integrated Torsional Vibration Damper effectively neutralizes destructive crankshaft harmonics, reducing the risk of fatigue failure and protecting main bearings from premature wear across the entire RPM range.
Reliable Power Transmission
High-strength pulley construction with precision-machined belt grooves ensures positive, slip-free power transfer to all engine-driven auxiliary systems, maximizing accessory efficiency and reducing belt wear.
Heavy-Duty Fastening System
High-strength Hexagon Flange Bolts provide exceptional clamping force and distributed load bearing, maintaining perfect alignment and secure attachment under extreme dynamic forces while preventing loosening.
Precision Dynamic Balancing
Each assembly is dynamically balanced to exacting SANY specifications, minimizing residual vibration, reducing noise levels, and extending the service life of the crankshaft and belt-driven components.
160102130004A053 Crankshaft Pulley Group – Detailed Specifications
| Parameter | Specification |
|---|---|
| OEM Number | 160102130004A053 |
| Brand / Compatibility | SANY Genuine Parts / SANY D09, D12, D13 series heavy-duty diesel engines / Dump trucks, wheel loaders, excavators, mixers |
| Core Components (Complete Group) | 160102120008A063 Crankshaft Pulley (1 pc) + 160102130004A102 Torsional Vibration Damper (1 pc) + 61000211 Bolt, Hexagon Flange (6 pcs) + 160102130003A045 Hexagon Flange Bolt (6 pcs) |
| Torsional Vibration Damper | Rubber viscoelastic damper — tuned for SANY D-series engine harmonics |
| Number of Pulley Grooves | Poly-V — optimized for heavy accessory drives |
| Installation Torque Specification | Crankshaft pulley bolt first torque: 166.6~176.4 N·m (122.9~130.1 lb·ft), Torque-to-yield angle after. |
| Engine Compatibility | SANY D09, D12, D13 engines (also applicable to compatible Deutz-derived platforms) |
| Affected Trucks | SANY Kingway trucks (435 series), SYZ dump trucks, SWL/SW wheel loaders, SANY excavators, concrete mixer trucks, machinery engines |
| Operating Range | -35°C to +125°C — stable operation under all climate extremes |
| Replacement Guidelines | Inspect every 5,000 hours; Replace if rubber deterioration, cracks, or pulley wobble occurs |
Engine Compatibility — 160102130004A053 Crankshaft Pulley Group
The 160102130004A053 Crankshaft Pulley Group is designed to fit into SANY’s heavy-duty diesel engine platforms, including the D13, D12 and particularly the D09 series.
The SANY D13 engine features a 131mm bore and 160mm stroke, producing 12.94 liters of displacement across six cylinders, delivering 380 to 585 horsepower with maximum torque reaching 2,600 N·m at 1,000–1,500 rpm. This engine platform pairs with SANY SYZ-series dump trucks and heavy on-highway trucks.
The SANY D09 engine (a Deutz-derived platform) delivers 280 to 380 horsepower, with 117mm bore, 135mm stroke, and 8.7–8.9 liter displacement. It produces maximum torque of 1,500 N·m across a wide operating band of 1,000 to 1,500 rpm, generating 280 kW at 2,100 rpm.
The D09 engine is extensively deployed in SANY concrete mixer trucks, wheel loaders, cranes, urban dumpers, as well as SY215C, SY305H excavators and SANY motor graders — all of which rely on the 160102130004A053 for robust power takeoff and vibration control.
Why Choose Genuine SANY 160102130004A053 Crankshaft Pulley Group?
Precision-Tuned Damper
Torsional Vibration Damper is specifically tuned for SANY D-series engine harmonics, ensuring maximum vibration reduction across the full operating RPM range.
Superior Durability
Manufactured from high-grade materials with precise balancing processes, the genuine 160102130004A053 lasts 2–3 times longer than generic aftermarket pulleys.
Genuine SANY Warranty
Backed by SANY’s comprehensive warranty program with global service network support and full traceability through the official SANY parts ecosystem.
Installation & Maintenance Best Practices for 160102130004A053
Always replace the original crankshaft pulley bolt when installing the 160102130004A053 assembly; bolts are torque-to-yield and single-use only.
Clean the crankshaft nose and pulley mating surfaces thoroughly to remove any oil, rust, or debris that could affect clamping force and cause pulley wobble.
First-stage tightening: Torque the center crankshaft bolt to 166.6–176.4 N·m (122.9–130.1 lb·ft).
Second-stage tightening: Apply the additional torque-to-yield angle stage as specified in the SANY service manual; for D-series engines this is typically 90–100 degrees.
Install all six Hexagon Flange Bolts (pulley-to-damper fasteners) in a cross pattern and tighten evenly to avoid distorting the damper housing or inducing imbalance.
Post-installation validation: Rotate the engine manually for two full revolutions after installation to confirm no belt misalignment or interference.
Inspect the crankshaft pulley group every 5,000 operating hours as part of routine engine maintenance checks.
Key failure indicators requiring immediate replacement include cracks or separation of the rubber element in the torsional vibration damper (visible as bulging or rubber extrusion), pulley wobble during engine idle (indicating imbalanced assembly or loose fasteners), unusual chattering or knocking sounds from the front of the engine (characteristic of damper failure), and visible oil leaks around the front main seal (which can be caused by pulley imbalance damaging the seal).
If any of these signs are observed, replace the entire group. Attempting to drive with a failed damper rapidly accelerates crankshaft fatigue and risks catastrophic engine failure.
Quality Assurance & Manufacturing of 160102130004A053
Each 160102130004A053 Crankshaft Pulley Group is manufactured and tested under SANY’s ISO 9001:2015 and IATF 16949 certified quality management systems.
The steel components (pulley and damper housing) are precision-machined from high-strength alloy steel, then subjected to dynamic balancing with residual imbalance well below industry standards to ensure smooth operation and minimal vibration transmission to the crankshaft.
The rubber element within the Torsional Vibration Damper is formulated for exceptional heat resistance and long-term resilience, maintaining its damping properties through extreme thermal cycling without losing elasticity or bonding strength.
Before release, each complete group is run-in on a test rig that simulates real-world engine torsional pulses, validating vibration reduction performance across the crankshaft’s full operating speed range. Laser etching of the OEM number 160102130004A053 and SANY logo guarantees full traceability and authenticity.
Frequently Asked Questions – 160102130004A053
A: Yes, the 160102130004A053 is the current OEM specification assembly, serving as the direct replacement for all previous versions of crankshaft pulley groups used in SANY D09, D12, and D13 series heavy-duty diesel engines. Upgrading to the latest assembly provides improved vibration damping characteristics and extended service life.
A: Authentic SANY crankshaft pulley groups feature laser-etched SANY logos, the full OEM number 160102130004A053, and batch traceability codes on the main pulley body and torsional vibration damper housing. Always purchase through authorized SANY parts distributors to ensure genuine quality and warranty coverage.
A: Critical indicators that demand immediate replacement include visible cracks, bulges or extrusion of the rubber damping element (signifying damper failure), noticeable pulley wobble or oscillation when the engine is idling (indicating imbalance or loosening), unusual knocking or vibration sounds emanating from the front timing cover area (particularly at low to mid RPM), and excessive front main seal oil leaks (which can result from pulley imbalance causing seal wear). If any of these signs are observed, replace the entire group. Operating with a failed torsional vibration damper rapidly accelerates crankshaft fatigue, can cause bearing damage, and may ultimately lead to crankshaft fracture.
In summary, the 160102130004A053 Crankshaft Pulley Group from SANY parts represents the definitive solution for power transmission and torsional vibration management in heavy-duty diesel engine applications.
Whether you are undertaking a complete engine rebuild on a high-mileage SANY Kingway dump truck, maintaining a fleet of SW wheel loaders, or overhauling a SANY excavator after thousands of hours of severe service, this genuine crankshaft pulley group delivers the precision, damping efficiency, and reliability required to protect your engine’s crankshaft from destructive torsional stresses while driving all belt-powered accessories efficiently.
By effectively controlling torsional harmonics, the 160102130004A053 reduces crankshaft fatigue, prevents premature bearing wear, minimizes front main seal leakage, and extends the service life of all engine belt-side components.
All technical specifications and performance claims are based on SANY factory validation under controlled laboratory conditions, reflecting actual heavy-duty field performance. Installation procedures and torque sequences must be followed precisely using genuine SANY fasteners; deviations may compromise vibration damping effectiveness. Always follow the official SANY service manual procedures and use only genuine SANY tools. The 160102130004A053 Crankshaft Pulley Group remains the essential engine upgrade for fleet managers, equipment owners, and rebuild specialists seeking maximum component longevity, vibration-free operation, and operational uptime across the world’s most demanding heavy equipment applications.
