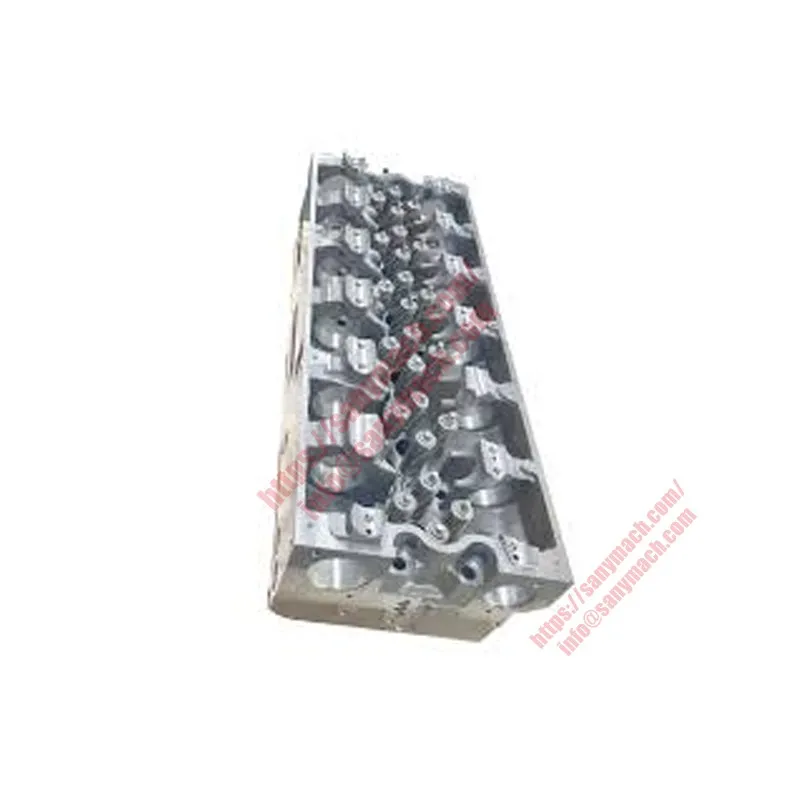

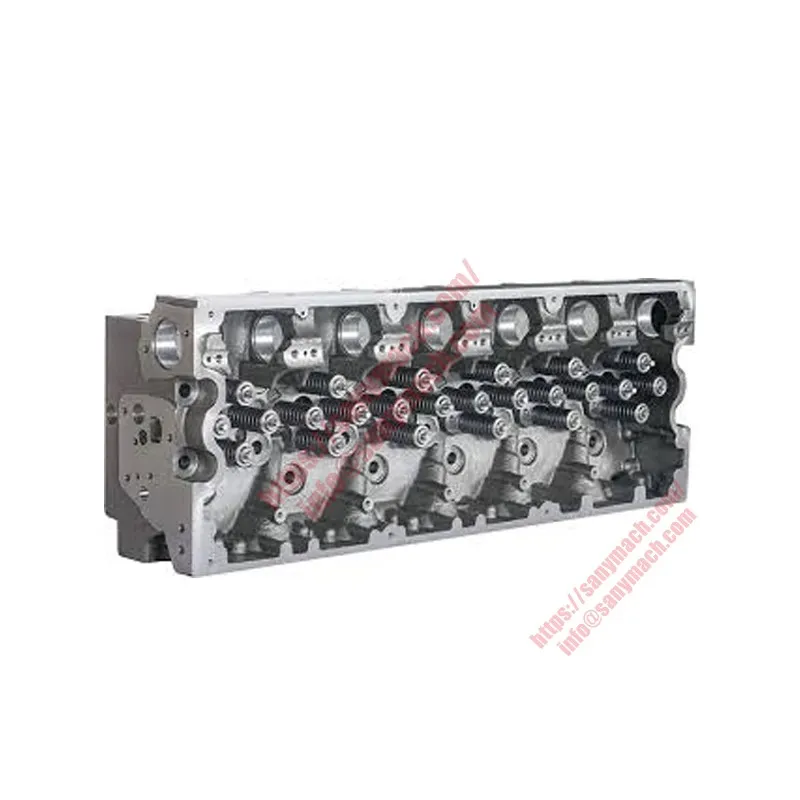

Genuine SANY Cylinder Head Group 160102130004A046 – High‑Performance Combustion Sealing
160102130004A046
Cylinder Head Group
Группа головки блока цилиндров
Grupo de Culata
🔧 Maximize compression and combustion efficiency with genuine SANY parts – the OEM cylinder head assembly 160102130004A046 (Cylinder Head Group). This high‑precision cylinder head is engineered for SANY’s D12 and D09 heavy‑duty diesel engines, housing the valves, injectors, and combustion chambers. The 160102130004A046 head is cast from high‑strength alloy cast iron with optimized coolant passages and reinforced fire decks. It withstands peak cylinder pressures exceeding 180 bar and temperatures up to 900°C at the exhaust ports. When overhauling your engine or replacing a cracked head, this genuine SANY component ensures correct valve geometry, gasket sealing, and injector protrusion, delivering maximum power and extended service life.
The 160102130004A046 Cylinder Head Group is a critical top‑end component for SANY D12 inline‑6 diesel engines (12.12 L displacement). It forms the upper sealing boundary of the combustion chamber, housing 24 valves (4 per cylinder), 6 unit injectors, and the valve train components. The head is a cross‑flow design with intake ports on the left side and exhaust ports on the right, optimizing volumetric efficiency.
Manufactured from high‑strength alloy cast iron (similar to GG 25 with additional Mo/Ni alloying), the cylinder head offers excellent thermal fatigue resistance and rigidity. The material’s tensile strength exceeds 300 MPa, and its ability to resist creep under cyclic thermal loads ensures head gasket sealing over thousands of operating hours. The fire deck (combustion face) is induction‑hardened to prevent recession around valve seats.
The head features a sophisticated water jacket that directs coolant around valve bridges and injector sleeves. SANY’s patented “TOP‑Down Cooling” design ensures uniform temperature distribution, eliminating hot spots that cause cracking between valves. Finite element analysis (FEA) confirms a maximum temperature gradient under full load of only 15°C across the fire deck, far lower than aftermarket heads.
Why the 160102130004A046 Cylinder Head Group Delivers Superior Sealing
Reinforced Fire Deck
The 160102130004A046 incorporates extra material between valve seats and around injector bores, preventing crack propagation under high cylinder pressures. Post‑casting heat treatment relieves residual stresses.
Precision Valve Seats
Powder‑metal valve seat inserts (intake and exhaust) are induction‑brazed and then machined to exact angles (45° for intake, 60° for exhaust), ensuring leak‑tight sealing and long wear life.
Optimized Coolant Flow
Side‑entry coolant ports and cross‑drilled passages direct coolant to the hottest regions (between exhaust valves). This reduces thermal stress and prevents scaling deposits.
Genuine SANY Fitment
Each 160102130004A046 head is CNC‑machined to match the engine block’s dowel pins and bolt pattern. Head gasket sealing surface flatness is held to 0.03 mm across the entire face.
Technical Specifications – Cylinder Head Group 160102130004A046
Advanced casting and heat treatment: The 160102130004A046 cylinder head is cast using the shell‑molding process with precise core placement. The alloy contains 0.15% Molybdenum and 0.25% Nickel to improve red hardness and creep resistance. After casting, the head undergoes a two‑stage annealing and normalizing heat treatment to relieve residual stresses and achieve a uniform pearlitic matrix with fine graphite flakes. This microstructure provides excellent thermal conductivity and vibration damping. Every head is 100% pressure‑tested with air at 5 bar submerged in water – any leakage visible as bubbles causes rejection.
The coolant jacket is optimized using computational fluid dynamics (CFD). Coolant enters from the front lower corner, flows upward around the exhaust valve bridges, then exits at the rear upper corner. This cross‑flow pattern ensures that critical areas between adjacent cylinders receive fresh coolant before it warms up. The design eliminates stagnant zones where scale could form, a common problem with lower‑quality heads that leads to hot spots and cracking.
Installation of the 160102130004A046 cylinder head requires meticulous preparation. Clean the engine block deck and head mating surfaces with a flat stone or fine oilstone to remove any old gasket residue. Check for any warpage using a straightedge and feeler gauge – the block deck flatness must be within 0.10 mm over the entire length. Install new cylinder head gaskets (part No. 160102130004A047, matching thickness grade).
Install the head onto the dowel pins, then insert the 26 cylinder head bolts (M16, 12.9 grade). SANY uses torque‑to‑yield bolts – they must be replaced every time the head is removed. Tighten in the prescribed sequence (spiral pattern from center outward) in 4 stages: 50 N·m, 90 N·m, 130 N·m, then a final 90° angle‑torque. Failure to follow the sequence can cause head gasket failure or cylinder liner distortion.
After torquing, the valve clearance must be adjusted. The D12 engine uses overhead camshaft with rocker arms. Intake valve clearance: 0.25 mm (cold), exhaust: 0.45 mm (cold). Using feeler gauges, adjust each rocker screw and lock nut. Incorrect clearance leads to power loss, valve burning, or piston‑to‑valve contact.
Before starting the engine, refill with coolant and prime the fuel system. Run the engine at idle for 10 minutes, then re‑torque the head bolts (loosen and torque again to 130 N·m only). SANY recommends a 100‑hour hot torque check for rebuilt engines. After this break‑in, the head gasket should be fully seated.
Applications of Cylinder Head 160102130004A046
- SANY SY415 / SY485 / SY500H Excavators
- SANY STC500 / STC800 Truck Cranes
- SANY HQC4250T / 4250S Heavy Trucks
- SANY SKT105 Mining Dumpers
- SANY SYZ425C / SYZ432C-8 Dump Trucks
- Kingway 435 Heavy Trucks
- SANY D12 / D09 Series Diesel Engines
- Concrete Mixer Trucks with SANY power units
Cylinder head failure symptoms and replacement criteria: Common signs of a cracked or warped cylinder head include white smoke from exhaust (coolant burning), repeated loss of coolant without visible external leaks, combustion gases in cooling system (bubbles in radiator), and misfires due to valve seat recession. If a cylinder head gasket fails due to fire deck erosion between cylinders, replacement of the head is often necessary because the surface may be pitted beyond machining limits. SANY does not recommend milling the head more than 0.35 mm (total); anything above that will affect valve timing due to reduced distance to camshaft.
For engines that have overheated, always inspect the cylinder head for linear cracks originating from injector bores or valve seats. Non‑destructive testing (magnetic particle or dye penetrant) should be performed. The 160102130004A046 is designed to withstand thermal shock, but repeated overheating events can cause permanent distortion. Genuine SANY heads have been shown to last over 15,000 hours in well‑maintained trucks and excavators.
To verify authenticity, check the casting number 160102130004A046 and SANY logo on the top surface between valve cover rails. Genuine heads also have a batch code stamping on the front face near the thermostat housing. Aftermarket heads often have rough, unmarked castings, irregular port shapes, or lack the correct coolant bypass passages. Always order from authorized SANY parts distributors.
When ordering a replacement cylinder head, specify your engine serial number (ESN) because there are different versions for D12 with integrated EGR and without. The 160102130004A046 is the premium version with pre‑chamber optimized for Euro III/IV/Stage III emissions. For Euro V engines, an additional port may be required – but this standard part covers most SANY equipment built since 2014. Consult the parts catalog for supersession information.
- 160102130004A047 – Cylinder Head Gasket (set of 1, thickness grade available)
- 160102130004A048 – Valve Stem Seal Kit (24 pieces)
- 160102130004A049 – Valve Train (camshaft, rockers, pushrods)
- 160102130003A005 – Cylinder Head Bolt Set (26 bolts, torque‑to‑yield)
- 160102130004A050 – Glow Plug / Pre‑heating unit set
- 160102130004A045 – Piston & Connecting Rod Group (bottom end match)
- Inspect block deck flatness (max 0.10 mm out of flat)
- Check cylinder liner protrusion (0.08‑0.15 mm above deck)
- Clean and deburr head bolt holes (use tap if necessary)
- Lubricate head bolts with light engine oil (not grease)
- Use new cylinder head gasket of correct thickness grade
- Follow tightening sequence (spiral from center outwards)
- Apply 4‑stage torque: 50 N·m → 90 N·m → 130 N·m → 90° angle
- After 100 hours, re‑torque to 130 N·m only (skip angle step)
Genuine SANY 160102130004A046 – The Foundation of Engine Power & Durability.
High‑strength alloy cast iron, precision‑machined valve seats, and optimized cooling jacket. Trust SANY’s original cylinder head to restore full compression, eliminate leaks, and deliver thousands of hours of trouble‑free service in excavators, cranes, trucks, and mining equipment. Each head is fully traceable with 12‑month warranty.
