Genuine SANY Flywheel Group 160102130004A044 – Smooth Power Transfer for Heavy Diesel Engines
160102130004A044
Flywheel Group
Группа маховика
Grupo del Volante

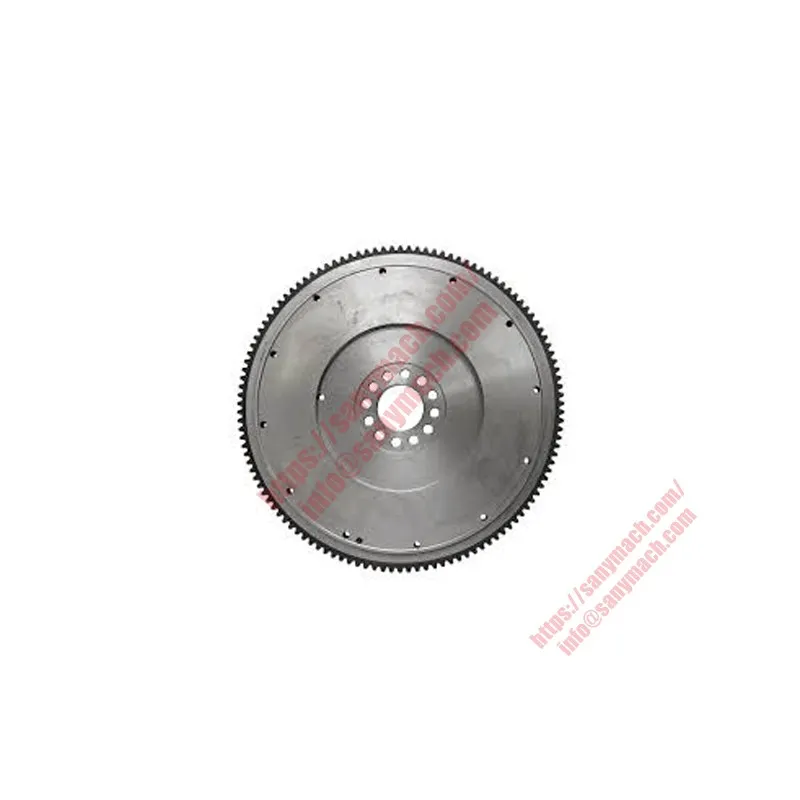

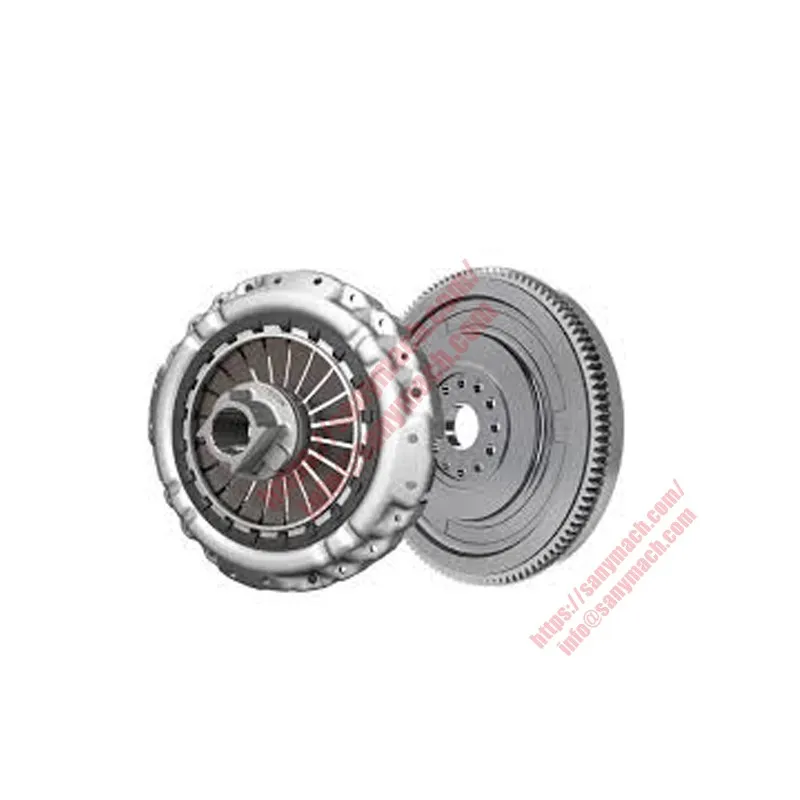

⚙️ Ensure smooth engine rotation and clutch engagement with genuine SANY parts – the OEM flywheel assembly 160102130004A044 (Flywheel Group). This precision-balanced flywheel stores rotational energy, damps torsional vibrations, and provides a friction surface for the clutch. The 160102130004A044 flywheel is cast from high-grade nodular cast iron (GGG‑60) and features a hardened friction face with precision pilot bearing bore. Designed for SANY’s D12/D09 diesel engines, this flywheel ensures consistent engagement, reduces shift shock, and extends clutch life. When replacing a worn or cracked flywheel, this genuine SANY component guarantees correct moment of inertia, ring gear alignment, and crankshaft flange bolt fitment.
The 160102130004A044 Flywheel Group is a critical component that connects the engine crankshaft to the drivetrain. For SANY D12 inline-6 diesel engines producing up to 360 kW and 2,150 Nm of torque, this flywheel stores rotational kinetic energy to smooth out power pulses between combustion events, reducing torsional vibration transmitted to the transmission.
Manufactured from high-strength nodular cast iron (GGG-60, equivalent to EN-GJS-600-3), the flywheel offers excellent tensile strength (≥600 MPa) and impact resistance. The material’s graphite nodules act as crack arrestors, preventing catastrophic failure even under severe clutch dumping or engine overspeed conditions. The friction surface is induction-hardened to 45‑50 HRC to resist wear from clutch disc engagement.
The flywheel incorporates a pressed-in starter ring gear (131‑tooth, module 3) made from hardened steel. The ring gear is shrunk-fit onto the flywheel rim and pinned or welded for security. This gear engages with the starter motor pinion during cranking. The flywheel also includes a precision-machined pilot bearing bore (diameter 25 mm or 30 mm depending on transmission type) that supports the transmission input shaft tip, maintaining alignment during clutch disengagement.
Why the 160102130004A044 Flywheel Group Ensures Drivetrain Reliability
Precision Dynamic Balancing
Each 160102130004A044 flywheel is dynamically balanced to ISO 1940‑1 grade G6.3, limiting residual unbalance to under 30 g·mm. This eliminates vibration at engine speeds up to 2,300 RPM, protecting the crankshaft rear main bearing.
Nodular Iron Strength
GGG-60 nodular cast iron provides twice the tensile strength of gray iron, resisting cracking from thermal cycling and clutch side loads. It also exhibits superior damping capacity, reducing gear rattle.
Hardened Friction Surface
The clutch contact face is induction-hardened to 45‑50 HRC with a surface finish of Ra 1.6 μm. This prevents scoring, prolongs clutch disc life, and maintains flatness under thermal loading.
Genuine SANY Fitment
The 160102130004A044 uses the correct crankshaft bolt pattern (8x M12 bolts, 115 mm PCD) and centering dowels. Aftermarket flywheels often have misaligned mounting holes causing runout.
Technical Specifications – Flywheel Group 160102130004A044
Dynamic balancing and crack prevention: The 160102130004A044 flywheel undergoes two‑plane dynamic balancing. Residual unbalance is held below 30 g·mm, far tighter than aftermarket flywheels. This precision eliminates vibrations that would otherwise hammer the rear main bearing and transmission input shaft. Additionally, all flywheels are 100% magnaflux inspected for cracks after induction hardening. Any casting with a surface crack exceeding 1 mm is rejected.
The flywheel’s thermal mass is carefully calculated to absorb heat from clutch slipping during heavy starts (e.g., fully loaded dump trucks on uphill grades). Finite element analysis shows a temperature rise of only 180°C under worst‑case slipping events, well below the tempering temperature of the hardened friction face. This prevents warping, which is a common cause of clutch judder and premature clutch failure.
Installation of the 160102130004A044 flywheel requires following SANY’s specified cleaning and torquing procedure. First, thoroughly clean the crankshaft flange and the flywheel mating surface. Any dirt or oil trapped between the faces will cause runout. Install the flywheel onto the two dowel pins, then insert the eight crankshaft bolts. Apply a light coat of engine oil to the threads and bolt heads. Tighten in a star pattern to 95–105 N·m, then perform the additional 90° angle‑torque (for torque‑to‑yield bolts). Replace bolts each time.
After mounting, check flywheel runout using a dial indicator mounted to the engine block. The maximum allowable axial runout at the clutch friction face is 0.08 mm. If runout exceeds this, remove the flywheel and inspect for debris. Before installing the clutch, wipe the friction surface with a clean, lint‑free cloth and apply a thin film of anti‑seize to the pilot bearing outer race. Install a new pilot bearing into the flywheel bore using a suitable press tool.
When replacing a worn flywheel, inspect the ring gear teeth for chipping or wear. The ring gear is replaceable on the 160102130004A044 – it can be heated evenly to 200°C and removed, then a new gear shrunk on. However, SANY recommends full flywheel replacement if ring gear damage is extensive, as the gear fit may loosen over time. For engines used in frequent start/stop cycles (e.g., wheel loaders), inspect flywheel ring gear every 2,000 hours.
The flywheel’s moment of inertia is tuned to SANY’s engine calibration. Matching this inertia is critical – using a lighter aftermarket flywheel may reduce engine braking effect and cause stalling when engaging clutch under load. Using a heavier flywheel can accelerate main bearing wear and reduce throttle response. The genuine 160102130004A044 provides the optimal balance for SANY’s D12 engine characteristics.
Applications of Flywheel Group 160102130004A044
- SANY SY415 / SY485 / SY500H Excavators
- SANY STC500 / STC800 Truck Cranes
- SANY HQC4250T / 4250S Heavy Trucks
- SANY SKT105 Mining Dumpers
- SANY SYZ425C / SYZ432C-8 Dump Trucks
- Kingway 435 Heavy Trucks
- SANY D12 / D09 Series Diesel Engines
- SANY‑Powered Concrete Mixer Trucks
Flywheel failure symptoms and replacement criteria: Common signs of a failing flywheel include clutch chatter during engagement, excessive driveline vibration at idle that disappears with clutch disengagement, difficulty starting due to ring gear damage, and visible cracks on the friction face during clutch service. If the friction face has grooves deeper than 0.5 mm, blue discoloration from overheating, or radial cracks, the flywheel must be replaced. Resurfacing is not recommended for nodular iron flywheels as it may reduce the hardened case depth and lead to premature wear or warping.
In mining applications, SANY recommends replacing the flywheel every second clutch replacement (approximately 8,000–10,000 operating hours) as a preventive measure. The 160102130004A044 has shown excellent durability, but thermal fatigue cycles eventually cause micro‑cracking on the friction face. Using the genuine flywheel ensures consistent clutch life and prevents costly crankshaft flange damage that can occur if a cracked flywheel disintegrates.
To verify authenticity, look for the SANY logo and OEM number 160102130004A044 cast into the rear side of the flywheel. Genuine SANY flywheels also have a colour‑coded paint mark indicating the balance correction plane. The ring gear will have the SANY part number etched. Aftermarket flywheels often lack these markings, have rough casting surfaces, or show uneven hardening patterns. Always purchase from authorized SANY parts distributors.
When ordering, verify your engine serial number and clutch type. The 160102130004A044 is designed for single‑plate clutches with 430 mm diameter. For automatic transmission applications (torque converter), a different flywheel (flexplate) is required. For dual‑plate clutches used in some mining trucks, a spacer version may be needed. Consult the SANY engine parts catalog to confirm compatibility with your specific chassis number.
- 160102130004A041 – Crankshaft Group (for reference)
- 160102130004A042 – Main Bearing Group
- 160102130004A043 – Connecting Rod Bearing Group
- A210114000006 – Flywheel Bolts (set of 8, torque‑to‑yield)
- 160102130004A035 – Clutch Disc and Cover Assembly
- 160102130004A037 – Oil Seal Group (rear crankshaft oil seal)
- Clean crankshaft flange and flywheel mating face
- Verify dowel pins are present and not damaged
- Install pilot bearing (new) using correct drift tool
- Apply oil to flywheel bolt threads and seats
- Torque bolts in star pattern to spec (95‑105 N·m + 90°)
- Measure flywheel runout (limit 0.08 mm axial)
- Clean friction face with brake cleaner (no oil residue)
- Proceed with clutch installation using new bolts
Genuine SANY 160102130004A044 – The Ultimate Flywheel for D12/D09 Heavy Duty Engines.
Nodular cast iron, dynamically balanced, induction‑hardened friction face. Trust SANY’s original equipment quality for smooth power transfer, extended clutch life, and reliable crankshaft protection. Every unit serial‑traceable, backed by a 12‑month warranty.
