Genuine SANY Flywheel Housing Group 160102130004A039 – Heavy Duty Engine Mounting Solution
160102130004A039
Flywheel Housing Group
Группа корпуса маховика
Grupo del Alojamiento del Volante
⚙️ Ensure precise engine-to-transmission alignment with genuine SANY parts – the OEM flywheel housing assembly 160102130004A039 (Flywheel Housing Group). This structurally critical component connects the engine block to the transmission bell housing, providing precise alignment for the flywheel, starter motor, and torque converter. The 160102130004A039 flywheel housing is cast from high-strength gray iron, engineered to withstand torsional loads and protect rotating components from contamination. When rebuilding SANY D12/D09 engines or replacing damaged housings, this genuine unit ensures proper crankshaft-to-transmission centerline alignment and eliminates vibration-induced misalignment failures common with aftermarket castings. Upgrade to SANY’s original flywheel housing and restore drivetrain integrity.

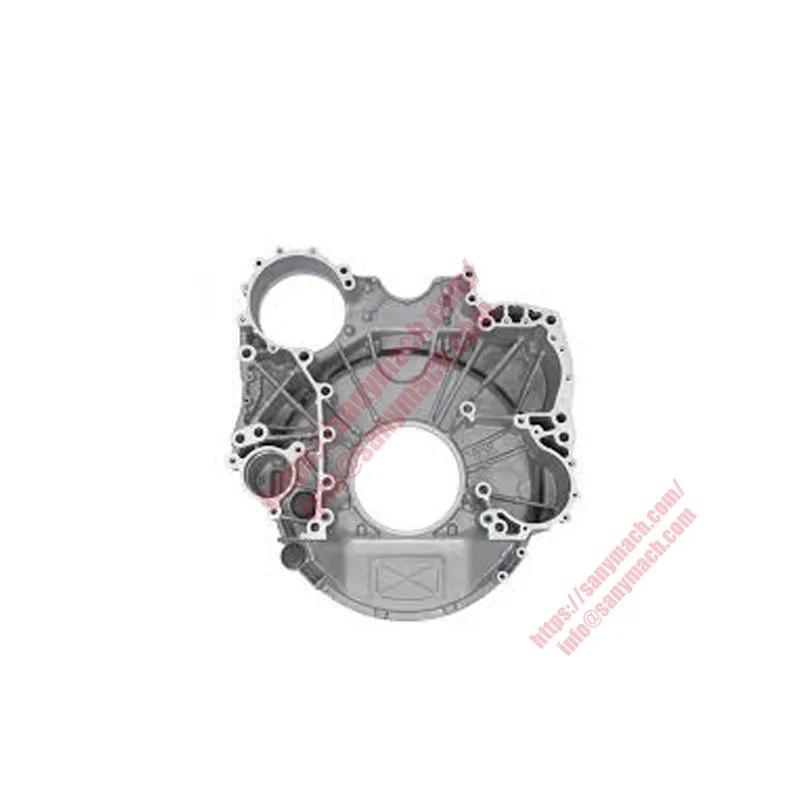

The 160102130004A039 Flywheel Housing Group is a precision-cast component that serves as the structural interface between SANY’s heavy-duty diesel engine and the transmission. It houses the flywheel, ring gear, and rear crankshaft seal, while providing mounting points for the starter motor and clutch or torque converter assembly.
Manufactured from high-grade gray cast iron (HT250 equivalent), this housing delivers exceptional rigidity and vibration damping properties. The material’s graphite structure absorbs drivetrain vibrations, reducing noise transmitted to the cab and protecting transmission input bearings from shock loads. Unlike aluminum aftermarket housings, the iron construction maintains dimensional stability under high thermal stress.
The 160102130004A039 is precision-machined on high-accuracy CNC lines to ensure critical tolerances: the crankshaft centerline to transmission pilot bore concentricity is held within 0.1 mm, and the mounting face flatness is within 0.05 mm. These strict specifications guarantee perfect starter motor engagement, flywheel runout control, and leak-free sealing at the engine block interface.
Why the 160102130004A039 Flywheel Housing Group Delivers Drivetrain Reliability
Precision Alignment
The 160102130004A039 ensures perfect coaxial alignment between engine crankshaft and transmission input shaft, eliminating premature clutch wear, pilot bearing failure, and transmission gear noise caused by misalignment.
High Strength Cast Iron
The housing is cast from HT250 gray iron with a tensile strength of 250 MPa, providing robust support for heavy transmission loads and protecting internal rotating components from impact damage.
Inspection Ports
Integrated access covers allow for flywheel ring gear inspection, torque converter bolt access, and timing mark verification without removing the transmission, simplifying maintenance.
Genuine SANY Quality
Each 160102130004A039 housing is 100% inspected for porosity, dimensional accuracy, and bolt hole thread integrity. Backed by SANY’s 12-month warranty and global parts support.
Technical Specifications – Flywheel Housing Group 160102130004A039
Advanced casting and machining processes: The 160102130004A039 flywheel housing is produced using resin-sand casting with controlled cooling rates to eliminate internal stresses and porosity. Each casting undergoes X-ray inspection to verify structural integrity before CNC machining. The five-axis machining centers then create all mounting faces, pilot bores, and threaded holes with tolerances of IT6 grade (ISO 286).
The critical pilot bore for the transmission input shaft is machined in the same setup as the engine block mounting face, guaranteeing concentricity within 0.05 mm. This precision ensures that the clutch disc and pressure plate operate without axial runout, preventing hot spotting and premature clutch failure that is common with distorted or misaligned housings.
Installation of the 160102130004A039 flywheel housing requires following SANY’s specified torque sequence. First, clean both the engine block rear face and housing mating surfaces thoroughly. Apply a thin layer of high-temperature silicone sealant around the oil pan and rear seal plate interface to prevent oil leaks. Install the housing using ten M12×45 flange bolts, torquing them in a star pattern to 85–95 N·m in three progressive stages.
Never reuse old bolts, as flywheel housing bolts undergo elastic stretching during initial torquing. Replace them with new SANY-spec fasteners to ensure consistent clamp load. Before mounting the transmission, verify that the housing’s pilot bore is clean and free of burrs. Apply anti-seize compound to the transmission mounting bolts to prevent galvanic corrosion and facilitate future service.
After installation, rotate the engine by hand to check for any binding or unusual resistance, which could indicate misalignment between the flywheel and starter motor. The access covers on the housing allow visual inspection of the flywheel ring gear and torque converter bolts without removing the transmission, greatly simplifying routine drivetrain checks and clutch replacement.
Applications of Flywheel Housing 160102130004A039
- SANY SY415 / SY485 / SY500H Excavators
- SANY STC500 / STC800 Truck Cranes
- SANY HQC4250T / 4250S Heavy Trucks
- SANY SKT105 Mining Dumpers
- SANY SYZ425C / SYZ432C-8 Dump Trucks
- Kingway 435 Heavy Trucks
- SANY D12 / D09 Series Diesel Engines
- SANY-Powered Concrete Mixer Trucks
SANY D12 engine platform – flywheel housing integration: The D12 engine develops up to 360 kW (490 hp) and 2,150 Nm of torque. Such high output subjects the bell housing to severe vibratory loads. The 160102130004A039 is ribbed and gusseted at high-stress zones to distribute these loads evenly, preventing cracking. The housing also incorporates cast-in mounting ears for the starter motor, ensuring perfect pinion-to-ring gear engagement even under heavy vibration.
Field data from mining operations shows that housings with minor cracks or bolt-hole thread damage often lead to drivetrain misalignment and subsequent transmission failures within 500 hours. Replacing a damaged housing with a genuine 160102130004A039 restores alignment tolerances and eliminates vibration-induced noise and clutch judder.
To verify authenticity, look for the SANY logo and OEM number 160102130004A039 cast into the housing’s outer surface. Genuine housings also feature a date code and batch traceability mark. Aftermarket copies often have rough casting flash, incorrect bolt hole locations, or excessive core shift that compromises alignment. Always source from authorized SANY parts distributors.
When performing a major engine rebuild, inspect the flywheel housing for cracks using magnetic particle or dye penetrant testing. Pay special attention to the area around the starter mounting ears and the bolt hole bosses. Any crack longer than 10 mm warrants replacement. Also check the pilot bore for wear; an oversized bore will cause transmission input shaft runout. SANY specifies a maximum bore diameter of 110.05 mm for serviceability.
- 61000189 – Rear Crankshaft Oil Seal (fits into housing bore)
- 160102130004A037 – Oil Seal Group (complete sealing kit)
- 160102130004A038 – Spray Nozzle Group (for clutch cooling)
- 160102130003A005 – Hexagon Flange Bolt (engine block mounting, 10 units)
- A210405000007 – Spring Washer (for transmission bolts)
- Visually inspect for cracks, especially around bolt holes and starter mount
- Measure pilot bore diameter (max 110.05 mm acceptable)
- Check flatness of engine block mating surface (max warp 0.1 mm)
- Verify all threaded holes for thread damage or stripping
- Inspect oil drain-back passages for blockages
- Check starter mounting flange for true position
- Inspect dowel pin holes for wear or elongation
Genuine SANY 160102130004A039 – The Ultimate Drivetrain Alignment Solution.
Precision-cast gray iron housing, CNC-machined to exacting tolerances, ensuring perfect engine-to-transmission alignment. Field-proven in SANY excavators, cranes, and heavy trucks. Each housing is traceable and backed by SANY’s global reliability standards.
