SANY OEM 160102130004A018 Oil Cooler Assembly – Reliable Thermal Control for Heavy Duty Engines

The genuine SANY parts reference 160102130004A018 is the Oil Cooler Assembly, a critical thermal management component that maintains engine oil temperature within optimal limits in SANY heavy‑duty diesel engines. The 160102130004A018 oil cooler assembly uses engine coolant to remove excess heat from the lubricating oil, preventing oil degradation and ensuring stable viscosity under high load conditions. Manufactured from a stacked plate aluminum or copper‑brass core with precision‑machined mounting flanges, each 160102130004A018 unit is 100% pressure‑tested and leak‑checked, guaranteeing reliable temperature control in Actlon dump trucks, SY excavators, and SW wheel loaders.

The assembly is mounted in the engine block or remote housing, with oil flowing through the core and coolant circulating around it. Trust only genuine SANY oil coolers for your engine rebuilds.

Oil Cooler Assembly

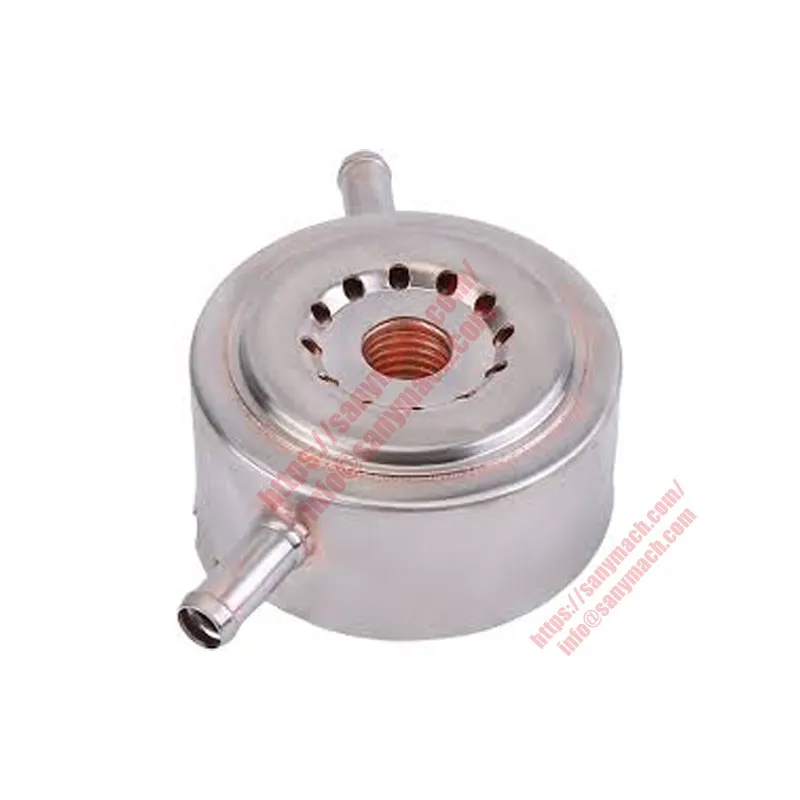

Узел масляного радиатора

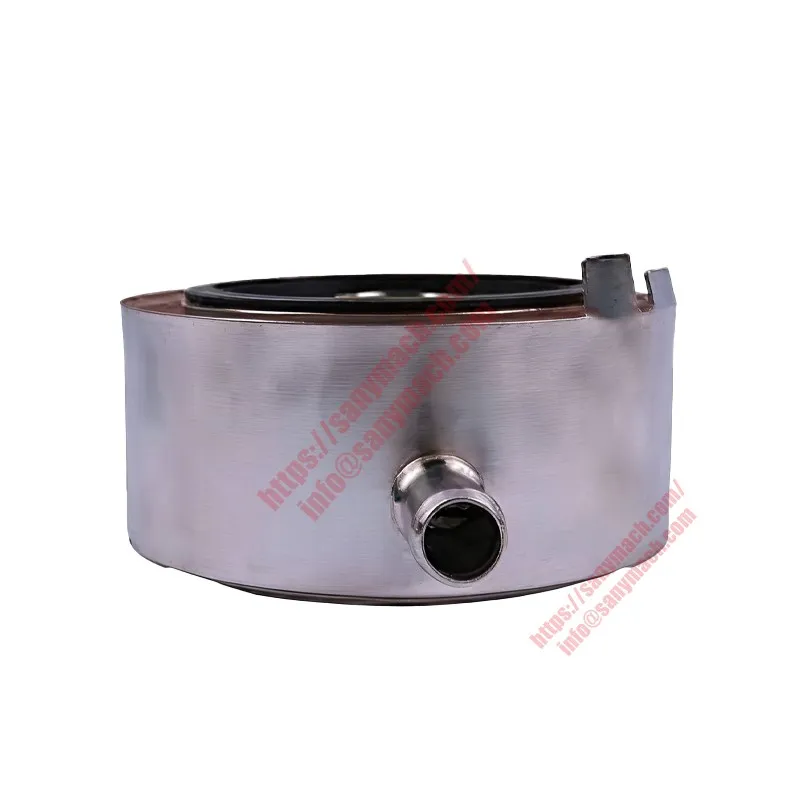

Conjunto del enfriador de aceite

Design and Function of Oil Cooler Assembly 160102130004A018

The oil cooler assembly 160102130004A018 consists of a compact stacked‑plate heat exchanger core, two cast aluminum end housings with oil and coolant ports, and sealing gaskets or o‑rings. The core is brazed or soldered to create multiple thin passages for oil and coolant in alternating layers, maximizing surface area for heat transfer within a small volume.

Engine coolant (from the water pump) flows through one set of passages, while hot engine oil from the main gallery flows through the other set. Heat transfers from the oil to the coolant, reducing oil temperature by 15–25°C depending on load and ambient conditions. The cooled oil then returns to the engine bearings and turbocharger.

Every genuine 160102130004A018 oil cooler is pressure‑tested on both the oil and coolant sides (typically at 10 bar for oil and 5 bar for coolant) to verify zero leakage. The core is also inspected for internal cleanliness and flow restriction. A batch code is stamped on the housing for full traceability.

Importance of Oil Temperature Control

Maintaining oil temperature between 90°C and 110°C is critical for engine longevity. If oil becomes too hot (above 120°C), it oxidizes rapidly, loses viscosity, and forms sludge. Too cold (below 80°C), fuel dilution and condensation increase. The oil cooler 160102130004A018 keeps oil in the optimal range.

In D12 engines producing 2,150 N·m of torque at 1,900 RPM, the oil absorbs significant heat from pistons and bearings. Without an effective cooler, oil temperature can exceed 140°C during heavy hauling, leading to premature bearing wear and turbocharger coking. The genuine SANY oil cooler is sized for these extreme conditions.

A clogged or leaking oil cooler can cause high oil temperature warnings, low oil pressure (due to viscosity loss), and increased engine wear. Always replace the cooler if it shows signs of internal restriction or coolant‑oil cross‑leakage.

Technical Specifications – Oil Cooler Assembly 160102130004A018

Installation of Oil Cooler Assembly 160102130004A018

Before installing the oil cooler 160102130004A018, clean the mounting surface on the engine block or cooler housing. Replace all gaskets and o‑rings. Lightly lubricate the new seals with clean engine oil. Position the cooler and hand‑tighten the bolts, then torque to specification (typically 25–30 Nm for M10 bolts).

Connect the oil lines and coolant hoses, ensuring correct orientation (inlet/outlet markings are provided). After installation, fill the engine with oil and coolant. Run the engine and check for leaks at all connections. Verify that oil temperature stabilizes within normal range under load.

Never reuse an oil cooler that has been contaminated by coolant or debris. If the engine suffered a bearing failure, replace the cooler – the oil passages may contain abrasive particles that cannot be cleaned out.

Signs of a Failing or Clogged Oil Cooler

A failing oil cooler 160102130004A018 will cause high oil temperature warnings, especially under load. The oil pressure may drop due to viscosity loss from overheating. Coolant may appear oily (if internal leak mixes oil and coolant), or the oil may appear milky (coolant in oil).

A clogged cooler (from sludge or debris) will cause a large pressure drop, starving the engine of oil at high RPM. If the cooler is externally damaged (bent fins, cracked housing), replace it immediately. During engine overhaul, always install a new oil cooler.

Quality Assurance and Traceability

Every oil cooler assembly 160102130004A018 is manufactured in an IATF 16949 certified facility. The core is leak‑tested on automated machines, and the assembled unit undergoes a second pressure test. 100% dimensional inspection ensures correct mounting hole alignment. A batch code stamped on the housing provides full traceability to production records.

Field Performance of Genuine SANY Oil Cooler

Field data from mining fleets shows that genuine 160102130004A018 oil coolers maintain thermal efficiency and leak‑free operation for over 20,000 hours. Aftermarket coolers often suffer from poor brazing, internal corrosion, or undersized cores, leading to oil overheating and premature bearing failure within 5,000–8,000 hours.

Using genuine SANY oil coolers ensures stable oil temperature and protects the engine. Fleet owners report zero oil‑cooler‑related failures when using original parts during overhauls.
