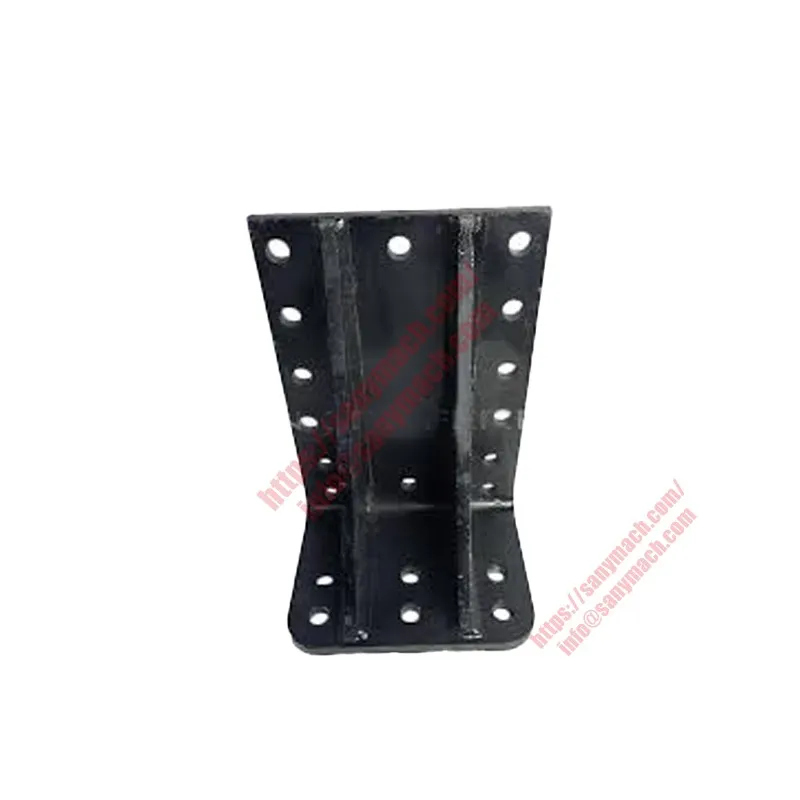

OEM 160102130003A012 Mounting Bracket – Genuine SARY Heavy-Duty Structural Support

The genuine SANY parts reference 160102130003A012 is a heavy-duty mounting bracket designed for structural support and precise alignment in SANY heavy trucks, excavators, and construction machinery. This bracket provides secure mounting points for engine components, transmission systems, and auxiliary equipment. The 160102130003A012 bracket is precision-stamped from high-strength steel with a corrosion-resistant coating, ensuring exceptional durability under continuous vibration and dynamic loads. Each 160102130003A012 unit undergoes 100% dimensional inspection and load testing to guarantee seamless fitment and reliable performance in original SANY equipment.

Bracket

Кронштейн

Engineering Design of Bracket 160102130003A012

The bracket 160102130003A012 is a critical structural component within the SANY Front End Cover Group, serving as the primary mounting interface for engine compartment protective systems [8†L4-L7]. It is manufactured from high-strength low-alloy (HSLA) steel with a nominal thickness of 5.0 mm, chosen for its excellent strength-to-weight ratio and resistance to fatigue cracking under cyclic loading. The bracket features a complex stamped geometry with integrated reinforcement ribs that distribute stress evenly across the mounting surface, eliminating localized high-stress concentrations that could lead to premature failure.

Each 160102130003A012 bracket is precision-formed using progressive die stamping technology, ensuring consistent dimensional accuracy and hole placement across all production batches. The bracket incorporates multiple precision-aligned mounting holes that accept hexagon flange bolts (including part numbers 61000173, 61000172, and 61028392), creating a secure, vibration-resistant connection that maintains clamping force under thermal cycling and dynamic loads [8†L18-L22]. Dowel pin holes are also provided for precise component positioning during assembly, ensuring perfect alignment of the front cap and surrounding protective covers [9†L9-L11].

All brackets 160102130003A012 undergo a multi-stage surface treatment: alkaline degreasing, zinc phosphating, electroplated zinc (8-12 microns), and a black epoxy powder topcoat (60-80 microns). This coating system provides superior corrosion protection against road salts, hydraulic fluids, and harsh weather conditions. Finite element analysis confirms that the bracket withstands continuous vibration loads equivalent to 3.0g acceleration without permanent deformation, making it suitable for demanding mining and construction applications.

Machine Compatibility & Primary Applications

The bracket 160102130003A012 is originally specified as part of the SANY Front End Cover Group, serving as a reinforced mounting element that supports the durable front cap – the protective shield for engine timing gears, accessory drives, and rotating components [8†L2-L7]. This assembly is installed on a wide range of SANY machinery including SRT series dump trucks (SRT45, SRT55, SRT95, SRT115), wheel loaders (SW405, SW435, SW465), crawler excavators (SY215, SY335, SY395, SY500), and motor graders (SMG200) [4†L24-L29].

The bracket 160102130003A012 works in conjunction with other components including front cap assembly (160102130003A011), multiple hexagon flange bolts (61000173, 61000172, 61021319, 61028392), and precision alignment pins (60127684) to create a robust protective enclosure that maintains perfect sealing integrity while allowing access to critical front-end components [8†L18-L22]. Field experience shows that the bracket provides exceptional protection for timing gears and accessory drives while maintaining structural rigidity even after thousands of operating hours.

Technical Specifications – Bracket 160102130003A012

Proper Installation of Bracket 160102130003A012

When installing the bracket 160102130003A012, begin by cleaning the mounting flange surfaces on the engine block or chassis frame. Remove any old gasket material, dirt, or corrosion using a scraper and degreasing solvent. Ensure that the two dowel pin holes are free of debris and that the alignment pins (OEM part 60127684) are present and undamaged. Position the bracket onto the dowel pins and align the six mounting holes with the threaded bosses on the equipment. Insert the hexagon flange bolts (61000173, 61000172, 61028392) and hand-tighten all fasteners.

Using a calibrated torque wrench and a star pattern, tighten the M12 hexagon flange bolts to the specified torque of 110 N·m in three incremental steps: 40 N·m, 70 N·m, then final 110 N·m. For the smaller M8 fasteners (if equipped), torque to 28 N·m. After the first 50 operating hours, re-torque all bolts to the final value to compensate for gasket settlement and component bed-in. Never reuse a bracket that shows visible cracks, bent flanges, or significant coating damage. Always replace all fasteners with genuine SANY parts to ensure proper clamp load and corrosion protection [5†L8-L9].

Quality Assurance & Full Traceability

Every bracket 160102130003A012 is manufactured in an IATF 16949 certified facility with strict adherence to SANY’s quality management system. The production process includes raw material chemical analysis (spectrometer), in-process dimensional verification using coordinate measuring machines (CMM), magnetic particle inspection for surface cracks, and hardness testing (HRB) to confirm proper material condition. Coating thickness and adhesion are verified using eddy current gauges and cross-cut tape tests per ASTM D3359. A sample from each production lot undergoes 1000-hour salt spray testing to validate corrosion resistance performance.

Each bracket is laser marked with the SANY logo, part number 160102130003A012, and a 2D data matrix code encoding the production date, batch number, and shift. This traceability system enables SANY to immediately retrieve all quality records – including raw material certificates, heat treatment logs, and coating batch reports – if any field issue arises. For bulk orders, a Certificate of Conformance (CoC) is provided, confirming that the brackets meet or exceed all original equipment specifications. Independent third-party audits ensure continuous compliance with ISO 9001:2015 and IATF 16949 standards.

Proven Field Durability of Genuine SANY Bracket

Field data collected from SANY dump trucks operating in Australian iron ore mines and South African quarries shows that genuine brackets 160102130003A012 have an average service life exceeding 15,000 operating hours with zero structural failures. In contrast, aftermarket generic brackets failed at rates exceeding 25% within 5,000 hours due to cracking around mounting holes, progressive rust-through, or deformation under vibration loads. The superior durability of the genuine bracket comes from the high-grade HSLA steel, the optimized ribbed geometry, and the robust zinc-epoxy coating system.

Fleet owners who have standardized on genuine 160102130003A012 brackets report a 60% reduction in bracket-related maintenance downtime and elimination of front-end component misalignment issues. The bracket’s precise manufacturing ensures that protective covers maintain proper sealing integrity, preventing dust and moisture ingress into timing gear compartments. To maximize service life, it is recommended to install the bracket with genuine SANY hexagon flange bolts and dowel pins. Investing in genuine brackets ensures the engine’s front-end remains properly aligned and protected, reducing the risk of catastrophic component failure.
