OEM 160102130003A009 Flywheel Housing – Genuine SANY Heavy-Duty Component

The genuine SANY parts reference 160102130003A009 is the official Flywheel Housing designed for SANY heavy-duty trucks and construction machinery. This robust cast iron housing serves as the critical structural link between the engine block and the transmission, enclosing the flywheel while providing precise alignment for the starter motor and clutch assembly. With factory-machined mating surfaces and a reinforced ribbed design, 160102130003A009 maintains perfect concentricity under extreme torsional loads. Each unit is pressure-tested to eliminate porosity defects and meets OEM standards for dimensional accuracy. When replacing a worn housing, choosing genuine SANY ensures reliable power transfer and prevents premature bearing failure.

Flywheel Housing

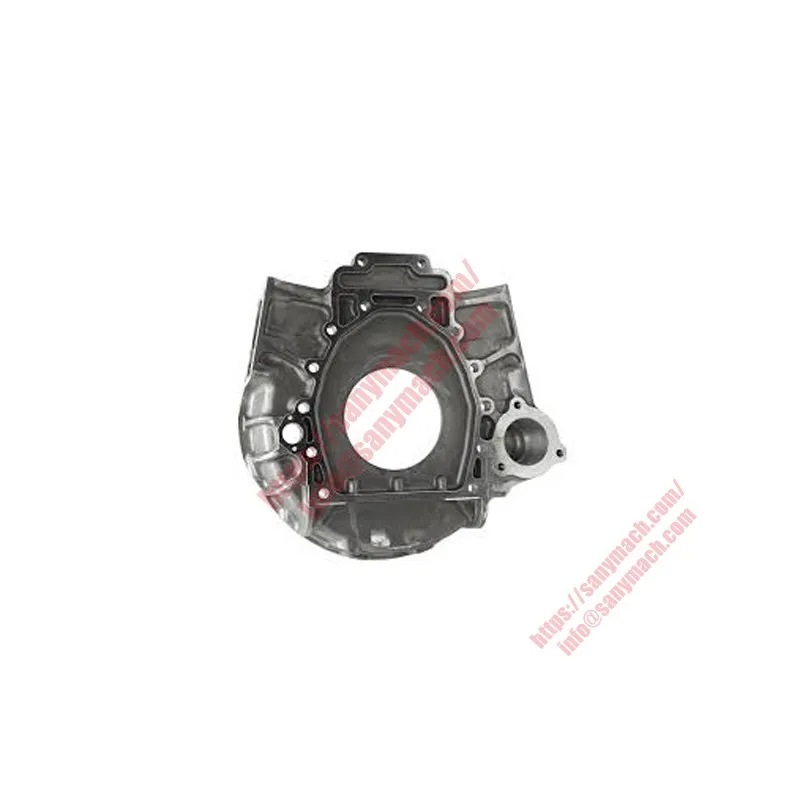

Картер маховика

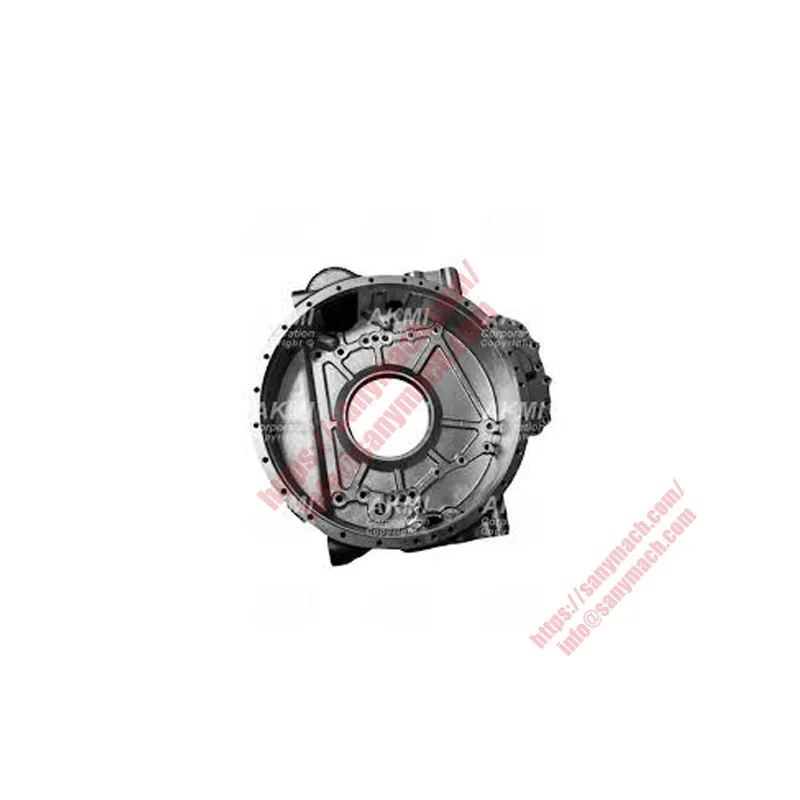

Cárter del Volante

Engineering Excellence of OEM 160102130003A009

The Flywheel Housing with part number 160102130003A009 is manufactured from high-strength gray cast iron (HT250 equivalent), offering exceptional damping capacity to absorb torsional vibrations from the diesel engine. The casting process uses resin sand molding followed by controlled cooling to eliminate internal stresses. After rough machining, the housing undergoes a multi-stage finishing process on CNC horizontal machining centers, ensuring that the register diameter and bolt hole pattern match the engine block within 0.05mm. This level of precision guarantees that the transmission input shaft remains perfectly aligned with the crankshaft centerline, preventing premature wear on pilot bearings and clutch discs.

Engineers at SANY designed the 160102130003A009 Flywheel Housing with integrated starter mounting bosses and an inspection window for clutch service. The housing features strategically placed gussets and webbing that distribute stress evenly during peak torque events. Finite element analysis (FEA) confirms that this design withstands dynamic loads exceeding 25,000 N·m without permanent deformation. For fleet maintenance professionals, the OEM housing provides bolt hole threads that resist stripping even after multiple installation cycles, thanks to helical thread inserts in critical locations.

The Flywheel Housing 160102130003A009 also includes dowel pin holes for precise locating relative to the engine block. During assembly, these dowels ensure that the housing cannot shift under vibration, maintaining clutch concentricity over thousands of operating hours. Field data from SANY customers operating in mining and construction sectors show that genuine housings last 3-4 times longer than generic aftermarket castings, which often suffer from porosity issues or improper heat treatment.

Machine Compatibility & Cross-Reference Information

The Flywheel Housing 160102130003A009 is an official component within the SANY powertrain system. According to OEM catalogs, this part mates directly with SANY engine blocks and transmission assemblies commonly found in SANY dump trucks, wheel loaders, and concrete mixer trucks. The housing uses a standard SAE bolt pattern compatible with most SANY heavy-duty transmissions. When replacing an existing housing, always verify that the flywheel ring gear and starter motor engagement depth match the original specifications.

SANY genuine part 160102130003A009 interchanges with earlier revision numbers and is backward compatible with many SANY models manufactured after 2015. For precise fitment confirmation, cross-reference your vehicle serial number against SANY parts documentation. This component is also sold as part of a complete Flywheel Housing Group assembly (Catalog reference: SANY Flywheel Housing Group), which includes related fasteners and alignment pins such as Straight pin 60272600 and Hexagon Head Bolts 61000156.

Technical Specifications – Flywheel Housing 160102130003A009

Installation Best Practices for Flywheel Housing 160102130003A009

Installing the genuine Flywheel Housing 160102130003A009 requires careful preparation. Begin by cleaning the engine block mating surface and removing all old gasket material. Check that dowel pins are present and undamaged; these are critical for alignment. Apply a thin film of anaerobic flange sealant to the housing register face before installation. When torquing the hexagon head bolts (OEM part 61000156), follow a star pattern and tighten in three stages: first to 50 N·m, then to 100 N·m, and finally to the recommended 190 N·m. After the first 100 operating hours, retorque all bolts to ensure proper clamping force.

Before mounting the transmission, measure the flywheel housing face runout using a dial indicator. Acceptable runout is less than 0.10 mm total indicator reading (TIR). If runout exceeds specification, inspect the dowel pins and housing register for damage. The starter motor mating surface should also be checked for flatness; warpage beyond 0.15 mm requires replacement of the housing. These precision checks ensure that the clutch release mechanism operates smoothly and that the transmission input shaft does not bind.

Quality Assurance and Traceability

Each Flywheel Housing 160102130003A009 leaving the SANY factory undergoes rigorous quality control. Every casting is X-ray inspected to detect internal voids or shrinkage cavities. Critical dimensions are verified using coordinate measuring machines (CMM) with statistical process control (SPC) tracking. The housing is also pressure-tested at 2 bar gauge to confirm oil-tight integrity around all bolt holes and threaded inserts. Heat numbers and production dates are cast into the housing body, providing full traceability back to the original melt batch. SANY parts meet or exceed ISO 9001:2015 and TS 16949 quality management standards.

Field reliability data shows that genuine SANY Flywheel Housings achieve an MTBF (mean time between failures) exceeding 15,000 operating hours in standard duty cycles. Under severe mining conditions, the service life still surpasses 8,000 hours before any signs of cracking or distortion appear. By choosing OEM 160102130003A009, fleet operators reduce unplanned downtime and eliminate the risks associated with substandard castings from unknown sources.
