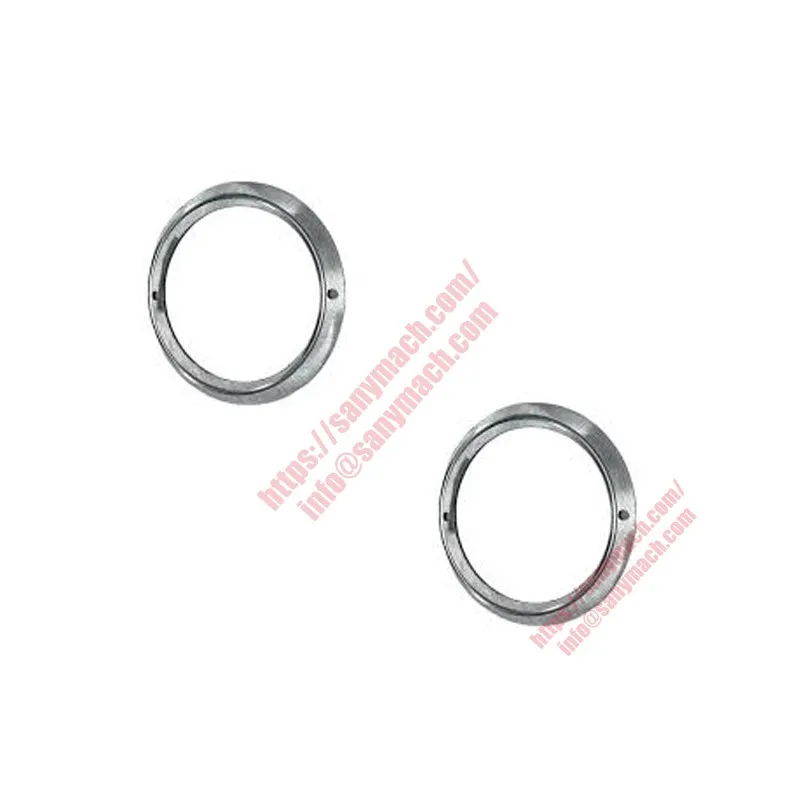

The 160102120008A008 Washer is a precision sealing component within the SANY Engine Block Group. According to the SANY parts catalog, sealing integrity is maintained through multiple washer and seal components. The washer works alongside O‑rings, corehole plugs, and threaded plugs to form a complete sealing system that prevents fluid leaks under extreme pressure conditions. Two washers are required per crankcase assembly.

The 160102120008A008 works with the Hexagon Screw Plug (160102120008A007) to seal threaded access ports. These ports are necessary for the casting and machining processes but must be sealed during engine assembly. The washer deforms under compression, filling microscopic surface irregularities and creating a leak‑proof seal that withstands oil and coolant pressure.

The SANY D12 engine, jointly developed with DEUTZ, has a displacement of 12.12 liters and six cylinders. It delivers 360 kW (490 hp) at 1,900‑2,100 rpm, with a maximum torque of 2,150 Nm. This high‑output engine requires an exceptionally robust sealing system. The 160102120008A008 washer ensures that oil galleries and coolant passages remain leak‑free under peak cylinder pressures.

The D12 engine meets Euro VI emission regulations through its 1,800 bar common‑rail injection system. Its low idle speed of 525 rpm reduces component wear and extends service life. The washer’s sealing integrity prevents cross‑contamination between oil and coolant circuits, which would otherwise lead to sludge formation and bearing failure.

The 160102120008A008 washer is manufactured from high‑quality materials that resist compression set, oil degradation, and temperature extremes. Typically made from copper or annealed aluminum, the washer is designed to deform plastically when torqued. This creates a permanent seal that does not rely on thread sealants. The washer maintains its sealing force through thousands of thermal cycles.

Critical engine areas that depend on sealing washers include the high‑pressure fuel pump mounting, oil cooler bypass valve, thermostat housing, water pump, and fuel filter head. A single failed sealing washer can cause loss of fluid pressure, leading to overheating or oil starvation. In severe cases, a fuel leak can create a fire hazard, and an oil leak on a hot turbocharger can cause engine bay fires.

The D12 engine is widely used in SANY truck mixers, dump trucks, truck‑mounted pumps, excavators, and port machinery. Wherever these engines operate, the reliability of every fluid joint depends on using genuine SANY sealing components. Aftermarket washers may have incorrect hardness, wrong material, or poor dimensional accuracy, leading to immediate or gradual leaks.

Torque control is critical for proper washer performance. When a plug with a sealing washer is tightened, the washer compresses to a specific percentage of its original thickness (10‑30% depending on material). The recommended torque is approximately 25 N·m for an M12 application, as specified in the SANY service manual. After final torque, a correctly installed washer shows slight deformation.

Over‑tightening can crush the washer beyond its elastic limit, causing it to extrude from the joint. Over‑tightening can also distort the mating component and create stress risers. Under‑tightening leaves insufficient compression, resulting in immediate leakage. Using a calibrated torque wrench is mandatory for any bolt or plug that incorporates a sealing washer.

Sealing integrity is maintained through the correct combination of torque, clean surfaces, and the use of a new washer every time the joint is opened. Once a sealing washer has been compressed, it takes a permanent set and should not be reused. Aftermarket washers often lack the precise thickness or hardness required for D12/D09 engines, leading to leaks under pressure.

Why the 160102120008A008 Washer Ensures Leak‑Free Operation

Technical Specifications – Washer 160102120008A008

OEM Number	160102120008A008 (SANY Genuine)
Product Name	Washer (Sealing Washer / Gasket Washer)
Quantity per Crankcase Assembly	2
Material	Copper or annealed aluminum (application dependent)
Inner Diameter (ID)	Matched to M12 Hexagon Screw Plug (approx. 12.5 mm)
Outer Diameter (OD)	Dimensionally matched to engine block counterbore（约 18 mm）
Thickness (uncompressed)	1.5 mm ±0.03 mm
Recommended Compression	10‑30% of original thickness
Temperature Range	-40°C to +150°C
Maximum Pressure Rating	15 bar (static) / 10 bar (dynamic)
Compatible Engines	SANY D12, D09, D06 series
Compatible Equipment	Kingway 435 trucks, SYZ dump trucks, concrete mixers, pumps, excavators, port machinery
Warranty	12 months against manufacturing defects

Installation of the 160102120008A008 washer requires clean mating surfaces. Inspect the washer for any nicks or cracks. Clean the plug flange and engine block sealing surface thoroughly. Position the washer onto the plug shank, ensuring it sits flat. Hand‑start the plug to avoid cross‑threading, then tighten using a calibrated torque wrench to the specification in the SANY service manual (typically 25 N·m for an M12 plug).

After torquing, the washer should show slight deformation visible as a ring around the outer edge. This indicates correct compression. If the washer appears unchanged, insufficient torque was applied. If the washer has flowed out significantly, excessive torque was used; the washer and plug should be replaced. Always use a new washer after any disassembly – a used washer has taken a compression set and will not seal correctly.

Common installation errors include: using the wrong size washer, failing to clean the flange surface, reusing a previously crushed washer, cross‑threading the plug, and over‑tightening. Any of these can cause immediate leakage or premature seal failure. A correctly installed washer will prevent any fluid migration even after many thermal cycles and pressure spikes.

For SANY equipment operating in severe conditions (mining, desert, high altitude), inspect the sealing washers for signs of leakage at every scheduled service (every 1,000‑2,000 hours). If oil or coolant is visible around a plug head, the washer has likely failed and requires replacement. Replacing all sealing washers at major engine overhaul (10,000‑12,000 hours) is a cost‑effective preventive measure.

Applications of Washer 160102120008A008

To verify authenticity, inspect the 160102120008A008 washer for the SANY logo and part number stamped on the face. Genuine SANY washers have uniform thickness and a cleanly cut edge. Aftermarket washers often have rough edges, uneven thickness, or no markings. Always source from authorised SANY distributors to ensure warranty coverage.

When ordering, provide your engine serial number (ESN). The 160102120008A008 is part of the SANY Engine Block Group. Two washers are required per crankcase assembly. Always order the correct quantity to complete your engine overhaul. Consult the SANY parts catalog to confirm the exact application for your engine model.

---
