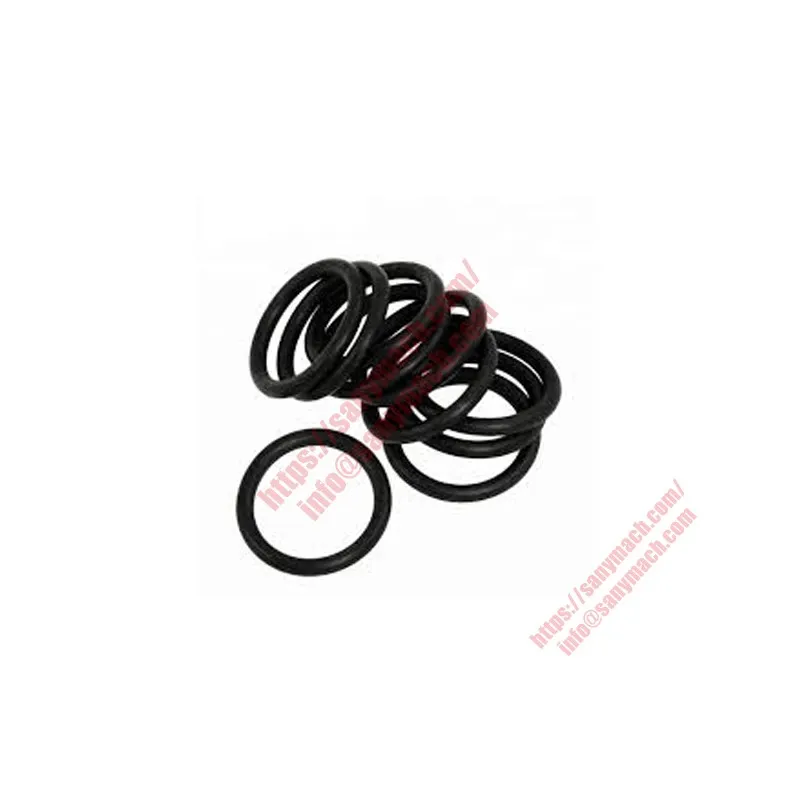

SANY O-ring 160102120008A001 – Genuine Engine Sealing Solution for D12/D09

O-ring

Уплотнительное кольцо

Junta tórica

The 160102120008A001 O-ring is a critical sealing component within the SANY Engine Block Group. According to the SANY Engine Block Group parts catalog, this O‑ring is listed alongside other precision components such as the Pressure and Temperature Sensor, Washer Seal components, Cylinder Liner units, Hexagon Flange Bolts, Assembled Sealing Washers, and dowel pins. Together, these components form the foundational core of SANY’s power generation systems.

The 160102120008A001 O-ring is specifically designed to provide robust sealing integrity for fluid passages within the engine block. High‑quality elastomer compounds ensure resistance against thermal expansion, chemical attack, and compression set. Sealing integrity is maintained through specialized O‑ring fittings that prevent fluid leaks under extreme pressure conditions common in heavy‑duty diesel operations.

The D12 engine, jointly developed by SANY and DEUTZ, features a displacement of 12.12 liters and six cylinders. It delivers 360 kW (490 hp) at speeds from 1,900 to 2,100 rpm. The SANY Engine Block Group integrates advanced monitoring through its Pressure and Temperature Sensor, which provides real‑time data for engine management systems.

When the D12 engine is assembled, interface seals like the 160102120008A001 O-ring are installed to prevent coolant or oil from bypassing critical junctions. If an O‑ring is damaged, missing, or incorrectly seated, fluids will escape from the joint, leading to contamination of the engine bay, loss of lubricant pressure, or overheating of vital components. In severe failure cases, a leaking O‑ring can allow coolant to mix with engine oil, forming a sludge that destroys bearing surfaces.

Engine O‑rings are subject to a harsh operating environment that includes high temperatures, high pressures, oil and fuel mixtures, and chemical corrosion. O‑ring performance must meet stringent technical standards. In terms of materials factors, engine O‑rings typically use fluoro rubber FKM or silicone rubber. Fluoro rubber exhibits excellent high‑temperature resistance, able to withstand sustained temperatures above 200°C and resist erosion from petrol, diesel, and coolant.

Silicone rubber performs excellently in low‑temperature environments. At the interface of the engine cooling system piping, silicone rubber can maintain good elasticity across a temperature range of -60°C to +180°C, ensuring reliable sealing. The 160102120008A001 O-ring incorporates a specially formulated compound that balances heat resistance, chemical compatibility, and compression set resistance.

Pressure‑bearing capacity is a key performance indicator. O‑rings near the engine combustion chamber must withstand instantaneous pressures of up to 10 MPa. This requires precise control of the cross‑link density during the vulcanization molding process, ensuring the O‑ring does not deform excessively or rupture under pressure. At the same time, O‑rings and sealing grooves adopt an interference fit design, with the interference typically set between 10% and 20% of the cross‑sectional diameter.

The highly developed SANY Cooling System represents a comprehensive thermal management solution that maintains optimal operating temperatures across SANY machinery in the most demanding working conditions. At the core of the system is the high‑efficiency radiator, supported by cushions for vibration isolation and protected by heat‑insulation plates. Coolant circulation is managed through precisely engineered pathways, and O‑rings like the 160102120008A001 play a vital role in sealing these pathways to prevent leaks.

Heavy‑duty compressors use the engine’s existing lubrication and cooling systems. The 160102120008A001 O-ring contributes directly to maintaining proper sealing of these critical lubrication and coolant circuits. The group undergoes rigorous testing to ensure leak‑free operation and consistent performance, reflecting SANY’s commitment to advanced sealing solutions for high‑pressure fluid systems in demanding industrial applications.

Why the 160102120008A001 O-ring Delivers Reliable Engine Sealing

Technical Specifications – O-ring 160102120008A001

Installation of the 160102120008A001 O-ring must be performed with care to avoid damaging the sealing surface or the ring itself. Before installation, inspect the O‑ring for any cuts, nicks, or surface irregularities. Clean the gland groove in the engine block or cylinder liner thoroughly, removing any old sealant, debris, or corrosion. Apply a thin film of clean engine oil or SANY‑approved assembly lubricant to the O‑ring surface to help it slide into position without twisting.

When installing the O‑ring, ensure it is not twisted within the groove. A twisted O‑ring creates an uneven sealing surface that will leak under pressure. After placing the O‑ring into its groove, use a blunt plastic or wooden tool to seat it evenly. Metal tools can scratch the gland surfaces and damage the seal. If the O‑ring is being installed between the cylinder liner and the engine block, ensure the liner is carefully lowered without rolling the O‑ring out of its groove.

For the D12 engine in particular, O‑rings are also used in the oil cooler bypass valve assembly. When installing the oil cooler, the inlet and outlet O‑rings must be seated flat and even. The bypass valve O‑rings also require flat seating. After the oil cooler cover bolts are torqued from the center outward, the engine should be pressure‑tested before being returned to service. A common installation error is using a sealant or lubrication that is incompatible with the elastomer, causing the ring to swell. Always consult the SANY service manual for approved assembly lubricants.

For SANY equipment operating in severe conditions such as mining, desert environments, or high‑altitude regions, inspect the O‑ring for hardening, cracking, or flattening at every major service interval. If traces of coolant or oil are visible on the outside of the joint, the O‑ring has likely failed and requires immediate replacement. Replacing the complete set of engine O‑rings at major engine overhaul (10,000‑12,000 hours) is a cost‑effective preventive measure, as aged rubber loses its ability to maintain a tight seal even before visible leakage appears.

Applications of O-ring 160102120008A001

To verify authenticity, inspect the 160102120008A001 O‑ring for the SANY logo and part number molded into the rubber. Genuine SANY O‑rings have a smooth, uniform surface with a consistent Shore A hardness. Aftermarket O‑rings often have rough surface finishes, irregular cross‑sections, or lack any manufacturer marking. Genuine O‑rings also arrive in properly labeled SANY packaging with the part number and description clearly marked. Always source from authorised SANY parts distributors to ensure warranty coverage and long‑term reliability.

When ordering the O‑ring, provide your engine serial number (ESN) and specify which sealing location the ring is intended for. The 160102120008A001 is part of the SANY Engine Block Group and is used as a dedicated sealing element for coolant passage interfaces as well as oil gallery junctions. The D12 engine has been widely applied in SANY truck mixers, dump trucks, and truck‑mounted pumps. All genuine SANY O‑rings are supplied pre‑lubricated with a special assembly lubricant to ease installation. No additional sealants or compounds should be required.
