OEM 160101120009A105 Gasket – Genuine SANY Sealing for Heavy‑Duty Engines

160101120009A105 Gasket: Precision Sealing for SANY Diesel Engines

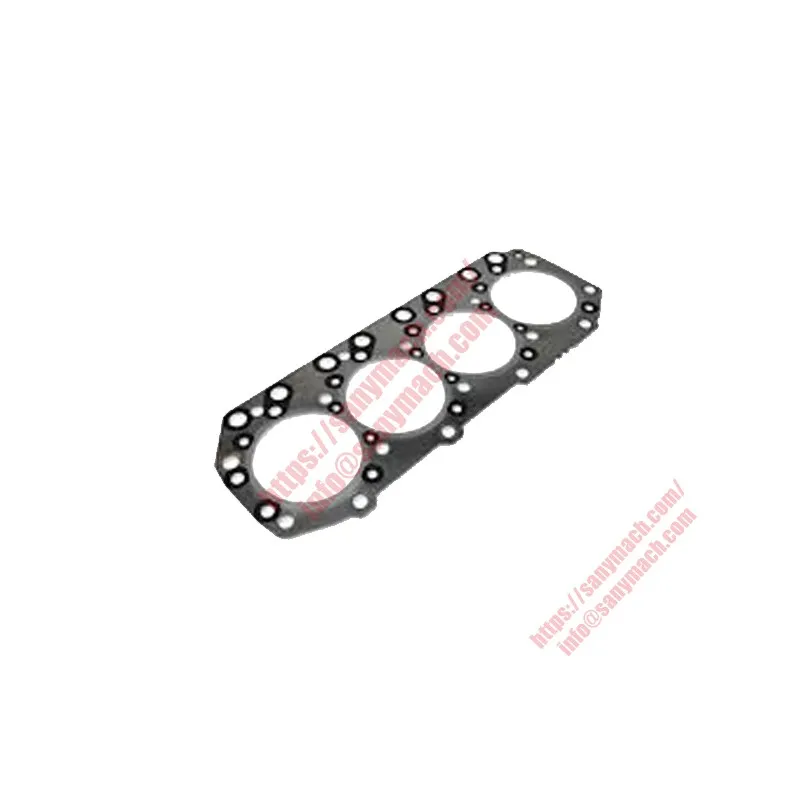

The genuine SANY parts reference 160101120009A105 is a precision‑engineered gasket designed to seal critical mating surfaces in SANY heavy‑duty diesel engines. This gasket prevents the leakage of oil, coolant, and combustion gases, ensuring optimal engine performance and reliability. The 160101120009A105 gasket is manufactured from high‑quality non‑asbestos fiber or multi‑layer steel (MLS) material, delivering exceptional compression recovery, heat resistance, and chemical compatibility under extreme operating conditions.

As a vital sealing component in the SANY engine assembly, the 160101120009A105 gasket is used in applications such as oil pans, timing covers, water pumps, and other flange joints where a leak‑tight seal is mandatory. Its precise geometry matches the original equipment contours, guaranteeing a perfect fit without trimming or modification. Each 160101120009A105 unit is 100% inspected for material hardness, thickness uniformity, and surface finish, guaranteeing reliable sealing performance in SRT dump trucks, SY excavators, SW wheel loaders, and motor graders.

Gasket

Прокладка

Junta

Material and Design of Gasket 160101120009A105

The gasket 160101120009A105 is manufactured from a high‑quality non‑asbestos fiber composite or, for high‑stress applications, multi‑layer steel (MLS) with an elastomer coating. The non‑asbestos material combines aramid fibers with a nitrile rubber binder, offering excellent resistance to oil, coolant, and fuels over a temperature range of -40°C to +150°C. For MLS versions, three or more layers of spring steel are embossed with micro‑sealing beads that compress to form a highly resilient seal under bolt load.

The sealing beads are strategically placed around each port (oil, water, and bolt holes) to concentrate clamping force and compensate for minor surface irregularities. The gasket is die‑cut or precision‑stamped to exacting tolerances, with bolt holes reinforced with metal eyelets where necessary to prevent pull‑through. The surface finish on both sides is smooth to provide a conformable sealing interface without the need for additional sealant in most applications.

All 160101120009A105 gaskets are 100% inspected for thickness uniformity using laser sensors, and for material hardness using a Shore durometer. A sample from each batch is subjected to compression‑recovery testing and fluid immersion tests (engine oil, coolant, diesel fuel) to verify long‑term sealing performance. A batch code is printed on the packaging, providing full traceability to the manufacturing records.

Machine Compatibility & Critical Applications

The gasket 160101120009A105 is used on SANY D09 and D12 series diesel engines powering a wide range of heavy‑duty SANY equipment: SRT dump trucks (SRT45, SRT55, SRT95, SRT115), wheel loaders (SW405, SW435, SW465, SW305), crawler excavators (SY215, SY335, SY395, SY500), and motor graders (SMG200, SMG220). It is also installed on SANY concrete pump trucks, crawler cranes, and heavy forklifts.

Typical applications include sealing the oil pan (oil sump) to the engine block, the timing gear cover, the water pump to the front housing, and various flange connections on the lubrication and cooling systems. The gasket is also used on some models for the intake manifold and exhaust manifold joints where moderate temperatures and pressures are encountered. Its versatility and robust construction make it a trusted sealing solution for SANY original equipment and replacement service.

For complete sealing integrity, the 160101120009A105 gasket must be installed on clean, flat, and undamaged flanges. Always use new gaskets during any engine service – never reuse a compressed gasket. Replace the gasket whenever the associated component (oil pan, cover, etc.) is removed, as the gasket will have taken a compression set and will not seal properly again.

Technical Specifications – Gasket 160101120009A105

Proper Installation of Gasket 160101120009A105

When installing the gasket 160101120009A105, cleanliness is paramount. Remove all old gasket material, sealant residue, and oil from both flanges using a non‑abrasive scraper and a suitable solvent. The flanges must be flat, free of nicks, and within the manufacturer’s warpage specification. Dry the surfaces completely – do not use silicone or other sealants unless specifically directed by the SANY workshop manual.

Position the new gasket onto the locating dowels or align the bolt holes. Install the fasteners and hand‑tighten them. Tighten the bolts in the correct sequence (usually from the center outward) using a calibrated torque wrench to the value specified in the service manual. Do not over‑tighten, as excessive compression can extrude the gasket material or split the flange. After the engine has been run through one heat cycle, re‑torque the bolts if required by the procedure.

Never reuse a gasket 160101120009A105 once it has been compressed. The material will have lost its ability to conform to surface irregularities, leading to immediate leaks. Always store new gaskets in their original packaging away from direct sunlight, ozone, and extreme temperatures.

Symptoms of a Failed Gasket

A failed gasket 160101120009A105 can cause fluid leaks, which may be visible as oil drips under the engine or coolant stains. If the gasket seals an oil passage, the engine may consume oil without visible external leaks, or oil pressure may drop. Coolant leaks can lead to engine overheating and white exhaust smoke.

External leaks can also contaminate the engine compartment, damage electrical components, and pose a fire hazard if oil drips onto hot exhaust surfaces. If the gasket is on a pressurized air system (e.g., intake manifold), a hissing sound may be heard, accompanied by loss of boost pressure and reduced engine power.

Regular inspection of gasket areas during oil changes can detect early signs of weeping. Replace the gasket immediately if any leakage is observed. Ignoring a leaking gasket can lead to more serious engine damage, such as bearing failure from oil loss or cylinder head cracking from coolant loss.

Quality Assurance & Full Traceability

Every gasket 160101120009A105 is manufactured in an IATF 16949 certified facility under SANY’s rigorous quality management system. The production process includes raw material certification, in‑process dimensional checks, and 100% visual inspection for surface defects. Samples from each batch are subjected to compression‑recovery testing, fluid immersion tests, and accelerated aging (125°C for 168 hours).

The gasket’s thickness is measured at multiple points using laser sensors, and the bolt hole alignment is verified with go/no‑go fixtures. A batch code is printed on the packaging, providing full traceability to the compound mix date, cutting parameters, and quality records. For bulk orders, a Certificate of Conformance (CoC) is provided, certifying that the gasket meets all SANY OEM specifications.

Independent third‑party audits ensure continuous compliance with ISO 9001:2015 and IATF 16949 standards.

Field Performance of Genuine SANY Gasket

Field data from SANY equipment operating in Australian iron ore mines and South African quarries shows that genuine 160101120009A105 gaskets maintain a leak‑free seal for the full engine service interval, typically exceeding 15,000 operating hours. Aftermarket gaskets often fail prematurely due to inferior materials (e.g., low‑density fiber), incorrect thickness, or poor compression recovery, leading to oil leaks and unscheduled downtime.

The superior durability of the genuine SANY gasket comes from the premium aramid/NBR compound or MLS steel construction, the precise die‑cut geometry, and the rigorous quality testing. Fleet owners report that standardizing on genuine SANY gaskets reduces fluid leaks by over 90% and eliminates repeated gasket replacement.

To maximize service life, always use new gaskets whenever a joint is opened. Follow the correct torque sequence and values. Avoid using sealants unless specified, as they can cause the gasket to extrude or prevent proper compression. Genuine SANY gaskets deliver the reliability required for the most demanding applications.
