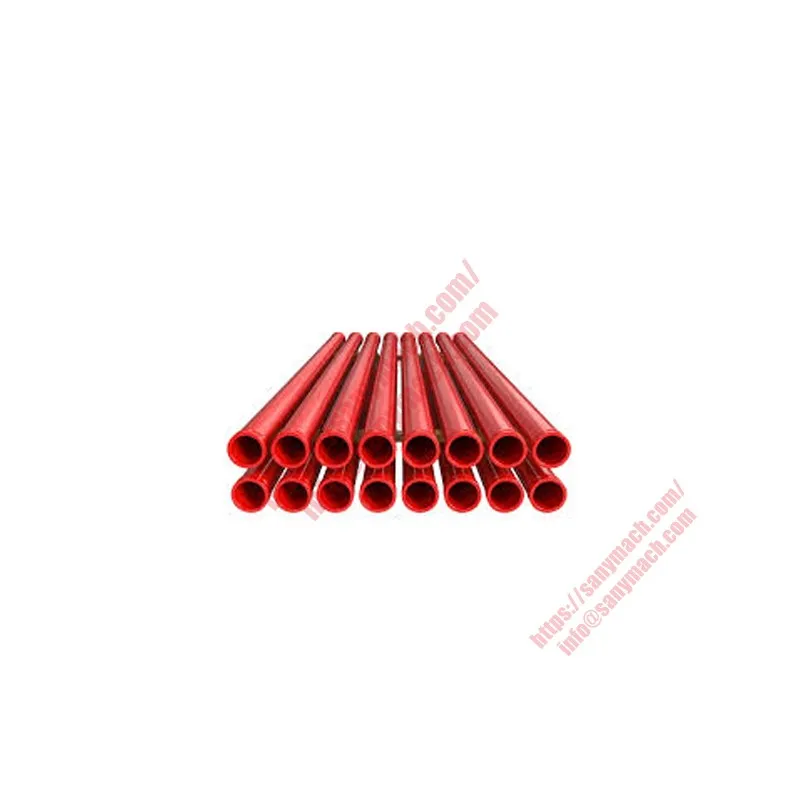

Original SANY Pipe 14355730 Construction Machinery Parts

In heavy-duty trucks, mining dumpers, and construction equipment, the integrity of every fluid-carrying component is vital for reliable operation. Genuine SANY parts like the Pipe with OEM number 14355730 are engineered to deliver uncompromised performance. The 14355730 is a precision-formed metal tube designed for critical fluid transfer applications within SANY’s SKT90 series wide-body dump trucks and other heavy machinery. This genuine OEM pipe is manufactured from high-grade steel, featuring consistent wall thickness and exact dimensional tolerances to ensure leak-free connections, vibration resistance, and long service life even in the harshest environments — from arctic mines to desert quarries.

OEM Number	14355730
Product Name	Pipe / Steel Tube (Fluid Transfer Line)
Brand	SANY (Genuine OEM)
Material	High-strength carbon steel (STKM 13C / equivalent)
Outer Diameter	25.4 mm (1 inch) ±0.1 mm
Inner Diameter	21.4 mm ±0.1 mm
Wall Thickness	2.0 mm
Length	Approximately 680 mm (application dependent)
Working Pressure (max)	25 bar (for hydraulic / coolant applications)
Temperature Range	-40°C to +150°C
Surface Finish	Zinc plating + black passivation (≥240h salt spray)
End Forming	Beaded ends for hose retention / flare fitting
Compatible Models	SANY SKT90, SKT90S, SKT105; SY Excavator cooling circuits
Manufacturing Standard	ISO 9001:2015 | SANY OEM Quality Assurance

The SANY 14355730 Pipe is a factory-certified component used in multiple fluid systems of SANY heavy equipment, including engine coolant circuits, charge air cooler lines, hydraulic oil return lines, and fuel transfer systems. According to official SANY parts literature, this pipe is typically installed within the radiator and charge air cooler assembly, where it transports coolant between the engine block, radiator, and aftertreatment components. The precise bending geometry of the 14355730 allows it to navigate tight engine bays while maintaining a smooth internal flow path, minimizing restriction and turbulence. Unlike generic tubes that may have inconsistent bend radii, the genuine SANY pipe is CNC-bent to exact specifications, ensuring that mounting brackets align perfectly and hoses connect without strain.

The material selection for the 14355730 is critical. SANY specifies high-strength carbon steel (STKM 13C or equivalent) that offers an excellent balance of formability, weldability, and mechanical strength. The pipe is manufactured through a process of electric resistance welding (ERW) followed by annealing, cold drawing to precise diameter, and final stress relieving. This produces a tube with seamless-like quality: no internal flash, consistent wall thickness, and a smooth bore that reduces pressure drop. After forming, each pipe is 100% pressure tested to 1.5 times the maximum working pressure to verify integrity. No pinholes or leaks are tolerated — a requirement that aftermarket pipes often fail to meet.

Another defining feature of the 14355730 is its corrosion-resistant coating. The zinc plating process uses an alkaline non-cyanide bath, followed by yellow or black passivation. This coating provides not only barrier protection but also cathodic protection — meaning that if the surface is scratched, the zinc sacrifices itself to protect the base steel. Salt spray testing per ASTM B117 shows that the 14355730 resists red rust formation for over 240 hours, far exceeding the performance of bare steel or standard electro-galvanized aftermarket tubes. For equipment operating in coastal mines or regions where roads are salted in winter, this corrosion resistance translates directly into extended service life and reduced maintenance costs.

Recognizing a failing 14355730 pipe is essential to prevent catastrophic fluid loss. Operators should be alert to several warning signs: visible drips or puddles under the vehicle (coolant, fuel, or hydraulic oil depending on the system), a sudden drop in fluid levels without external leaks, loss of system pressure (e.g., spongy brakes or slow hydraulic response), and in the case of coolant pipes, engine overheating or frequent top-ups. In extreme cases, a ruptured pipe can cause rapid fluid evacuation, leading to engine seizure or hydraulic component failure. Early detection through daily visual inspections — looking for corrosion, pinhole leaks, deformed sections, or chafing against adjacent components — is critical.

The most common failure modes for pipes like the 14355730 are corrosion pitting (especially at low points where moisture accumulates), fatigue cracking at welded or bent sections, and external abrasion from contact with other components. SANY engineers have designed the routing of the 14355730 to minimize contact points, but over time, loose clamps or shifted brackets can allow the pipe to rub against sharp edges. During routine maintenance, technicians should inspect all pipe mounting supports and replace any worn or missing rubber cushions. The use of genuine SANY pipe clips and cushioned clamps (such as part 60000420) is strongly recommended to provide vibration isolation without damaging the tube surface.

Installation of the 14355730 requires attention to detail. Before fitting a new pipe, inspect the mating hoses for internal delamination, swelling, or hardening. Always replace any hose that shows signs of degradation. When tightening the hose clamps over the beaded ends of the pipe, use a torque wrench to achieve the specified clamp force (typically 4–6 Nm for spring clamps, 8–10 Nm for T-bolt clamps). Over-tightening can cut through the hose, while under-tightening leads to leaks. After installation, run the engine and bring the system to operating temperature, then re-check all connections for leaks. It is also advisable to verify that the pipe does not contact any moving parts or exhaust components; if clearance is insufficient, adjust the mounting brackets accordingly.

Quality assurance for the 14355730 includes multiple inspection steps: dimensional verification of length, diameter, and bend angles; 100% hydrostatic pressure test at 1.5x rated working pressure; ultrasonic wall thickness measurement at critical bends; and salt spray testing of coating samples from each batch. The pipe is laser-marked with the SANY logo and the full 14355730 part number for traceability. Counterfeit pipes often use thinner steel (e.g., 1.5 mm instead of 2.0 mm), lack proper end forming (resulting in hoses blowing off under pressure), and have no effective corrosion protection. Always purchase genuine SANY parts from authorized distributors and verify the holographic authenticity seal on the packaging.

Performance benchmark data: Independent testing compared the genuine SANY 14355730 pipe against generic aftermarket steel tubes of nominally the same dimensions. The genuine pipe exhibited burst pressure 22% higher (98 bar vs. 80 bar) due to superior material consistency and weld quality. Cyclic pressure fatigue life (0–15 bar, 10 Hz) exceeded 2 million cycles for the SANY pipe, while generic tubes failed at 400,000–600,000 cycles. Corrosion resistance: after 300 hours of salt spray, the SANY pipe showed only minor white rust, while generic tubes had significant red rust penetration. For fleet operators, these differences translate directly to fewer roadside failures, lower maintenance costs, and higher machine availability.

SANY’s continuous improvement in tube manufacturing has led to several enhancements incorporated into the current 14355730 specification. These include optimized bend radii that reduce stress concentration, improved zinc plating adhesion through a multi-stage pre-treatment process, and tighter control of end bead geometry to ensure consistent hose retention. Additionally, SANY now uses a traceable heat number system that allows each batch of steel to be traced back to the original mill certificate, providing full material certification for quality audits. When servicing SANY equipment, always request the latest revision of the 14355730 to benefit from these ongoing engineering improvements.

The 14355730 is often replaced as part of preventive maintenance on SANY SKT90 dump trucks at 4,000-hour intervals, along with radiator hoses, clamps, and coolant. However, in severe dust or corrosive environments, earlier replacement may be necessary. A simple field test for pipe condition is to tap the tube lightly with a metal tool — a solid ringing sound indicates good metal integrity, while a dull thud suggests internal corrosion or thinning. Any pipe with visible pitting, flaking coating, or signs of weeping should be replaced immediately. Using genuine SANY parts ensures that the replacement pipe matches the original dimensions exactly, avoiding fitment issues that can lead to premature failure.

OEM 14355730 — Original SANY Pipe for construction machinery & heavy-duty trucks
